Rockford Fosgate HD9813RGU-STAGE2 Source Unit, 4-Speaker and Amplifier Stage 2 Kit for 1998-2013 Harley-Davidson Road Glide Ultra
A complete 4-speaker, 400W Stage 2 audio upgrade kit for 1998-2013 Harley-Davidson Road Glide Ultra (FLTRU) models with Shark Nose fairing, including the PMX-HD9813 digital media receiver, two TMS6RG 6.5 inch fairing speakers, two TMS5 5.25 inch TourPak speakers, a TM400X4ad 400W 4-channel amplifier, and a complete installation kit. No drilling or cutting required. Backed by a 2 year warranty.
Product Overview
The Rockford Fosgate HD9813RGU-STAGE2 is a complete Stage 2 audio upgrade kit designed specifically for 1998-2013 Harley-Davidson Road Glide Ultra (FLTRU) models with Shark Nose fairing. The kit bolts directly to factory attachment points using direct-connect wiring harnesses with no drilling or cutting required.

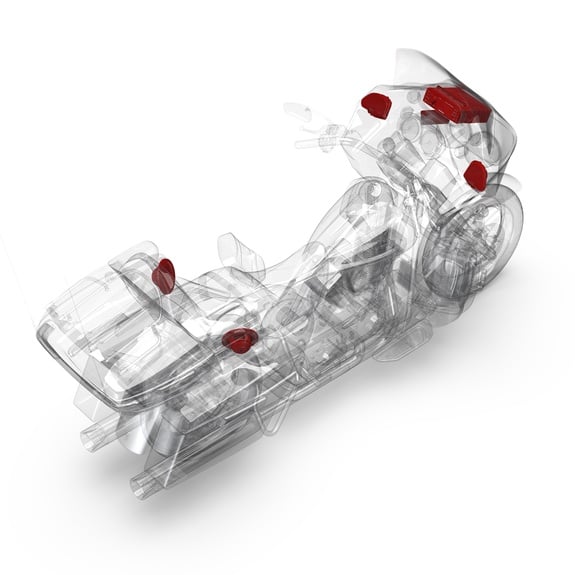

The PMX-HD9813 digital media receiver provides Bluetooth wireless streaming, USB and AUX inputs, Pandora control, AM/FM digital tuner, and SiriusXM-ready connectivity. Two TMS6RG 6.5 inch 2-way Element Ready fairing speakers with phase-aligned 25mm tweeters and Road Glide grilles handle the front stage. Two TMS5 5.25 inch Element Ready full range speakers fill the TourPak positions. The TM400X4ad 400W 4-channel Class-ad amplifier drives 2 channels to the fairing speakers and 2 channels to the TourPak speakers. All speakers are frequency-response tuned to overcome wind, exhaust, and road noise up to 75 MPH. Radio integration supports front/rear fader control. Y-adaptors are included for future expansion to lower fairing, saddlebag, or Tour-Pak positions.
Important: This product has been replaced by HD9813RG-PMX-STG2 + TMS5. This kit is also not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory-equipped satellite radio systems. Please confirm your model's factory configuration before purchasing.
Features & Benefits

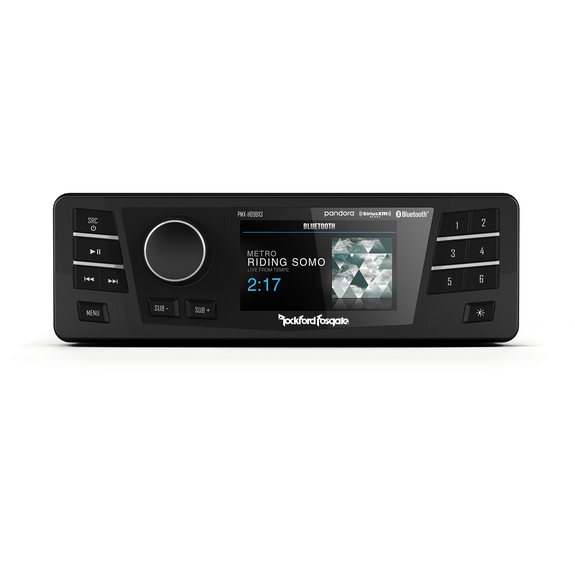

PMX-HD9813 Digital Media Receiver with Full Connectivity: The replacement head unit provides Bluetooth wireless streaming, USB and AUX inputs, Pandora control, AM/FM digital tuner, SiriusXM-ready connectivity, and front/rear fader control for independent volume adjustment across fairing and TourPak positions.

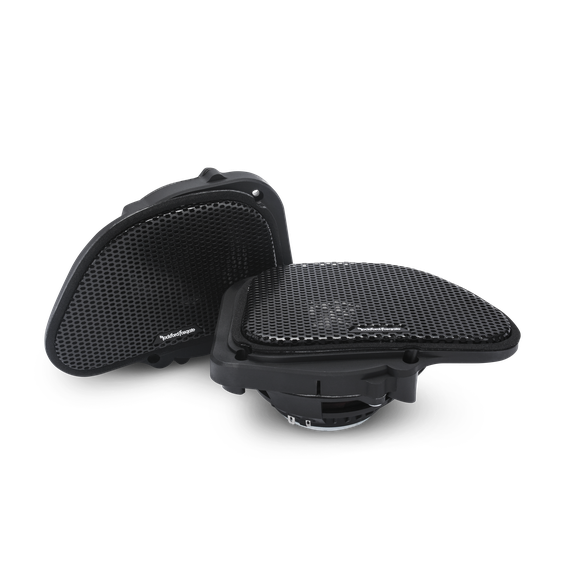

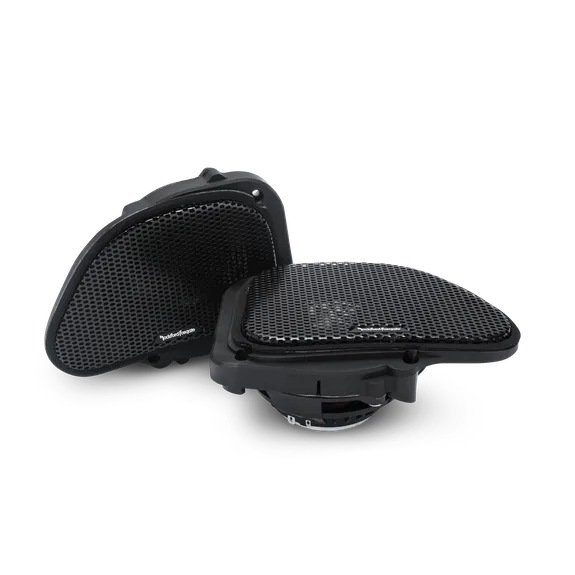

TMS6RG 6.5 Inch 2-Way Fairing Speakers with Road Glide Grilles: Phase-aligned 25mm tweeters with Road Glide-specific grilles for a factory fit and finish in the Shark Nose fairing, tuned to overcome wind, road, and exhaust noise at highway speed.

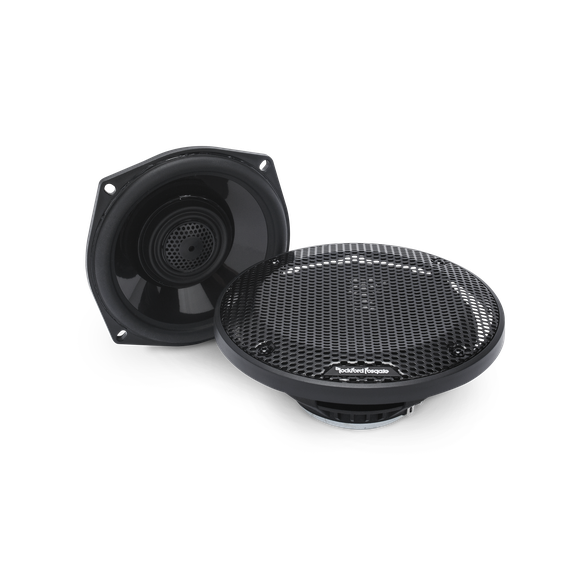

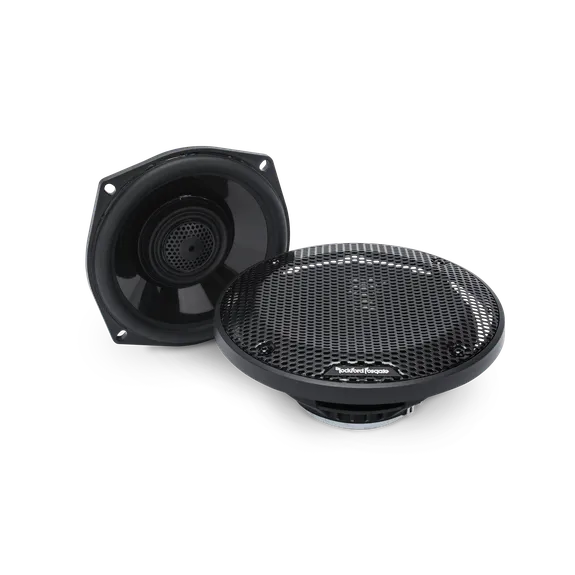

TMS5 5.25 Inch TourPak Speakers: Element Ready full range speakers for the TourPak positions, tuned for on-road performance at highway speeds up to 75 MPH.

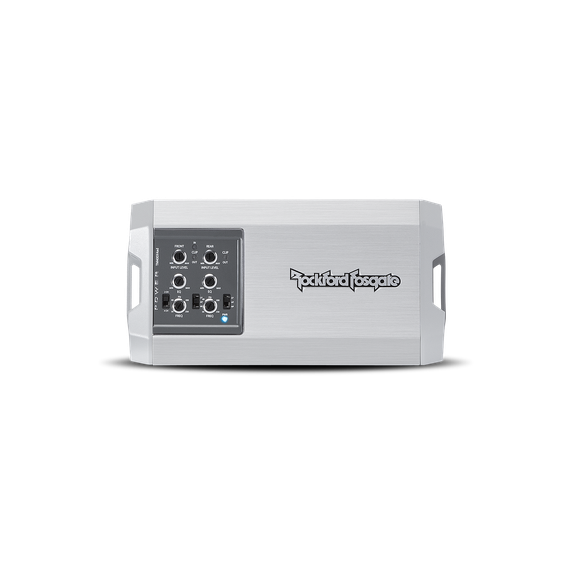

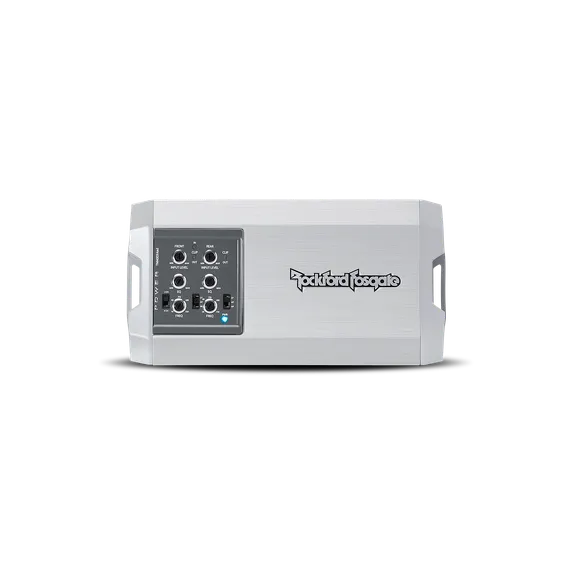

TM400X4ad 400W 4-Channel Class-ad Amplifier: Delivers 2 channels for fairing speakers and 2 channels for TourPak speakers, with external heatsink, mounting brackets, and complete power wiring via the RFK-HD9813 amp mounting kit.
Plug-and-Play - No Drilling or Cutting Required: Bolts directly to factory attachment points using direct-connect wiring harnesses purpose-built for compatible 1998-2013 Road Glide Ultra models.
Element Ready for Motorcycle Environments: All components are built to withstand water, dust, UV, corrosion, vibration, and extreme temperature fluctuations in the motorcycle environment.
Y-Adaptors for Future Expansion: Included Y-adaptors support expansion to lower fairing, saddlebag, or additional Tour-Pak speaker positions.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | HD9813RGU-STAGE2 |
| Brand | Rockford Fosgate |
| Type | Source Unit, 4-Speaker and Amplifier Stage 2 Kit |
| Compatible Models | See compatibility table below |
| Kit Contents | |
| Source Unit | PMX-HD9813 Digital Media Receiver |
| Fairing Speakers | 2x TMS6RG 6.5" 2-Way Element Ready (with Road Glide grilles) |
| TourPak Speakers | 2x TMS5 5.25" Full Range Element Ready (with 1998-2013 TourPak grilles) |
| Amplifier | TM400X4ad 400W 4-Channel Class-ad |

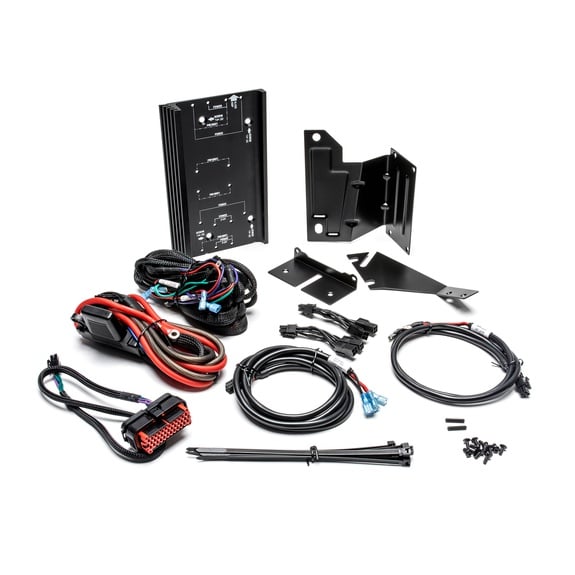

| Amp Install Kit | RFK-HD9813 (external heatsink, brackets, wiring, hardware) |
| Performance | |
| Total Amplifier Power | 400W |
| Amplifier Channels | 4 (2CH fairing + 2CH TourPak) |
| Fairing Speaker Size | 6.5 inch |
| TourPak Speaker Size | 5.25 inch |
| Highway Tuned | Up to 75 MPH |
| Source Unit | |
| Bluetooth | Yes - wireless audio streaming |
| USB | Yes |
| AUX Input | Yes |
| Pandora | Yes |
| Tuner | AM/FM digital |
| SiriusXM | Ready (module sold separately) |
| Fader Control | Front/rear |
| Installation | |
| Drilling Required | No |
| Cutting Required | No |
| Mounting | Factory attachment points |
| Wiring | Direct-connect harnesses for Harley-Davidson models |
| Expansion | Y-adaptors included |
| Environmental | |
| Element Ready | Yes - water, dust, UV, vibration, thermal shock, corrosion |
| Certifications | CEA-2006 (amplifier), CEA-2031 (speakers) |
| Warranty | 2 Years |

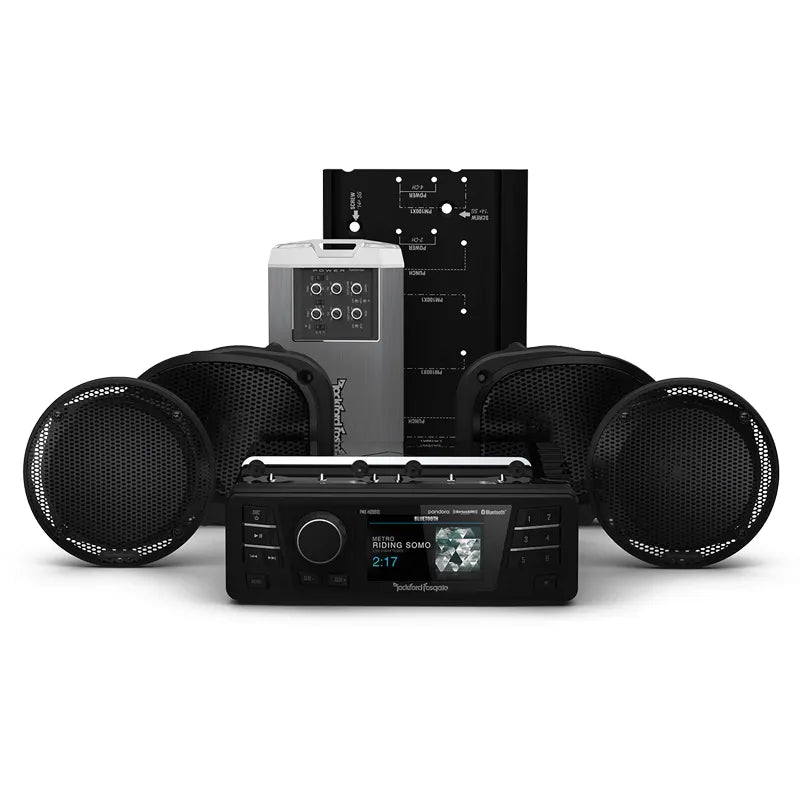

What's in the Box
- 1x PMX-HD9813 Source Unit
- 2x TMS6RG 6.5" Fairing Speakers
- 2x 1998-2013 Road Glide Grilles
- 2x TMS5 5.25" TourPak Speakers
- 2x 1998-2013 TourPak Grilles
- 1x TM400X4ad 400W 4-Channel Amplifier
- 1x RFK-HD9813 Amp Mounting Kit
- 1x Wiring Harness Kit
- 1x Hardware Pack
Compatible With
| Year Range | Make | Model | Chassis | Fairing |
|---|---|---|---|---|
| 1998-2013 | Harley-Davidson | Road Glide Ultra | FLTRU | Shark Nose |
Not compatible with: factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory-equipped satellite radio systems.
Please confirm your model and factory configuration before purchasing.
Frequently Asked Questions
Is the HD9813RGU-STAGE2 still available or has it been replaced?
This product has been replaced by the HD9813RG-PMX-STG2 + TMS5 combination. Please contact us for current product availability and the equivalent replacement configuration.
What is the difference between Stage 2 and Stage 3 for the Road Glide Ultra?
The Stage 2 kit covers fairing and TourPak speaker positions with 4 speakers and 400W. The Stage 3 kit (HD9813RGU-STAGE3) adds a 6x9 inch saddlebag retrofit speaker kit for full 6-speaker coverage across fairing, TourPak, and saddlebag positions. If complete on-bike audio coverage including saddlebag is required, Stage 3 is recommended.
Is this kit compatible with factory amplified Road Glide Ultra models?
No. The HD9813RGU-STAGE2 is not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory-equipped satellite radio systems. Please confirm your model's factory audio configuration before purchasing.
Does the kit include SiriusXM satellite radio?
No. The PMX-HD9813 source unit is SiriusXM-ready but the tuner module is sold separately and is required for satellite radio reception.
Is the HD9813RGU-STAGE2 compatible with Road Glide models other than the Ultra?
The HD9813RGU-STAGE2 is confirmed compatible with the Road Glide Ultra (FLTRU) 1998-2013 only. For other Road Glide variants, please contact us to confirm the correct kit for your model.
