Rockford Fosgate HD9813RGU-STAGE1 Source Unit and 4-Speaker Stage 1 Kit for 1998-2013 Harley-Davidson Road Glide Ultra

Rockford Fosgate HD9813RGU-STAGE1 Source Unit and 4-Speaker Stage 1 Kit for 1998-2013 Harley-Davidson Road Glide Ultra

A complete 4-speaker, 50W Stage 1 audio upgrade kit for 1998-2013 Harley-Davidson Road Glide Ultra (FLTRU) models with Shark Nose fairing, including the PMX-HD9813 digital media receiver, two TMS6RG 6.5 inch fairing speakers, and two TMS5 5.25 inch TourPak speakers. Uses the existing factory system for power and speaker wiring - no external amplifier required. No drilling or cutting required. Backed by a 2 year warranty.

Product Overview

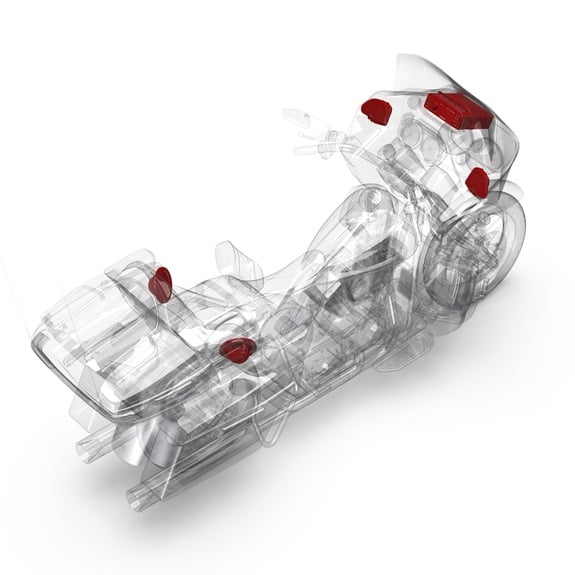

The Rockford Fosgate HD9813RGU-STAGE1 is a complete Stage 1 audio upgrade kit designed specifically for 1998-2013 Harley-Davidson Road Glide Ultra (FLTRU) models with Shark Nose fairing. The kit bolts directly to factory attachment points using direct-connect wiring harnesses with no drilling or cutting required. This kit utilises the existing factory system for power and speaker wiring - no external amplifier or separate amp installation kit is required.

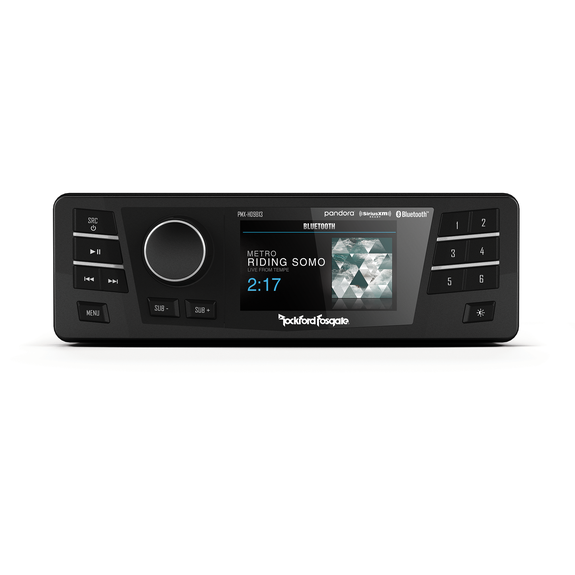

The PMX-HD9813 digital media receiver provides Bluetooth wireless streaming, USB and AUX inputs, Pandora control, AM/FM digital tuner, and SiriusXM-ready connectivity. The built-in 50W internal amplifier drives both the fairing and TourPak speaker pairs. Two TMS6RG 6.5 inch 2-way Element Ready fairing speakers with phase-aligned 25mm tweeters and Road Glide grilles handle the front stage. Two TMS5 5.25 inch Element Ready full range speakers fill the TourPak positions. Both speaker pairs are frequency-response tuned to overcome wind, exhaust, and road noise up to 75 MPH. Radio integration supports front/rear fader control.

Important: This product has been replaced by PMX-HD9813 + TMS6RG + TMS5. This kit is also not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory-equipped satellite radio systems. Please confirm your model's factory configuration before purchasing.

Features & Benefits

PMX-HD9813 Digital Media Receiver with Built-In 50W Amplifier: The replacement head unit features Bluetooth wireless streaming, USB and AUX inputs, Pandora control, AM/FM digital tuner, SiriusXM-ready connectivity, and a built-in 50W internal amplifier that drives all four speakers - no external amplifier required.

Uses Existing Factory Power and Speaker Wiring: The Stage 1 kit integrates directly into the existing factory wiring system, making it the simplest and most space-efficient upgrade path with no new power wiring required.

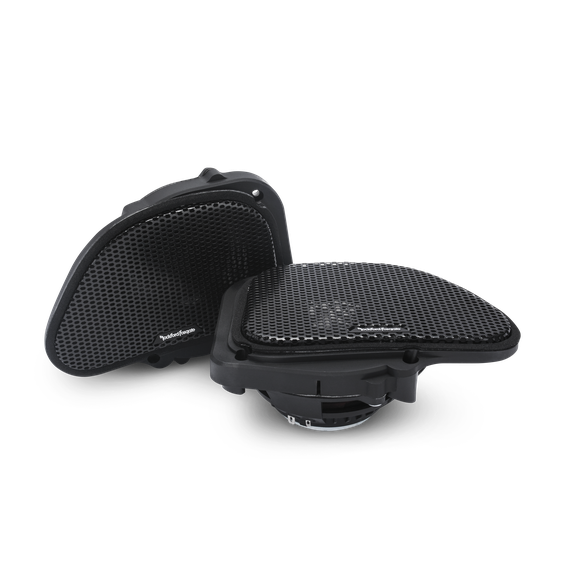

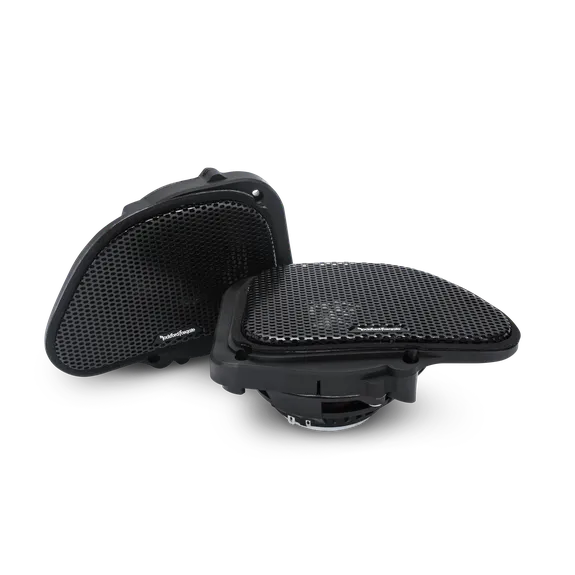

TMS6RG 6.5 Inch 2-Way Fairing Speakers with Road Glide Grilles: Phase-aligned 25mm tweeters with Road Glide-specific grilles for a factory fit and finish in the Shark Nose fairing, tuned to overcome wind, road, and exhaust noise at highway speed.

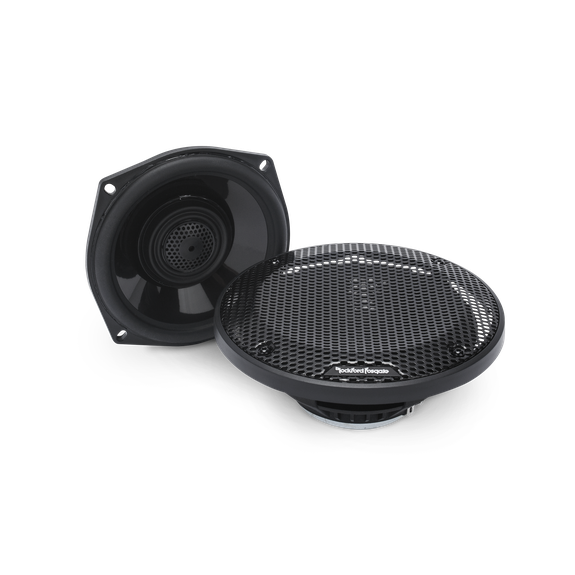

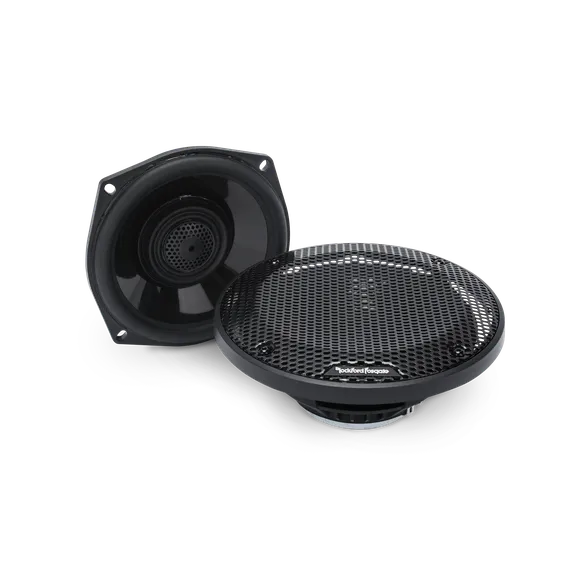

TMS5 5.25 Inch TourPak Speakers: Element Ready full range speakers for the TourPak positions, tuned for on-road performance at highway speeds up to 75 MPH.

Plug-and-Play - No Drilling or Cutting Required: Bolts to factory attachment points using direct-connect wiring harnesses purpose-built for compatible 1998-2013 Road Glide Ultra models.

Element Ready for Motorcycle Environments: All components are built to withstand water, dust, UV, corrosion, vibration, and extreme temperature fluctuations in the motorcycle environment.

Front/Rear Fader Control: Radio integration supports front/rear fader control for independent volume adjustment of the fairing and TourPak speaker pairs.

Technical Specs

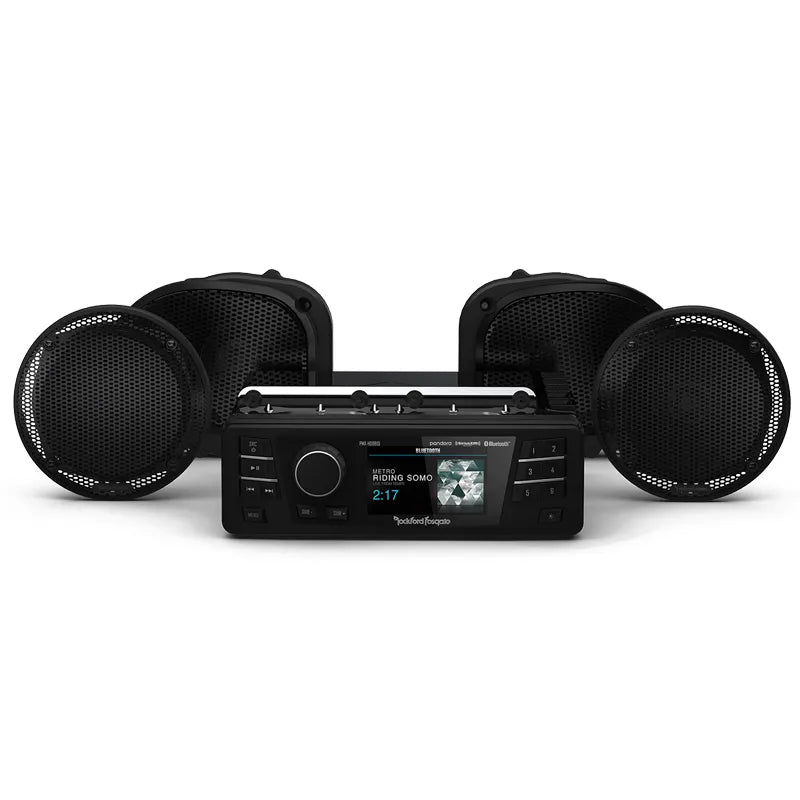

What's in the Box

• 1x PMX-HD9813 Source Unit
• 2x TMS6RG 6.5" Fairing Speakers
• 2x 1998-2013 Road Glide Grilles
• 2x TMS5 5.25" TourPak Speakers
• 2x 1998-2013 TourPak Grilles
• 1x Hardware Pack

Compatible With

Not compatible with: factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory-equipped satellite radio systems.

Please confirm your model and factory configuration before purchasing.

Frequently Asked Questions

Is the HD9813RGU-STAGE1 still available or has it been replaced?

This product has been replaced by the PMX-HD9813 + TMS6RG + TMS5 combination. Please contact us for current product availability and the equivalent replacement configuration.

What is the difference between Stage 1 and Stage 2 for the Road Glide Ultra?

The Stage 1 kit uses the built-in 50W amplifier inside the PMX-HD9813 source unit and the existing factory wiring - no external amplifier is included. The Stage 2 kit (HD9813RGU-STAGE2) adds an external TM400X4ad 400W 4-channel amplifier and amp installation kit for significantly more output power at highway speed. Stage 1 is the simpler, space-saving upgrade; Stage 2 is recommended for riders wanting higher output.

Does the HD9813RGU-STAGE1 require an external amplifier?

No. The Stage 1 kit is powered entirely by the built-in 50W internal amplifier inside the PMX-HD9813 source unit. The existing factory power and speaker wiring is used, so no separate amplifier or power wiring installation is required.

Is this kit compatible with factory amplified Road Glide Ultra models?

No. The HD9813RGU-STAGE1 is not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory-equipped satellite radio systems. Please confirm your model's factory audio configuration before purchasing.

Does the kit include SiriusXM satellite radio?

No. The PMX-HD9813 source unit is SiriusXM-ready but the tuner module is sold separately and is required for satellite radio reception.
