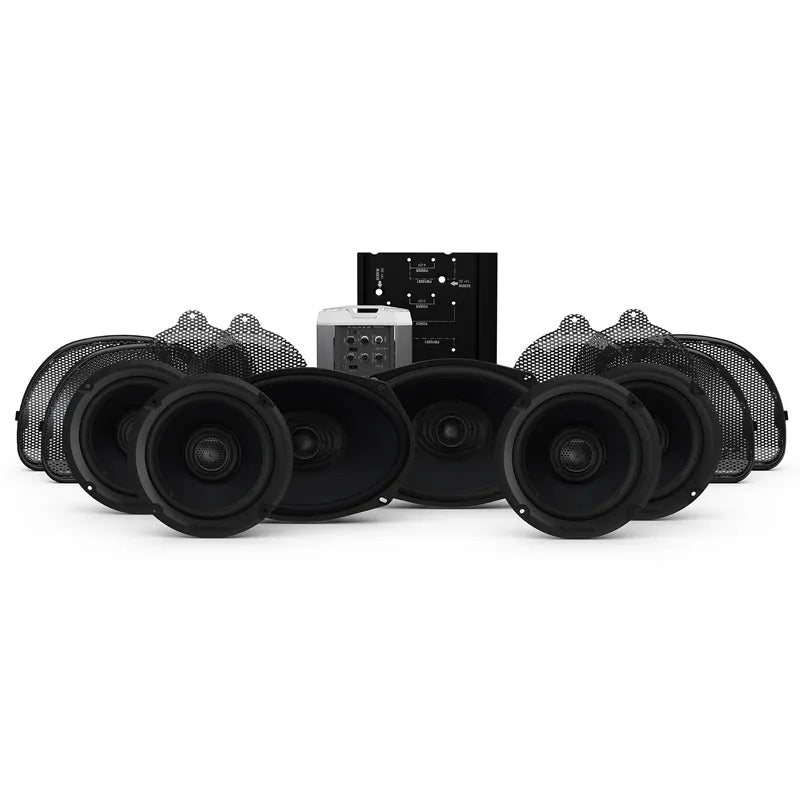

Rockford Fosgate HD14CVO-STAGE3 2014+ Harley-Davidson® Road Glide® CVO® & Street Glide® CVO 6 Speaker & Amp Kit (Gen-2)
Click to open expanded view
ROCKFORD FOSGATE logo

Out of stock

Rockford Fosgate HD14CVO-STAGE3 2014+ Harley-Davidson® Road Glide® CVO® & Street Glide® CVO 6 Speaker & Amp Kit (Gen-2)

SKU: HD14CVOSTAGE3
Regular price
$3,969
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Rockford Fosgate HD14CVO-STAGE2 4-Speaker and Amplifier Stage 2 Kit for 2014+ Harley-Davidson CVO Road Glide and CVO Street Glide

A complete 4-speaker, 400W Stage 2 audio upgrade kit for select 2014+ Harley-Davidson CVO Road Glide and CVO Street Glide models, including two TMS65 6.5 inch 2-way Element Ready fairing speakers, two TMS57 5x7 inch 2-way Element Ready saddlebag lid speakers, the TM400X4ad 400W 4-channel amplifier, and the RFK-HD14 amp installation kit. Factory Harley-Davidson Boom Box radio flash required. No drilling or cutting required. Backed by a 2 year warranty.

Product Overview

The Rockford Fosgate HD14CVO-STAGE2 is a 4-speaker, 400W Stage 2 speaker and amplifier upgrade kit purpose-built for select 2014+ Harley-Davidson CVO Road Glide (FLTRXSE, 2018-2020) and CVO Street Glide (FLHXSE, 2015-2020) models. The kit bolts directly to factory attachment points using direct-connect wiring harnesses with no drilling or cutting required.

Two TMS65 6.5 inch 2-way Element Ready fairing speakers with integrated phase-aligned 25mm tweeters handle the front stage, while two TMS57 5x7 inch 2-way Element Ready saddlebag lid speakers cover the rear. All four speakers are frequency-response tuned to overcome wind, exhaust, and road noise at highway speeds up to 75 MPH. The TM400X4ad 400W 4-channel Class-ad amplifier dedicates 2 channels to the fairing speakers and 2 channels to the saddlebag lid speakers. The included T-harness integrates into the factory electrical system for front and rear fading capability and features a loop-thru for an optional DSR1 digital signal processor (sold separately). Factory amplifier bypass plugs are supplied.

Important - Radio Flash Required: The factory Harley-Davidson Boom Box 4.3, 6.5GT, and GTS infotainment systems must be flashed with the "Rockford Fosgate 2014+ All Bikes" flash before this kit can be used. Front and rear fader control also requires this flash. Contact an authorised Rockford Fosgate flash dealer before purchasing if your radio has not been flashed. Please also note this product has been replaced by the HD14CVO-STG2.

Features & Benefits

TMS65 6.5 Inch 2-Way Element Ready Fairing Speakers - Highway Tuned: The TMS65 fairing speakers feature integrated phase-aligned 25mm tweeters, frequency-response tuned to overcome wind, road, and exhaust noise at highway speeds up to 75 MPH.

TMS57 5x7 Inch 2-Way Element Ready Saddlebag Lid Speakers: The TMS57 factory-replacement saddlebag speakers feature integrated phase-aligned 25mm tweeters, purpose-built for CVO models with ABS plastic saddlebag lids, tuned to deliver clear rear-stage performance at highway speeds.

TM400X4ad 400W 4-Channel Class-ad Amplifier: The TM400X4ad delivers CEA-2006 certified real power ratings across 4 channels - 2 dedicated to the fairing speakers and 2 dedicated to the saddlebag lid speakers - for full front and rear stage amplification.

T-Harness with Front and Rear Fader Support: The included T-harness integrates directly into the factory electrical system, enabling front and rear fader control through the factory Harley-Davidson radio once flashed with the Rockford Fosgate flash. A DSR1 loop-thru is included for future signal processing expansion.

Plug-and-Play - No Drilling or Cutting Required: The kit uses direct-connect wiring harnesses and bolts to existing factory attachment points. Factory amplifier bypass plugs are supplied to complete the plug-and-play integration.

Element Ready Construction Throughout: All speakers and the amplifier are built to withstand dust, UV radiation, temperature extremes, water, corrosion, and motorcycle vibration, with CEA-2031 certified speaker power handling throughout.

Technical Specs

Specification Detail
SKU HD14CVO-STAGE2
Speaker Quantity 4
Amplifier Type External
Total System Power 400W
Fairing Speakers TMS65 6.5 inch 2-Way Element Ready (x2)
Saddlebag Speakers TMS57 5x7 inch 2-Way Element Ready (x2)
Speaker Tweeter 25mm Phase-Aligned Integrated
Amplifier TM400X4ad 400W 4-Channel Class-ad
Amplifier Channel Split 2 channels fairing / 2 channels saddlebags
Amp Install Kit RFK-HD14
T-Harness Included (front/rear fader + DSR1 loop-thru)
Y-Adaptors Included (x2)
Factory Amp Bypass Plugs Included (x5)
Grille / Trim Ring Included
Mounting Hardware Included
Amplifier Power Certification CEA-2006
Speaker Power Certification CEA-2031
Radio Flash Required Yes - "Rockford Fosgate 2014+ All Bikes"
Shipping Weight 6.96kg
Warranty 2 Years

Compatible With / Goes Well With

This kit is purpose-built for the following Harley-Davidson CVO models. Factory radio flash is required on all compatible models before use.

Year Make Model Chassis Fairing
2018-2020 Harley-Davidson CVO Road Glide (4-speaker) FLTRXSE Shark Nose
2015-2020 Harley-Davidson CVO Street Glide (4-speaker) FLHXSE Bat Wing

Compatibility Notes:

  • Factory Harley-Davidson Boom Box 4.3, 6.5GT, or GTS radio must be flashed with "Rockford Fosgate 2014+ All Bikes" before use. Front and rear fader control also requires this flash.
  • For 2018-2020 CVO Street Glide (FLHXSE) requiring 6-speaker coverage including lower fairing speakers, refer to the HD14CVO-STAGE3.

Please confirm your model and factory configuration before purchasing.

Goes Well With:

  • DSR1 - Rockford Fosgate Digital Signal Processor, compatible via the included T-harness DSR1 loop-thru for advanced audio tuning and signal correction
  • TMS65 - Additional 6.5 inch Element Ready speakers if lower fairing expansion is required, as used in the HD14CVO-STAGE3
  • HD14CVO-STG2 - Current replacement product for this kit

Frequently Asked Questions

Does the HD14CVO-STAGE2 require a factory radio flash?

Yes. The factory Harley-Davidson Boom Box 4.3, 6.5GT, and GTS infotainment systems must be flashed with the "Rockford Fosgate 2014+ All Bikes" flash before this kit can be used. Front and rear fader control via the T-harness also requires this flash. Contact an authorised Rockford Fosgate flash dealer before purchasing to confirm your radio has been flashed.

What is the difference between the HD14CVO-STAGE2 and the HD14CVO-STAGE3?

The Stage 2 kit includes two TMS65 6.5 inch fairing speakers and two TMS57 5x7 inch saddlebag speakers, covering the front fairing and rear saddlebag positions. The Stage 3 kit adds two additional TMS65 speakers for the lower fairing positions, bringing total speaker count to six and adding lower fairing coverage for compatible non-water-cooled 2018-2020 CVO Street Glide models. Choose Stage 2 for fairing and saddlebag coverage; choose Stage 3 if lower fairing speakers are also required.

Which CVO models is this kit compatible with?

This kit is compatible with 2018-2020 Harley-Davidson CVO Road Glide (FLTRXSE) and 2015-2020 CVO Street Glide (FLHXSE) models only. It is not a universal 2014+ CVO kit and compatibility is limited to these specific model years and variants. Verify your model against the compatibility chart before purchasing.

Does this kit include a source unit or head unit replacement?

No. The HD14CVO-STAGE2 is a speaker and amplifier upgrade kit only. It is designed to integrate with the factory Harley-Davidson Boom Box infotainment system (once flashed) and does not include a replacement source unit.

Is this kit still available or has it been replaced?

This product has been replaced by the HD14CVO-STG2. Please contact us for current product availability and equivalent replacement options.
