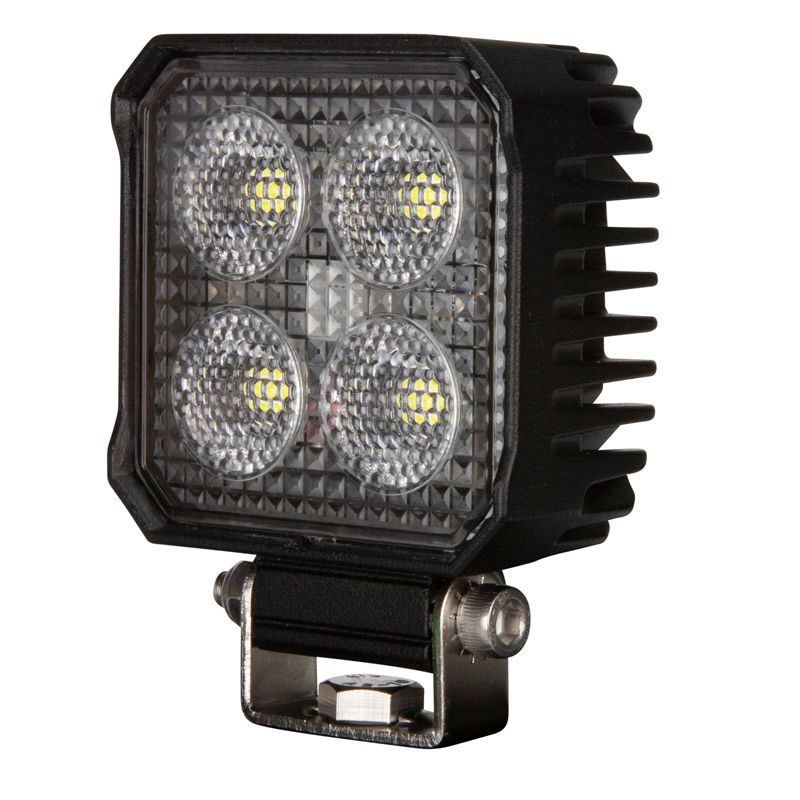

Roadvision RWL9424SF 94 Series LED Work Light 32W Flood Square
Roadvision RWL9424SF 94 Series LED Work Light 32W Flood Square
Roadvision RWL9424SF 94 Series LED Work Light 32W Flood Square
Roadvision RWL9424SF 94 Series LED Work Light 32W Flood Square
Click to open expanded view

Roadvision RWL9424SF 94 Series LED Work Light 32W Flood Square

SKU: RWL9424SF
Price
$59
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RWL9424SF 94 Series LED Work Light 32W Flood Beam Square

A compact square 32W flood beam LED work light from the Roadvision RWL94 Series, the RWL9424SF delivers 2200 lumens from 4 Osram LEDs in a die-cast aluminium housing with polycarbonate lens, featuring Thermal Management Technology, 10-30V DC multi-volt input, 2-pin Deutsch plug, and CTA reverse function approval (CTA-062220), backed by a 5-year warranty.

Product Overview

The Roadvision RWL9424SF is a square flood beam LED work light from the RWL94 Series, designed for demanding work lighting applications where compact form factor and reliable high-output performance are required. Four Osram LEDs produce 2200 lumens of super-white flood beam output in a 95 x 71 x 41mm die-cast aluminium housing with polycarbonate lens. Roadvision's Thermal Management Technology actively adjusts to the environmental temperature to balance optimal performance and prevent overheating, ensuring consistent output across a wide range of operating conditions. Multi-volt 10-30V DC input at 1.8A at 13.8V is compatible with 12V and 24V systems. Over/under voltage and reverse polarity protection alongside EMI/EMC radio interference approval. Simple 2-wire installation via 2-pin Deutsch plug. CTA approved for reverse function use (CTA-062220). Backed by a 5-year warranty.

Features & Benefits

2200 Lumens Flood Beam Output: The RWL9424SF delivers 2200 lumens of broad flood beam illumination suited to reversing, work area, and task lighting applications on vehicles and equipment.

4 Osram LEDs - Super White Output: Four Osram LEDs produce a super-white output close to daylight colour temperature for accurate colour rendering and clear visibility during work operations.

Thermal Management Technology: Roadvision's Thermal Management Technology actively monitors and adjusts to the environmental temperature, balancing optimal LED output with overheating prevention for consistent performance and long-term reliability in varying ambient conditions.

Compact Square 95 x 71 x 41mm Design: The compact square form factor is suited to installations where space is limited, including reverse lamp positions, toolboxes, service bodies, and bumper bar mounting locations.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and effective heat dissipation, while the polycarbonate lens resists impact and UV degradation in demanding outdoor environments.

50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated lifespan with maintenance-free solid-state technology provides long-term reliability in continuous work lighting and reversing applications.

Multi-Volt 10-30V DC with Low Current Draw: The 10-30V DC multi-volt input at 1.8A at 13.8V is compatible with both 12V and 24V vehicle and equipment electrical systems.

Over/Under Voltage and Reverse Polarity Protection: Electronic protection safeguards the LED driver from voltage fluctuations and wiring errors.

EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication and electronic systems without interference.

CTA Reverse Function Approval (CTA-062220): The RWL9424SF holds CTA approval for reverse function use (CTA-062220), confirming suitability for use as a reverse lamp on vehicles and trailers.

2-Pin Deutsch Plug for Simple 2-Wire Installation: Secure, weatherproof, and vibration-resistant 2-wire connection.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL9424SF
Brand Roadvision
Series RWL94
Description 94 Series LED Work Lamp 32W Flood - Square
Beam Type Flood Beam
Maximum Lumens 2200lm
Maximum Watts 25W
LED Quantity 4 Osram LEDs
Input Voltage 10-30V DC
Current Draw 1.8A at 13.8V

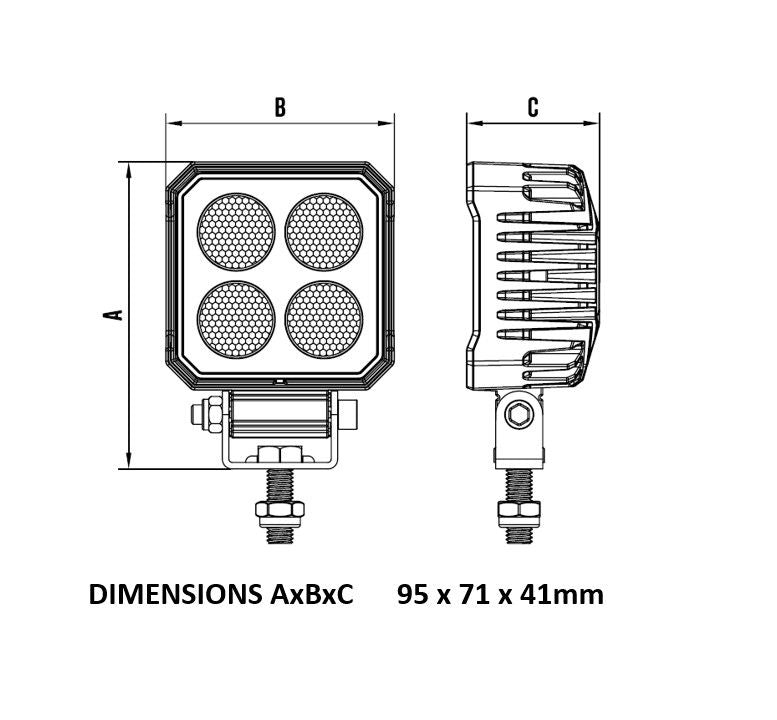

Dimensions 95mm x 71mm x 41mm
Shape Square
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring 2-Pin Deutsch Plug
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
CTA Approval Reverse Function - CTA-062220
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL9424SF is compatible with 10-30V DC vehicle and equipment electrical systems including 12V and 24V platforms. CTA approved for reverse function applications. The 2-pin Deutsch plug provides a secure weatherproof 2-wire connection. A round version with identical specifications is available as the RWL9424RF.

Frequently Asked Questions

Is the RWL9424SF approved for use as a reverse lamp?

Yes. The RWL9424SF holds CTA approval for reverse function use (CTA-062220), confirming suitability for use as a reverse lamp on vehicles and trailers.

What is Thermal Management Technology on the RWL9424SF?

Roadvision's Thermal Management Technology actively monitors and adjusts to the ambient temperature during operation, balancing optimal LED output with overheating prevention. This ensures consistent light output and long-term reliability across varying operating conditions and ambient temperatures.

Is the RWL9424SF compatible with 24V vehicles?

Yes. The RWL9424SF operates across 10-30V DC, making it compatible with both 12V and 24V vehicle and equipment electrical systems.

What is the difference between the RWL9424SF and the RWL9424RF?

Both are identical in LED configuration, output, beam pattern, electrical specifications, and approval ratings. The RWL9424SF is square and measures 95 x 71 x 41mm. The RWL9424RF is round and measures 98 x 75 x 41mm. Choose based on the mounting location and aesthetic preference for your specific installation.

What is the rated LED lifespan of the RWL9424SF?

The RWL9424SF has a rated LED lifespan of 50,000 hours with maintenance-free solid-state technology.
