Roadvision RWL7470C Stealth LED Work Light 70W Combo Beam 3445lm
Roadvision RWL7470C Stealth LED Work Light 70W Combo Beam 3445lm
Roadvision RWL7470C Stealth LED Work Light 70W Combo Beam 3445lm
Click to open expanded view

Roadvision RWL7470C Stealth LED Work Light 70W Combo Beam 3445lm

SKU: RWL7470C
Price
$139
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RWL7470C Stealth LED Work Light 70W Combination Beam 3445lm

A 70W combination beam LED work light from the Roadvision RWL74 Stealth Series, the RWL7470C delivers 3445 lumens from 4 x 10W spot LEDs and 6 x 5W flood LEDs, with a beam reach of 257 metres at 1 lux and 663 lux at 10 metres, a 115-degree spread beam, die-cast aluminium housing, polycarbonate lens, 10-30V DC multi-volt input, and 2-pin Deutsch plug, backed by a 5-year warranty.

Product Overview

The Roadvision RWL7470C is a square combination beam LED work light from the RWL74 Stealth Series, designed to deliver the best of both worlds by combining long-range spot beam performance with a broad flood spread beam in a single compact unit. Four 10W Osram LEDs provide long-range spot output reaching 257 metres at 1 lux, while six additional 5W Osram LEDs deliver a 115-degree spread flood beam for broad area coverage. Together the 10 LED array produces 3445 lumens at 70W. The bezel-less polycarbonate lens and die-cast aluminium housing at 97 x 77 x 75mm provide a modern, low-profile appearance with durable construction. Thermal Management Technology ensures consistent output and long-term reliability. Multi-volt 10-30V DC at 2.9-5A at 13.8V with over/under voltage and reverse polarity protection. EMI/EMC radio interference approved. Simple 2-wire installation via 2-pin Deutsch plug. 50,000 hour LED lifespan. Backed by a 5-year warranty.

Features & Benefits

Combination Beam - 4 x 10W Spot and 6 x 5W Flood LEDs: The RWL7470C combines 4 x 10W long-range spot LEDs with 6 x 5W flood LEDs in a single unit, providing both 257 metres of beam penetration at 1 lux and a 115-degree spread beam for broad area work lighting coverage simultaneously.

3445 Lumens at 70W: The combined 10-LED array delivers 3445 lumens at 70W for strong work lighting output in a compact 97 x 77 x 75mm form factor.

663 Lux at 10 Metres: The 663 lux reading at 10 metres provides strong light intensity at close and mid-range working distances, suited to reversing, machinery, and task lighting applications.

257 Metres at 1 Lux - Long Range Spot Performance: The 4 x 10W spot LEDs provide a beam reach of 257 metres at 1 lux, enabling long-range illumination beyond the standard work light category in a compact unit.

115-Degree Spread Flood Beam: The 6 x 5W flood LEDs deliver a 115-degree spread beam for wide area illumination coverage alongside the long-range spot output.

Bezel-Less Modern Design: The bezel-less polycarbonate lens provides a sleek, modern appearance suited to contemporary 4WD, truck, and equipment aesthetics.

Thermal Management Technology: Integrated Thermal Management Technology actively manages heat dissipation from the combined 70W LED array, ensuring consistent output and long-term reliability across all operating temperatures.

Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight die-cast aluminium housing provides structural rigidity and effective heat dissipation. The polycarbonate lens resists impact and UV degradation.

50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated LED lifespan provides long-term maintenance-free reliability.

Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V and 24V vehicle and equipment electrical systems with full electronic protection for the LED driver.

EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication and electronic systems without interference.

2-Pin Deutsch Plug for Simple 2-Wire Installation: Secure, weatherproof, and vibration-resistant 2-wire connection.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL7470C
Brand Roadvision
Series RWL74 Stealth
Description LED Work Light 10-30V Square 70W Combo
Beam Pattern Combination (Spot and Flood)
Maximum Lumens 3445lm
Maximum Lux at 10m 663lx
Maximum Distance at 1 Lux 257m
Flood Beam Spread 115 Degrees
Maximum Watts 70W
LED Quantity 4 x 10W Osram (Spot) and 6 x 5W Osram (Flood)
Input Voltage 10-30V DC
Current Draw 2.9-5A at 13.8V
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium

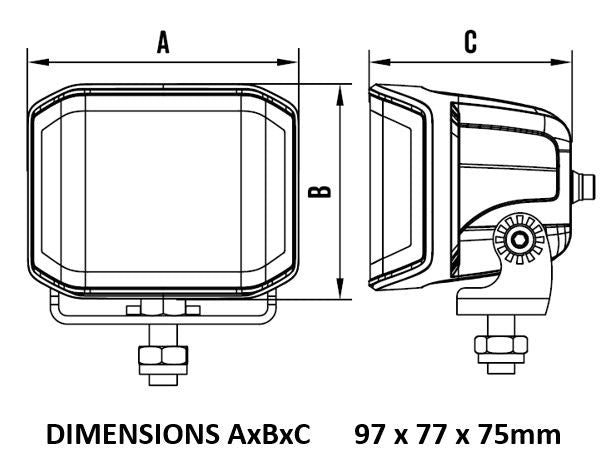

Dimensions 97mm x 77mm x 75mm
Wiring 2-Pin Deutsch Plug
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL7470C is compatible with 10-30V DC vehicle and equipment electrical systems including 12V and 24V platforms. The 2-pin Deutsch plug provides a secure weatherproof 2-wire connection. Suited to 4WD, truck, agricultural, and industrial work lighting applications requiring both long-range beam performance and broad flood coverage from a single compact lamp.

Frequently Asked Questions

What is the advantage of the combination beam on the RWL7470C?

The combination beam delivers both long-range spot performance (257 metres at 1 lux from the 4 x 10W spot LEDs) and broad area flood coverage (115-degree spread from the 6 x 5W flood LEDs) in a single compact lamp unit, eliminating the need for separate spot and flood lamps on the vehicle or equipment.

Is the RWL7470C compatible with 24V vehicles?

Yes. The RWL7470C operates across 10-30V DC, making it compatible with both 12V and 24V vehicle and equipment electrical systems.

What connector does the RWL7470C use?

The RWL7470C uses a 2-pin Deutsch plug for a secure, weatherproof, and vibration-resistant 2-wire connection.

What is Thermal Management Technology on the RWL7470C?

Roadvision's Thermal Management Technology actively monitors and manages heat dissipation from the 70W combined LED array, balancing optimal LED output with overheating prevention to ensure consistent performance and long-term reliability.

What is the rated LED lifespan of the RWL7470C?

The RWL7470C has a rated LED lifespan of 50,000 hours with maintenance-free solid-state technology.
