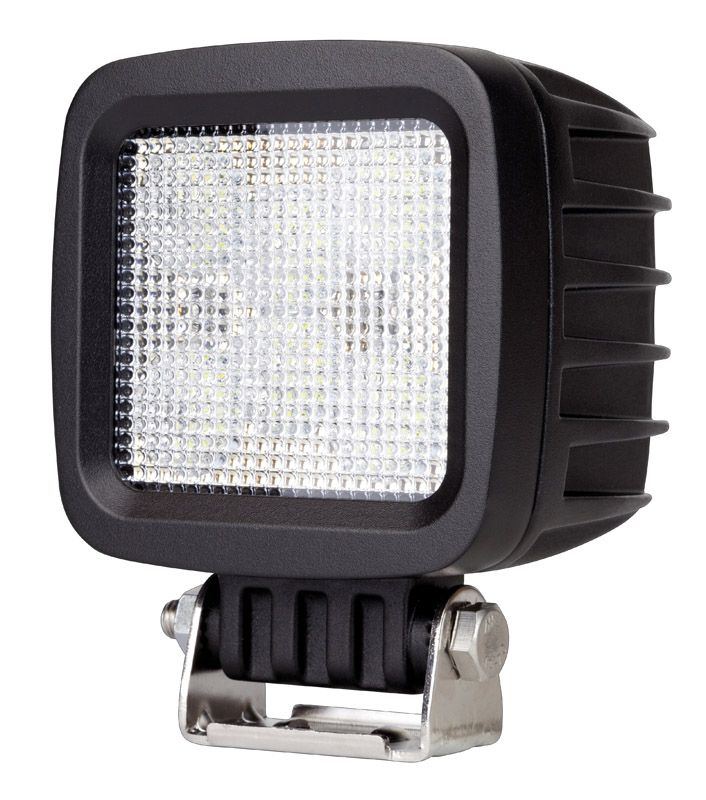

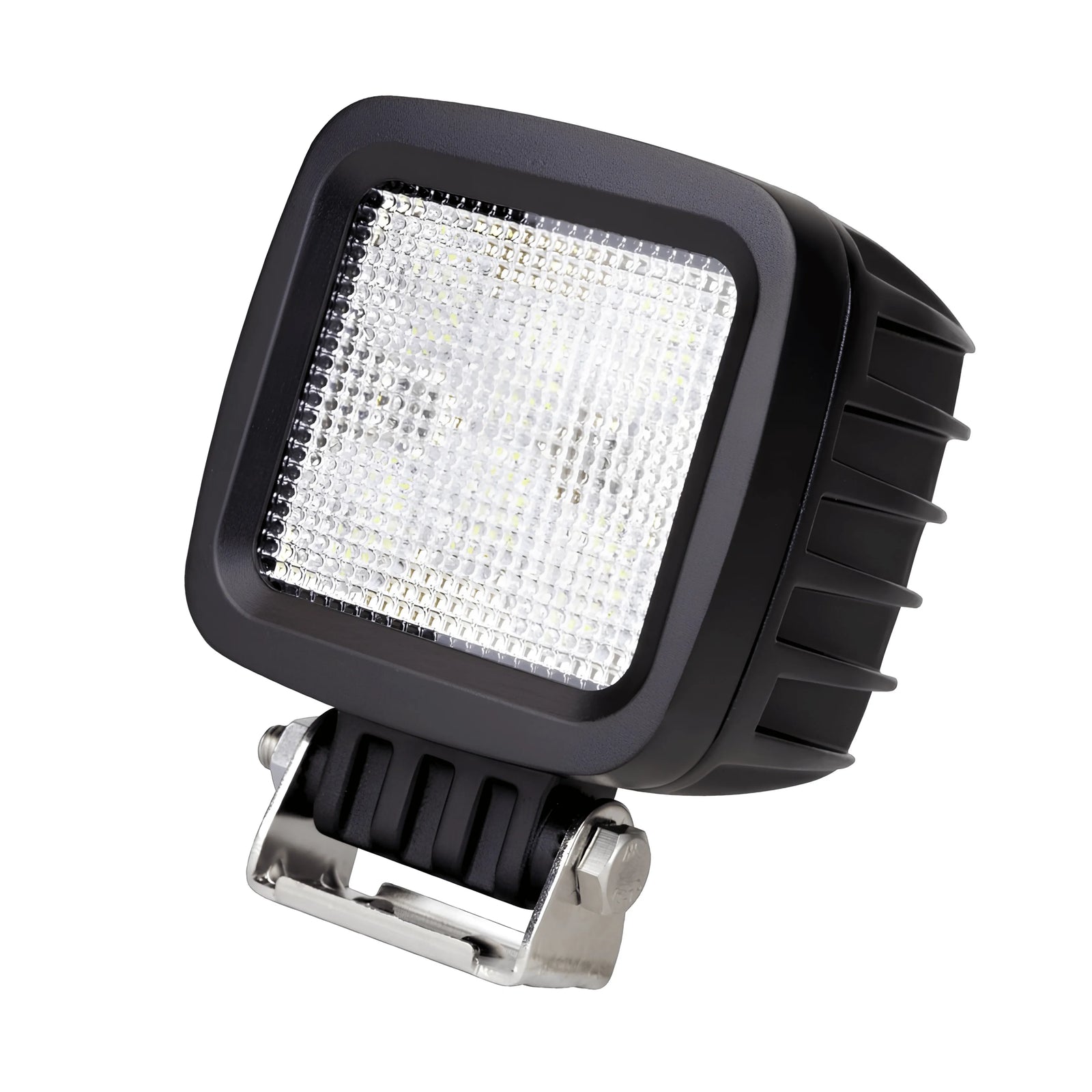

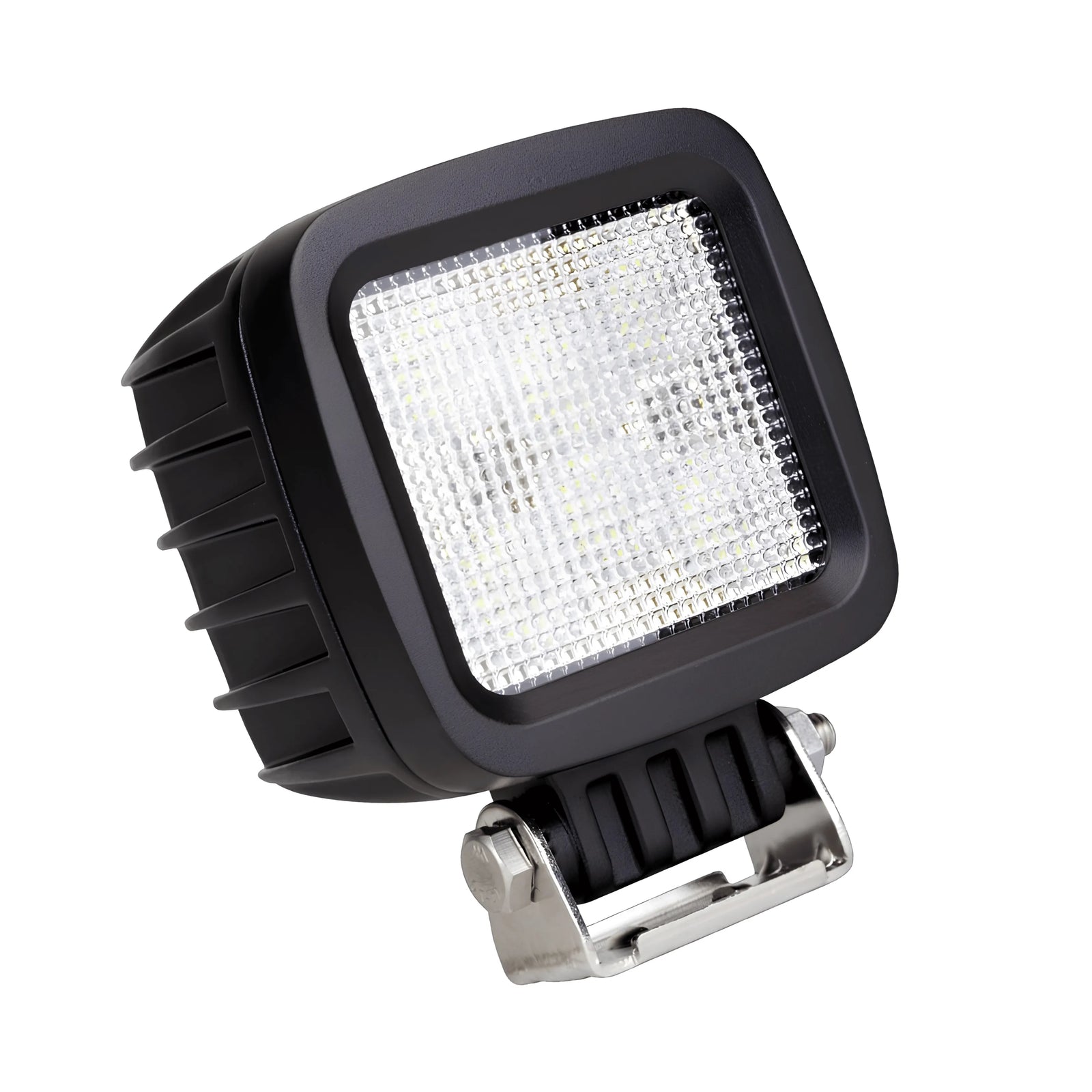

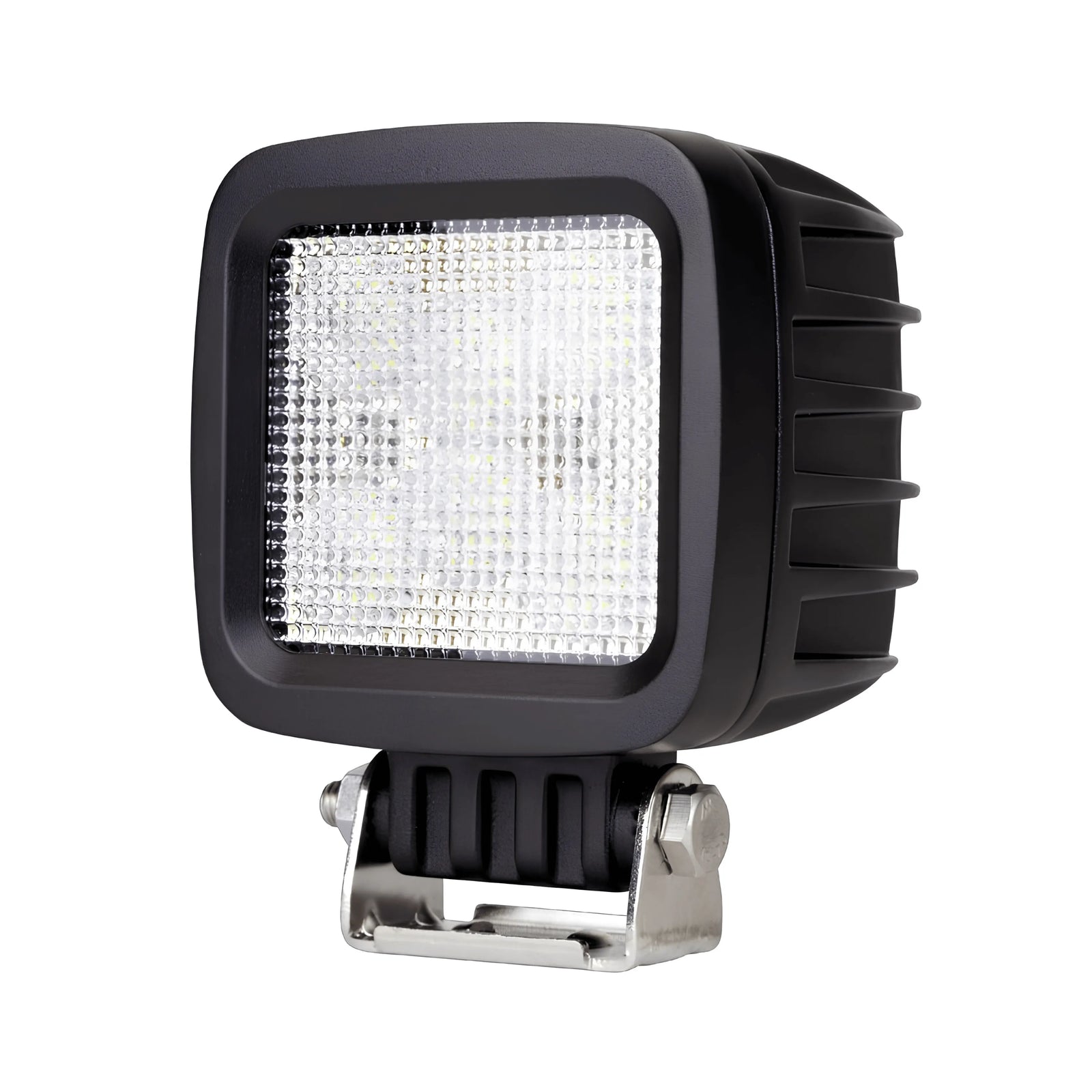

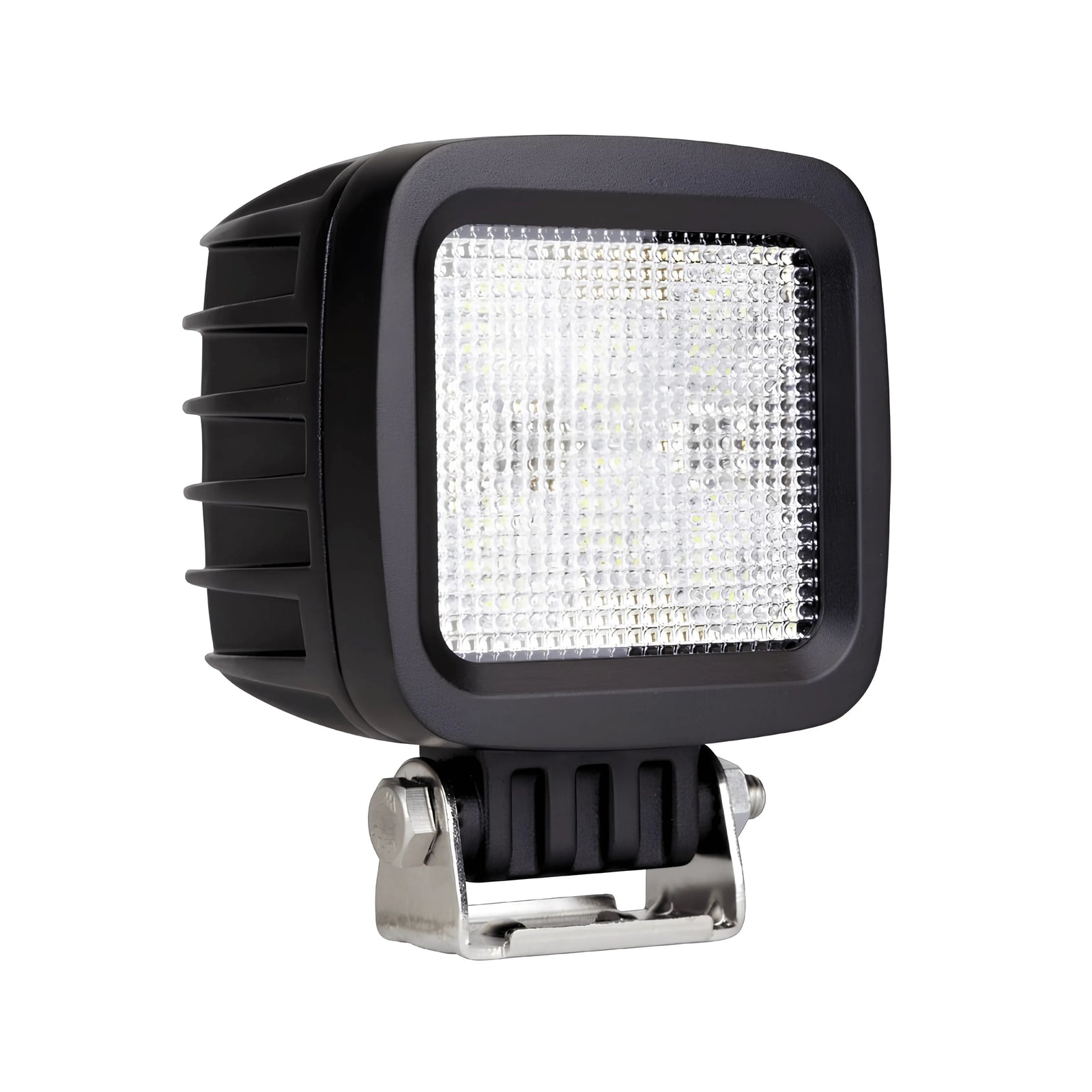

Roadvision RWL530F Heavy Duty LED Work Light 30W Flood Beam
Click to open expanded view

Roadvision RWL530F Heavy Duty LED Work Light 30W Flood Beam

SKU: RWL530F
Price
$199
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RWL530F Heavy Duty LED Work Light 30W Flood Beam

A heavy duty 30W LED work light from the Roadvision RWL500 Series, the RWL530F produces 2700 effective lumens from 6 x 5W Cree LEDs through a flood beam pattern, with 10-30V DC multi-volt input, IP67 water and dust proof rating, die-cast aluminium housing, polycarbonate lens, 2-pin Deutsch plug wiring, and a 5-year warranty.

Product Overview

The Roadvision RWL530F is a heavy duty LED work lamp from the RWL500 Series, designed to withstand the vibration and harshness of Australia's toughest environments. Six 5W Cree LEDs produce 2700 effective lumens of super white light close to daylight, spread across a flood beam pattern that delivers 5 lux at 10 metres, 22 metres at 1 lux, and a 45 metre beam distance at 0.5 lux for broad work area coverage.

The 100 x 82 x 128mm body pairs a lightweight, tough die-cast aluminium housing with a polycarbonate lens, and is water and dust proof to IP67. The multi-volt 10-30V DC input draws a super low 2.2 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

Features & Benefits

Heavy Duty 30W Flood Beam Work Light: The RWL530F is built to withstand the vibration and harshness of Australia's toughest environments, producing 2700 effective lumens through a flood beam pattern for broad, even work area coverage.

6 x 5W Cree LEDs: Six high performance 5W Cree LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.

Instant Light Output with Measured Performance: The flood beam delivers 5 lux at 10 metres, 22 metres at 1 lux, and a 45 metre beam distance at 0.5 lux, providing dependable illumination across the immediate work area.

50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of trucks, machinery, agricultural, and 4WD applications.

IP67 Water and Dust Proof: The RWL530F is water and dust proof to IP67, allowing reliable operation in wet, muddy, and dusty conditions.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens provide durability in demanding industrial and off-road environments.

Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 2.2 amps at 13.8V, making the RWL530F compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection to the vehicle wiring.

Built-In Circuit Protection: Over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval protect both the lamp and the vehicle's electrical and communication equipment.

5-Year Warranty: The RWL530F is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL530F
Brand Roadvision
Series RWL500 Heavy Duty
Description 5 Series LED Work Lamp 30W Flood
Beam Type Flood Beam
Lumens Light Output (Effective) 2700lm
Total Watts 30W
Light Source 6 x 5W Cree LEDs
Input Voltage 10-30V DC
Current Draw 2.2A at 13.8V DC
Lux at 10m 5 Lux
Metres at 1 Lux 22m
Metres at 0.5 Lux 45m
Beam Distance 45m
Lens Polycarbonate
Housing Die-Cast Aluminium
IP Rating IP67
Wiring 2 Pin Deutsch Plug
Dimensions 100 x 82 x 128mm
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL530F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The RWL500 Series is also available as a 90W spot beam (RWL590S) for long distance illumination. Confirm mounting space and wiring access before purchase.

Frequently Asked Questions

How bright is the RWL530F?

The RWL530F produces 2700 effective lumens from 6 x 5W Cree LEDs, delivering 5 lux at 10 metres, 22 metres at 1 lux, and a 45 metre beam distance at 0.5 lux through a flood beam pattern.

Is the RWL530F compatible with 24V vehicles?

Yes. The RWL530F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

Is the RWL530F waterproof?

Yes. The RWL530F is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for reliable operation in tough conditions.

How does the RWL530F connect to the vehicle?

The RWL530F uses a 2-pin Deutsch plug with simple 2-wire installation, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.

What is the difference between the RWL530F and RWL590S?

The RWL530F is the 30W flood beam model producing 2700 effective lumens for wide work area coverage, while the RWL590S is the 90W spot beam model producing 7200 effective lumens with a 438 metre beam distance for long range illumination.
