Roadvision RWL5280F LED Work Light 120W Square Flood Beam Osram
Roadvision RWL5280F LED Work Light 120W Square Flood Beam Osram
Roadvision RWL5280F LED Work Light 120W Square Flood Beam Osram
Click to open expanded view

Roadvision RWL5280F LED Work Light 120W Square Flood Beam Osram

SKU: RWL5280F
Price
$309
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

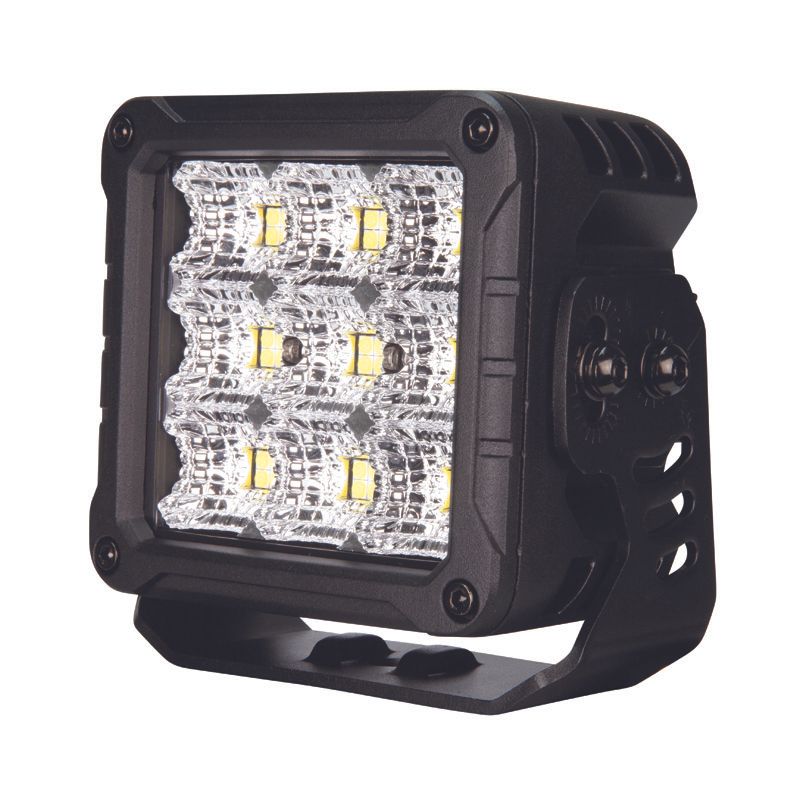

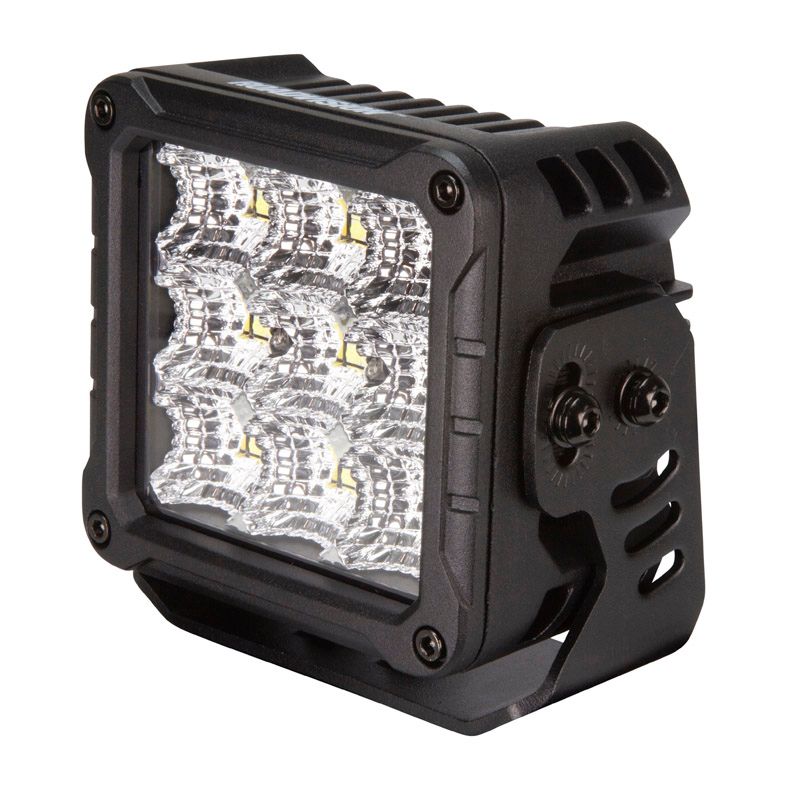

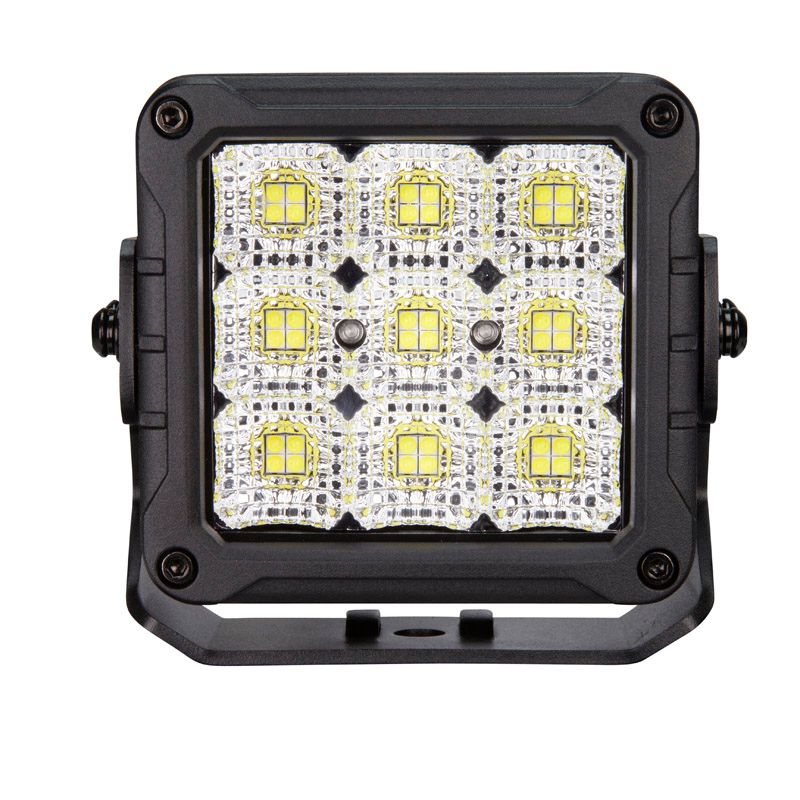

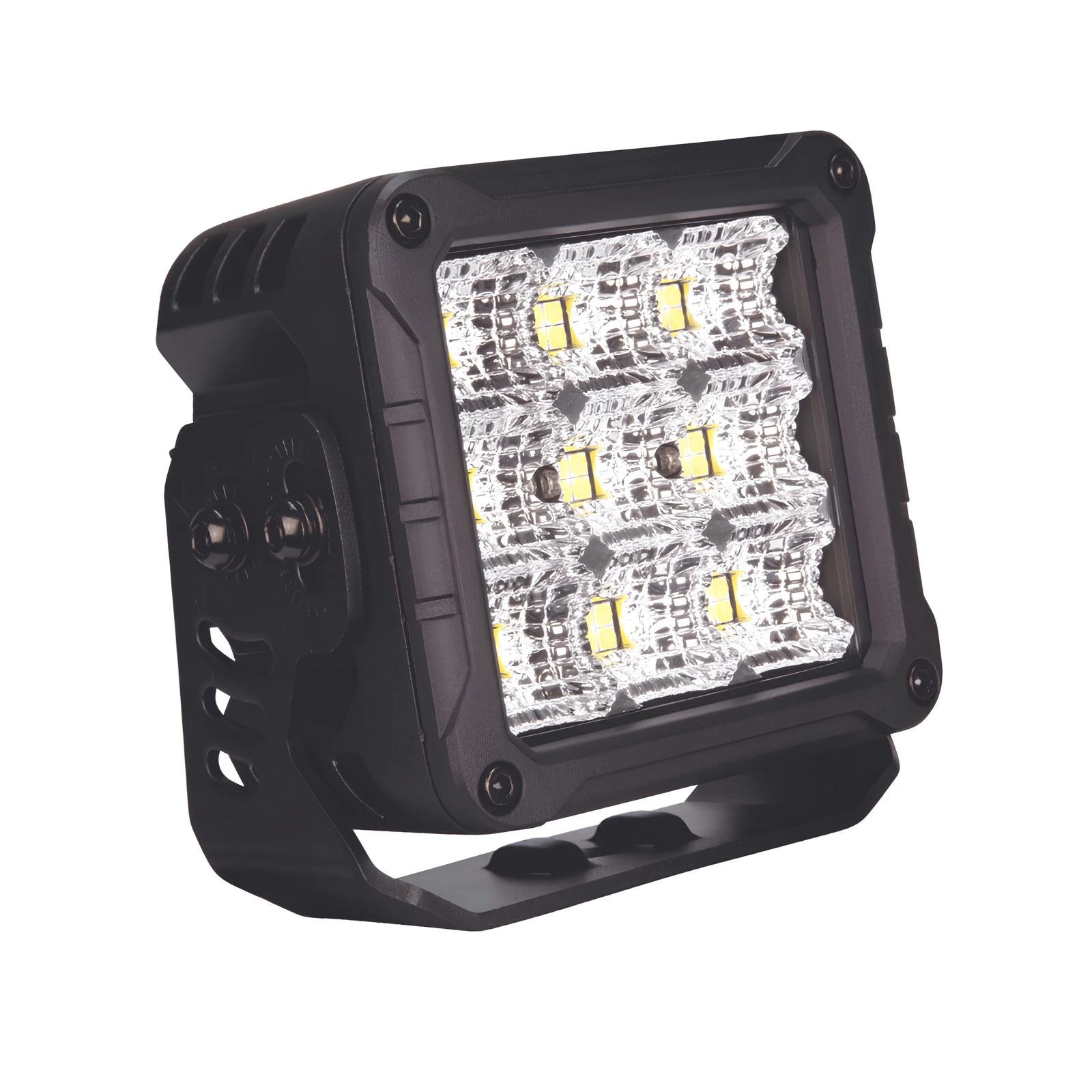

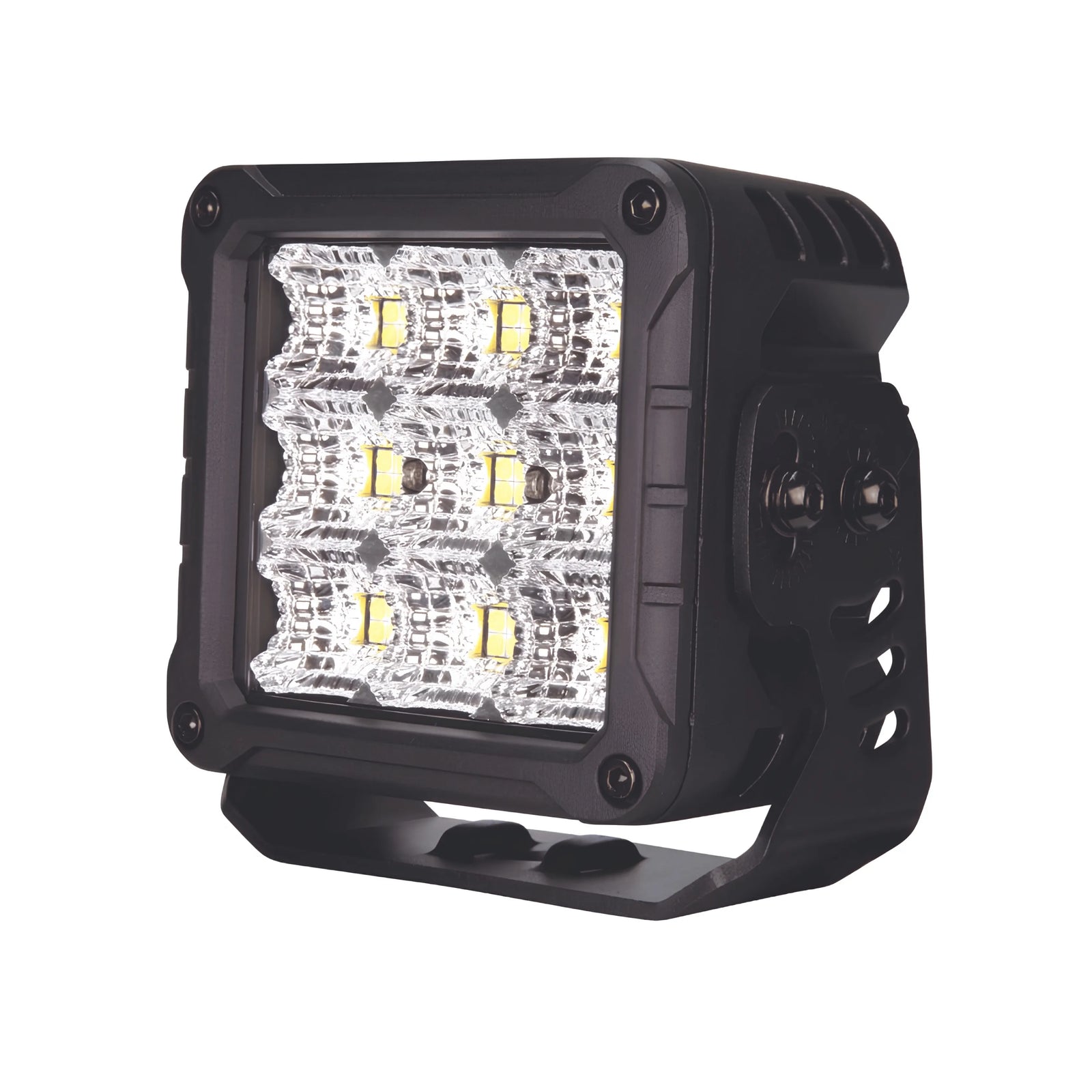

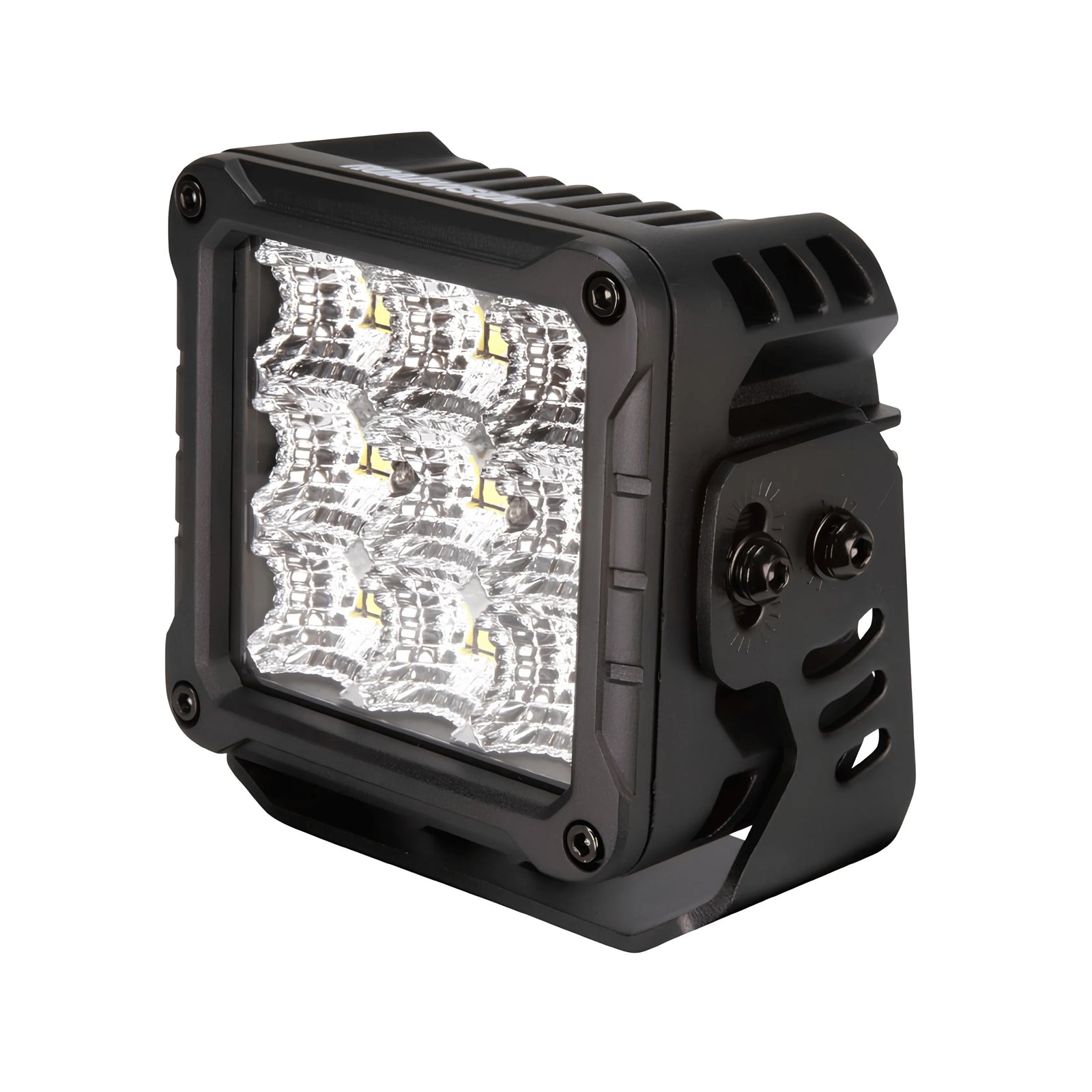

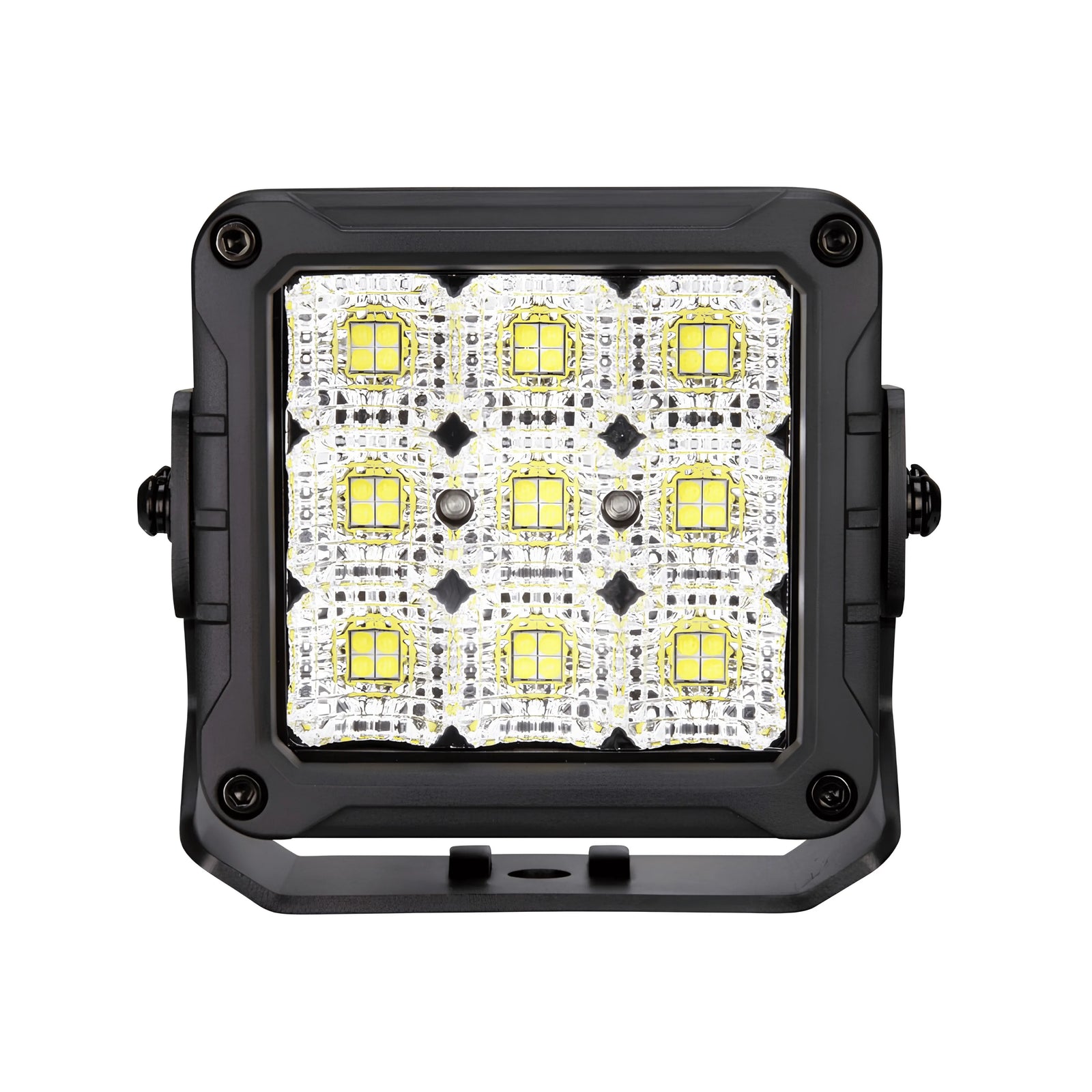

Roadvision RWL5280F LED Work Light 120W Square Flood Beam Osram

A high output square 120W LED work lamp from the Roadvision RWL52 Series, the RWL5280F produces up to 9831 maximum lumens from 36 x 5W Osram LEDs through a flood beam, with Thermal Management Technology, 10-30V DC multi-volt input, die-cast aluminium housing, polycarbonate lens, 2-pin Deutsch plug wiring, and a 5-year warranty.

Product Overview

The Roadvision RWL5280F is the highest output work lamp in the RWL52 Series, packing 36 x 5W Osram LEDs into the same compact 118 x 132 x 74mm square body as the 45W models. Producing up to 9831 maximum lumens through a flood beam pattern rated at 110 lux at 10 metres, it delivers serious wide-area illumination for machinery, trucks, agricultural equipment, and work sites.

The RWL5280F is equipped with Thermal Management Technology, and the lightweight, tough die-cast aluminium housing and polycarbonate lens allow for worry-free operation in even the toughest conditions. The multi-volt 10-30V DC input draws 10.0 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

Features & Benefits

120W Square Flood Beam - Up to 9831 Lumens: The RWL5280F produces up to 9831 maximum lumens through a flood beam pattern rated at 110 lux at 10 metres, the highest output in the RWL52 Series for serious wide-area illumination.

36 x 5W Osram LEDs: Thirty-six 5W Osram LEDs deliver high performance light output with the energy efficiency and reliability of quality LED componentry.

Compact Body, Maximum Output: The RWL5280F packs 120W of output into the same 118 x 132 x 74mm body as the 45W models in the series, keeping mounting requirements compact despite the output.

Thermal Management Technology: Built-in Thermal Management Technology protects the lamp and maintains performance in demanding operating conditions.

50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of machinery and work vehicle applications.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens allow worry-free operation in even the toughest conditions.

Waterproof Construction: The RWL5280F features waterproof construction suited to external mounting in wet and muddy conditions.

Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input makes the RWL5280F compatible with both 12V and 24V vehicle electrical systems, drawing 10.0 amps at 13.8V.

Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

5-Year Warranty: The RWL5280F is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL5280F
Brand Roadvision
Series RWL52
Description Work Lamp LED 120W Square Flood Beam
Beam Type Flood Beam
Maximum Lumens 9831lm
Maximum Watts 120W
Light Source 36 x 5W Osram LEDs
Lux at 10m 110 Lux
Input Voltage 10-30V DC
Current Draw 10.0A at 13.8V DC
Lens Polycarbonate
Housing Die-Cast Aluminium
Ingress Protection Waterproof (IP Rating Not Specified)
Wiring 2 Pin Deutsch Plug
Dimensions 118 x 132 x 74mm
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL5280F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The RWL52 Series is also available in 45W flood beam (RWL5246F) and 45W spot beam (RWL5246S) versions in the same body size. Given the 10.0A draw at 13.8V, confirm your circuit and switch capacity along with mounting space before purchase.

Frequently Asked Questions

How bright is the RWL5280F?

The RWL5280F produces up to 9831 maximum lumens from 36 x 5W Osram LEDs, rated at 110 lux at 10 metres through a flood beam pattern, making it the highest output lamp in the RWL52 Series.

What is the difference between the RWL5280F and RWL5246F?

Both share the same 118 x 132 x 74mm body and flood beam pattern. The RWL5280F runs 36 LEDs at 120W for up to 9831 lumens and 110 lux at 10 metres, while the RWL5246F runs 9 LEDs at 45W for up to 3756 lumens and 40 lux at 10 metres.

Is the RWL5280F compatible with 24V vehicles?

Yes. The RWL5280F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the current draw of the RWL5280F?

The RWL5280F draws 10.0 amps at 13.8V DC, so confirm your wiring, fusing, and switch capacity are rated accordingly before installation.

How does the RWL5280F connect to the vehicle?

The RWL5280F uses a 2-pin Deutsch plug with simple 2-wire installation, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
