Product features

Roadvision RWL5246F LED Work Light 45W Square Flood Beam Osram

A compact square 45W LED work lamp from the Roadvision RWL52 Series, the RWL5246F produces up to 3756 maximum lumens from 9 x 5W Osram LEDs through a flood beam, with Thermal Management Technology, 10-30V DC multi-volt input, die-cast aluminium housing, polycarbonate lens, 2-pin Deutsch plug wiring, and a 5-year warranty.

Product Overview

The Roadvision RWL5246F is a square LED work lamp from the RWL52 Series, offering uncompromised performance and energy efficiency while being compact and easy to install. Nine 5W Osram LEDs produce up to 3756 maximum lumens through a flood beam pattern rated at 40 lux at 10 metres, providing broad, even coverage of the work area from a 118 x 132 x 74mm body.

The RWL5246F is equipped with Thermal Management Technology, and the lightweight, tough die-cast aluminium housing and polycarbonate lens allow for worry-free operation in even the toughest conditions. The multi-volt 10-30V DC input draws a super low 3.8 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

Features & Benefits

45W Square Flood Beam - Up to 3756 Lumens: The RWL5246F produces up to 3756 maximum lumens through a flood beam pattern rated at 40 lux at 10 metres, delivering broad, even work area coverage.

9 x 5W Osram LEDs: Nine 5W Osram LEDs deliver high performance light output with the energy efficiency and reliability of quality LED componentry.

Thermal Management Technology: Built-in Thermal Management Technology protects the lamp and maintains performance in demanding operating conditions.

50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of 4WD, work vehicle, and machinery applications.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens allow worry-free operation in even the toughest conditions.

Waterproof Construction: The RWL5246F features waterproof construction suited to external mounting in wet and muddy conditions.

Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws 3.8 amps at 13.8V, making the RWL5246F compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection to the vehicle wiring.

Built-In Circuit Protection: Over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval protect both the lamp and the vehicle's electrical and communication equipment.

5-Year Warranty: The RWL5246F is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL5246F
Brand Roadvision
Series RWL52
Description Work Lamp LED 45W Square Flood Beam
Beam Type Flood Beam
Maximum Lumens 3756lm
Maximum Watts 45W
Light Source 9 x 5W Osram LEDs
Lux at 10m 40 Lux
Input Voltage 10-30V DC
Current Draw 3.8A at 13.8V DC
Lens Polycarbonate
Housing Die-Cast Aluminium
Ingress Protection Waterproof (IP Rating Not Specified)
Wiring 2 Pin Deutsch Plug

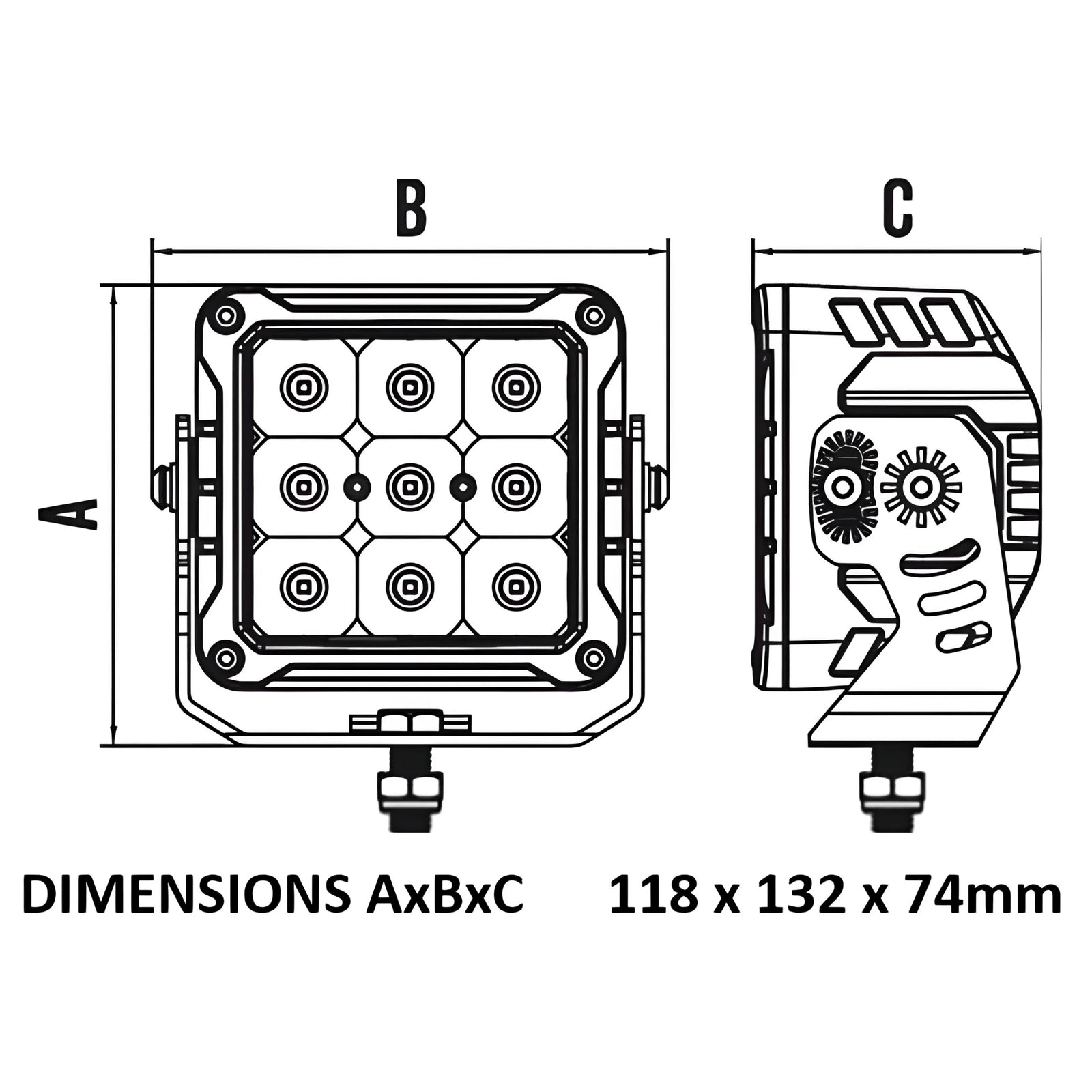

Dimensions 118 x 132 x 74mm
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL5246F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The RWL52 Series is also available as a 45W spot beam (RWL5246S) rated at 1340 lux at 10 metres for longer range illumination, and a 120W flood beam (RWL5280F) for maximum output. Confirm mounting space and wiring access before purchase.

Frequently Asked Questions

How bright is the RWL5246F?

The RWL5246F produces up to 3756 maximum lumens from 9 x 5W Osram LEDs, rated at 40 lux at 10 metres through a flood beam pattern.

What is the difference between the RWL5246F and RWL5246S?

Both share the same 45W output, 3756 maximum lumens, and 118 x 132 x 74mm body. The RWL5246F is the flood beam version rated at 40 lux at 10 metres for wide coverage, while the RWL5246S is the spot beam version rated at 1340 lux at 10 metres for long range illumination.

Is the RWL5246F compatible with 24V vehicles?

Yes. The RWL5246F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

How does the RWL5246F connect to the vehicle?

The RWL5246F uses a 2-pin Deutsch plug with simple 2-wire installation, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.

What is Thermal Management Technology?

Roadvision's Thermal Management Technology manages the lamp's operating temperature to balance optimal light performance with overheating prevention in demanding conditions.
