Product features

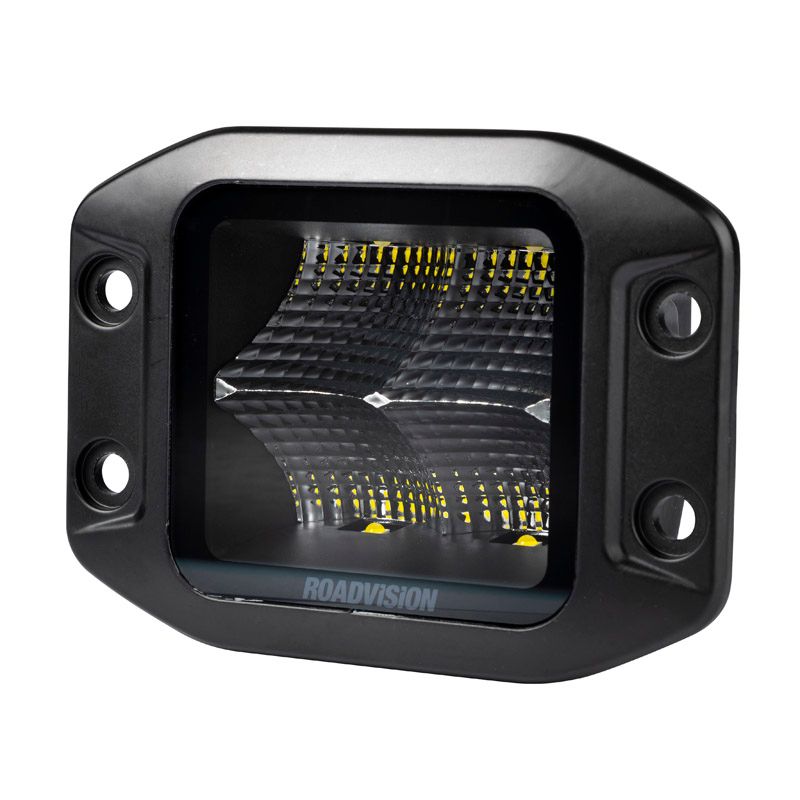

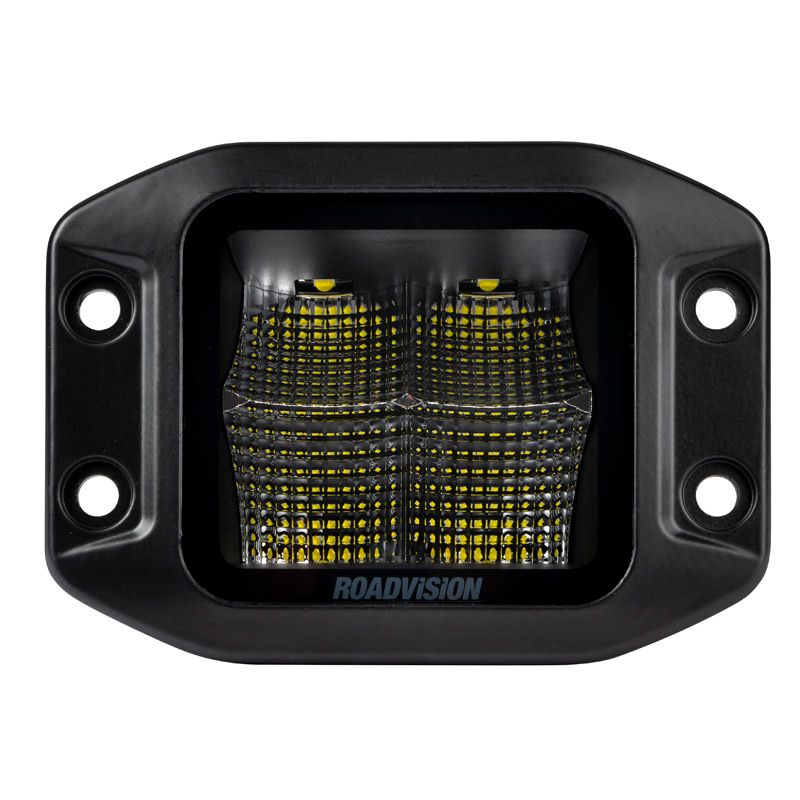

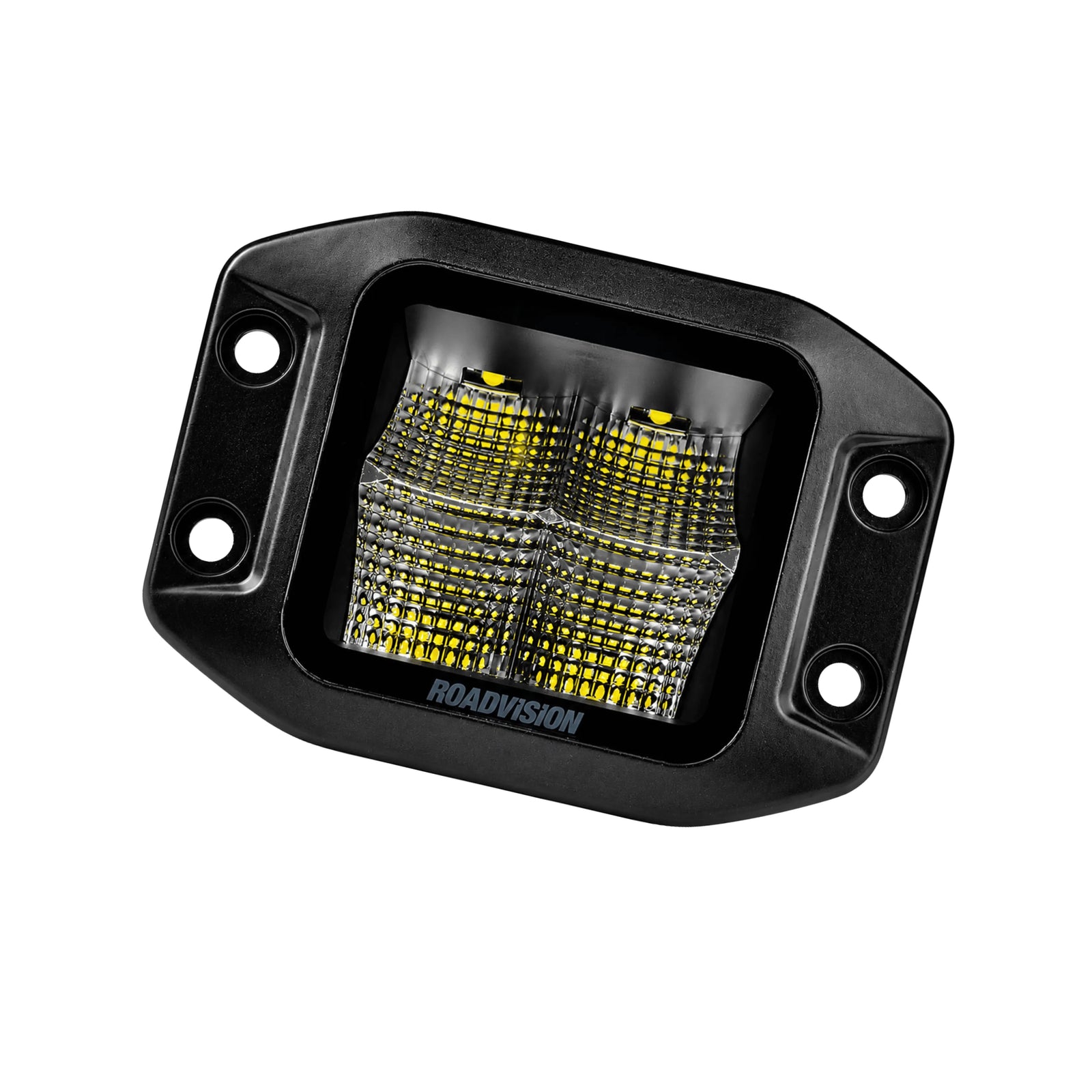

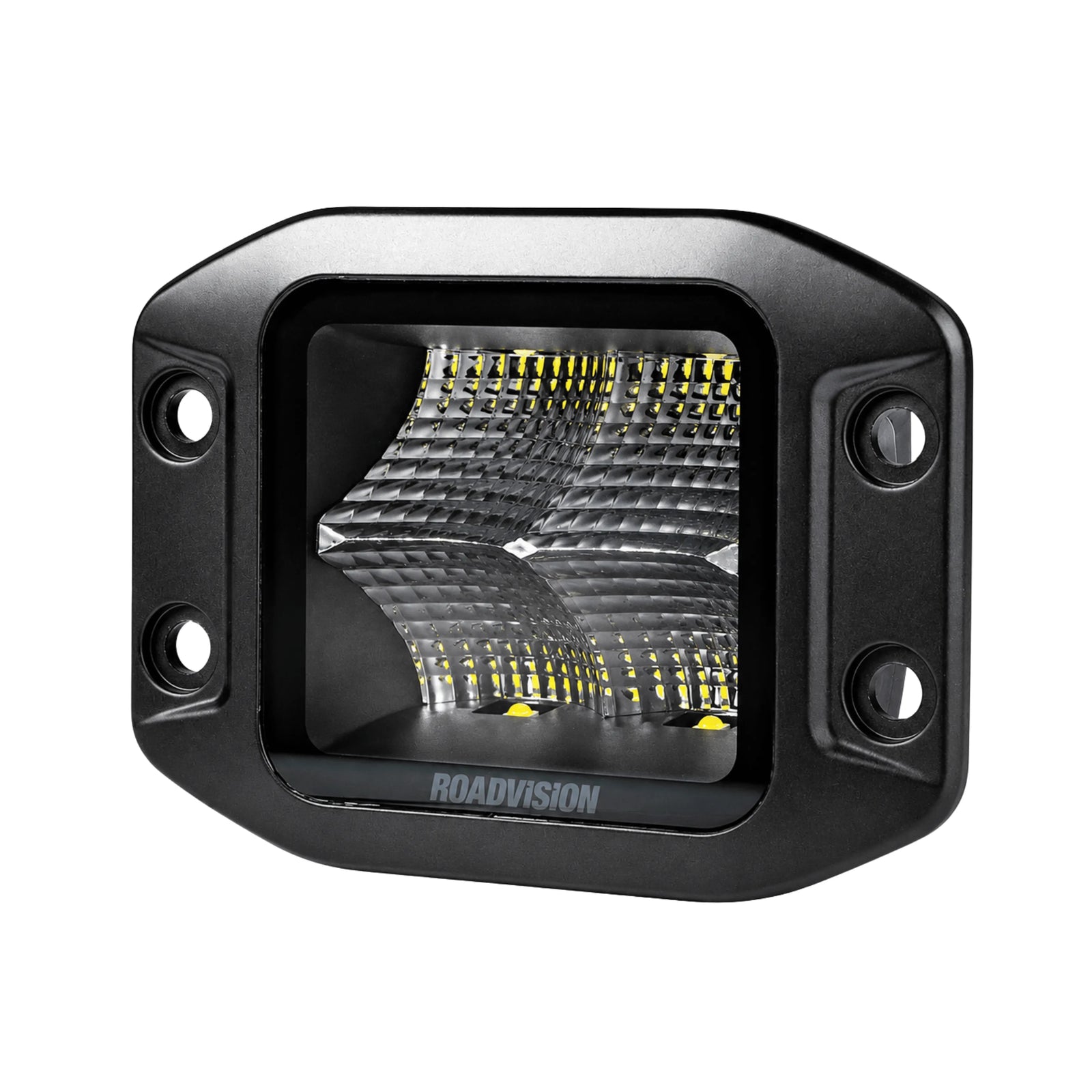

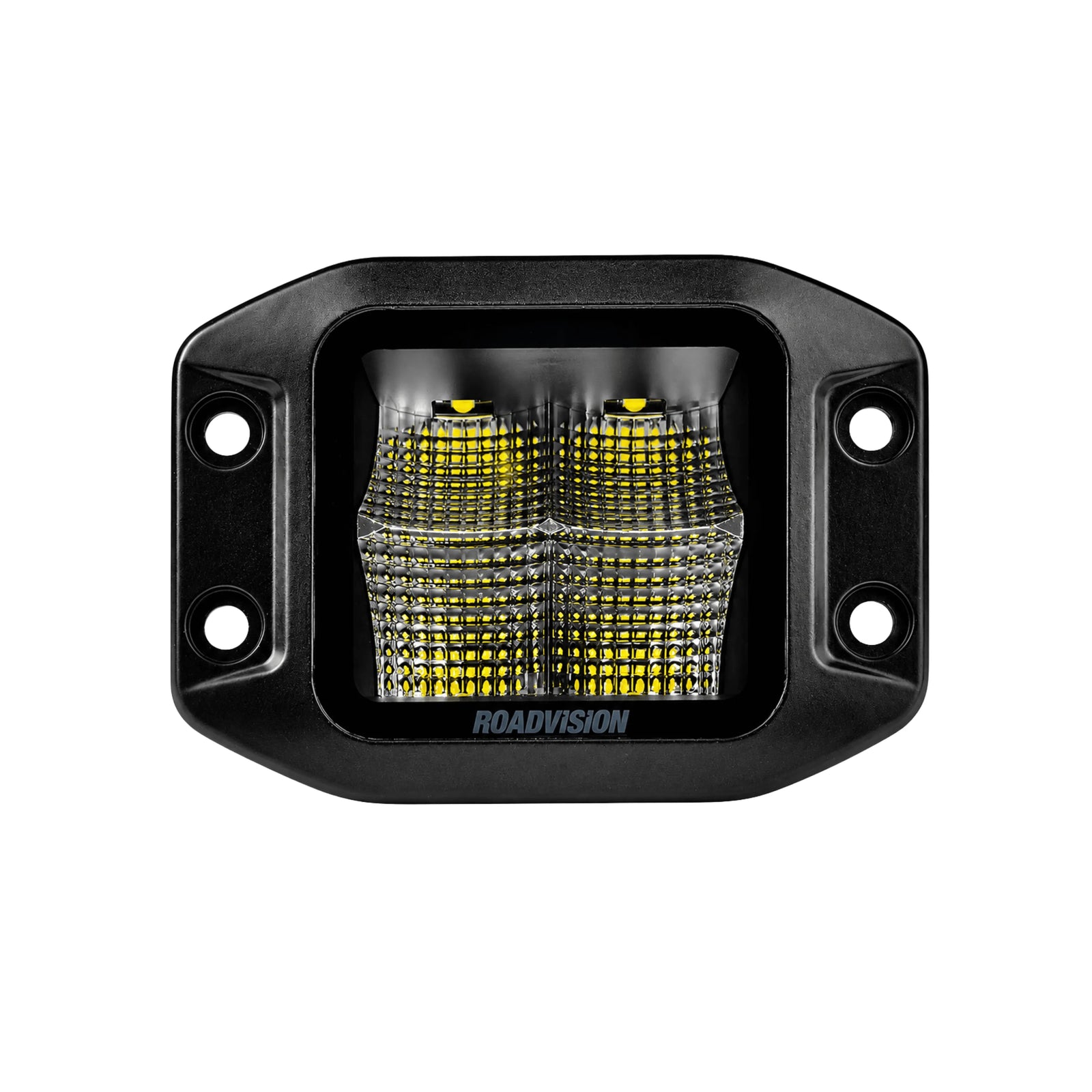

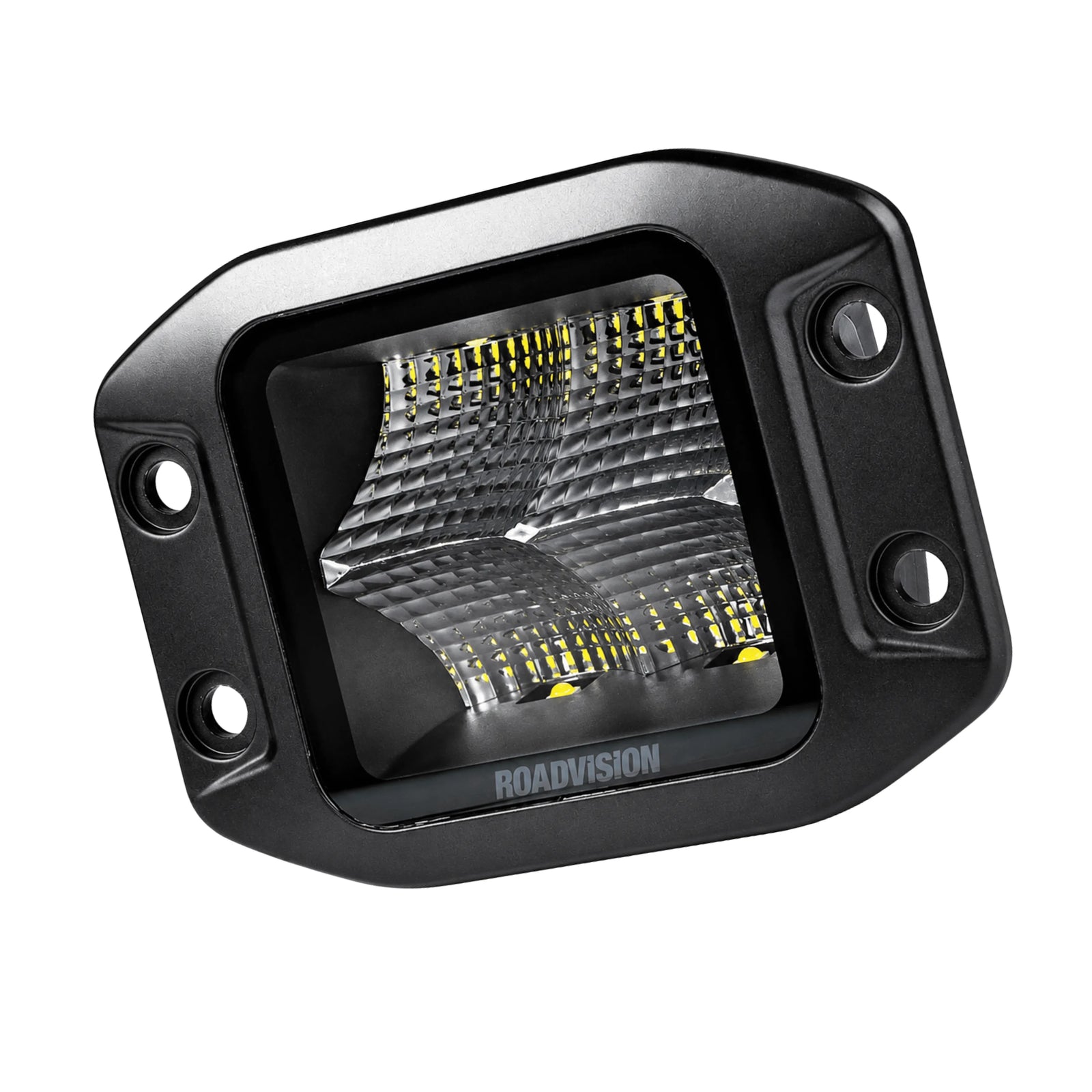

Roadvision RWL4840FFM Stealth LED Work Light 40W Flood Flush Mount

A flush mount square LED work light from the Roadvision Stealth RWL48 Series, the RWL4840FFM produces up to 3016 lumens from 4 x 9W Osram LEDs through a 110-degree flood beam, with 10-30V DC multi-volt input, die-cast aluminium housing, polycarbonate lens, an 82 x 75mm panel cut-out, 2-pin Deutsch plug wiring, and a 5-year warranty.

Product Overview

The Roadvision RWL4840FFM is the flush mount version of the Stealth RWL48 Series 40W square work light, designed to sit neatly into bull bars, rear bars, canopies, and body panels via an 82 x 75mm cut-out. The smoked-look lens and blackout mounting hardware give a stealth on-vehicle look, and the 122 x 89 x 72mm flush mount body suits demanding environments and applications where space is limited. Four 9W Osram LEDs produce up to 3016 maximum lumens of super white light close to daylight, spread across a 110-degree flood beam pattern that delivers 65 lux at 10 metres and reaches 81 metres at 1 lux.

The RWL4840FFM is equipped with thermal management technology that smart-adjusts to the environmental temperature to balance optimal performance and prevent overheating. The multi-volt 10-30V DC input draws a super low 1.4 to 3.3 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

Features & Benefits

Flush Mount Design - 82 x 75mm Cut-Out: The RWL4840FFM mounts flush into panels via an 82 x 75mm cut-out, providing a clean, integrated installation into bull bars, rear bars, canopies, and vehicle bodywork.

40W Square Flood Beam - Up to 3016 Lumens: The RWL4840FFM produces up to 3016 maximum lumens through a 110-degree flood beam pattern, delivering 65 lux at 10 metres and a maximum distance of 81 metres at 1 lux for broad, even work area coverage.

4 x 9W Osram LEDs: Four 9W Osram LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.

Stealth Smoked-Look Lens and Blackout Hardware: The Stealth RWL48 Series features a smoked-look lens and blackout mounting hardware for a low-key, integrated on-vehicle appearance.

50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of 4WD, work vehicle, and machinery applications.

Thermal Management Technology: The RWL4840FFM smart-adjusts to the environmental temperature, balancing optimal light performance with overheating prevention in demanding conditions.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens provide durability in the most demanding environments.

Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 1.4 to 3.3 amps at 13.8V, making the RWL4840FFM compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection to the vehicle wiring.

Built-In Circuit Protection: Over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval protect both the lamp and the vehicle's electrical and communication equipment.

5-Year Warranty: The RWL4840FFM is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL4840FFM
Brand Roadvision
Series Stealth RWL48
Description LED Work Light 10-30V Square 40W Flood Beam Flush Mount
Beam Pattern 110° Flood
Maximum Lumens 3016lm
Maximum Watts 40W
Light Source 4 x 9W Osram LEDs
Input Voltage 10-30V DC
Current Draw 1.4-3.3A at 13.8V
Maximum Lux at 10m 65LX
Maximum Distance at 1 Lux 81m
Lens Polycarbonate
Housing Die-Cast Aluminium
Mounting Type Flush Mount
Cut Out 82 x 75mm
Wiring 2 Pin Deutsch Plug

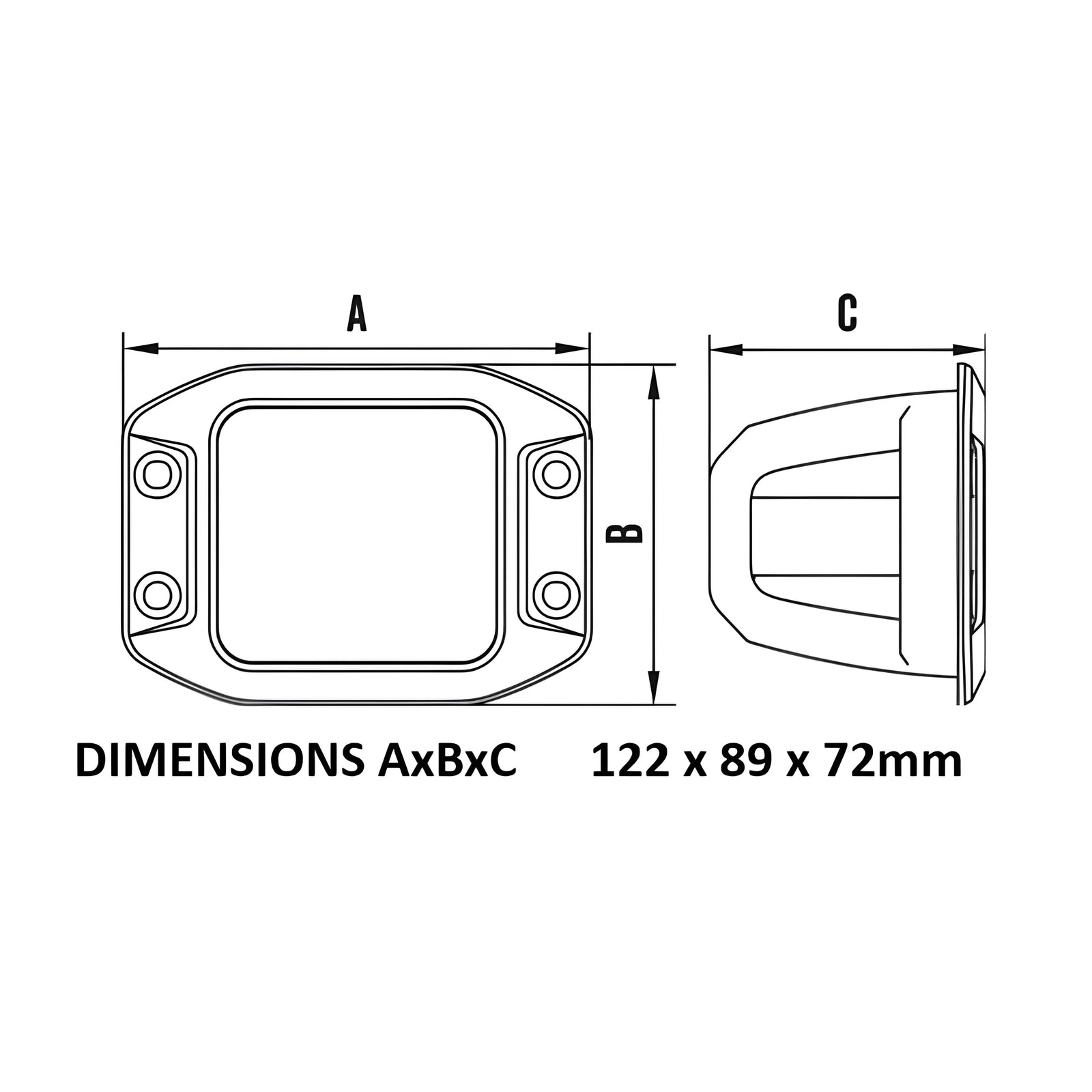

Dimensions 122 x 89 x 72mm
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL4840FFM is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The Stealth RWL48 Series is also available as a standard 40W surface mount (RWL4840F) and a compact 23W flood beam (RWL4823F). Confirm the 82 x 75mm cut-out dimensions and rear panel clearance before purchase. A cut-out template is available from Roadvision.

Frequently Asked Questions

What size cut-out does the RWL4840FFM require?

The RWL4840FFM requires an 82 x 75mm panel cut-out for flush mounting, with overall dimensions of 122 x 89 x 72mm. Roadvision provides a cut-out template for accurate installation.

How bright is the RWL4840FFM?

The RWL4840FFM produces up to 3016 maximum lumens from 4 x 9W Osram LEDs, delivering 65 lux at 10 metres and a maximum distance of 81 metres at 1 lux through a 110-degree flood beam.

Is the RWL4840FFM compatible with 24V vehicles?

Yes. The RWL4840FFM operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the difference between the RWL4840FFM and RWL4840F?

Both share the same 40W output, 3016 lumens, and 110-degree flood beam. The RWL4840FFM is the flush mount version requiring an 82 x 75mm panel cut-out, while the RWL4840F is the standard surface mount version measuring 81 x 82 x 67mm.

How does the RWL4840FFM connect to the vehicle?

The RWL4840FFM uses a 2-pin Deutsch plug with simple 2-wire installation, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
