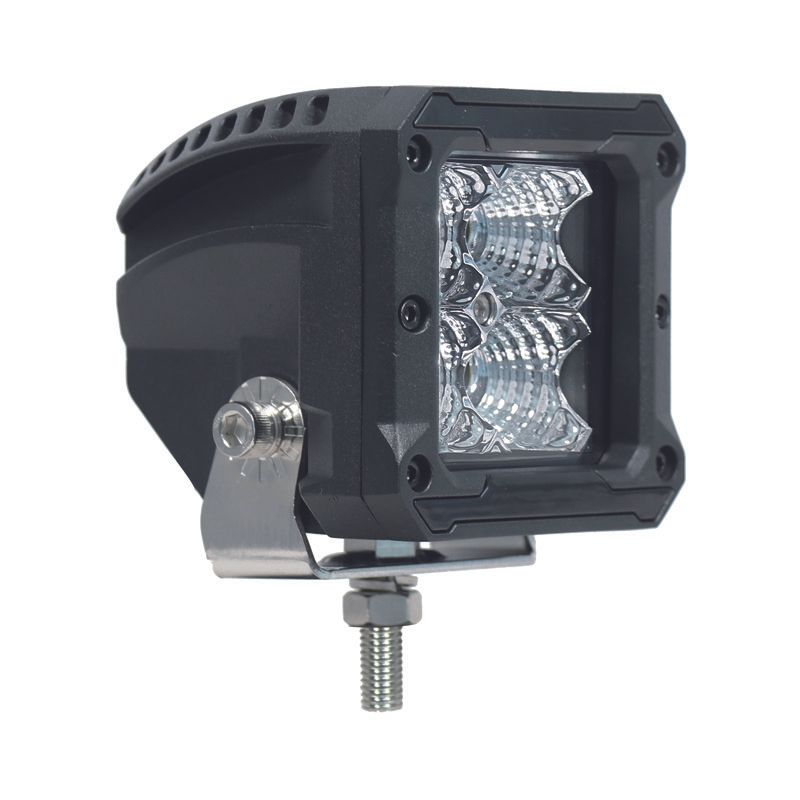

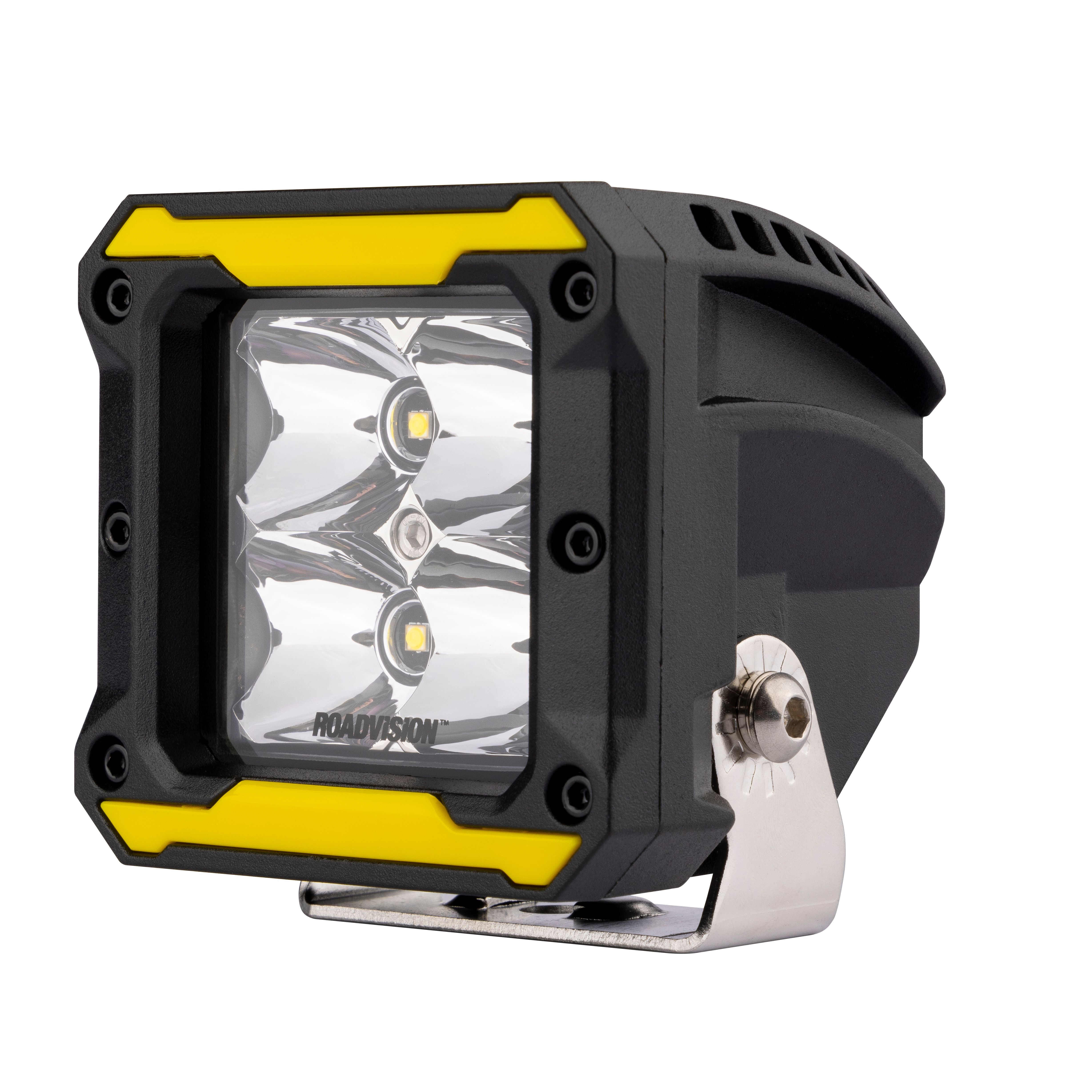

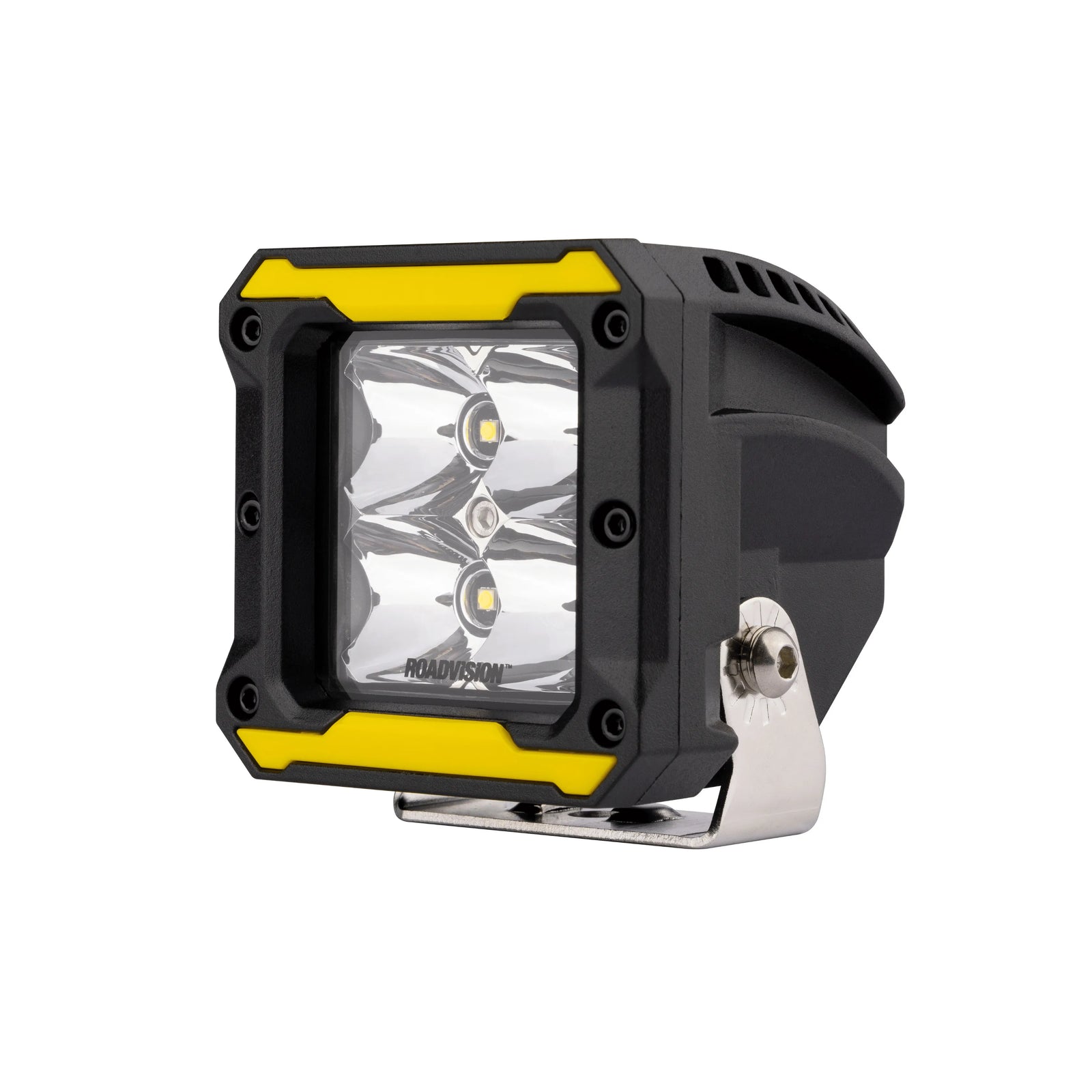

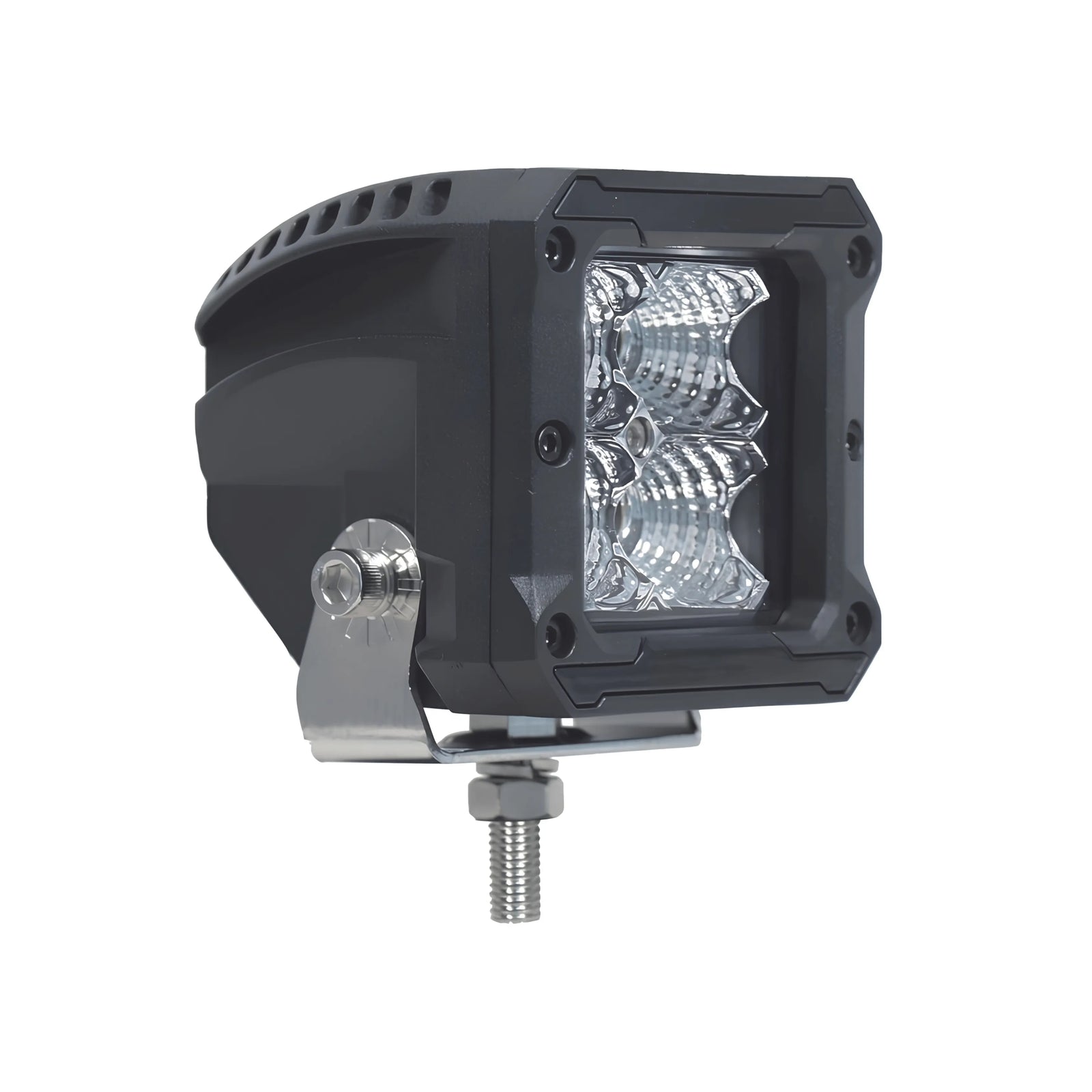

Roadvision RWL3420F 34 Series LED Work Lamp 20W Flood Beam 1600lm
Roadvision RWL3420F 34 Series LED Work Lamp 20W Flood Beam 1600lm
Roadvision RWL3420F 34 Series LED Work Lamp 20W Flood Beam 1600lm
Roadvision RWL3420F 34 Series LED Work Lamp 20W Flood Beam 1600lm
Click to open expanded view

Roadvision RWL3420F 34 Series LED Work Lamp 20W Flood Beam 1600lm

SKU: RWL3420F
Price
$79
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RWL3420F 34 Series LED Work Lamp 20W Flood Beam 1600lm

A compact 20W flood beam LED work lamp from the Roadvision RWL34 Series, the RWL3420F delivers 1600 lumens with 42 lux at 10 metres, powered by 4 x 5W Cree LEDs, featuring 4 interchangeable colour fascia inserts, IP67 waterproof and dustproof rating, die-cast aluminium housing, polycarbonate lens, and 2-pin Deutsch plug, backed by a 5-year warranty.

Product Overview

The Roadvision RWL3420F is a 20W flood beam LED work lamp from the RWL34 Series, configured with 4 x 5W Cree LEDs to deliver a wide-angle high-lux flood beam for broad area work lighting. The flood pattern delivers 1600 lumens with 42 lux at 10 metres and a beam reach of 65 metres at 1 lux and 130 metres at 0.5 lux. Four interchangeable colour fascia inserts (blue, red, yellow, and black) are included. IP67 rated. Lightweight die-cast aluminium housing at 81 x 76 x 85mm with polycarbonate lens. Multi-volt 10-30V DC at 1.5A at 13.8V with over/under voltage and reverse polarity protection. EMI/EMC radio interference approved. 2-pin Deutsch plug. 50,000 hour LED lifespan. Backed by a 5-year warranty.

Features & Benefits

1600 Lumens - Wide-Angle Flood Beam: Delivers 1600lm with 42 lux at 10 metres for high-intensity wide-area illumination at working distance, suited to reverse cameras, machinery operation, loading areas, and job site lighting.

4 x 5W Cree LEDs - High Lux Flood Output: Four 5W Cree LEDs are specifically matched for the flood beam pattern to deliver higher lux at working distances for maximum area coverage and task lighting performance.

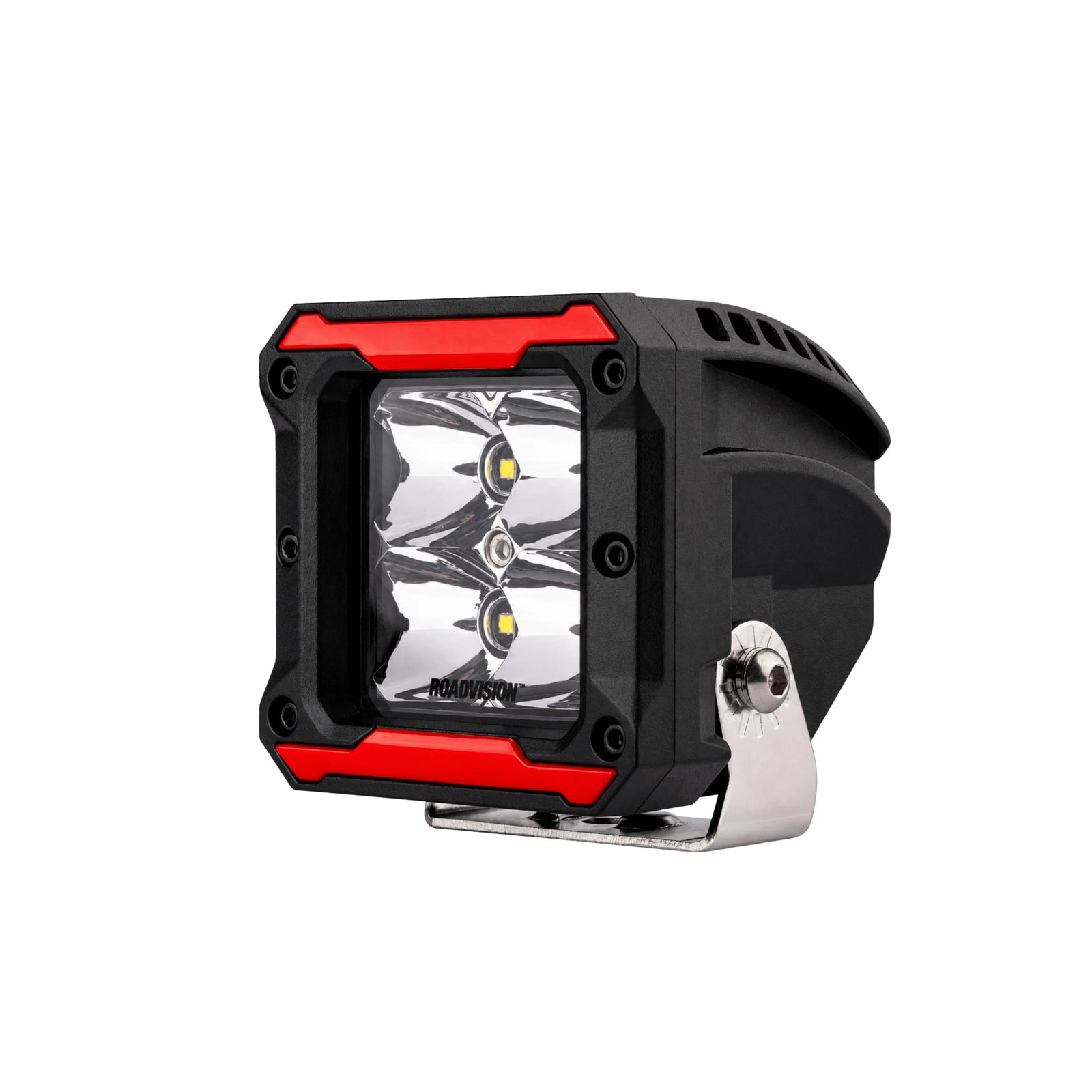

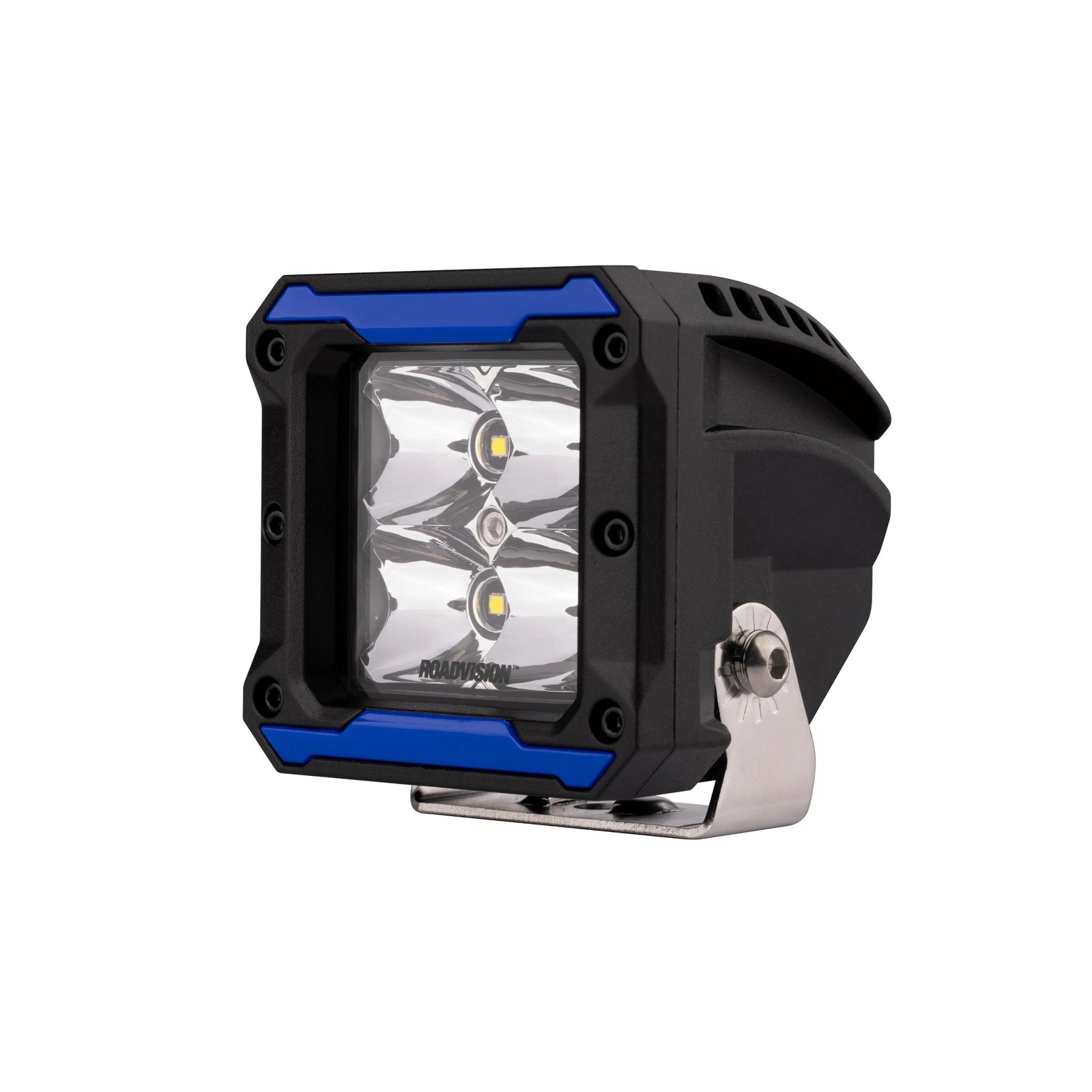

4 Interchangeable Colour Fascia Inserts: Blue, red, yellow, and black fascia inserts allow the lamp appearance to be matched to vehicle or fleet requirements.

IP67 Waterproof and Dustproof: Full dust and temporary immersion protection for all-weather and off-road applications.

Compact 81 x 76 x 85mm Square Housing: Compact form factor for tight mounting positions across a wide range of vehicles and equipment.

Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight, tough construction for demanding work environments.

50,000 Hour LED Lifespan: Long-term maintenance-free reliability.

Multi-Volt 10-30V DC with Electronic Protection: Compatible with 12V and 24V systems.

2-Pin Deutsch Plug: Secure, weatherproof connection.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL3420F
Brand Roadvision
Series RWL34
Description 34 Series LED Work Lamp 20W Flood
Beam Type Flood Beam
Lumen Output 1600lm
Lux at 10m 42lx
Beam Distance at 1 Lux 65m
Beam Distance at 0.5 Lux 130m
Total Watts 20W
LED Quantity 4 x 5W Cree
Input Voltage 10-30V DC
Current Draw 1.5A at 13.8V
Dimensions 81mm x 76mm x 85mm
Wiring 2-Pin Deutsch Plug
IP Rating IP67
Fascia Inserts Blue, Red, Yellow, Black (4 included)
LED Lifespan 50,000 Hours
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
Warranty 5 Years

Compatible With

The RWL3420F is compatible with 10-30V DC vehicle and equipment electrical systems. The RWL34 Series is also available in a 12W spot version (RWL3412S). The RWL36 Series provides 6-LED configurations in 18W spot (RWL3618S) and 30W flood (RWL3630F).

Frequently Asked Questions

What is the difference between the RWL3420F and the RWL3412S?

The RWL3420F uses 4 x 5W Cree LEDs in a flood beam pattern for wide-area illumination at 1600lm with 42 lux at 10 metres. The RWL3412S uses 4 x 3W Osram Hi-Lux LEDs in a spot beam for long-range penetration at 960lm with 380 lux at 10 metres and 195m at 1 lux. Choose flood for area coverage; choose spot for long-range forward lighting.

Is the RWL3420F compatible with 24V vehicles?

Yes. The RWL3420F operates across 10-30V DC.

Is the RWL3420F IP67 rated?

Yes.

What fascia inserts are included with the RWL3420F?

Blue, red, yellow, and black inserts are included.

What is the LED lifespan of the RWL3420F?

50,000 hours with maintenance-free solid-state technology.
