Product features

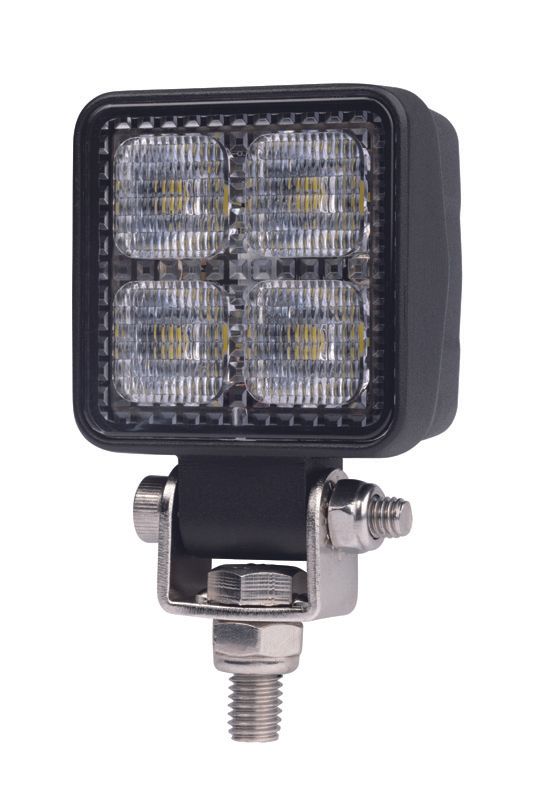

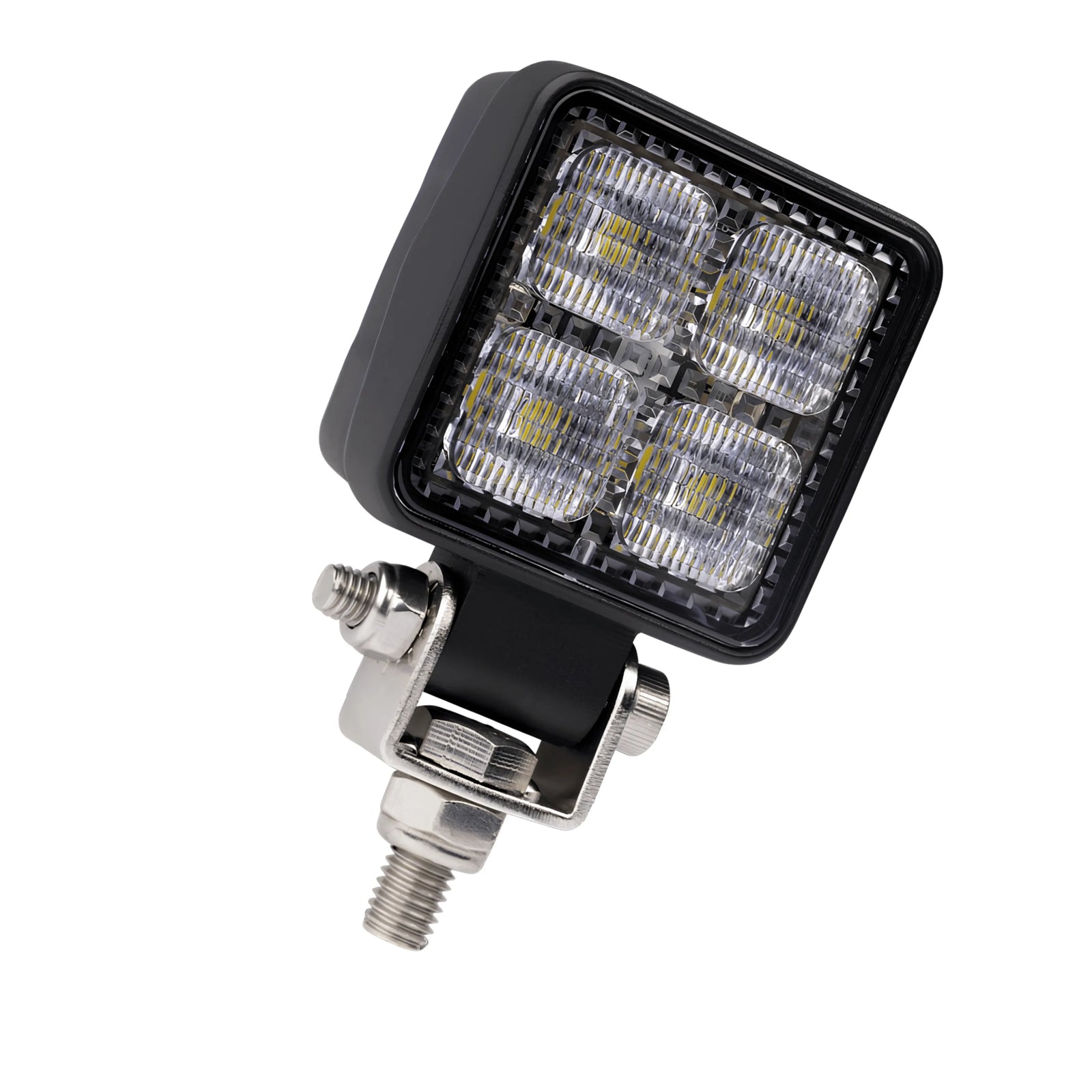

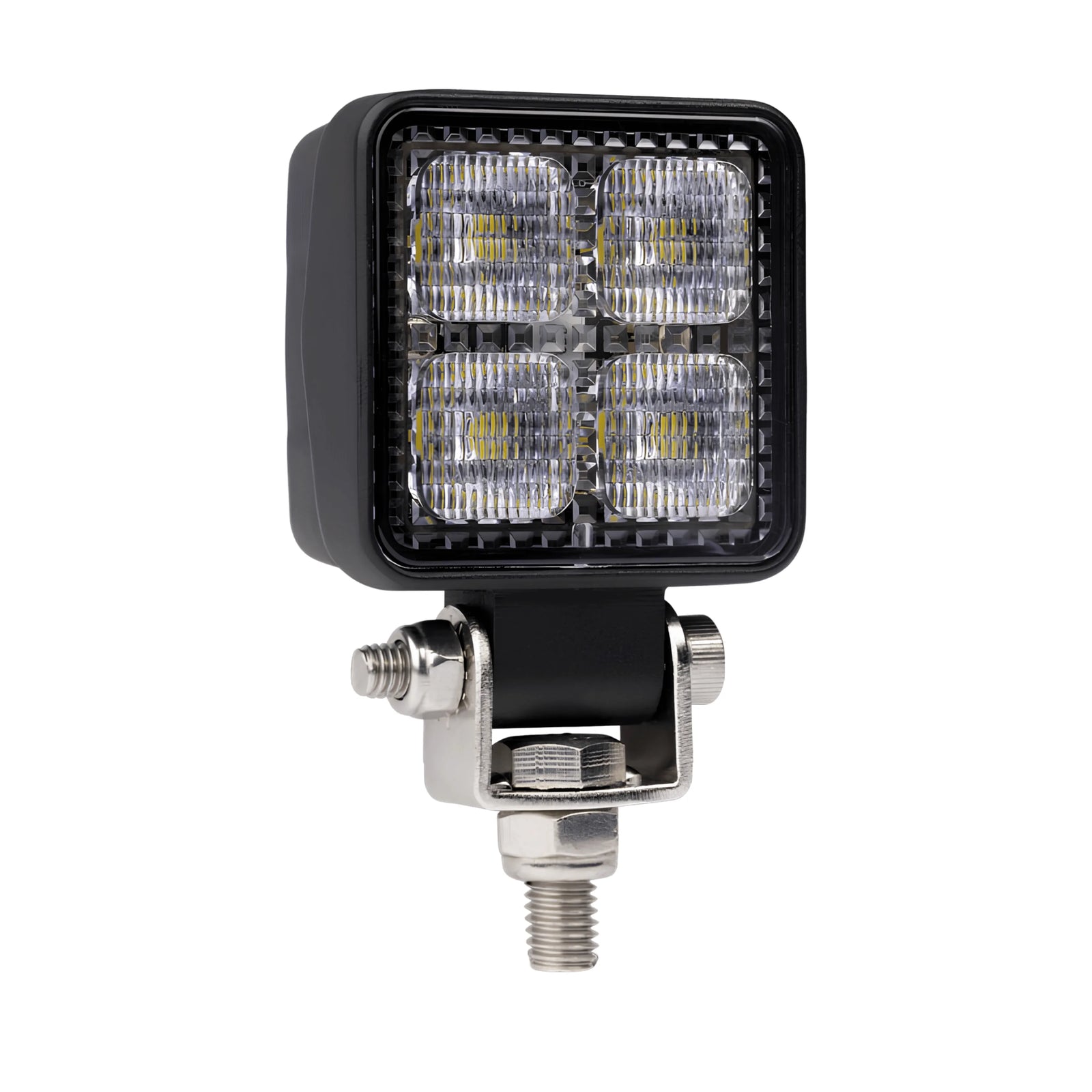

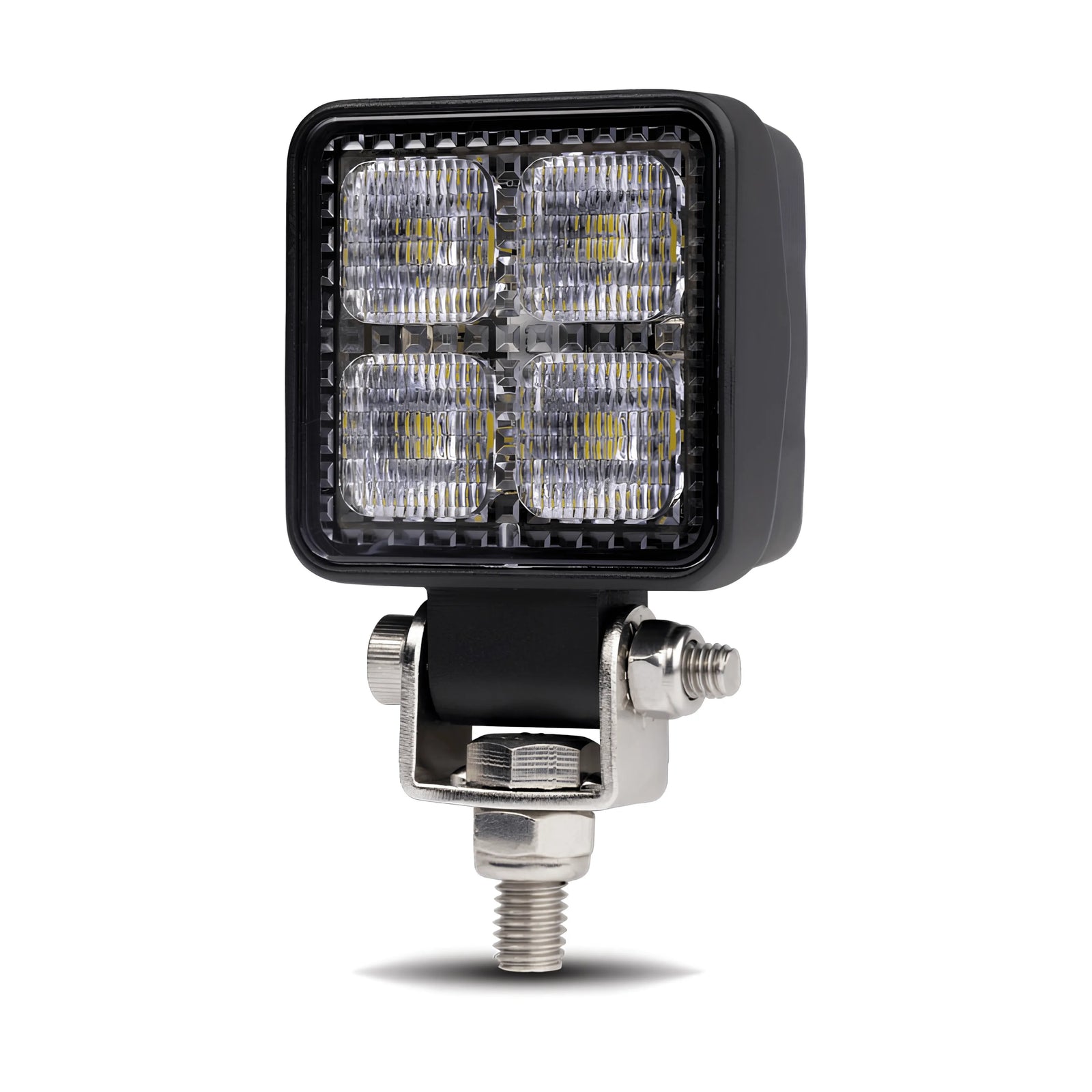

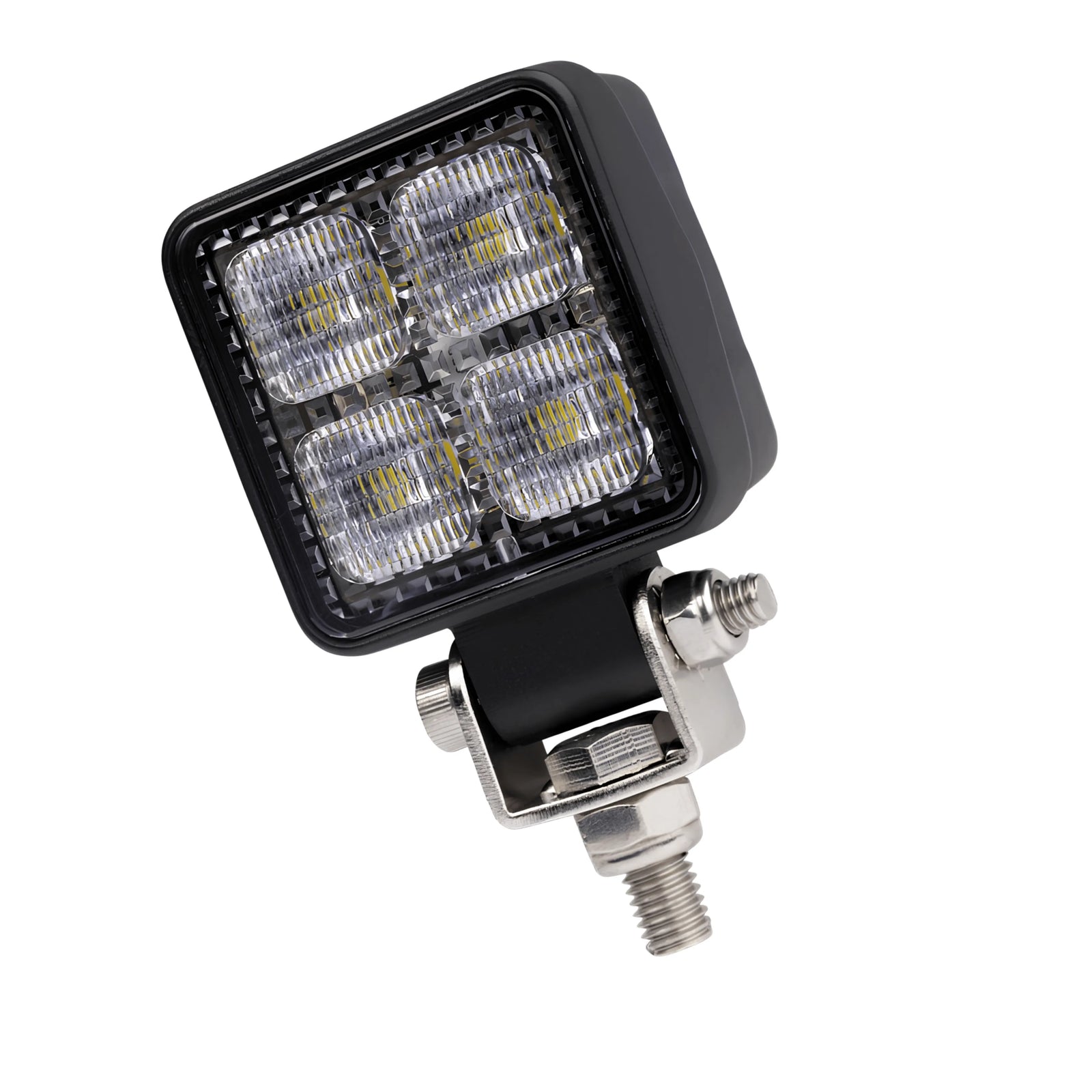

Roadvision RWL1252F Mid-Size LED Work Light 12W Flood Beam IP67

A mid-size 12W LED work lamp from the Roadvision RWL1252 Series, the RWL1252F produces up to 900 lumens of instant light from 8 x 1.5W LEDs through a flood beam, with 10-30V DC multi-volt input, IP67 water and dust proof rating, die-cast aluminium housing, polycarbonate lens, CTA approval for reverse function, and a 5-year warranty.

Product Overview

The Roadvision RWL1252F is a versatile mid-size work lamp offering uncompromised performance and energy efficiency in an easy to install package. Small enough at 52 x 32 x 75mm to fit most applications yet big enough to pack a punch, it produces up to 900 lumens of instant light from eight 1.5W LEDs that deliver super white light close to daylight, spread across a flood beam pattern rated at 13 lux at 10 metres and 36 metres at 1 lux.

The super durable, lightweight die-cast aluminium housing and polycarbonate lens are water and dust proof to IP67 for worry-free operation in even the toughest conditions. The multi-volt 10-30V DC input draws a super low 0.75 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 450mm lead, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in. The RWL1252F also carries CTA approval for reverse function.

Features & Benefits

Mid-Size 12W Flood Beam Work Light: The RWL1252F produces up to 900 lumens of instant light output through a flood beam pattern, delivering 13 lux at 10 metres and 36 metres at 1 lux for even coverage of the immediate work area.

8 x 1.5W LEDs: Eight 1.5W LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.

Compact Fit-Anywhere Body: At just 52 x 32 x 75mm, the RWL1252F is small enough to fit most applications, from utes and 4WDs to trailers, machinery, and tight mounting spots.

CTA Approved Reverse Function: The RWL1252F carries CTA approval CTA-062223 for reverse function, allowing it to double as a reverse lamp.

50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of work vehicle and machinery applications.

IP67 Water and Dust Proof: The RWL1252F is water and dust proof to IP67, allowing worry-free operation in wet, muddy, and dusty conditions.

Die-Cast Aluminium Housing with Polycarbonate Lens: The super durable, lightweight die-cast aluminium housing and polycarbonate lens provide reliability in even the toughest conditions.

Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 0.75 amps at 13.8V, making the RWL1252F compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

Simple 2-Wire Installation: The 450mm 2-wire lead makes for a quick, straightforward connection, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

5-Year Warranty: The RWL1252F is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL1252F
Brand Roadvision
Series RWL1252
Description LED Work Lamp Flood Beam 10-30V 8 x 1.5W LEDs 12W IP67
Beam Type Flood Beam
Maximum Lumens 900lm
Maximum Watts 12W
Light Source 8 x 1.5W LEDs
Input Voltage 10-30V DC
Current Draw 0.75A at 13.8V
Lux at 10m 13LX
Distance at 1 Lux 36m
Lens Polycarbonate
Housing Die-Cast Aluminium
IP Rating IP67
Wiring 2 Wire, 450mm Long

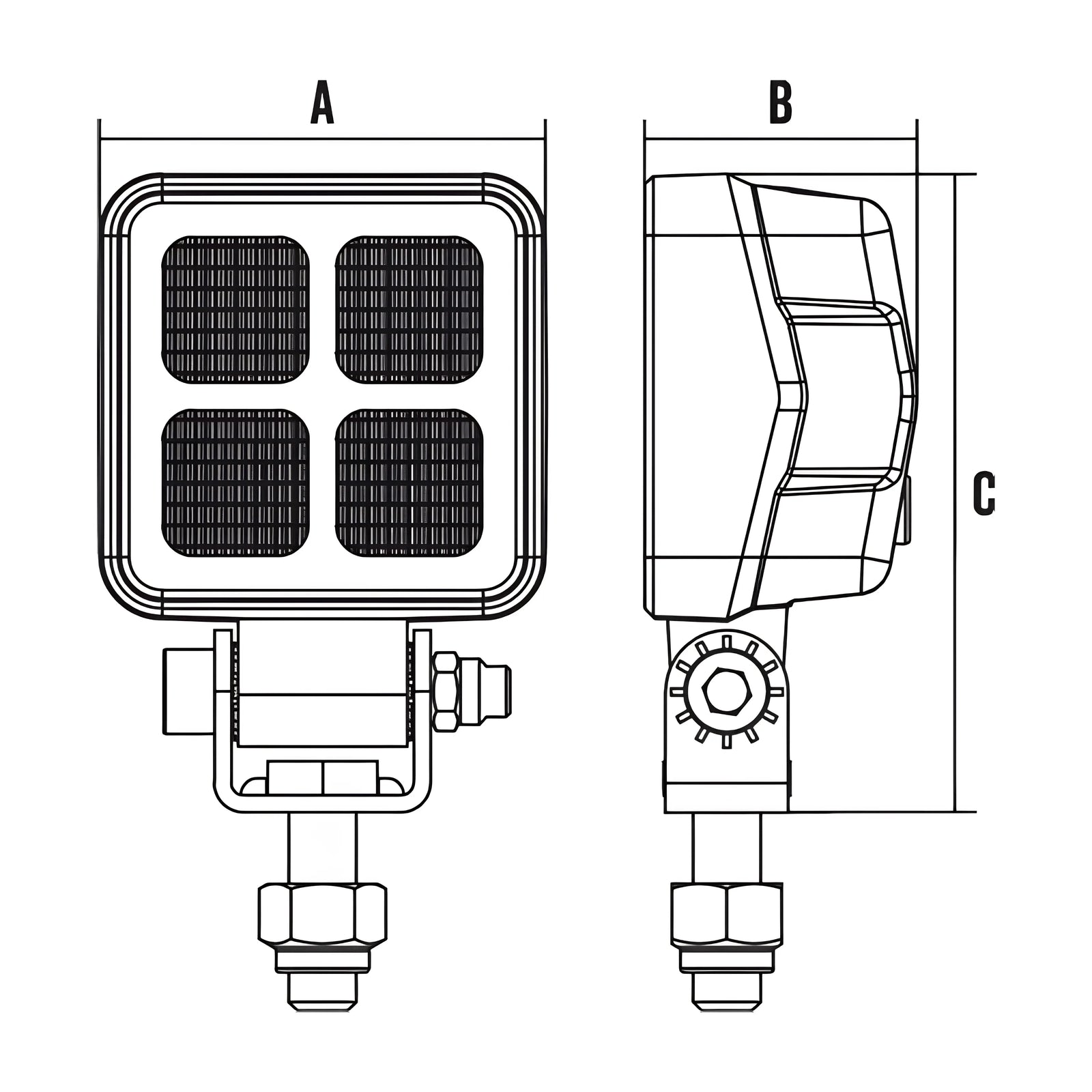

Dimensions 52 x 32 x 75mm
CTA Approval Reverse Function - CTA-062223
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL1252F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles, and carries CTA approval CTA-062223 for use as a reverse lamp. Confirm mounting space and wiring access before purchase.

Frequently Asked Questions

How bright is the RWL1252F?

The RWL1252F produces up to 900 lumens of instant light from 8 x 1.5W LEDs, delivering 13 lux at 10 metres and 36 metres at 1 lux through a flood beam pattern.

Can the RWL1252F be used as a reverse light?

Yes. The RWL1252F carries CTA approval CTA-062223 for reverse function, allowing it to be installed as a reverse lamp.

Is the RWL1252F compatible with 24V vehicles?

Yes. The RWL1252F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

Is the RWL1252F waterproof?

Yes. The RWL1252F is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for worry-free operation in tough conditions.

How does the RWL1252F connect to the vehicle?

The RWL1252F uses a simple 2-wire installation with a 450mm lead, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
