Product features

Roadvision RWL118F LED Work Light 18W Rectangle Flood Beam IP67

A rectangle 18W LED work light from the Roadvision RWL118 Series, the RWL118F produces 1080 effective lumens from 6 x 3W Epistar LEDs through a flood beam, with 10-30V DC multi-volt input, IP67 water and dust proof rating, die-cast aluminium housing, polycarbonate lens, low profile mounting bracket, and a 5-year warranty.

Product Overview

The Roadvision RWL118F is a rectangle LED work lamp from the RWL118 Series, built to suit the most demanding work environments. Six 3W Epistar LEDs produce 1080 effective lumens of super white light close to daylight, spread across a flood beam pattern that delivers 10 lux at 10 metres, 32 metres at 1 lux, and a 63 metre beam distance at 0.5 lux for broad coverage of the immediate work area.

The compact 160 x 63 x 45mm body pairs a super durable, lightweight die-cast aluminium housing with a polycarbonate lens, water and dust proof to IP67 for worry-free operation in Australia's toughest conditions. The cleverly designed low profile mounting bracket and simple 2-wire installation via the 300mm lead make fitment a low fuss job, while the multi-volt 10-30V DC input draws a super low 1.4 amps at 13.8V. Solid-state technology delivers a 50,000 hour LED lifespan, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.

Features & Benefits

18W Rectangle Flood Beam Work Light: The RWL118F produces 1080 effective lumens of instant light through a flood beam pattern, delivering 10 lux at 10 metres and a 63 metre beam distance at 0.5 lux for broad, even work area coverage.

6 x 3W Epistar LEDs: Six 3W Epistar LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.

Low Profile Mounting Bracket: The cleverly designed low profile mounting bracket keeps the RWL118F sitting neatly against the vehicle for a tidy installation on utes, trays, bars, trailers, and machinery.

50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of work vehicle and machinery applications.

IP67 Water and Dust Proof: The RWL118F is water and dust proof to IP67, allowing worry-free operation in wet, muddy, and dusty conditions.

Die-Cast Aluminium Housing with Polycarbonate Lens: The super durable, lightweight die-cast aluminium housing and polycarbonate lens provide reliability in Australia's toughest conditions.

Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 1.4 amps at 13.8V, making the RWL118F compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

Simple 2-Wire Installation: The 300mm lead and simple 2-wire installation make for a quick, straightforward connection to the vehicle wiring.

Built-In Circuit Protection: Over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval protect both the lamp and the vehicle's electrical and communication equipment.

5-Year Warranty: The RWL118F is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL118F
Brand Roadvision
Series RWL118
Description 118 Series LED Work Lamp 18W Flood
Beam Type Flood Beam
Lumens Light Output (Effective) 1080lm
Total Watts 18W
Light Source 6 x 3W Epistar LEDs
Input Voltage 10-30V DC
Current Draw 1.4A at 13.8V DC
Lux at 10m 10 Lux
Metres at 1 Lux 32m
Metres at 0.5 Lux 63m
Beam Distance 63m
Lens Polycarbonate
Housing Die-Cast Aluminium
IP Rating IP67
Mounting Low Profile Mounting Bracket
Wiring 2 Wire, 300mm Lead

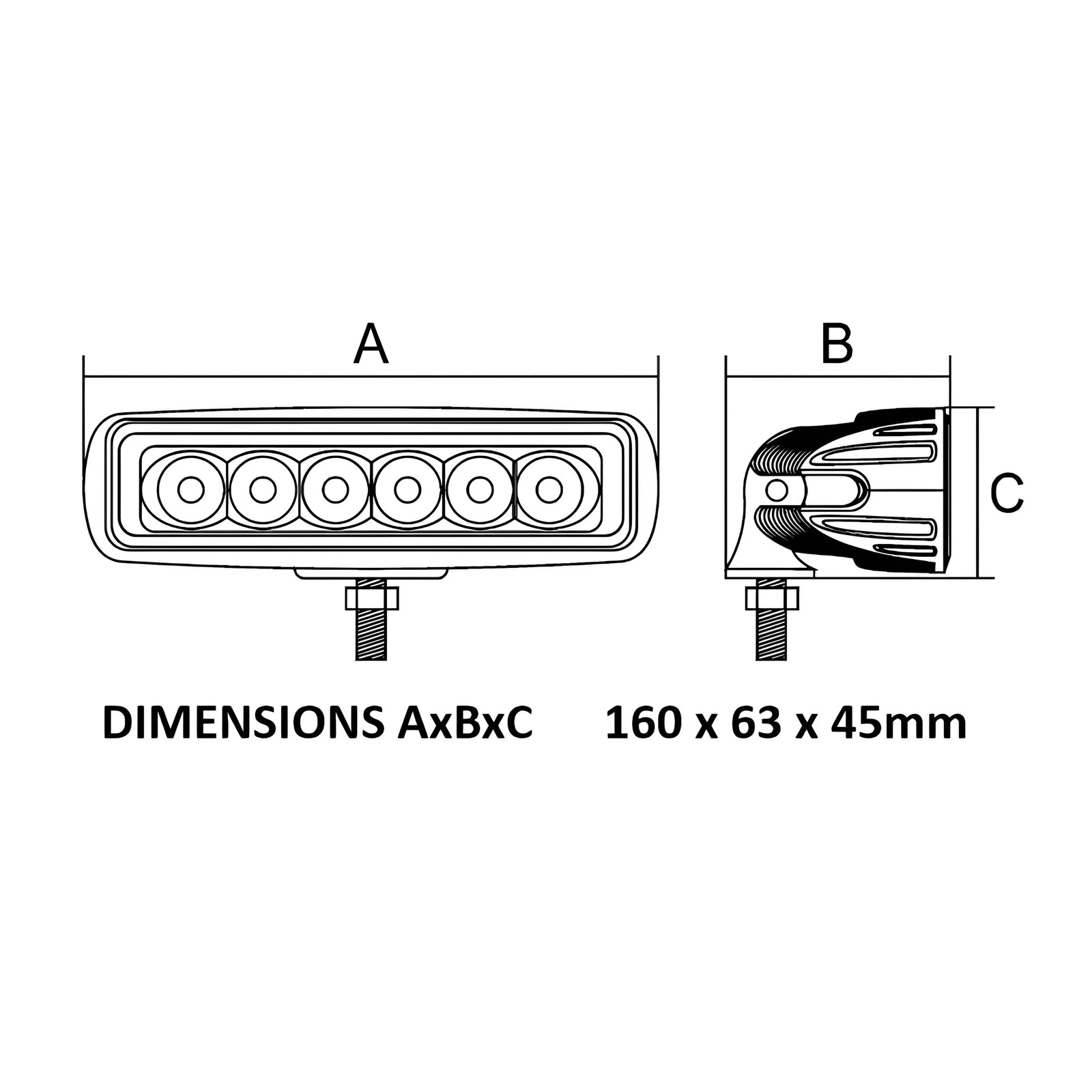

Dimensions 160 x 63 x 45mm
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL118F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The RWL118 Series is also available as a spot beam (RWL118S) with a 148 metre beam distance for longer range illumination, and a flush mount spot version (RWL118SFM) is available in the RWL118FM Series. Confirm mounting space and wiring access before purchase.

Frequently Asked Questions

How bright is the RWL118F?

The RWL118F produces 1080 effective lumens from 6 x 3W Epistar LEDs, delivering 10 lux at 10 metres, 32 metres at 1 lux, and a 63 metre beam distance at 0.5 lux through a flood beam pattern.

What is the difference between the RWL118F and RWL118S?

Both share the same 18W output, 1080 effective lumens, and 160 x 63 x 45mm body. The RWL118F is the flood beam version with a 63 metre beam distance for wide work area coverage, while the RWL118S is the spot beam version reaching 148 metres for longer range illumination.

Is the RWL118F compatible with 24V vehicles?

Yes. The RWL118F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

Is the RWL118F waterproof?

Yes. The RWL118F is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for worry-free operation in tough conditions.

How does the RWL118F mount and connect?

The RWL118F mounts via a cleverly designed low profile bracket and connects with a simple 2-wire installation using the 300mm lead, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
