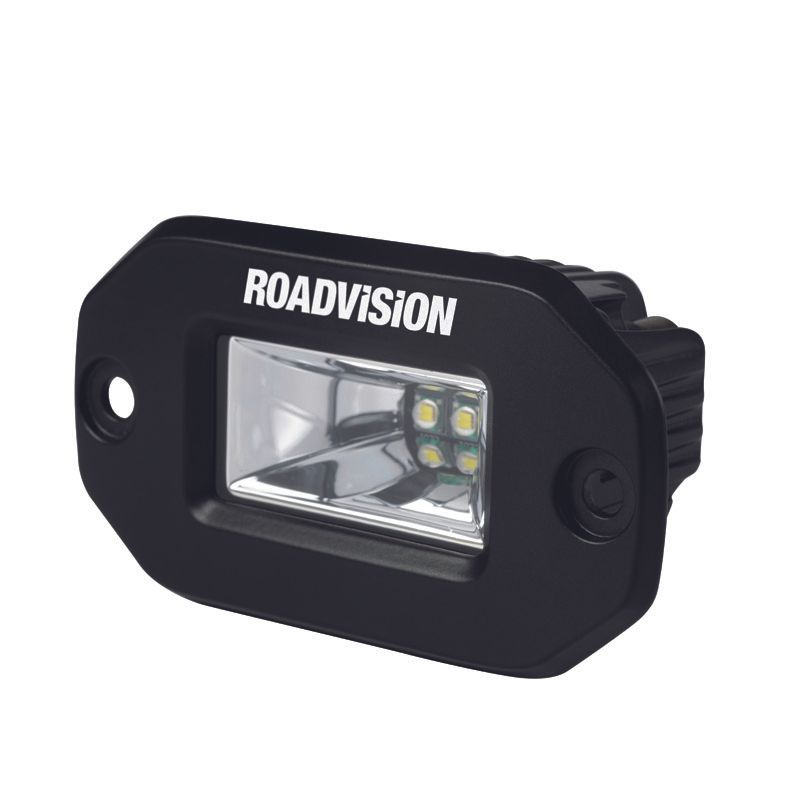

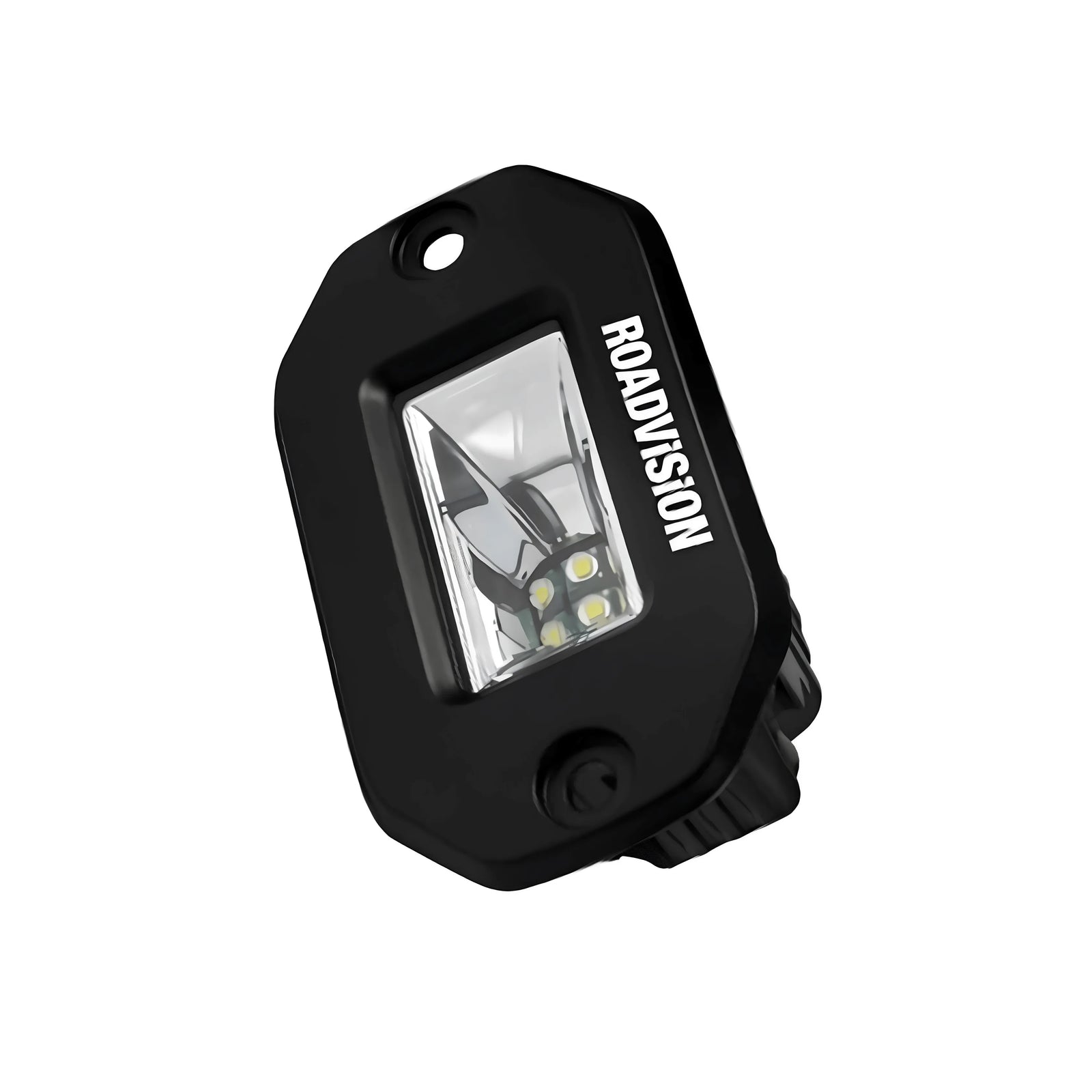

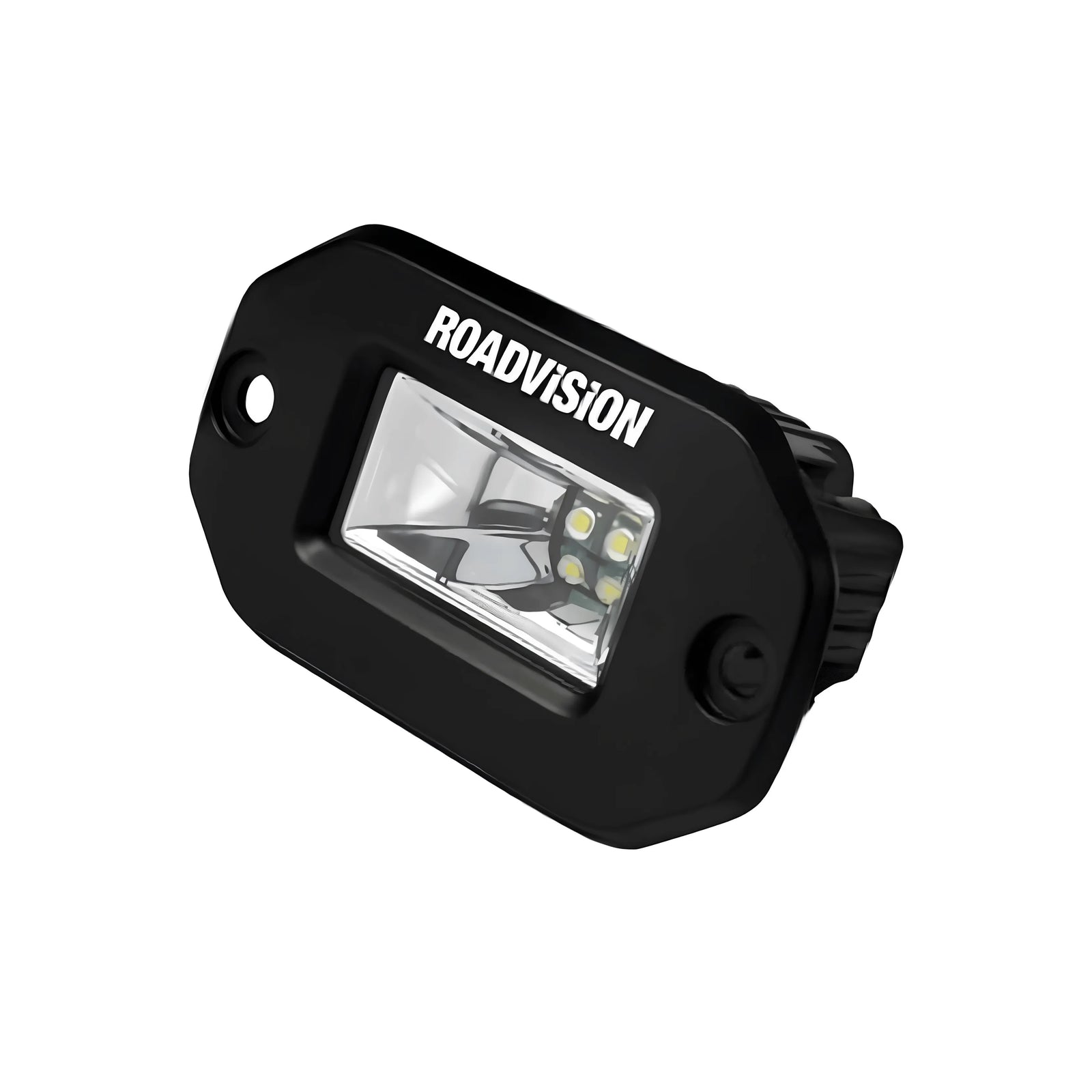

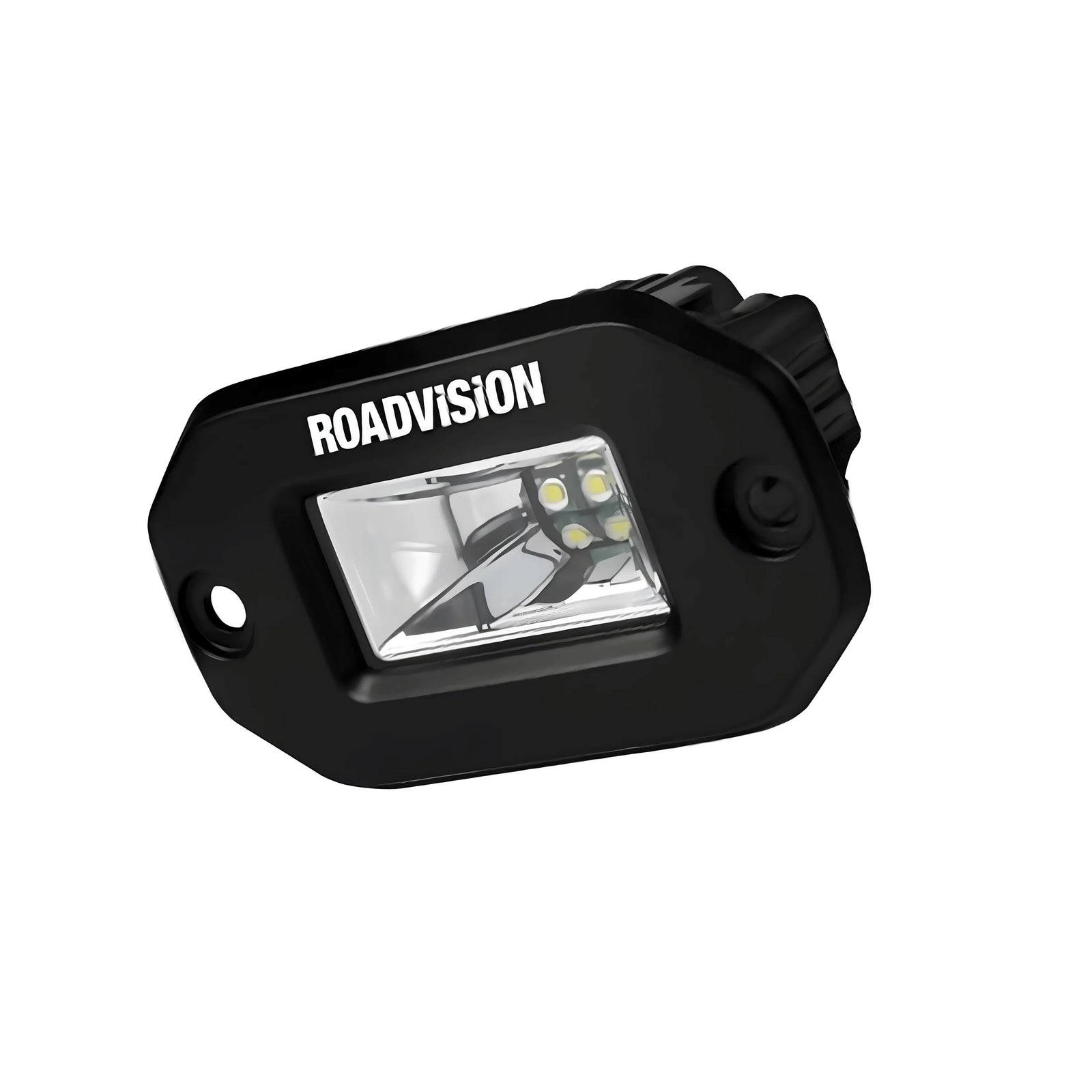

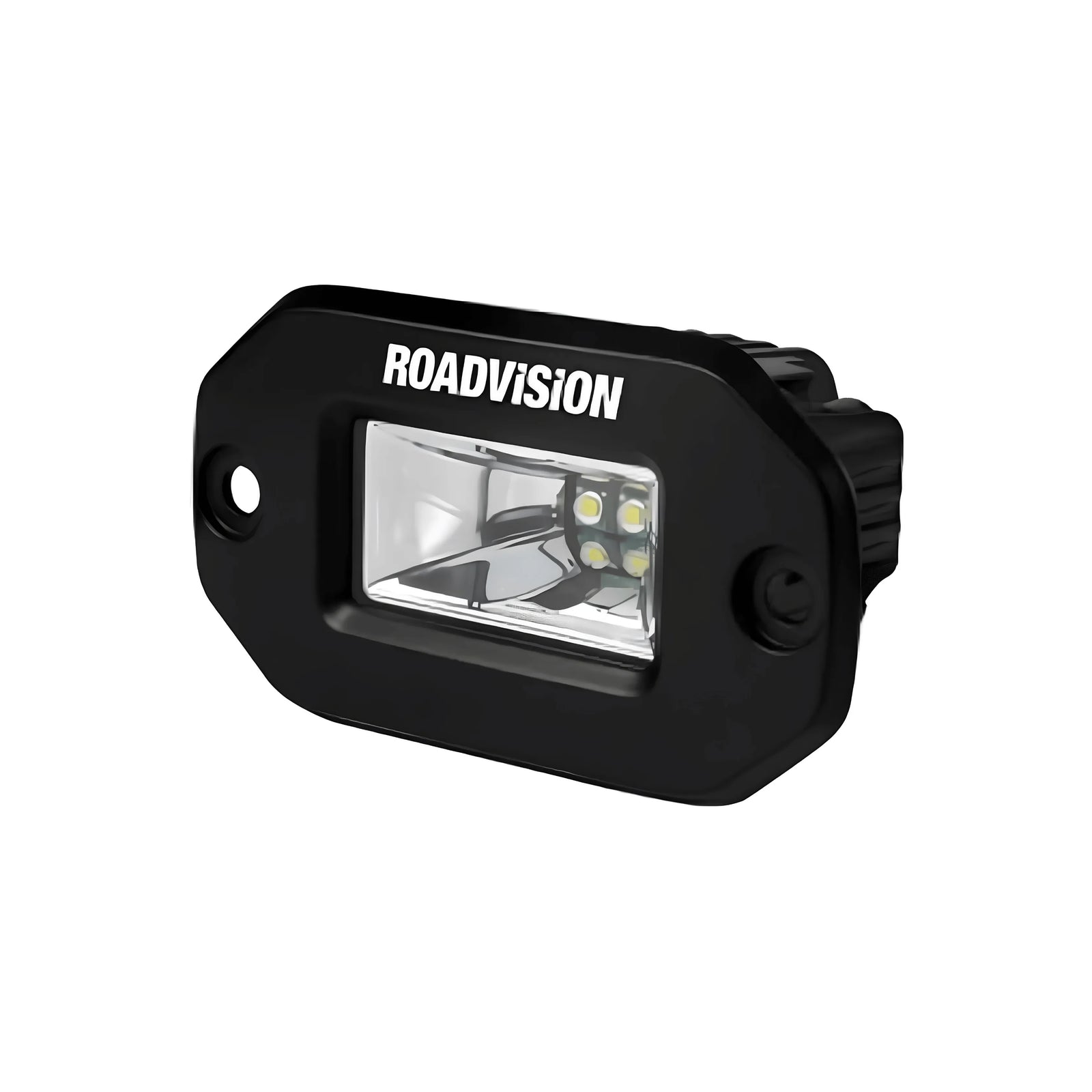

Roadvision RWL1120FFM LED Work Light 20W Flood Beam Flush Mount
Roadvision RWL1120FFM LED Work Light 20W Flood Beam Flush Mount
Click to open expanded view

Roadvision RWL1120FFM LED Work Light 20W Flood Beam Flush Mount

SKU: RWL1120FFM
Price
$69
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RWL1120FFM LED Work Light 20W Flood Beam Flush Mount 526lm 9-36V

A compact 20W flood beam flush mount LED work light from the Roadvision RWL1120 Series, the RWL1120FFM delivers 526 lumens from 2 x 10W LEDs with a beam distance of 60 metres at 1 lux, in a lightweight die-cast aluminium housing with polycarbonate lens, 9-36V DC multi-volt input, 2-pin Deutsch plug, and a 72 x 50mm panel cutout for flush installation, backed by a 5-year warranty.

Product Overview

The Roadvision RWL1120FFM is a rectangle flush mount LED work light from the RWL1120 Series, sharing the same LED array, output, beam pattern, and electrical specifications as the surface mount RWL1120F but designed for flush panel installation via a 72 x 50mm cutout. Two 10W LEDs produce 526 lumens of super-white flood beam light close to daylight colour temperature, with 29 lux at 6 metres and a beam reach of 60 metres at 1 lux. The 109 x 59 x 55mm die-cast aluminium housing with polycarbonate lens provides durability and effective heat management. Multi-volt 9-36V DC input at 1.4A at 13.8V, over/under voltage and reverse polarity protection, EMI/EMC radio interference approval, and 2-pin Deutsch plug for simple 2-wire installation. Backed by a 5-year warranty.

Features & Benefits

526 Lumens Flood Beam - 60 Metres at 1 Lux: The RWL1120FFM delivers 526 lumens of flood beam output with 29 lux at 6 metres and a beam reach of 60 metres at 1 lux, providing broad area illumination suited to flush-mounted work lighting applications.

2 x 10W LEDs - Super White Daylight-Close Output: Two 10W LEDs produce a super-white output close to daylight colour temperature for accurate colour rendering and clear visibility during work operations.

Flush Mount Design with 72 x 50mm Panel Cutout: The RWL1120FFM is designed for flush panel installation via a 72 x 50mm cutout, providing a clean, recessed appearance suited to toolboxes, service bodies, and vehicle panels where a flush finish is preferred.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing at 109 x 59 x 55mm provides structural rigidity and effective heat dissipation, while the polycarbonate lens resists impact and UV degradation.

50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated lifespan with maintenance-free solid-state technology provides long-term reliability.

Multi-Volt 9-36V DC with Low Current Draw: Compatible with 12V, 24V, and 36V electrical systems at 1.4A at 13.8V.

Over/Under Voltage and Reverse Polarity Protection: Electronic protection safeguards the LED driver from voltage fluctuations and wiring errors.

EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication and electronic systems without interference.

2-Pin Deutsch Plug for Simple 2-Wire Installation: Secure, weatherproof, and vibration-resistant 2-wire connection.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RWL1120FFM
Brand Roadvision
Series RWL1120
Description LED Work Light 9-36V Rectangle 20W Flood Beam Flush Mount
Beam Type Flood Beam
Maximum Lumens 526lm
Total Watts 20W
Light Source 2 x 10W LEDs
Input Voltage 9-36V DC
Current Draw 1.4A at 13.8V DC
Lux at 6m 29 Lux
Beam Distance at 1 Lux 60m

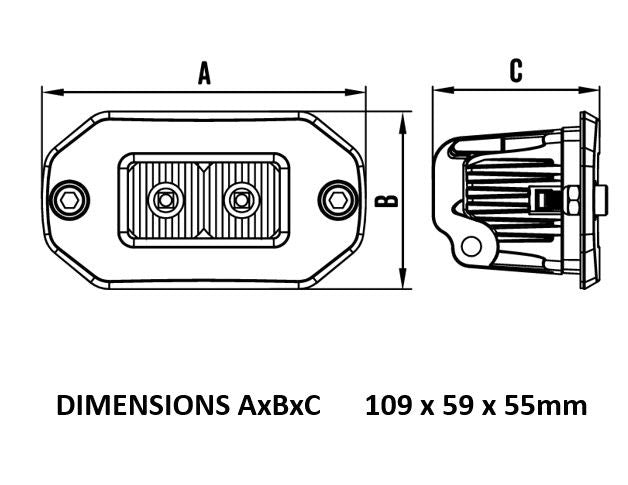

Dimensions 109mm x 59mm x 55mm
Mount Type Flush Mount
Cutout Required 72mm x 50mm
Wiring 2-Pin Deutsch Plug
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
LED Lifespan 50,000 Hours
Warranty 5 Years

Compatible With

The RWL1120FFM is compatible with 9-36V DC electrical systems including 12V, 24V, and 36V vehicle and equipment platforms. Requires a 72 x 50mm panel cutout for flush installation. The 2-pin Deutsch plug provides a secure weatherproof 2-wire connection. A surface mount version without cutout requirement is available as the RWL1120F.

Frequently Asked Questions

What size panel cutout does the RWL1120FFM require?

The RWL1120FFM requires a 72 x 50mm panel cutout for flush installation. Confirm the cutout dimensions are achievable in your specific panel or surface before purchase.

What is the difference between the RWL1120FFM and the RWL1120F?

Both share identical LED configuration, output, beam pattern, and electrical specifications. The RWL1120F is a surface mount unit measuring 71 x 62 x 55mm requiring no cutout. The RWL1120FFM is a flush mount unit measuring 109 x 59 x 55mm requiring a 72 x 50mm panel cutout for a recessed installation finish. Choose based on the installation surface and preferred mounting style.

Is the RWL1120FFM compatible with 24V vehicles?

Yes. The RWL1120FFM operates across 9-36V DC, making it compatible with 12V, 24V, and 36V electrical systems.

What is the beam pattern of the RWL1120FFM?

The RWL1120FFM produces a flood beam pattern delivering 526 lumens with 29 lux at 6 metres and a beam reach of 60 metres at 1 lux.

What is the rated LED lifespan of the RWL1120FFM?

The RWL1120FFM has a rated LED lifespan of 50,000 hours with maintenance-free solid-state technology.
