Ultra low-profile LED strobe module perfect for discrete safety applications, delivering 12W of bright white warning light with 18 selectable flash patterns, multi-unit synchronisation, and maintenance-free LED technology.

Product Overview

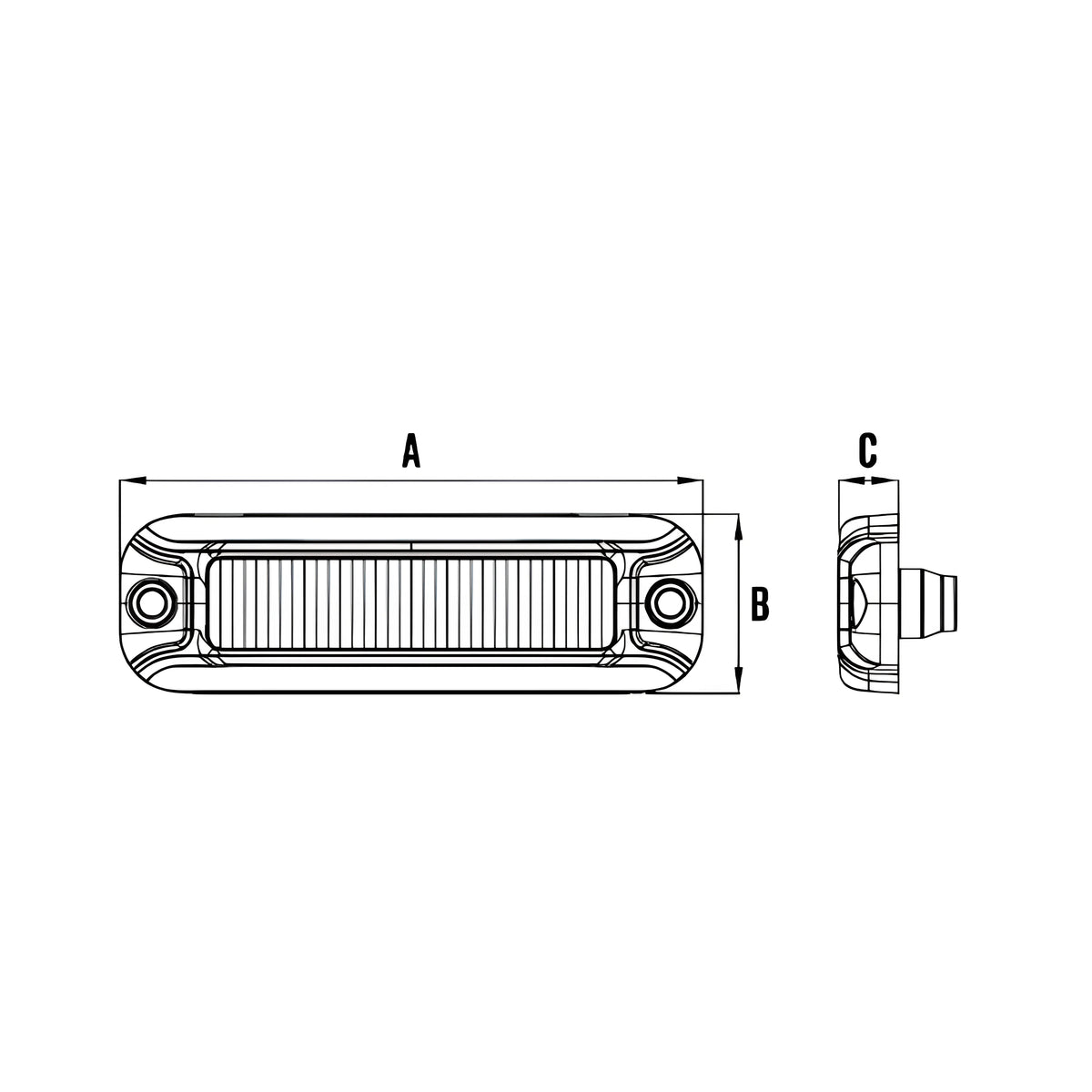

The Roadvision RSM0704W LED Strobe Module is simply perfect for discrete safety lighting applications where an ultra low-profile design is essential. This advanced strobe module delivers the durability of maintenance-free LED technology with 4x 3W white LEDs providing bright, attention-grabbing warning illumination that enhances visibility in automotive, industrial, and agricultural applications. Featuring 18 selectable flash patterns including OFF, single, double (fast/slow), quadruple (fast/slow), quintuple, sextuple, split variations, and specialized patterns like LHS/RHS double with half bright, the RSM0704W allows extensive customization of warning patterns to suit specific requirements. The built-in pattern memory recall ensures the module returns to your selected pattern after power cycling. Multi-unit synchronisation capability enables multiple modules to flash simultaneously or in alternating patterns, creating coordinated warning light displays for enhanced visibility. Measuring just 98mm x 30mm x 10mm with an ultra low-profile design, the RSM0704W installs discretely on vehicles, equipment, and structures while delivering powerful warning illumination. The multi-volt 10-30V DC input ensures compatibility with both 12V and 24V electrical systems, drawing just 1 amp at 13.8V for efficient operation. Built with rugged aluminium housing and virtually unbreakable polycarbonate lens, the RSM0704W is weatherproof, vibration resistant, and fully sealed against dust and water ingress for reliable operation in demanding environments. Rated to an impressive 100,000-hour LED lifespan with solid-state technology, this maintenance-free module eliminates bulb replacements and reduces downtime. The simple surface-mount design with 87mm mounting centres and color-coded wiring allows straightforward installation. Class 1 approved for professional safety applications and backed by Roadvision's comprehensive 5-year warranty, the RSM0704W simply takes safety lighting to another level.

Features & Benefits

Ultra Low-Profile Discrete Design: Measures just 98mm x 30mm x 10mm for ultra-discreet installation on vehicles, equipment, and structures where minimal profile is essential, providing powerful warning illumination while maintaining the lowest possible height.

18 Selectable Flash Patterns: Extensive flash pattern selection includes OFF, single, double (fast/slow), quadruple (fast/slow), quintuple, sextuple, split variations, interval patterns, and specialized LHS/RHS patterns with last pattern memory recall for comprehensive customization.

Multi-Unit Synchronisation: Enables multiple modules to flash simultaneously or in alternating patterns for coordinated warning light displays, creating enhanced visibility and professional-looking safety installations with synchronized operation.

Bright 12W White LED Output: 4x 3W white LEDs deliver bright, attention-grabbing warning illumination with superior visibility in daylight and nighttime conditions while drawing just 1 amp at 13.8V for efficient operation.

Multi-Volt Compatibility: 10-30V DC input voltage range ensures compatibility with both 12V and 24V electrical systems, making this module suitable for cars, 4WDs, trucks, agricultural equipment, and industrial machinery without modifications.

Rugged Weatherproof Construction: Aluminium housing and virtually unbreakable polycarbonate lens provide weatherproof, vibration-resistant performance that's fully sealed against dust and water ingress for reliable operation in demanding environments.

Maintenance-Free Long Life: Solid-state LED technology with 100,000-hour rated lifespan eliminates bulb replacements and reduces maintenance downtime. Class 1 approved for professional applications, backed by comprehensive 5-year warranty.

Technical Specifications

Compatible With

The Roadvision RSM0704W LED Strobe Module is compatible with all vehicles and equipment operating on 10-30V DC electrical systems including cars, 4WDs, SUVs, utes, trucks, trailers, caravans, agricultural machinery, tractors, construction equipment, industrial machinery, emergency vehicles, tow trucks, service vehicles, mining equipment, and any application requiring discrete white warning/safety lighting. Multiple RSM0704W modules can be synchronized together for coordinated warning light displays. Can be paired with other RSM07 Series modules (RSM0704A, RSM0706A, RSM0706W) for multi-color warning light systems. Ideal for automotive, industrial, agricultural, construction, emergency services, roadside assistance, and safety applications requiring Class 1 approved warning lights with ultra low-profile design.

Frequently Asked Questions

What are the 18 selectable flash patterns? The RSM0704W includes: OFF, Single, Double (Fast), Double (Slow), Quadruple (Fast), Quadruple (Slow), Quintuple (Slow), Sextuple, Single (Split), Double (Split), Quadruple (Slow Split), Quadruple (Fast Split), Double (Split) Interval, Sextuple (Split), Quintuple 4 Cycles Then 100ms 10 Cycles (Split), 100ms 14 Cycles Then 200ms 6 Cycles (Split), LHS Double/RHS Half Bright, and RHS Double/LHS Half Bright.

How do I synchronize multiple modules? Multiple RSM0704W modules can be synchronized using the yellow (Flash Select & Sync) wire and white (Alternate Flash) wire. Connect these wires between modules to achieve simultaneous or alternating flash patterns for coordinated warning light displays.

What is the difference between RSM06 and RSM07 Series? The RSM07 Series features an ultra low-profile design at just 10mm height (vs 11mm for RSM06) and includes 18 selectable flash patterns (vs 10 for RSM06), providing more customization options and an even more discrete installation profile.

Can this module be used on both 12V and 24V vehicles? Yes, the RSM0704W features multi-volt 10-30V DC input, making it compatible with both 12-volt cars, 4WDs, and light equipment and 24-volt trucks, heavy equipment, and industrial machinery without any modifications required.

Is this module weatherproof for outdoor use? Yes, the RSM0704W features aluminium housing and virtually unbreakable polycarbonate lens that is fully weatherproof and dust proof. The module is vibration resistant and sealed against dust and water ingress for reliable operation in demanding outdoor environments.
