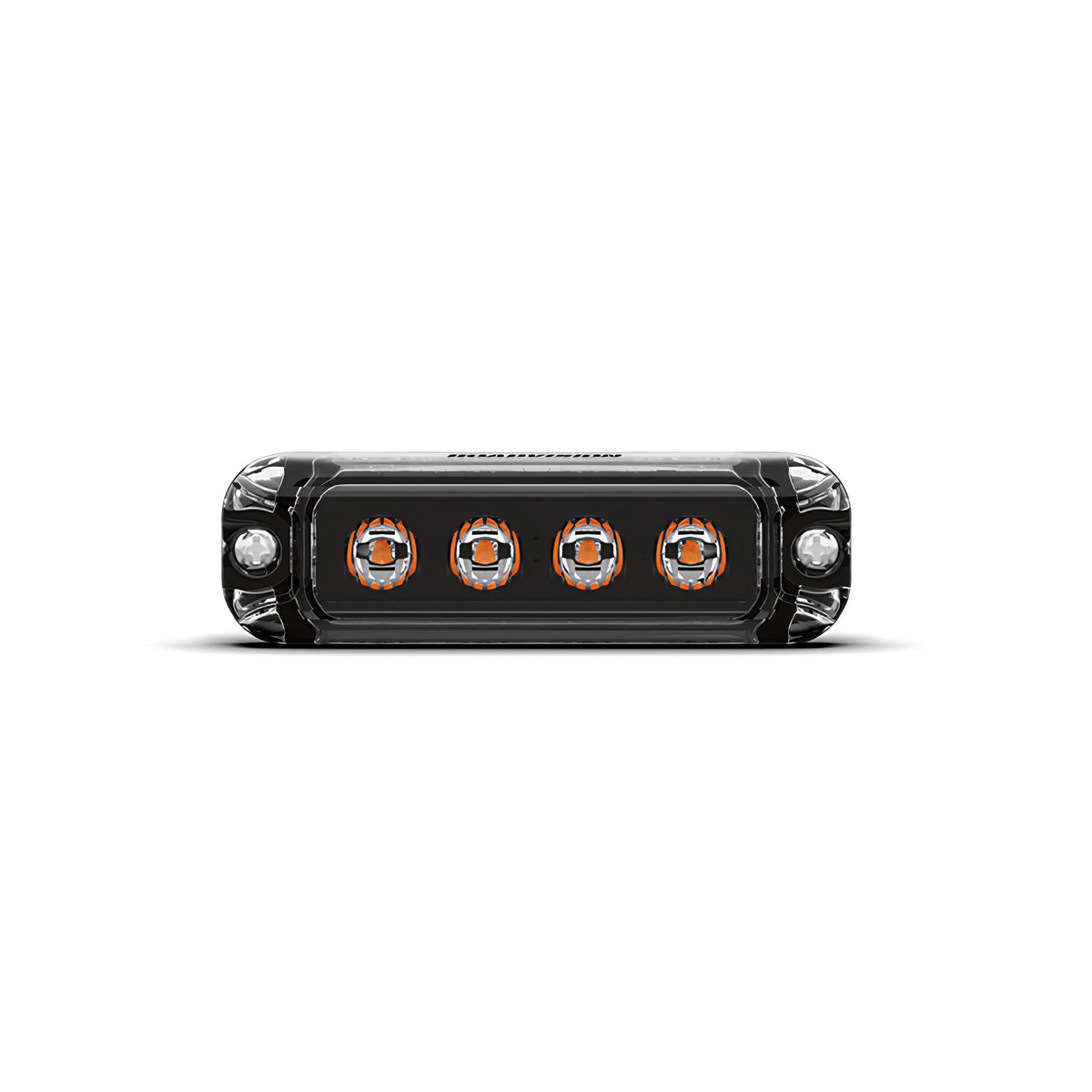

Lamp face on with four round amber LEDs and a bolt hole at each end
Lamp face on with four round amber LEDs and a bolt hole at each end

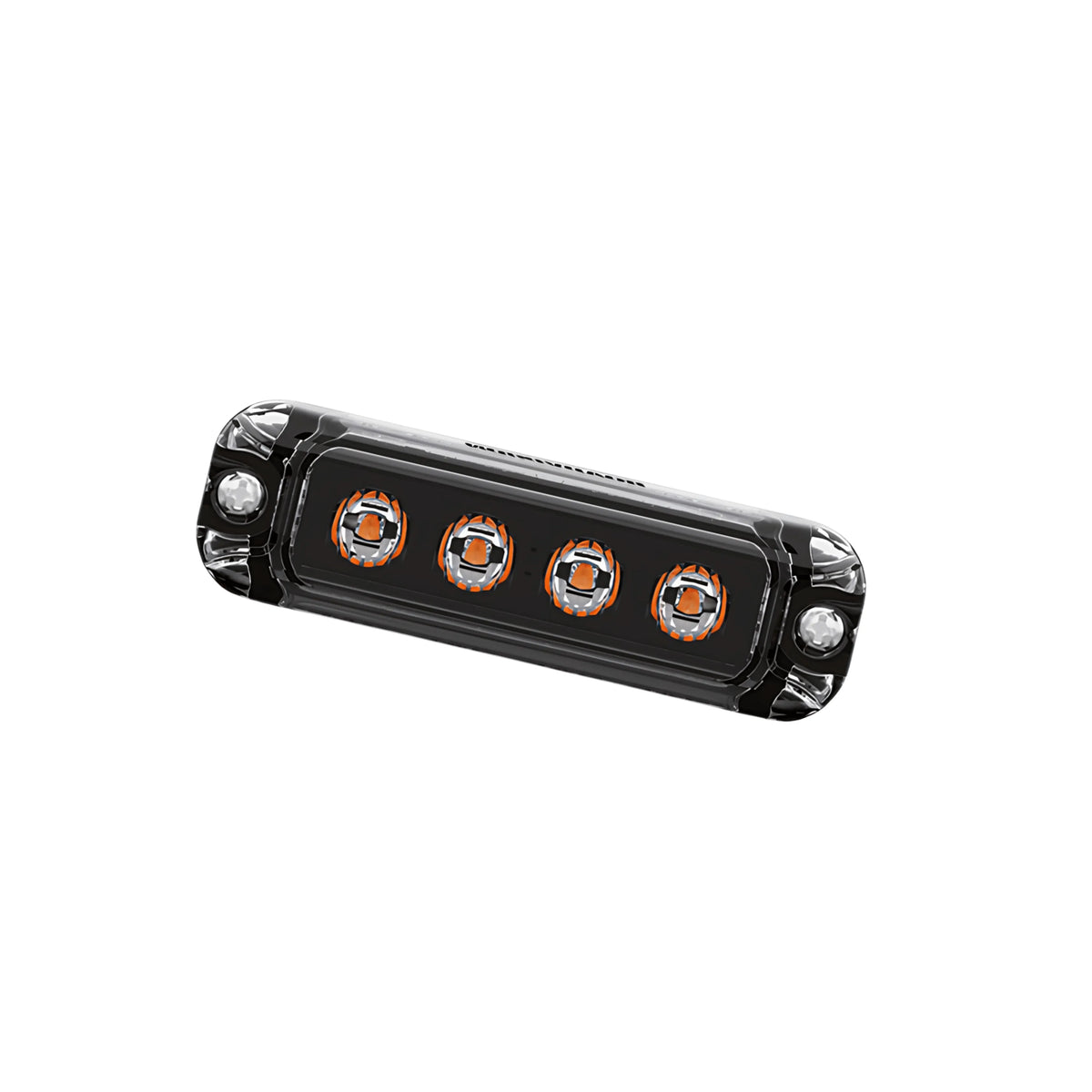

Lamp tilted up to the right, showing the black housing and LEDs
Lamp tilted up to the right, showing the black housing and LEDs
Lamp tilted down to the right, the reverse angle of the previous shot
Lamp tilted down to the right, the reverse angle of the previous shot

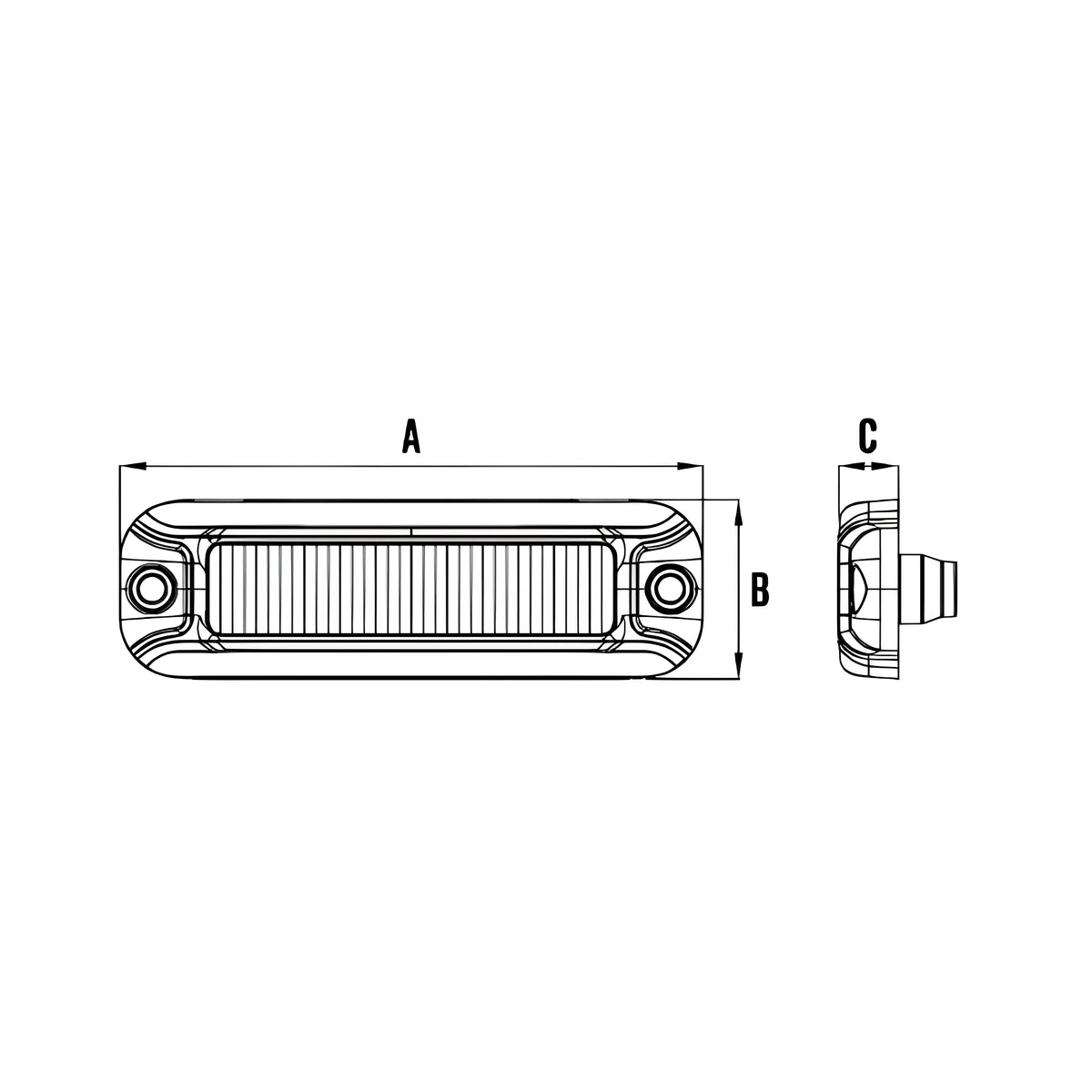

Line drawing of the lamp front and side marked A, B and C
Line drawing of the lamp front and side marked A, B and C
Click to open expanded view

Roadvision RSM0704A 12W Amber LED Strobe Module, 10 to 30V Surface Mount

SKU: RSM0704A
Price
$61.60
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Lamp face on with four round amber LEDs and a bolt hole at each end

Roadvision RSM0704A 12W Amber LED Strobe Module, 10 to 30V Surface Mount

$61.60

Product features

The Roadvision RSM0704A is a 12W amber LED strobe module only 10mm thick. It has 18 selectable flash patterns, links to other modules to flash together or alternate, and runs on 10 to 30V DC, so it fits work utes, trucks and machinery.

When you need warning lights that sit flat

Mine site, council and roadside work vehicles need warning lights, but a big beacon on the roof is not always practical. A slim module mounts on a grille, a bumper face, a tray or a headboard and stays out of the way of car washes and low roofs.

It remembers the last pattern you used, so it comes back on the same way every time.

Specifications

Model RSM0704A
Colour Amber
LEDs 4 x 3W, 12W total
Voltage 10 to 30V DC
Current draw 1A at 13.8V
Flash patterns 18 selectable
Sync Simultaneous and alternate
Memory Last pattern recall
Housing Aluminium
Lens Polycarbonate
Mounting Surface mount, 87mm centres
Size 98mm x 30mm x 10mm
Sealing Weatherproof and dust proof
Approval Class 1
LED life 100,000 hours

Wiring and sync

  • Red: positive
  • Black: negative
  • Yellow: flash select and sync
  • White: alternate flash

Join the yellow wires on two or more modules to sync them, and use the white wire for alternating patterns. Fuse the feed and switch it from the cab.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Can I link several modules?

Yes, through the yellow and white wires, flashing together or alternating.

Is it suitable for 24V machinery?

Yes, any supply from 10 to 30V DC.

How thick is it?

10mm.

What do I get?

Roadvision does not publish a box list for the RSM0704A. We can confirm screws and seals with the supplier for you.
