Product features

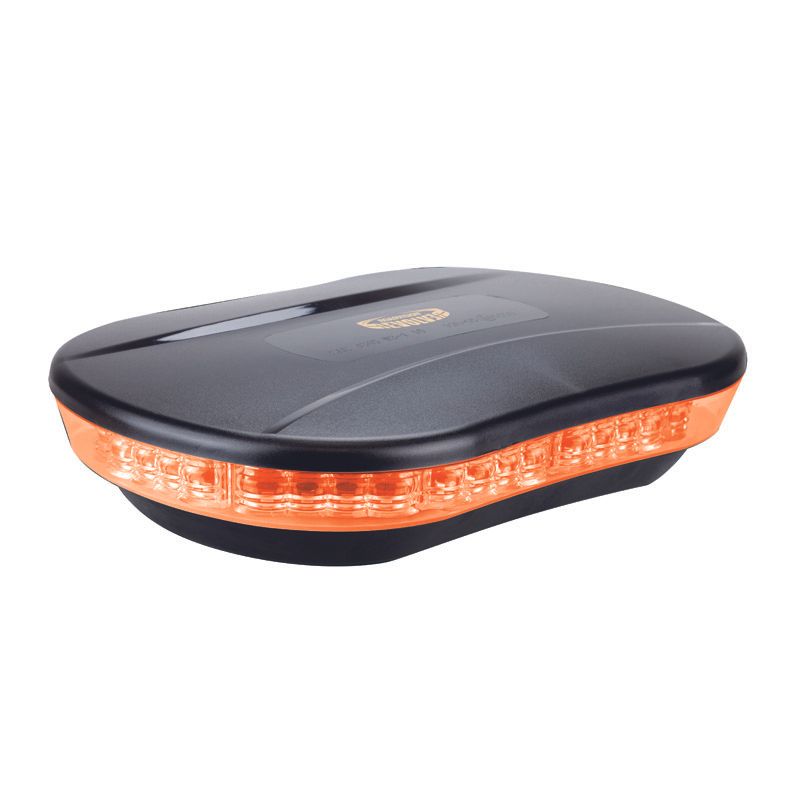

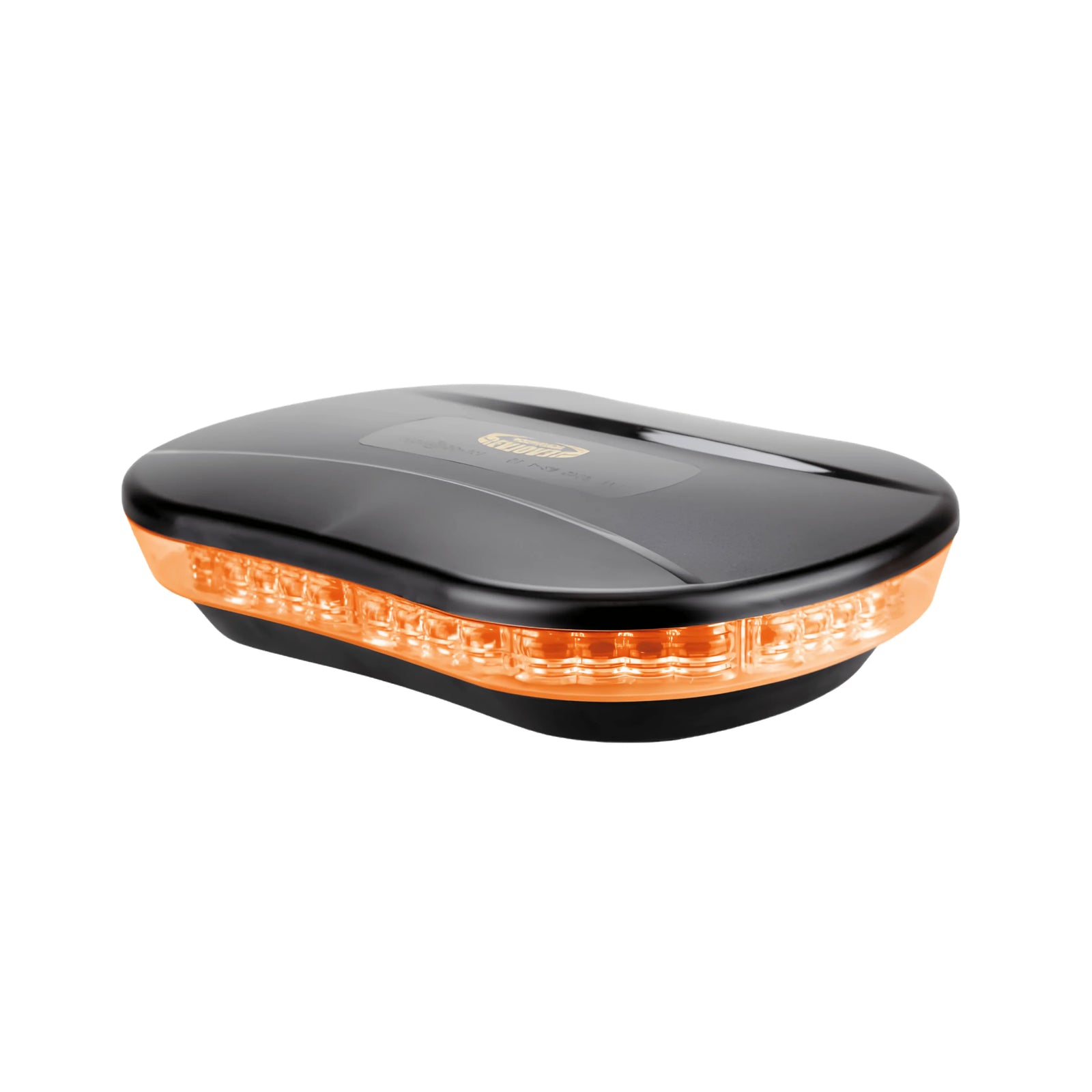

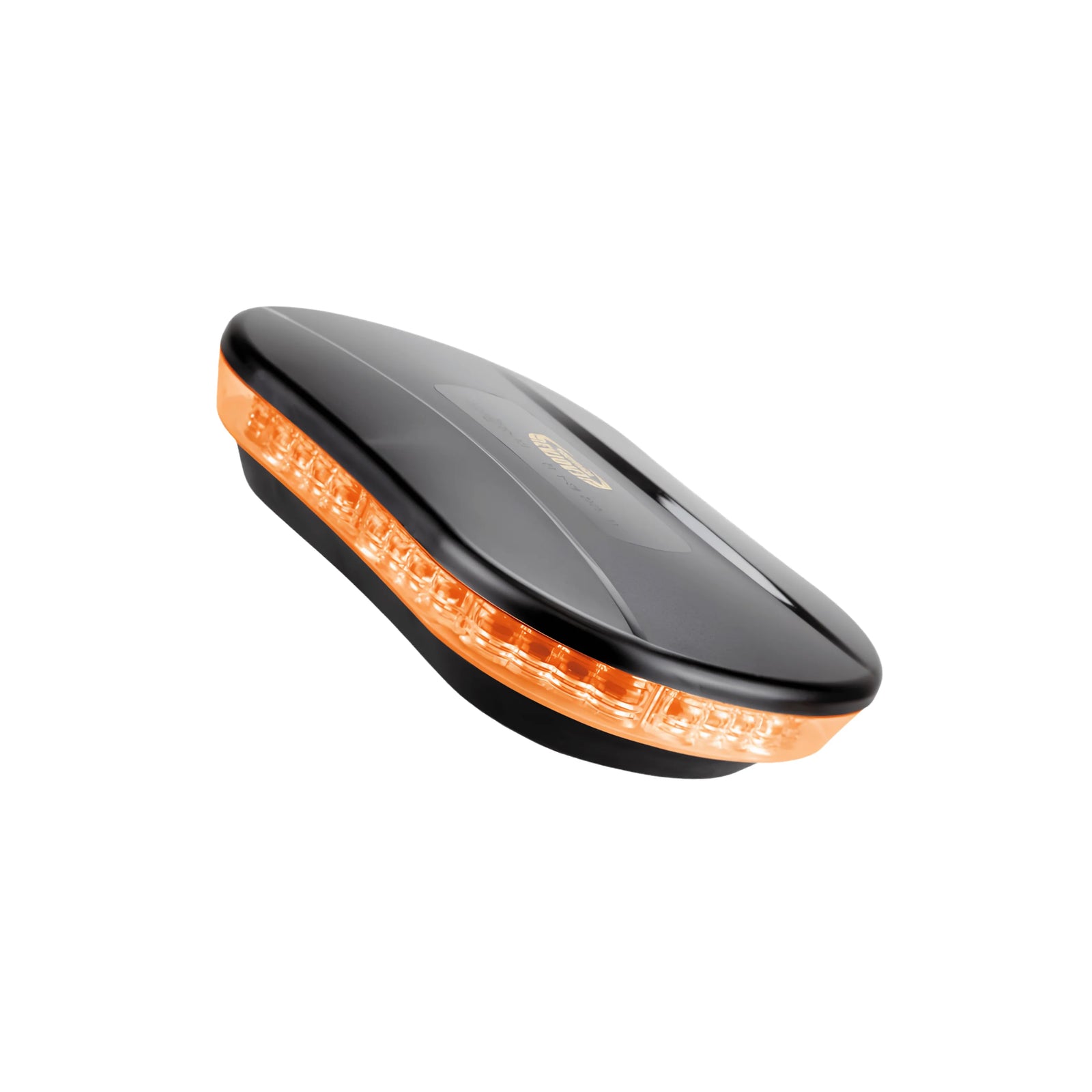

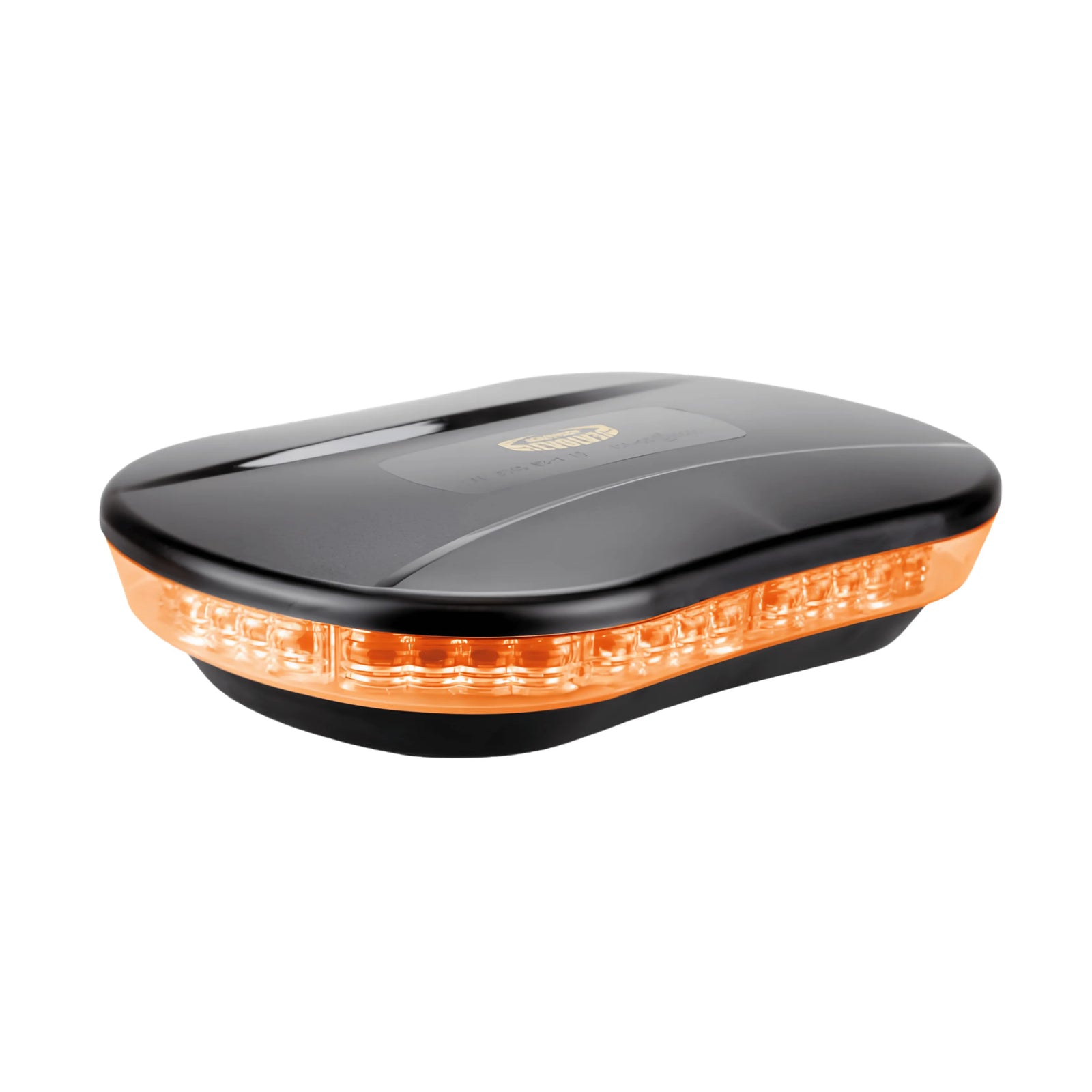

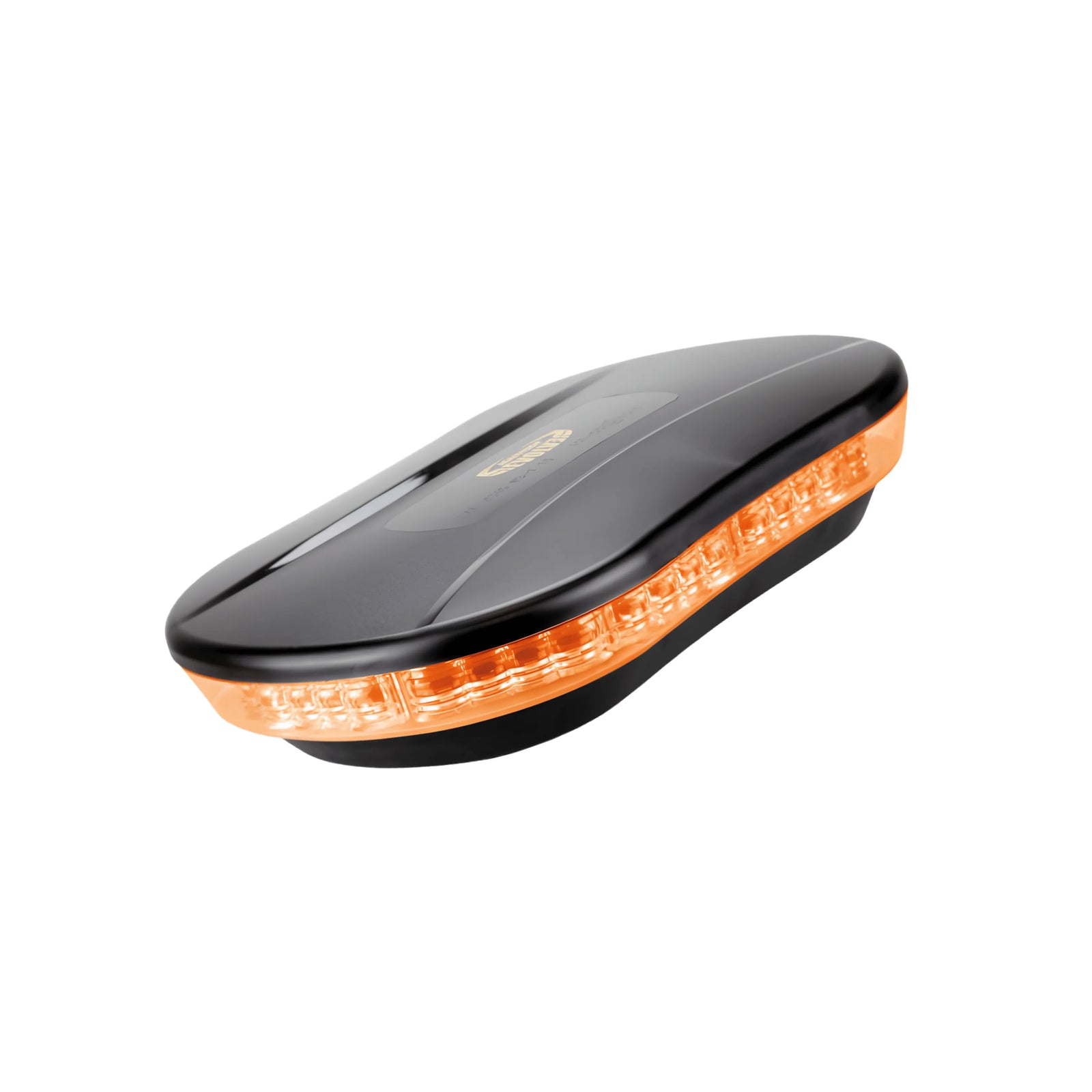

Roadvision RLB250Y Revolver LED Micro Light Bar Amber Fixed Mount

A low profile 360-degree high intensity amber LED micro light bar from the Roadvision Revolver RLB250 Series, the RLB250Y features 40 SMD LEDs producing 20W, 10 selectable flash patterns, IP67 waterproof and vibration proof rating, polycarbonate lens and housing, 10-30V DC multi-volt operation, single bolt fixed mounting, EMC, ECE R65/R10 and SAE Class 1 approvals, and a 5-year warranty.

Product Overview

The Roadvision RLB250Y is a fixed mount micro light bar from the Revolver RLB250 Series, the pinnacle in vehicle roof top emergency lighting. Featuring 360-degree high intensity LEDs and 10 selectable flash patterns, the RLB250Y provides high penetration, high level lighting from a truly compact yet robust package, with the compact low profile 251 x 170 x 56mm body sitting neatly on utes, service vehicles, and plant machinery.

Forty SMD LEDs produce 20W of high intensity amber output with a 100,000 hour rated LED lifespan and maintenance-free solid-state technology, drawing just 1.6A at 13.8V from the multi-volt 10-30V DC input. The tough polycarbonate lens and housing are waterproof to IP67 and vibration proof, ensuring vehicle visibility through dust, mist, or fog in even the toughest conditions. The RLB250Y mounts via a single M12 x 30mm bolt, is pre-wired with a 300mm sheathed cable, and holds EMC, ECE R65/R10, and SAE J845 Class 1 approvals.

Features & Benefits

Low Profile 360-Degree Micro Light Bar: The RLB250Y delivers 360-degree high intensity amber output from a compact 251 x 170 x 56mm low profile body, providing high penetration, high level warning lighting without the bulk of a full size bar.

40 SMD LEDs - 20W Output - 100,000 Hour Lifespan: Forty SMD LEDs produce 20W of output with a 100,000 hour rated lifespan and maintenance-free solid-state technology, outlasting halogen and xenon strobe alternatives.

10 Selectable Flash Patterns: Ten selectable flash patterns cover single, strobe, triple, simulated rotating, and combination sequences, allowing the RLB250Y to be configured for the specific application and regulatory requirements.

EMC, ECE R65/R10 and SAE Class 1 Approved: The RLB250Y holds EMC, ECE R65/R10, and SAE J845 Class 1 approvals, confirming compliance with electromagnetic compatibility and emergency vehicle lighting intensity requirements for on-road and industrial use.

Tough Polycarbonate Lens and Housing: The polycarbonate lens and housing provide a weatherproof, high performance construction with no maintenance required in demanding field, construction, and emergency vehicle environments.

IP67 Waterproof and Vibration Proof: IP67 rating provides full dust and waterproof protection, and the vibration proof construction ensures reliable operation on rough terrain and heavy equipment applications.

Multi-Volt 10-30V DC with Low Current Draw: The 10-30V DC multi-volt input with a current draw of just 1.6A at 13.8V makes the RLB250Y compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

Single Bolt Fixed Mount: The RLB250Y mounts via a single M12 x 30mm bolt, providing a permanent and secure installation to vehicle roof panels and mounting brackets.

300mm Sheathed Pre-Wired Cable: The 300mm sheathed pre-wired cable provides a protected and professional wiring connection between the light bar and the vehicle wiring harness.

5-Year Warranty: The RLB250Y is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RLB250Y
Brand Roadvision
Series Revolver RLB250
Description Low Profile Micro Bar LED 10-30V 10 Flash Patterns Amber Fixed Mount
Function 10 Selectable Flash Patterns
Light Source 40 SMD LEDs
Power Output 20W
Input Voltage 10-30V DC
Current Draw 1.6A at 13.8V
Dimensions 251 x 170 x 56mm
Mounting Type Single Bolt M12 x 30mm Fixed Mount
Wiring 300mm Sheathed
Lens Polycarbonate
Housing Polycarbonate
IP Rating IP67
Vibration Proof Yes
Approvals EMC, ECE R65/R10 and SAE J845 Class 1
LED Lifespan 100,000 Hours
Warranty 5 Years

Flash Patterns

Number Pattern
1 Single (ECE/SAE) 480ms
2 Strobe
3 Combination (Middle Triple, Both Side Triple)
4 Rotated
5 Combination (1-5)
6 Combination (1-3-5)
7 Triple
8 Combination (Middle Triple, Both Side Triple, All Triple)
9 Combination (Front Triple, Middle Triple, All Triple)
10 Combination (Middle Triple, Left and Right Triple, Front Triple, Middle Triple, Back Triple, All Triple)

Compatible With

The RLB250Y is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles, and holds EMC, ECE R65/R10, and SAE J845 Class 1 approvals for on-road and industrial use. The RLB250 Series is also available in a magnetic mount version (RLB250MY) with a 2.5m lead and cigarette plug for temporary installations. Confirm roof mounting position and the single bolt M12 x 30mm fixing before purchase.

Frequently Asked Questions

How many flash patterns does the RLB250Y have?

The RLB250Y has 10 selectable flash patterns covering single (ECE/SAE 480ms), strobe, triple, simulated rotating, and a range of combination sequences.

Is the RLB250Y SAE Class 1 approved?

Yes. The RLB250Y holds EMC, ECE R65/R10, and SAE J845 Class 1 approvals, confirming compliance with emergency vehicle lighting intensity requirements for on-road and industrial use.

Is the RLB250Y compatible with 24V vehicles?

Yes. The RLB250Y operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the difference between the RLB250Y and RLB250MY?

Both share the same 40 SMD LEDs, 10 flash patterns, and approvals. The RLB250Y is the fixed mount version with a single M12 x 30mm bolt, 56mm body height, and 300mm sheathed cable, while the RLB250MY is the magnetic mount version with a 41mm body height and 2.5m lead with cigarette plug for temporary use.

What is the rated lifespan of the RLB250Y LEDs?

The RLB250Y has a rated LED lifespan of 100,000 hours with maintenance-free solid-state technology, outlasting halogen and xenon strobe alternatives.
