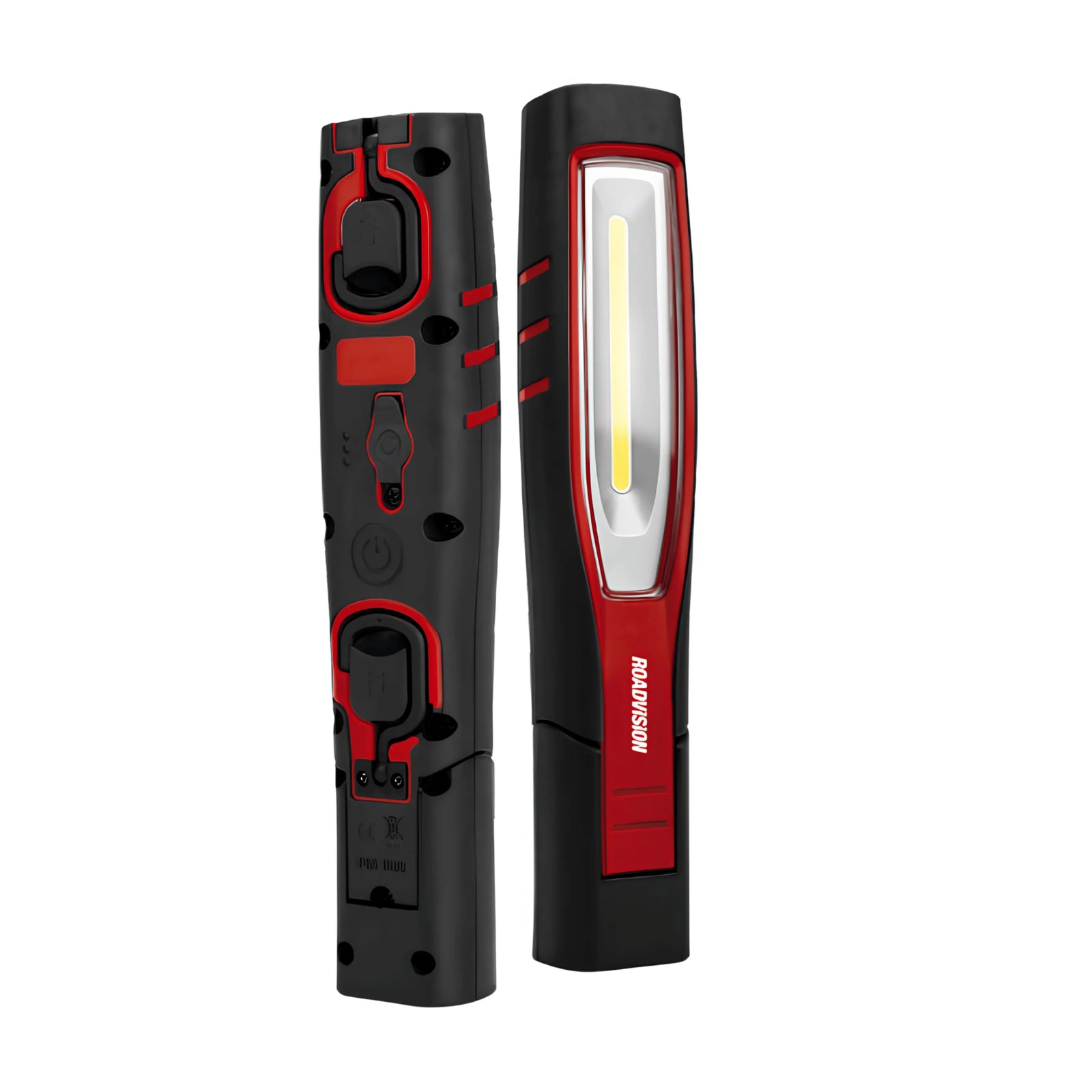

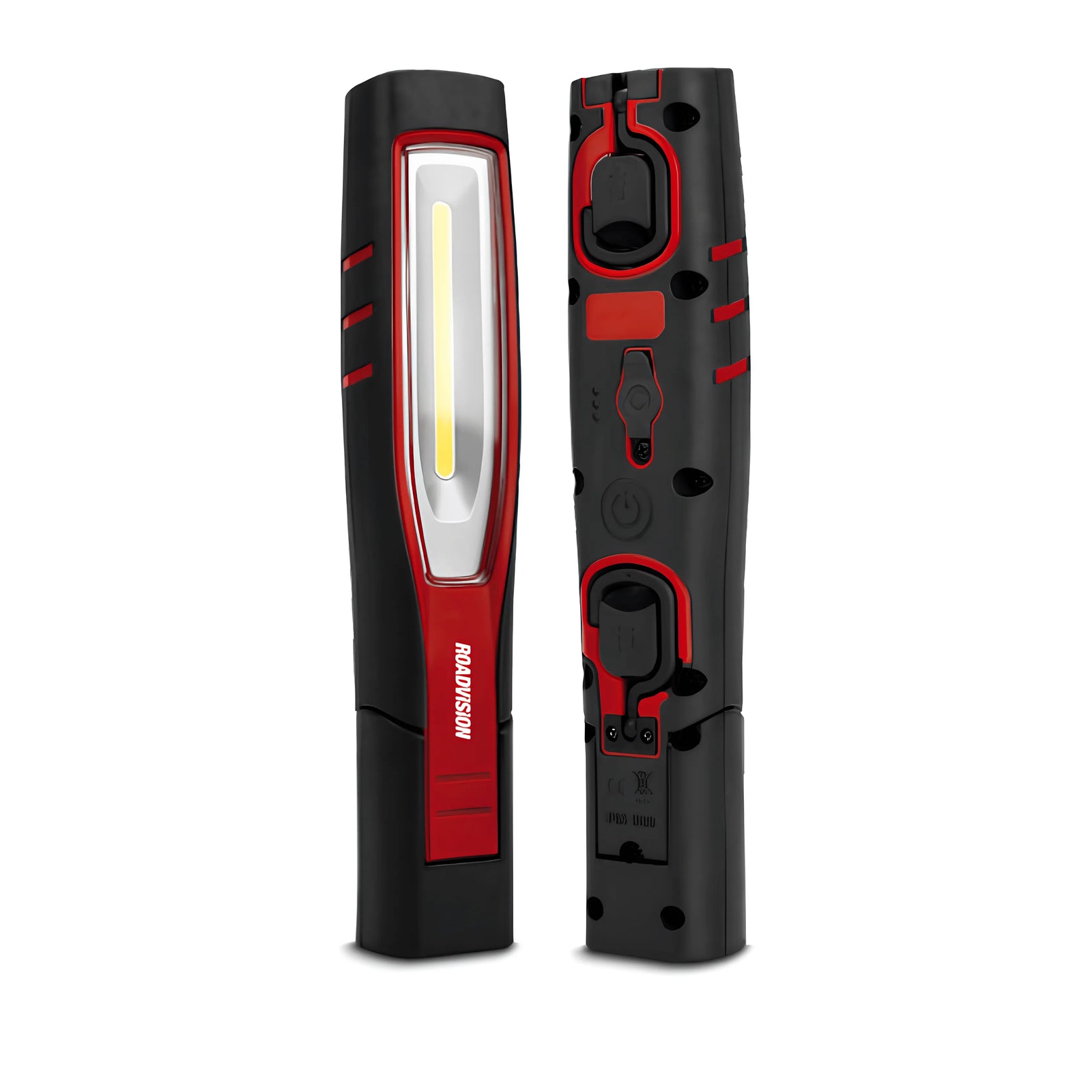

Roadvision RHL101000 1000lm LED Inspection Lamp and Torch

Roadvision RHL101000 Professional Multi-Function 1000lm LED Inspection Lamp and Torch

A professional multi-function rechargeable LED inspection lamp and torch from Roadvision, the RHL101000 delivers up to 1000 lumens from a 10W COB LED inspection lamp with high, mid, and low output modes, plus a 200 lumen 4W SMD LED torch, featuring a 180-degree tilt magnetic base, 2 rear and 1 bottom magnets, 2 swivel hooks, IP65 rating, 2m drop resistance, Micro-C USB charging, and powerbank output, backed by a 3.7V 3350mAh Li-ion battery.

Product Overview

The Roadvision RHL101000 is a professional multi-function LED torch and inspection lamp suited for home, travel, and work applications. The 10W COB LED inspection lamp delivers three output modes: high (1000lm), mid (500lm), and low (250lm), with run times of 2 hours on high, 4.5 hours on mid, and 8 hours on low. The separate 4W SMD LED torch delivers 200 lumens with an 8-hour run time. The 3.7V 3350mAh rechargeable Li-ion battery charges via Micro-C USB in 4.5 hours. A USB Type-A powerbank output at 5V/2A is available for charging other devices.

The 180-degree tilt magnetic base, 2 rear magnets, and 1 bottom magnet allow hands-free positioning on ferrous metal surfaces in a wide range of orientations. Two swivel hooks provide additional hands-free hanging options. Soft touch rubberised casing provides a secure grip. A 3-LED battery level indicator monitors charge status. IP65 rated for dust and water resistance and 2m drop resistant for durability on worksites and in the field. Dimensions are 260 x 53 x 39mm and weight is 382g.

Features & Benefits

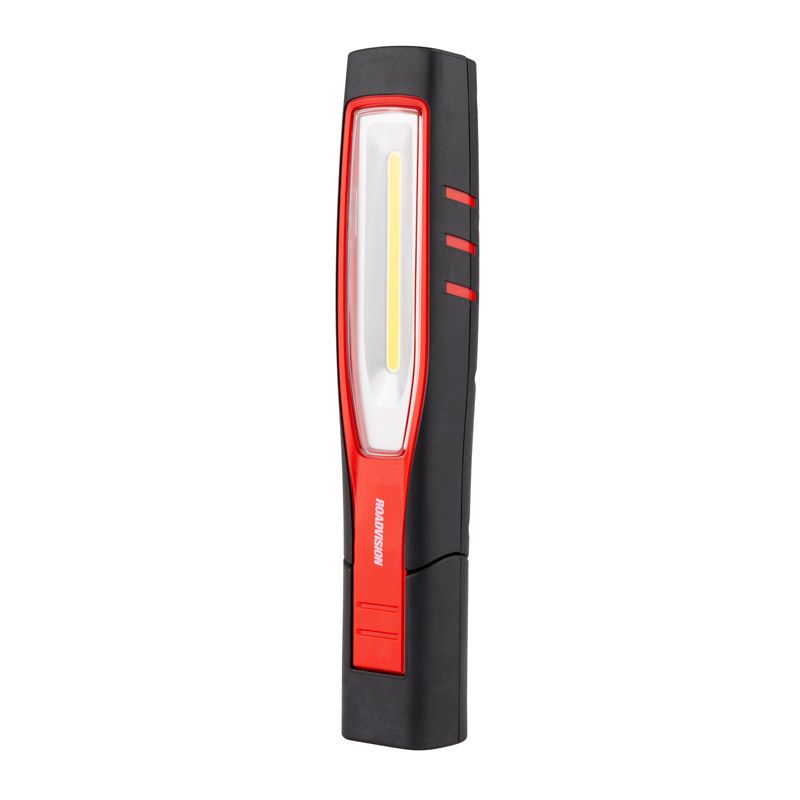

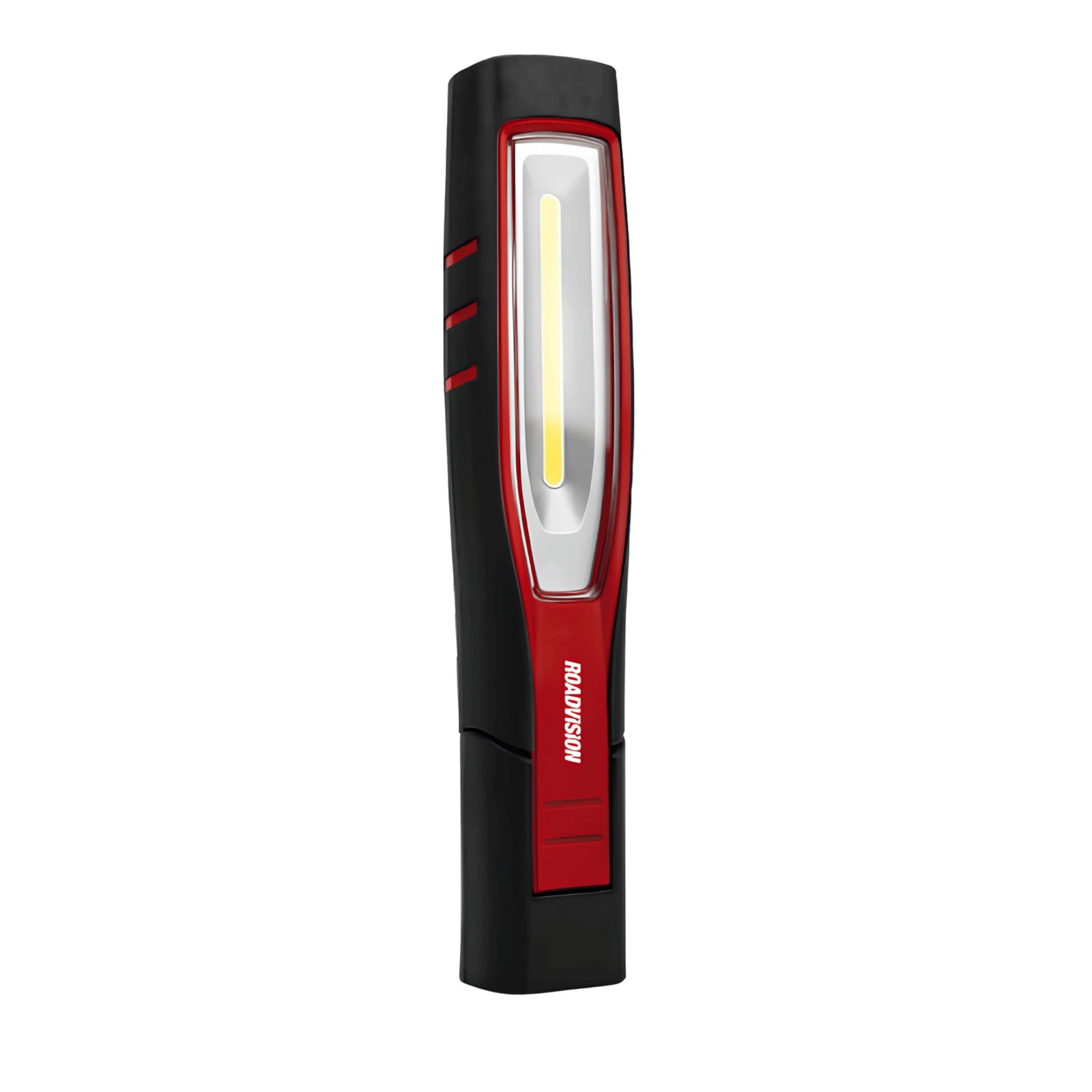

1000 Lumen COB LED Inspection Lamp with 3 Output Modes: The 10W COB LED inspection lamp delivers high (1000lm), mid (500lm), and low (250lm) output modes, with corresponding run times of 2 hours on high, 4.5 hours on mid, and 8 hours on low for flexible power and runtime management across different work scenarios.

200 Lumen 4W SMD LED Torch: The integrated 4W SMD LED torch delivers 200 lumens with an 8-hour run time for a focused spot beam suited to torch applications alongside the broad COB inspection lamp output.

180-Degree Tilt Magnetic Base: The 180-degree tilt magnetic base allows the inspection lamp to be positioned across a wide range of angles on any ferrous metal surface, providing flexible hands-free positioning for under-bonnet, on-vehicle, and worksite applications.

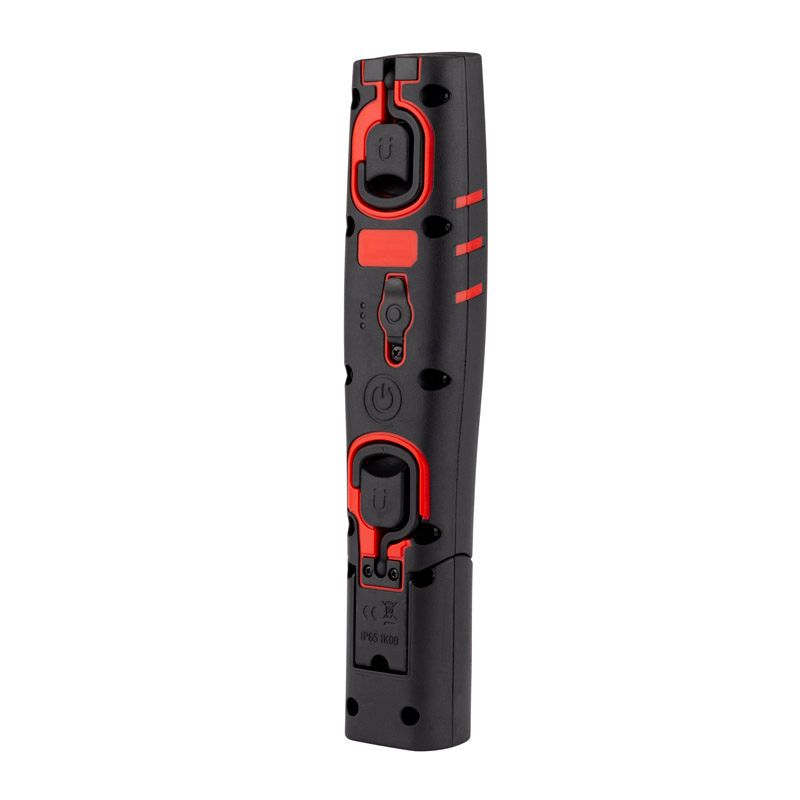

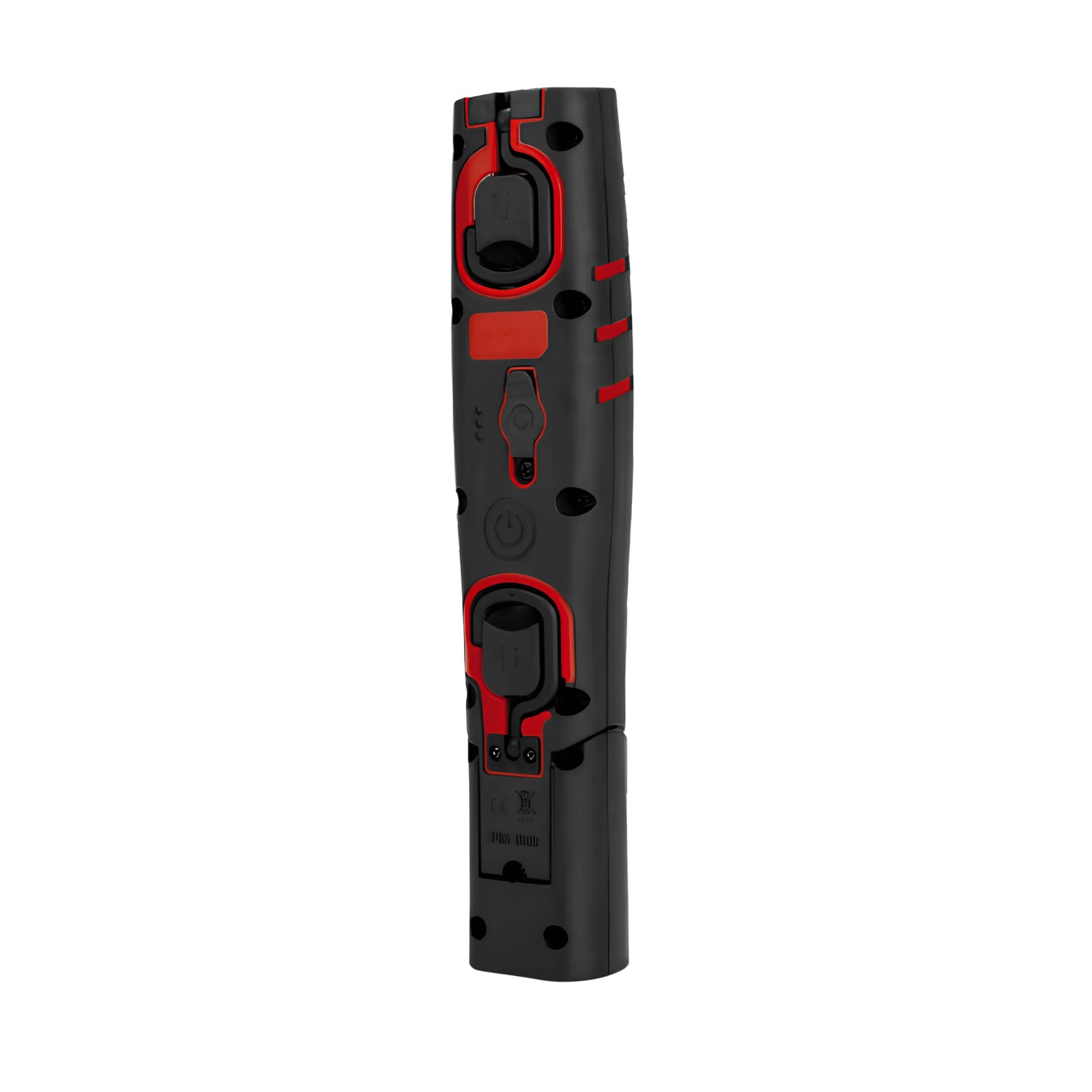

2 Rear Magnets, 1 Bottom Magnet, and 2 Swivel Hooks: The combination of 3 magnets across the rear and bottom of the unit and 2 swivel hooks provides a wide range of hands-free mounting options across ferrous metal surfaces and fixed structures.

Powerbank Output - USB Type-A 5V/2A: The USB Type-A powerbank output allows the RHL101000 to charge smartphones and other USB devices from its Li-ion battery, adding utility in remote and field environments.

3.7V 3350mAh Rechargeable Li-Ion Battery: The 3350mAh Li-ion battery provides sufficient capacity for extended use across multiple modes, with Micro-C USB charging in 4.5 hours from any compatible USB power source.

Micro-C USB Charging: Charges via Micro-C USB from vehicle USB ports, wall adaptors, and power banks for convenient charging in the field.

IP65 Rated and 2m Drop Resistant: IP65 rating provides full dust protection and resistance to water jets from any direction. The 2m drop rating confirms the RHL101000 can withstand accidental drops to hard surfaces during worksite and field use.

3-LED Battery Level Indicator: The 3-LED battery indicator provides a clear visual indication of remaining charge level to prevent unexpected battery depletion during use.

Soft Touch Rubberised Casing: The soft touch rubberised casing provides a secure non-slip grip and adds additional impact protection to the external housing.

Super White Light Close to Daylight: Both the COB inspection lamp and SMD torch LED produce super-white light close to daylight colour temperature for accurate colour rendering during inspection and work tasks.

Technical Specs

Compatible With

The RHL101000 charges via Micro-C USB from any compatible USB power source including vehicle USB ports, wall adaptors, and power banks. The USB Type-A powerbank output is compatible with smartphones and other USB devices requiring 5V/2A input. The magnetic base and rear magnets attach to ferrous metal surfaces. The swivel hooks are compatible with standard hook mounting points on tool shelves, vehicle hooks, and worksite structures.

Frequently Asked Questions

How long does the RHL101000 battery last?

Run time depends on the selected mode: torch delivers 8 hours, inspection lamp low delivers 8 hours, inspection lamp mid delivers 4.5 hours, and inspection lamp high delivers 2 hours. The 3-LED battery indicator monitors remaining charge during use.

Can the RHL101000 be used as a powerbank to charge other devices?

Yes. The RHL101000 includes a USB Type-A powerbank output at 5V/2A, allowing it to charge smartphones and other USB devices from its Li-ion battery.

Is the RHL101000 waterproof?

The RHL101000 is IP65 rated, providing full protection against dust ingress and water jets from any direction. It is not rated for submersion.

What drop height is the RHL101000 rated for?

The RHL101000 is 2m drop rated, confirming it can withstand accidental drops to hard surfaces from up to 2 metres during worksite and field use.

How does the magnetic base work on the RHL101000?

The 180-degree tilt magnetic base attaches to ferrous metal surfaces across a wide range of orientations, allowing the inspection lamp to be aimed in the required direction without manual support. Two additional rear magnets and one bottom magnet provide further attachment points. Two swivel hooks provide hanging options on non-magnetic surfaces.
