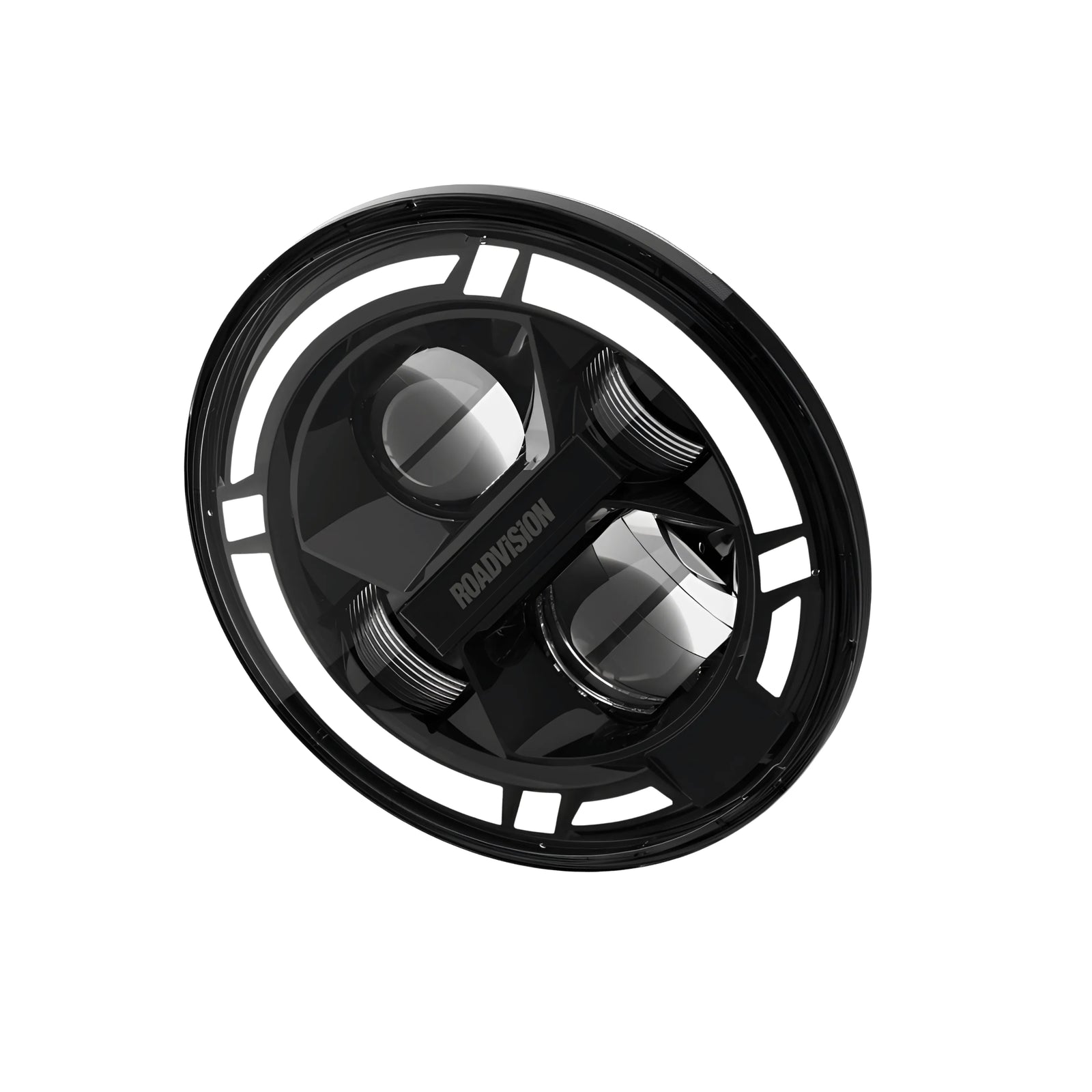

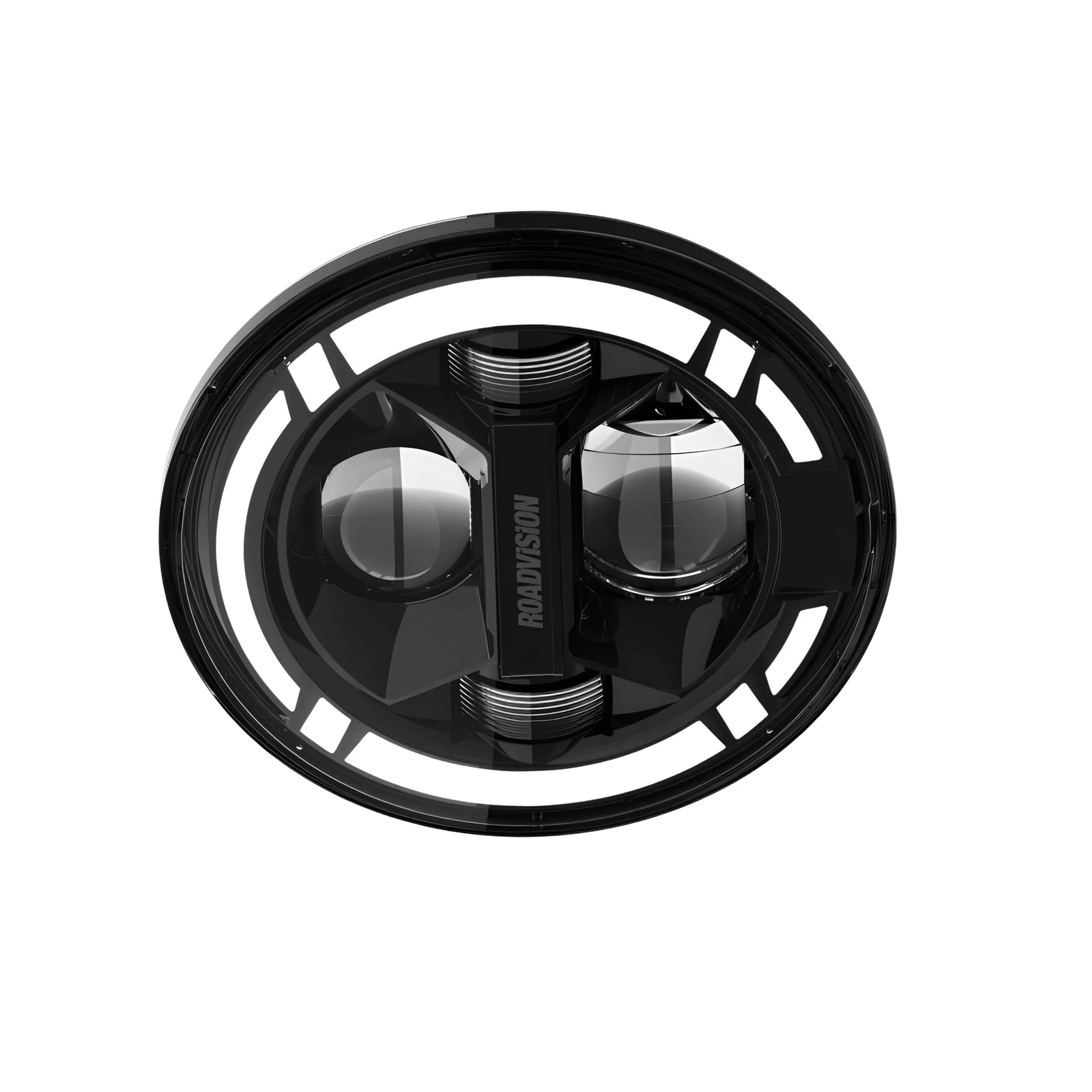

Roadvision RHL07HLB 7" LED Headlamp Insert High Low Beam 5700K

SKU: RHL07HLB
Price
$389
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RHL07HLB 7" LED Headlamp Insert High Beam Low Beam and Parking 5700K

A 7" LED headlamp insert with high beam, low beam, and parking functions from Roadvision, the RHL07HLB delivers 1800 lumens on high beam at 252 metres at 1 lux and 1000 lumens on low beam at 100 metres at 1 lux with 5700K output, aluminium housing, polycarbonate lens, IP67 and IP69K protection, 500mm pre-wired H4 connector, ADR approved (CTA-062224), and a 5-year warranty.

Product Overview

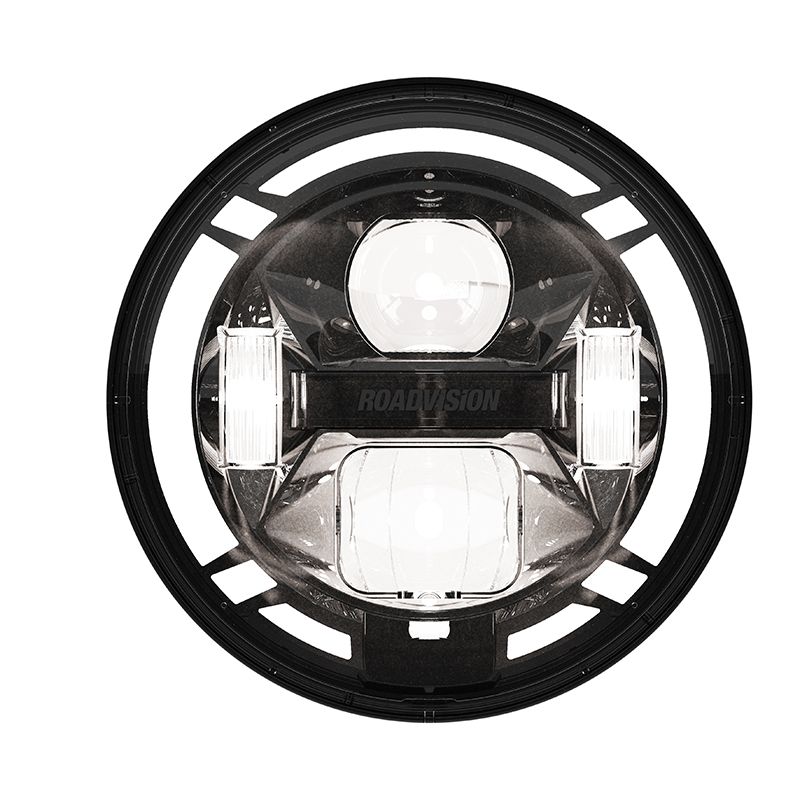

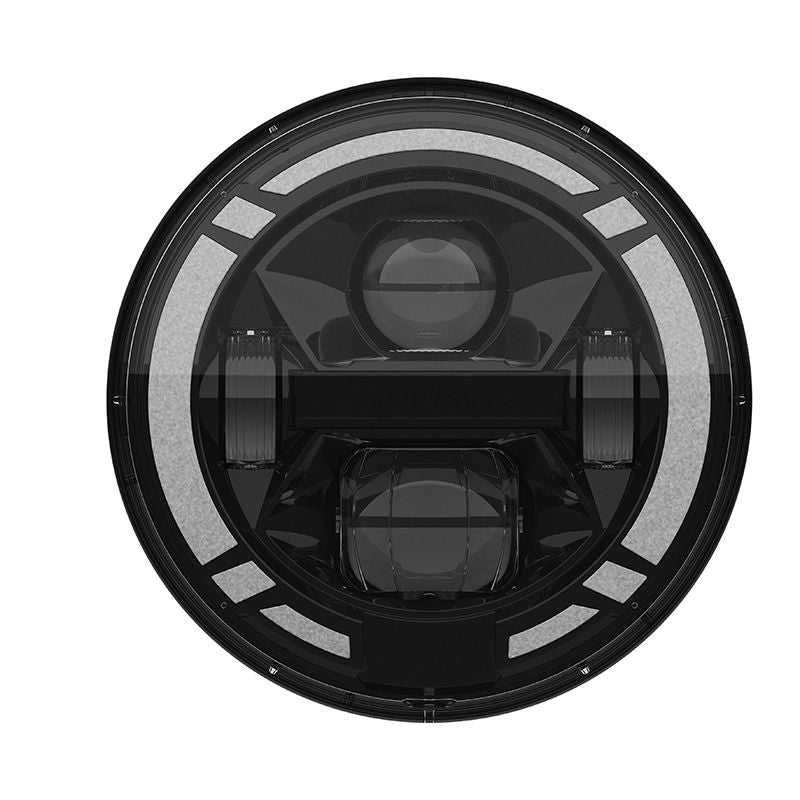

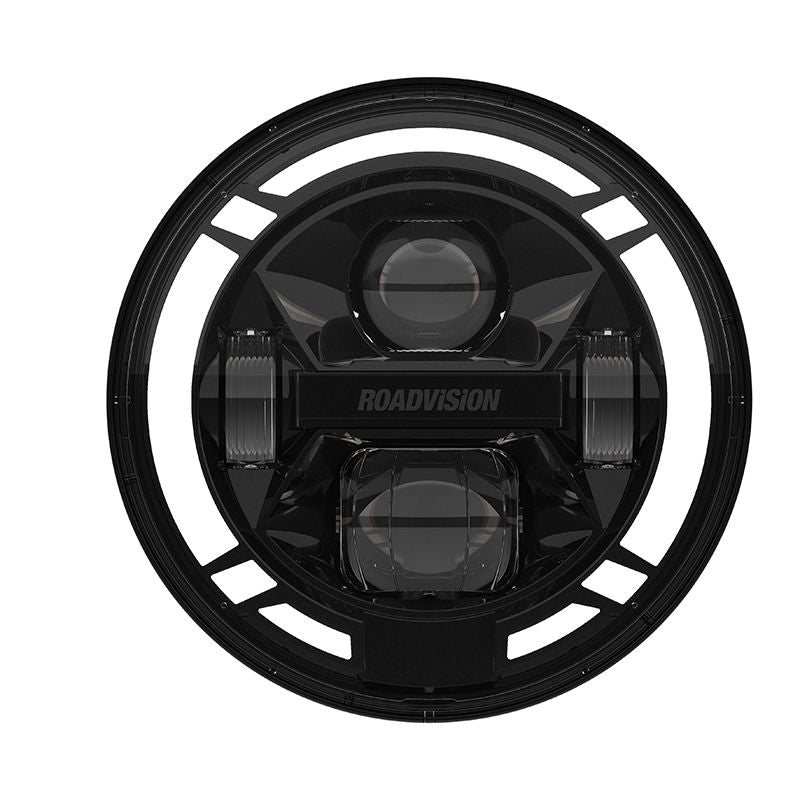

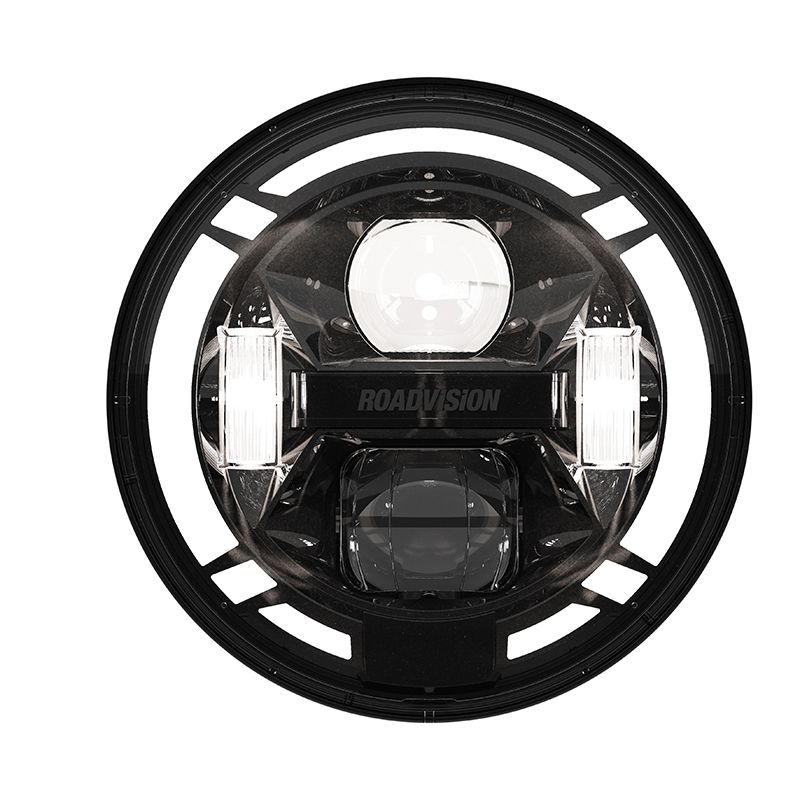

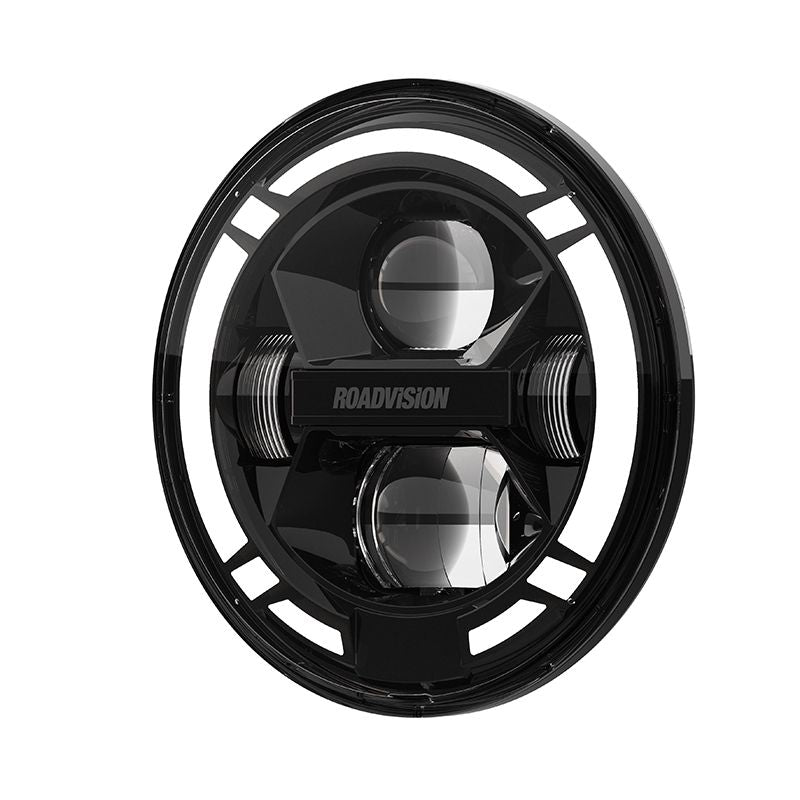

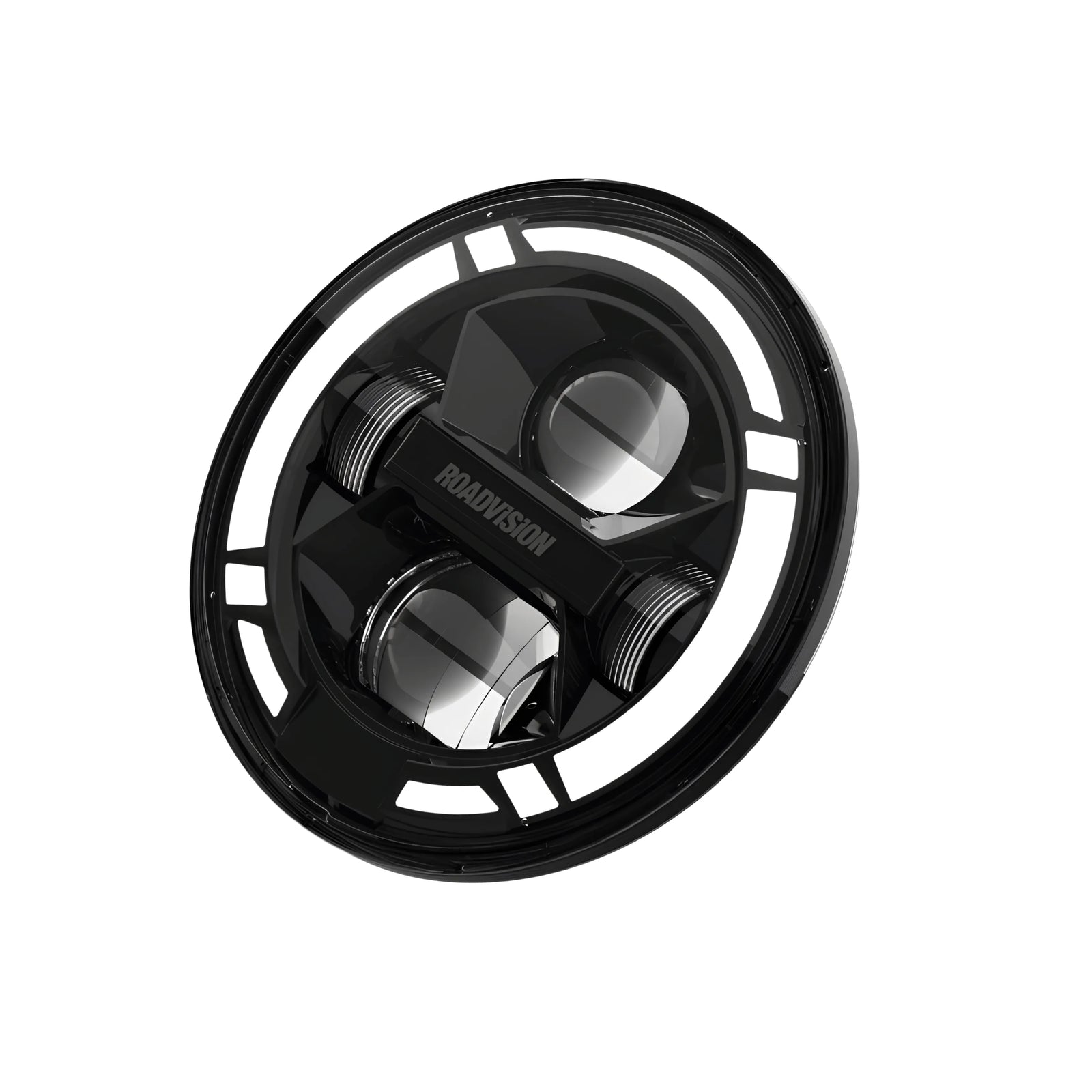

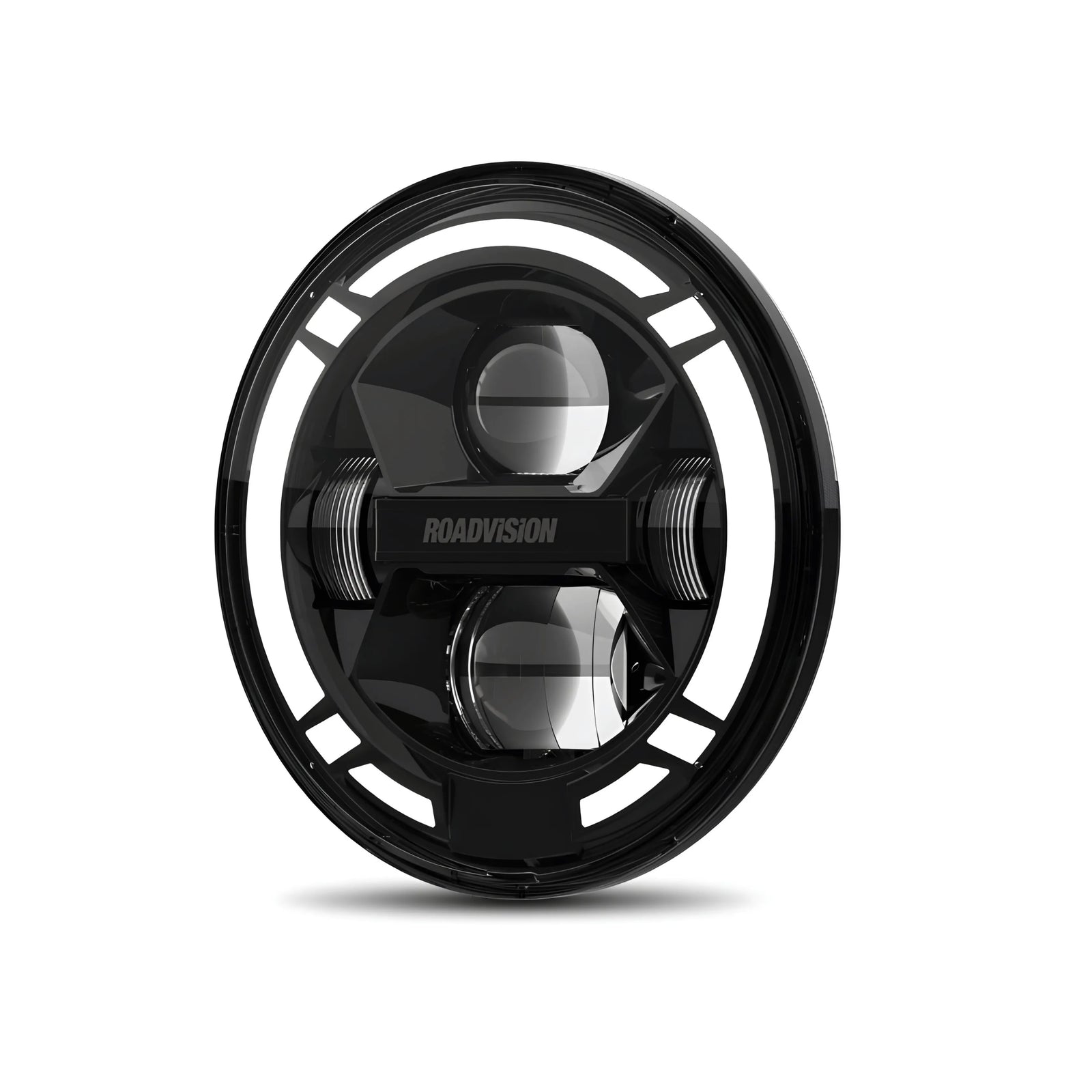

The Roadvision RHL07HLB is a 7" LED headlamp insert designed to replace existing 7" headlight units, providing high beam, low beam, and parking functions in a single unit. High beam delivers 1800 lumens at 252 metres at 1 lux via 1 high beam LED. Low beam delivers 1000 lumens at 100 metres at 1 lux via 3 low beam LEDs. Thirty-three park LEDs provide 4W parking light output. The crisp 5700K white output provides a modern, bold road presence. Lightweight die-cast aluminium housing with unbreakable polycarbonate lens and IP67 and IP69K dual protection. Multi-volt 10-30V DC input at 1.8A for high beam, 1.3A for low beam, and 0.3A for parking at 13.8V. Pre-wired with a 500mm sheath cable and H4 connector. ADR approved, CTA-062224. 100,000 hour rated LED lifespan. Backed by a 5-year warranty.

Features & Benefits

1800 Lumens High Beam and 1000 Lumens Low Beam: The RHL07HLB delivers 1800 lumens on high beam at 252 metres at 1 lux and 1000 lumens on low beam at 100 metres at 1 lux, providing both high-performance high beam and effective low beam illumination from a single insert.

5700K Crisp White Output: The 5700K colour temperature produces a crisp white output for a modern, bold appearance and natural colour rendering in both high beam and low beam modes.

Complete High Beam, Low Beam, and Parking Functions: The RHL07HLB provides all three headlamp functions (high beam, low beam, and parking) in a single 7" insert unit, replacing the full functionality of the factory headlamp.

Integrated Parking Light - 33 Park LEDs at 4W: The integrated 33 LED parking light provides 4W park light output alongside the high and low beam functions.

Replaces Existing 7" Headlight Units: The RHL07HLB is designed as a direct replacement for existing 7" round headlamp units, simplifying the upgrade process without requiring housing modification.

Sleek Modern Black Design: The black housing provides a contemporary appearance that complements modern vehicle styling.

Lightweight Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and effective heat dissipation, while the unbreakable polycarbonate lens resists impact and UV degradation.

IP67 and IP69K Dual Protection: Both IP67 and IP69K ratings confirm full protection against dust, temporary immersion, and high-pressure, high-temperature water jet exposure.

100,000 Hour LED Lifespan with Solid-State Technology: The 100,000 hour rated LED lifespan provides long-term maintenance-free reliability with virtually zero maintenance requirements.

Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle electrical systems.

Pre-Wired 500mm H4 Connector: The 500mm sheath cable with H4 connector provides simple, reliable plug-in installation into existing 7" headlamp wiring.

ADR Approved - CTA-062224: The RHL07HLB is ADR approved and holds CTA approval CTA-062224, confirming compliance with Australian road requirements for headlamp applications.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RHL07HLB
Brand Roadvision
Series RHL07
Description 7" LED Headlamp Insert High/Low Beam
Functions High Beam, Low Beam, Parking
High Beam Lumens 1800lm
Low Beam Lumens 1000lm
High Beam Distance at 1 Lux 252m
Low Beam Distance at 1 Lux 100m
Maximum Watts - High Beam 21W
Maximum Watts - Low Beam 10.8W
Maximum Watts - Parking 4W
LED Quantity - High Beam 1 LED
LED Quantity - Low Beam 3 LEDs
LED Quantity - Parking 33 LEDs
Input Voltage 10-30V DC
Current Draw - High Beam 1.8A at 13.8V
Current Draw - Low Beam 1.3A at 13.8V
Current Draw - Parking 0.3A at 13.8V
Colour Temperature 5700K
Lens Construction Polycarbonate
Housing Construction Aluminium
IP Rating IP67 and IP69K

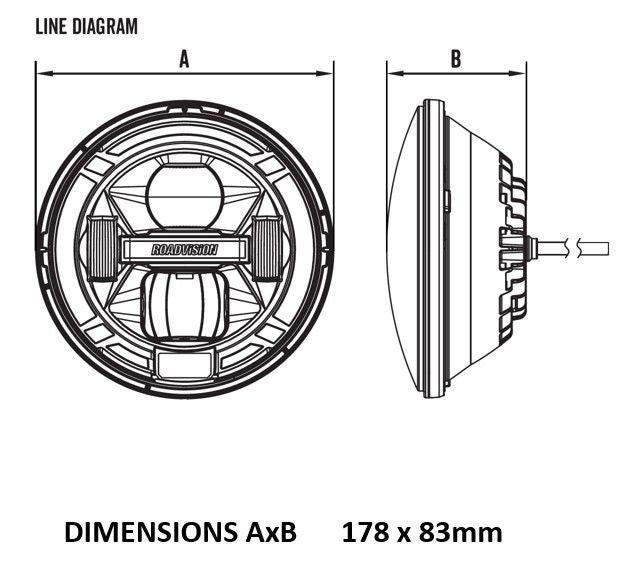

Dimensions 178mm x 83mm
Wiring 500mm Sheath Cable with H4 Connector
ADR Approval CTA-062224
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The RHL07HLB is designed to replace existing 7" round headlamp units. The 500mm sheath cable with H4 connector provides direct plug-in installation into existing 7" headlamp wiring. Compatible with 10-30V DC vehicle electrical systems. ADR approved for on-road use in Australia. A dedicated high beam and parking version is available as the RHL07HB.

Frequently Asked Questions

Is the RHL07HLB ADR approved for on-road use?

Yes. The RHL07HLB is ADR approved and holds CTA approval CTA-062224, confirming compliance with Australian road requirements for headlamp applications covering high beam, low beam, and parking functions.

What is the difference between the RHL07HLB and the RHL07HB?

The RHL07HLB provides high beam, low beam, and parking functions in a single insert, with 1000 lumens on low beam at 100 metres at 1 lux in addition to the 1800 lumen high beam. The RHL07HB is a dedicated high beam and parking insert only, without a low beam function. Choose the RHL07HLB for a complete high and low beam headlamp replacement.

What connector does the RHL07HLB use?

The RHL07HLB is pre-wired with a 500mm sheath cable and H4 connector for direct plug-in installation into existing 7" headlamp wiring.

Is the RHL07HLB compatible with 24V vehicles?

Yes. The RHL07HLB operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the IP rating of the RHL07HLB?

The RHL07HLB holds both IP67 and IP69K ratings, confirming full protection against dust, temporary immersion, and high-pressure, high-temperature water jet exposure.
