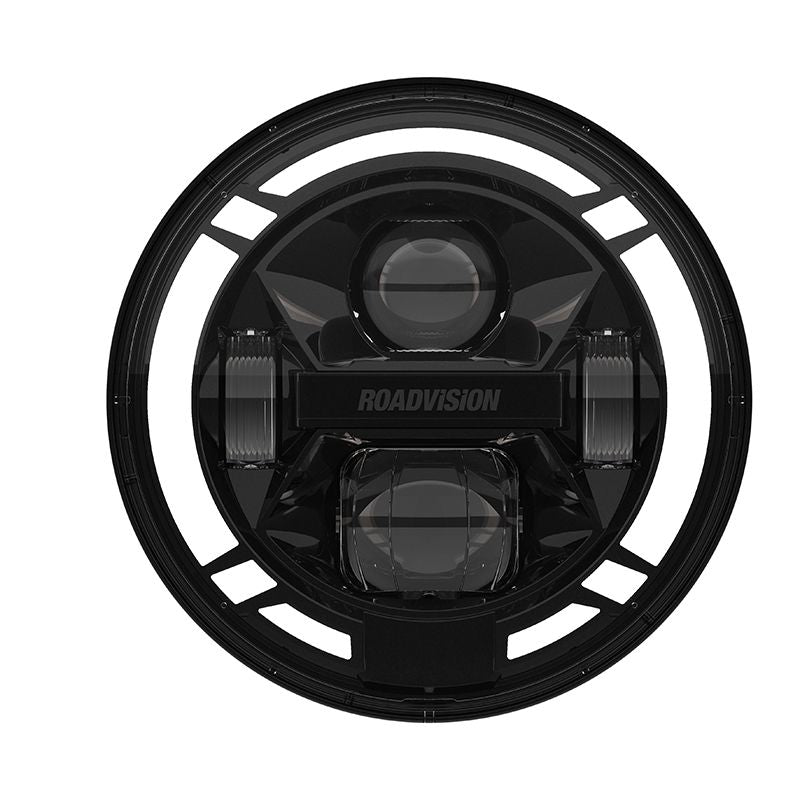

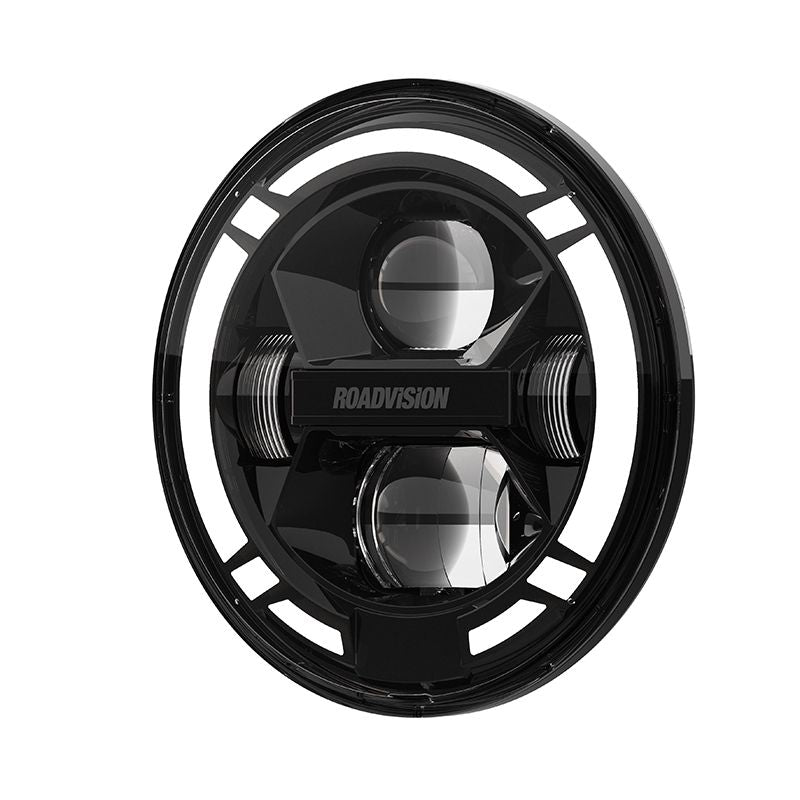

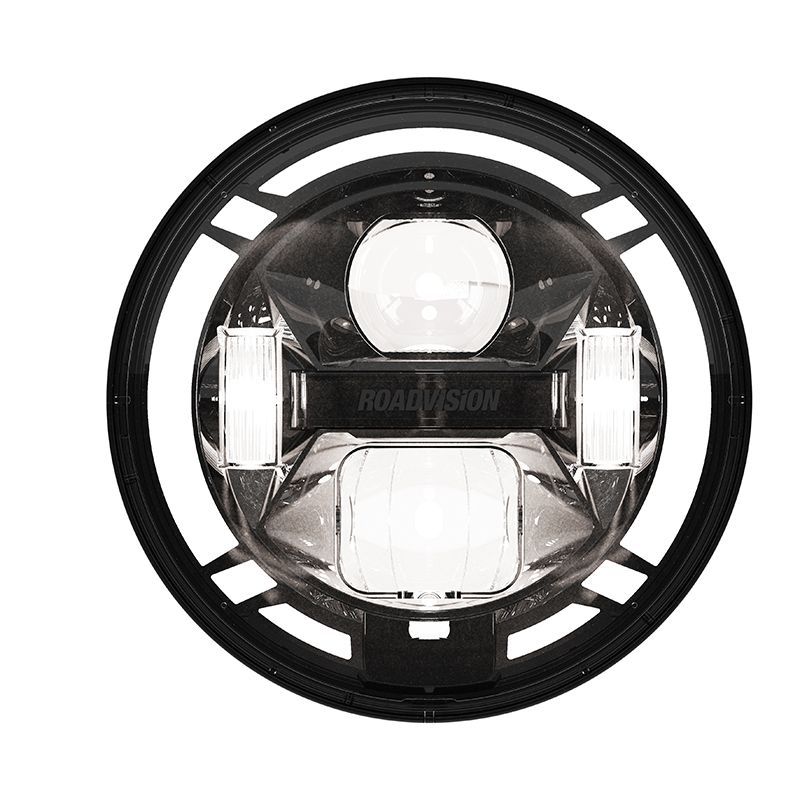

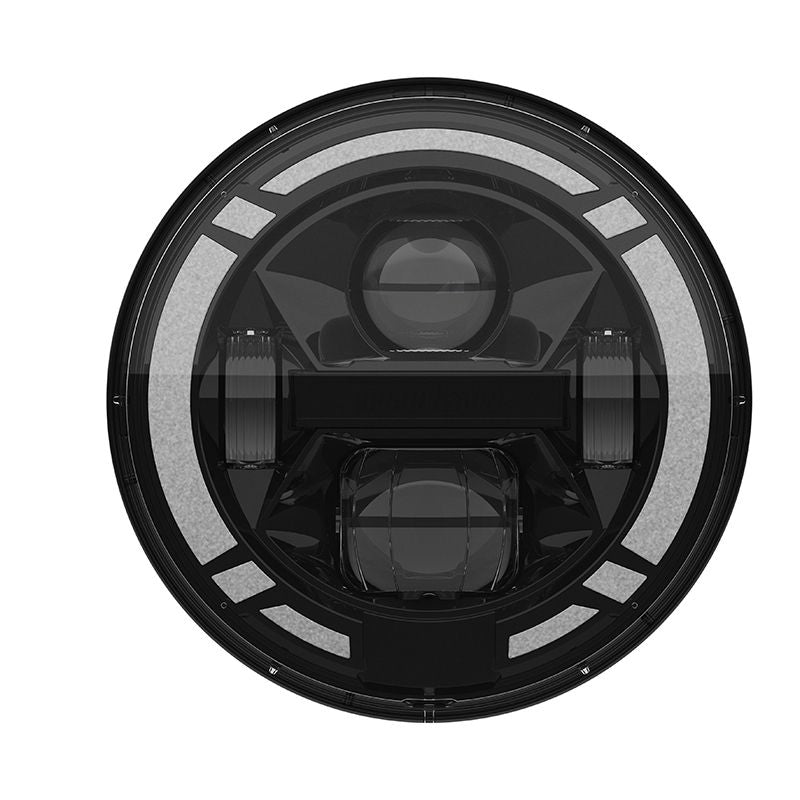

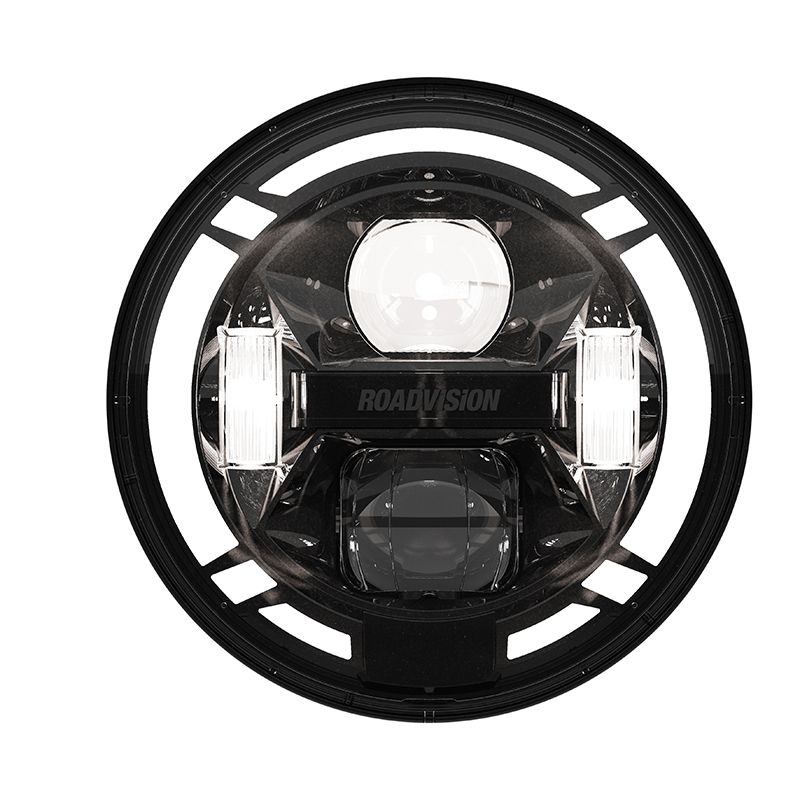

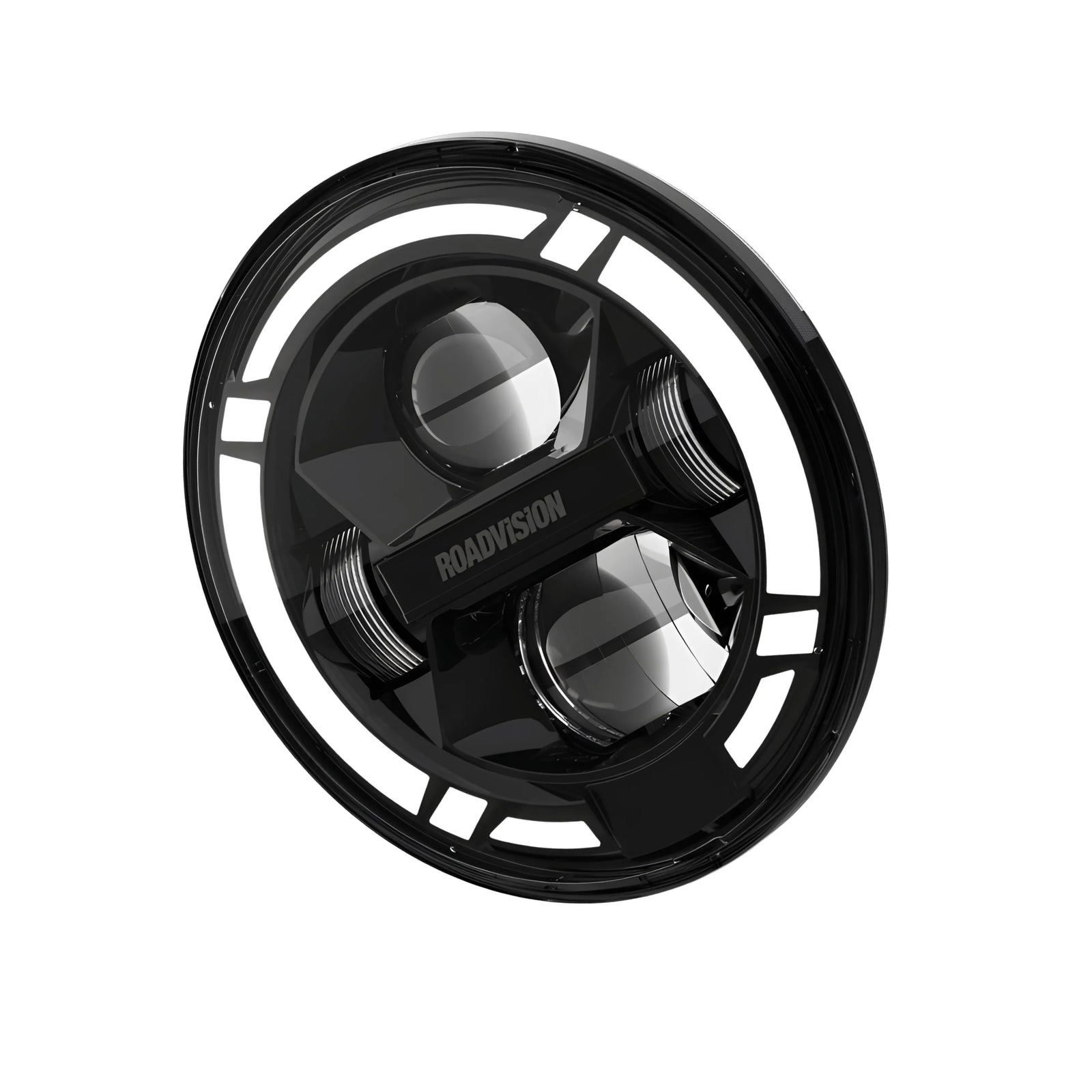

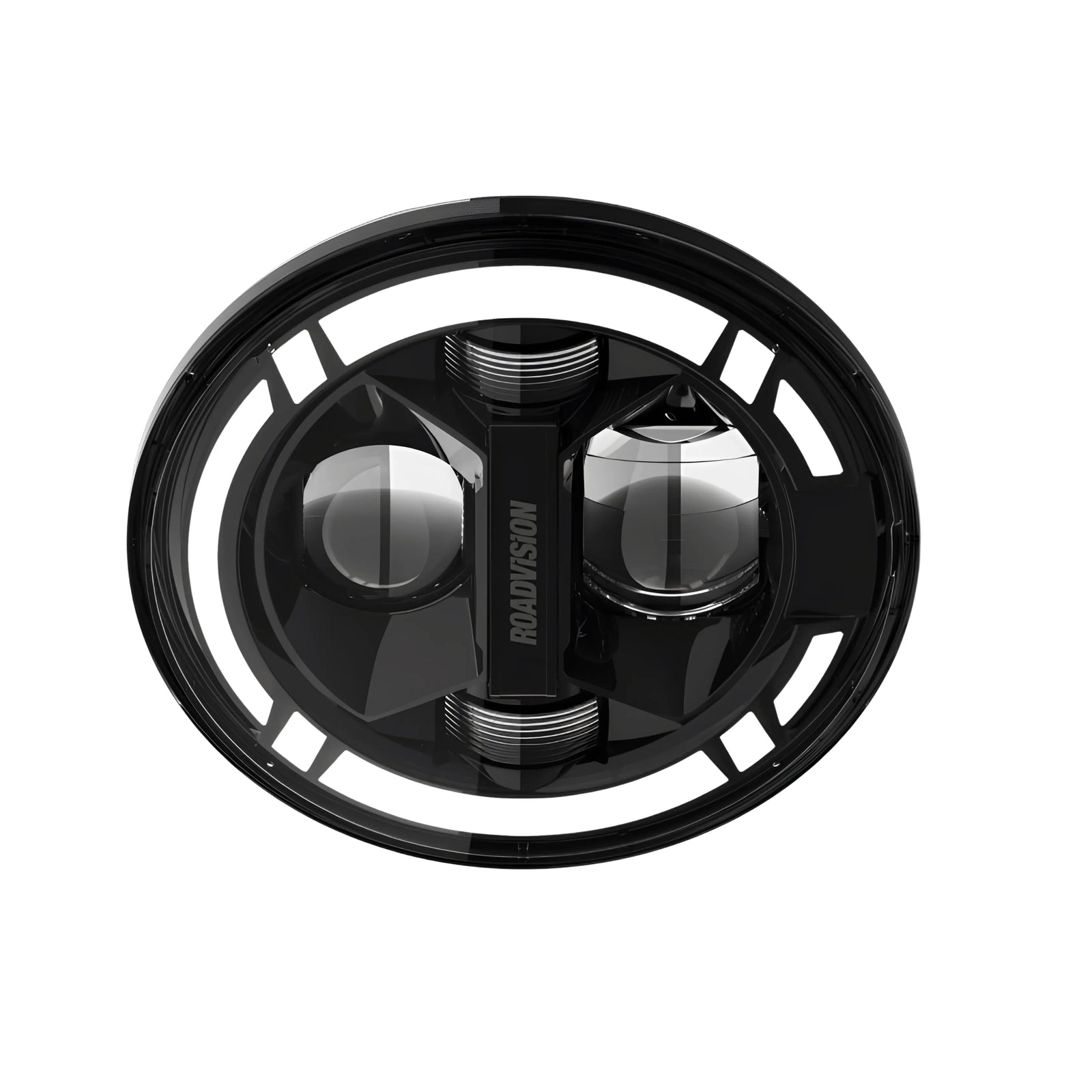

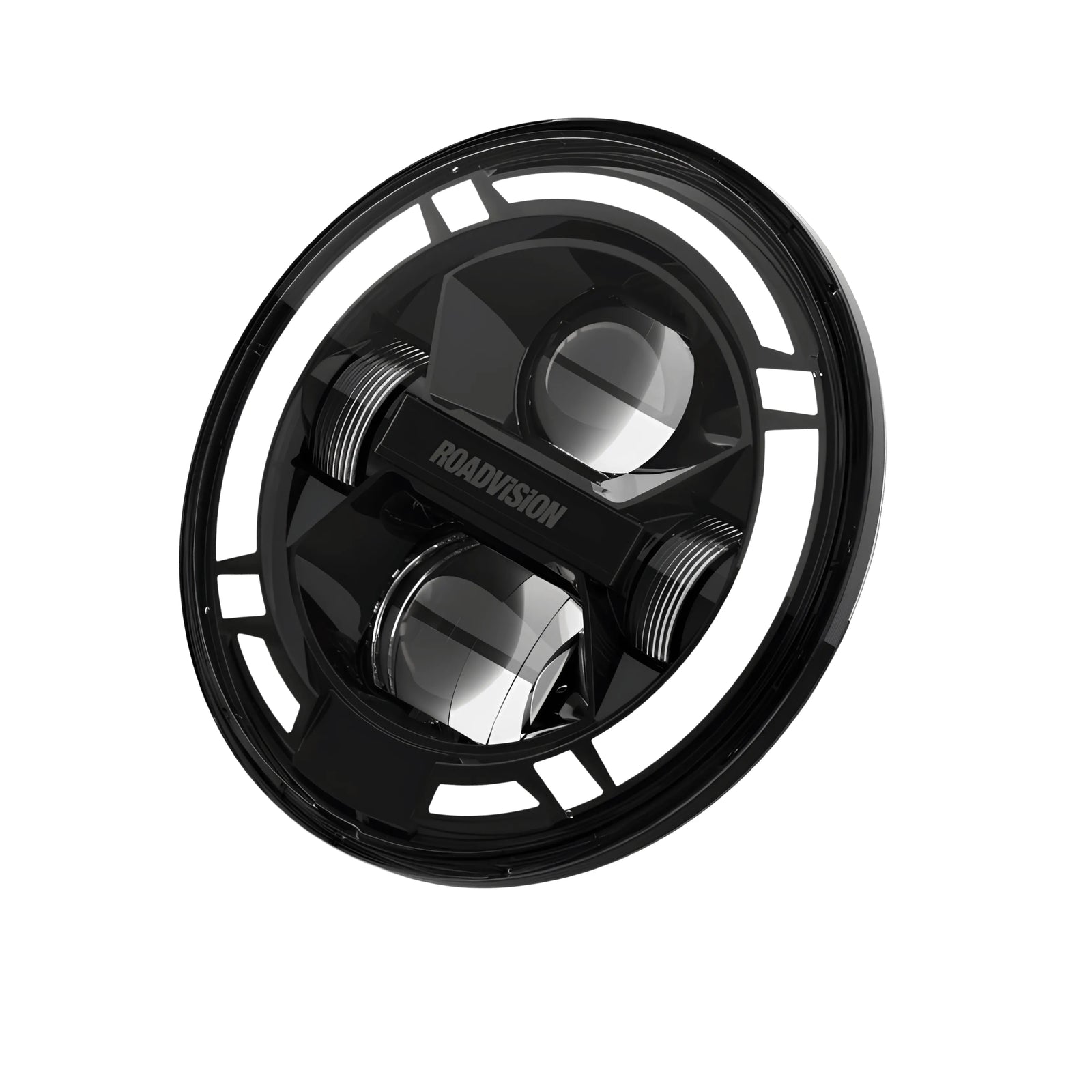

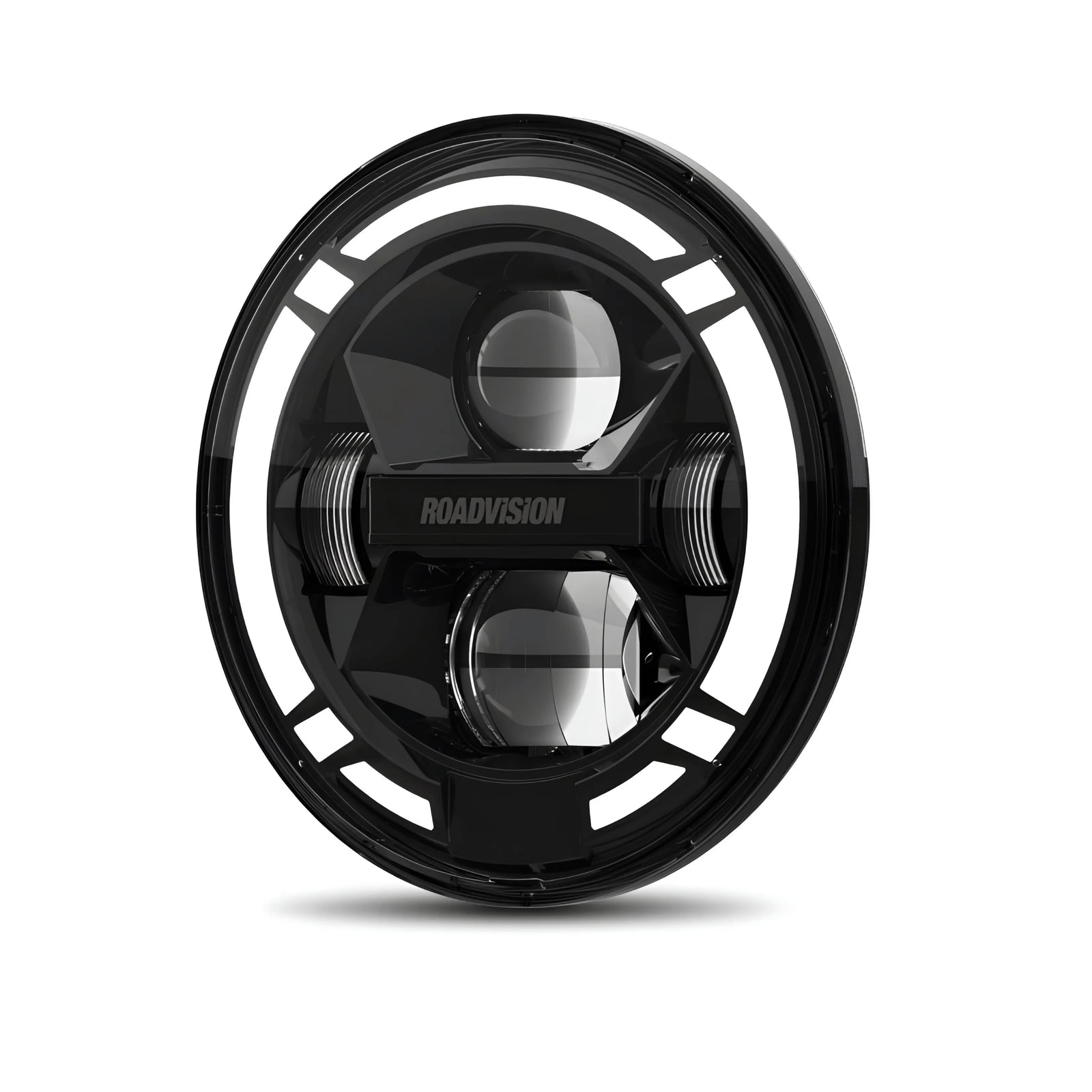

Roadvision RHL07HB 7" LED Headlamp Insert High Beam Parking 5700K

SKU: RHL07HB
Price
$389
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RHL07HB 7" LED Headlamp Insert High Beam and Parking 5700K

A 7" LED headlamp insert with high beam and parking functions from Roadvision, the RHL07HB delivers 1800 lumens on high beam at 252 metres at 1 lux with 5700K output, aluminium housing, polycarbonate lens, IP67 and IP69K protection, 500mm pre-wired H4 connector, ADR approved (CTA-062225), and a 5-year warranty.

Product Overview

The Roadvision RHL07HB is a 7" LED headlamp insert designed to replace existing 7" headlight units in vehicles with a 7" round headlamp aperture. It provides high beam and parking functions, delivering 1800 lumens on high beam at 252 metres at 1 lux and 4W parking light output from 33 park LEDs. The crisp 5700K white output provides a modern, bold appearance on the road. The lightweight die-cast aluminium housing with unbreakable polycarbonate lens and IP67 and IP69K dual protection rating ensures durability in all environments including high-pressure wash-down. Multi-volt 10-30V DC input at 1.6A for high beam and 0.3A for parking at 13.8V. Pre-wired with a 500mm sheath cable and H4 connector for simple, reliable installation. ADR approved, CTA-062225. 100,000 hour rated LED lifespan. Backed by a 5-year warranty.

Features & Benefits

1800 Lumens High Beam - 252 Metres at 1 Lux: The RHL07HB delivers 1800 lumens on high beam with a beam reach of 252 metres at 1 lux, providing strong high-beam illumination for improved visibility on dark roads.

5700K Crisp White Output: The 5700K colour temperature produces a crisp white output close to daylight for a modern, bold appearance and natural colour rendering on the road surface.

Integrated Parking Light - 33 Park LEDs at 4W: The integrated 33 LED parking light provides 4W park light output for a complete headlamp insert solution with both high beam and park functions in a single unit.

Replaces Existing 7" Headlight Units: The RHL07HB is designed as a direct replacement for existing 7" round headlamp units, simplifying the upgrade process without requiring housing modification.

Sleek Modern Black Design: The black housing provides a contemporary appearance that complements modern vehicle styling.

Lightweight Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and effective heat dissipation, while the unbreakable polycarbonate lens resists impact and UV degradation.

IP67 and IP69K Dual Protection: Both IP67 and IP69K ratings confirm full protection against dust, temporary immersion, and high-pressure, high-temperature water jet exposure, providing maximum durability in all environments.

100,000 Hour LED Lifespan with Solid-State Technology: The 100,000 hour rated LED lifespan provides long-term maintenance-free reliability with virtually zero maintenance requirements.

Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle electrical systems.

Pre-Wired 500mm H4 Connector: The 500mm sheath cable with H4 connector provides simple, reliable plug-in installation into existing 7" headlamp wiring.

ADR Approved - CTA-062225: The RHL07HB is ADR approved and holds CTA approval CTA-062225, confirming compliance with Australian road requirements for headlamp applications.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RHL07HB
Brand Roadvision
Series RHL07
Description 7" LED Headlamp Insert High Beam
Functions High Beam, Parking
High Beam Lumens 1800lm
High Beam Distance at 1 Lux 252m
Maximum Watts - High Beam 21W
Maximum Watts - Parking 4W
LED Quantity - High Beam 4 LEDs
LED Quantity - Parking 33 LEDs
Input Voltage 10-30V DC
Current Draw - High Beam 1.6A at 13.8V
Current Draw - Parking 0.3A at 13.8V
Colour Temperature 5700K
Lens Construction Polycarbonate
Housing Construction Aluminium
IP Rating IP67 and IP69K

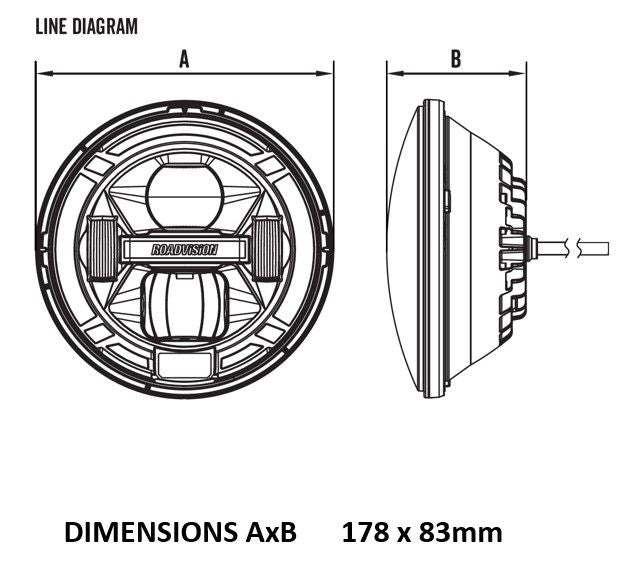

Dimensions 178mm x 83mm
Wiring 500mm Sheath Cable with H4 Connector
ADR Approval CTA-062225
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The RHL07HB is designed to replace existing 7" round headlamp units. The 500mm sheath cable with H4 connector provides direct plug-in installation into existing 7" headlamp wiring. Compatible with 10-30V DC vehicle electrical systems. ADR approved for on-road use in Australia. A high/low beam version is available as the RHL07HLB.

Frequently Asked Questions

Is the RHL07HB ADR approved for on-road use?

Yes. The RHL07HB is ADR approved and holds CTA approval CTA-062225, confirming compliance with Australian road requirements for headlamp applications.

Does the RHL07HB have a low beam function?

No. The RHL07HB is a dedicated high beam and parking insert. For a version with high beam, low beam, and parking functions, refer to the RHL07HLB.

What connector does the RHL07HB use?

The RHL07HB is pre-wired with a 500mm sheath cable and H4 connector for direct plug-in installation into existing 7" headlamp wiring.

Is the RHL07HB compatible with 24V vehicles?

Yes. The RHL07HB operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the IP rating of the RHL07HB?

The RHL07HB holds both IP67 and IP69K ratings, confirming full protection against dust, temporary immersion, and high-pressure, high-temperature water jet exposure.
