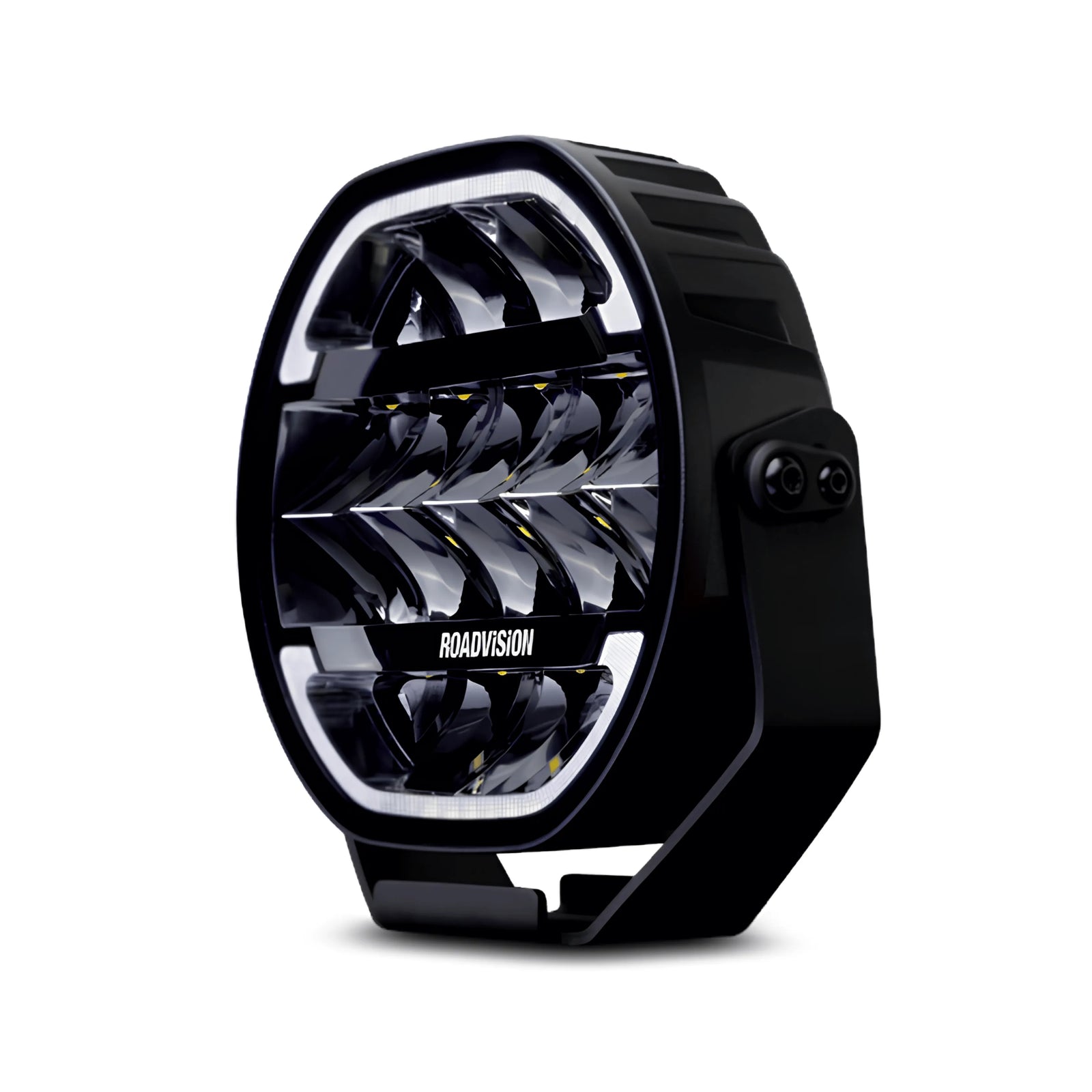

Roadvision RDL7800C Dynamilux 8" LED Driving Light 180W Combination Beam
An 8" 180W combination beam LED driving light from the Roadvision Dynamilux Series, the RDL7800C delivers 9,900 lumens per light (19,800lm per pair) with a beam distance of 834 metres at 0.5 lux per light (1,180m per pair), powered by 18 x 10W Osram LEDs at 5700K colour temperature, featuring dual-colour dynamic start-up DRL with amber and white options, Thermal Management Technology, IP67 protection, and a 7-year warranty.
Product Overview
The Roadvision RDL7800C is an 8" combination beam driving light from the Dynamilux Series, designed for drivers who demand reliability, performance, and style. The combination beam pattern delivers both long-range spot-style throw and broader flood-style width for comprehensive coverage during night driving. Eighteen 10W Osram LEDs produce 180W at a crisp 5700K colour temperature, delivering 9,900lm per light with 3,480 lux at 10 metres per light and a beam reach of 834 metres at 0.5 lux per light (1,180m per pair).

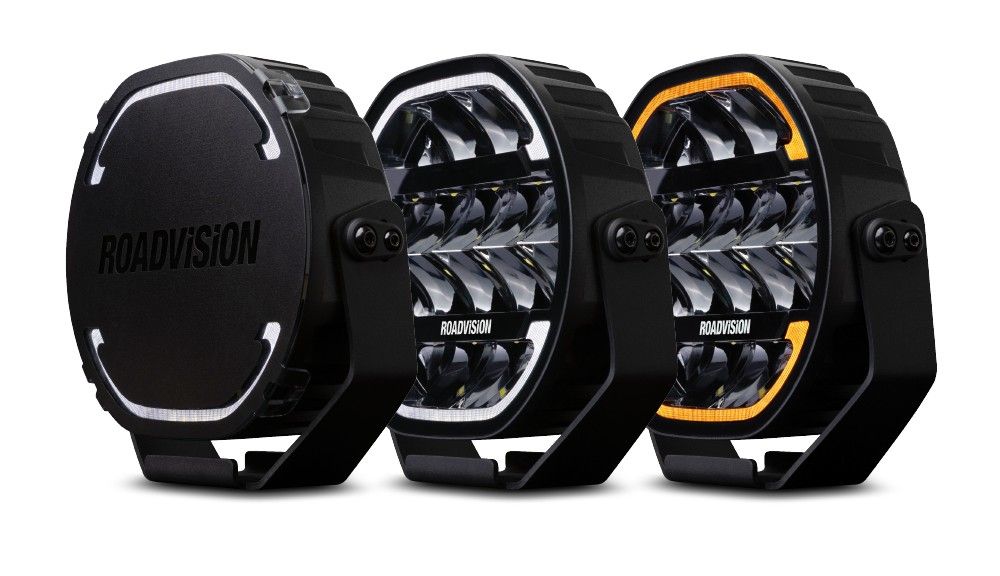

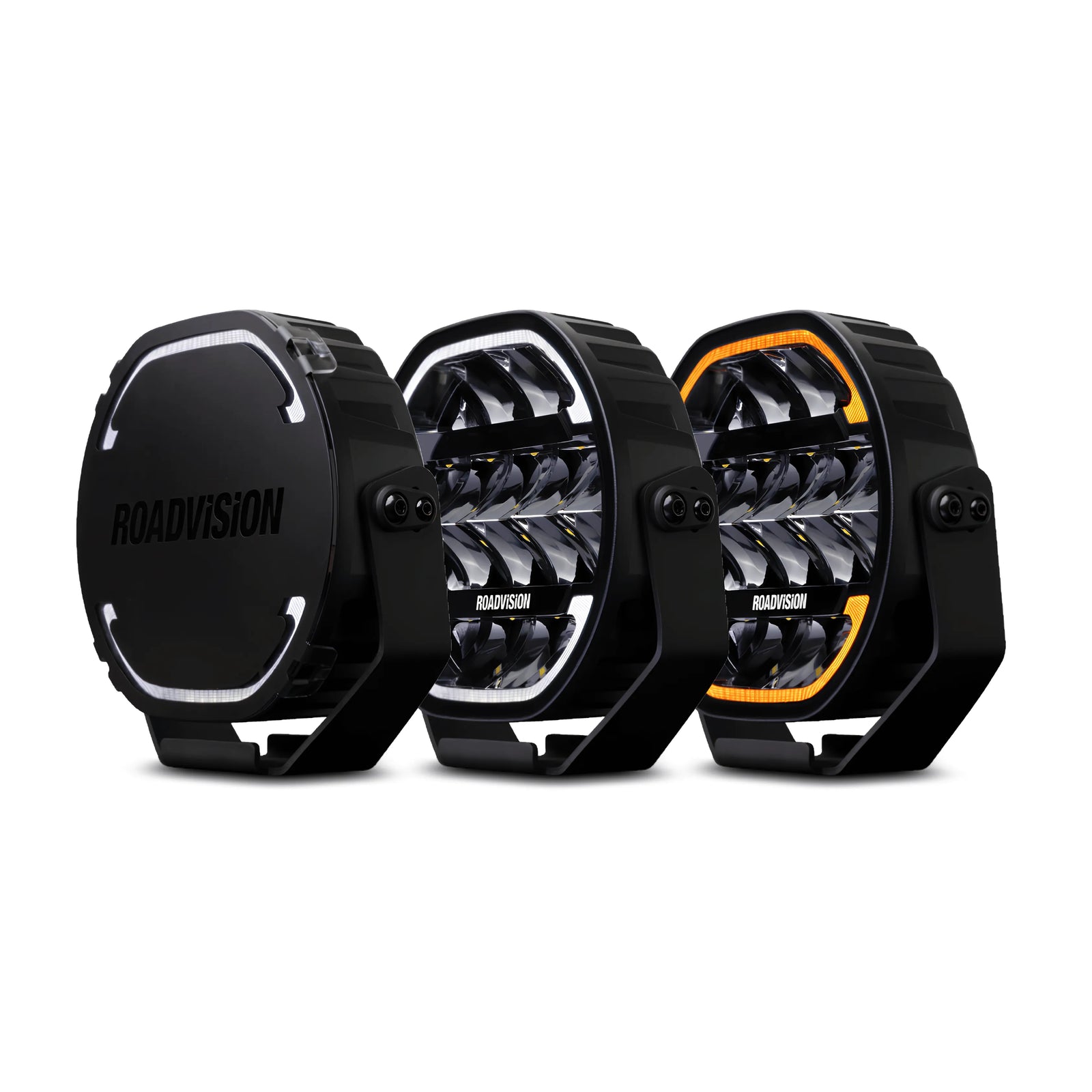

The Dynamilux Series features a dual-colour dynamic start-up DRL switchable between amber and white modes, housed in a dedicated DRL window in the included black protective cover. Blackout mounting hardware maintains a modern, understated aesthetic. Roadvision's Thermal Management Technology manages heat dissipation across the 180W LED array for consistent output and long-term reliability. IP67 rated for water and dust resistance. Multi-volt 10-30V DC input with over/under voltage and reverse polarity protection, and EMI/EMC radio interference approval. The 4-pin Deutsch plug provides separate connections for driving light power (red positive, black negative) and DRL selection (yellow for amber DRL, white for white DRL). The RDL7800C also features a selectable power mode - standard low-power mode or high-power mode, switchable by cycling the lamp on and off 4 times within 50 seconds. Backed by a 7-year warranty.
Features & Benefits
9,900 Lumens per Light - 834 Metre Beam at 0.5 Lux: The RDL7800C delivers 9,900lm per light (19,800lm per pair) with a beam distance of 834 metres at 0.5 lux per light (1,180m per pair) and 590 metres at 1 lux per light (834m per pair), providing exceptional illumination capability for high-speed and remote area night driving.
18 x 10W Osram LEDs - 180W at 5700K: Eighteen 10W Osram LEDs produce 180W of crisp 5700K daylight-close output for natural colour rendering and maximum road surface clarity.
Combination Beam Pattern: The combination beam delivers both long-range penetration and broader lateral coverage from a single light unit, providing a comprehensive illumination spread suited to a wide range of driving environments and conditions.

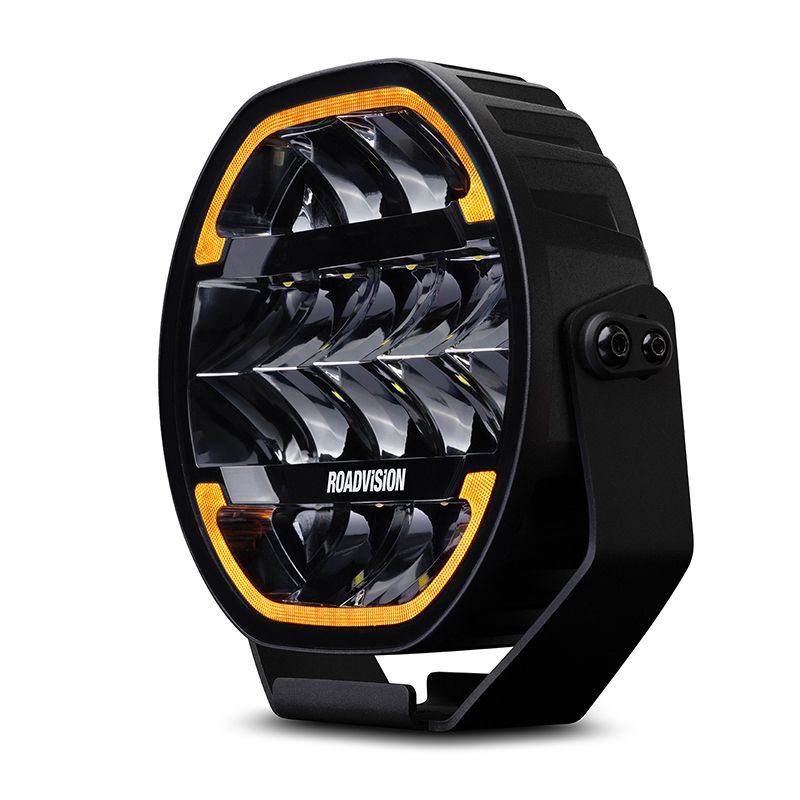

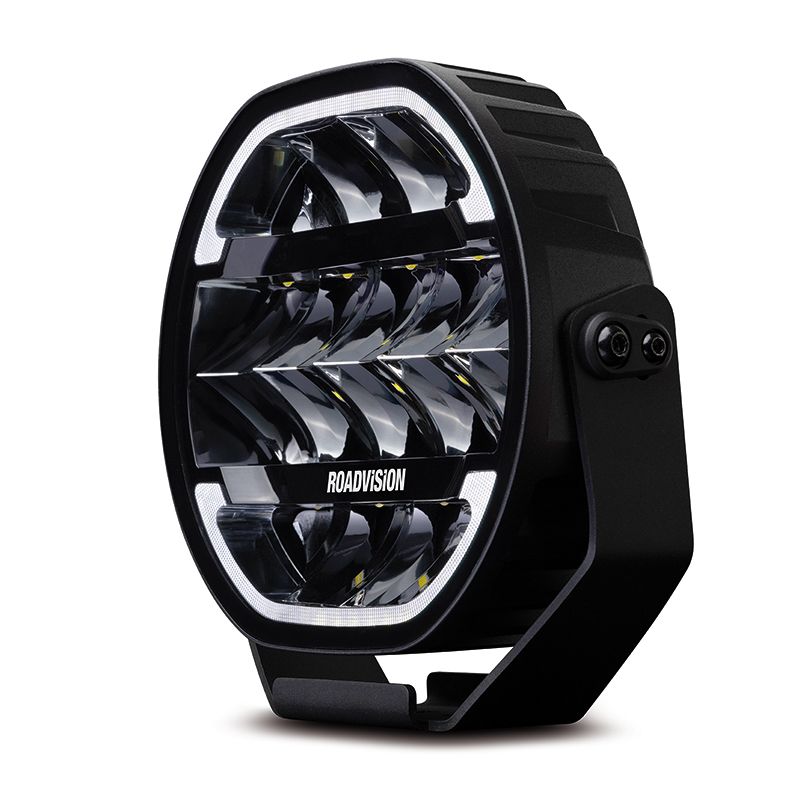

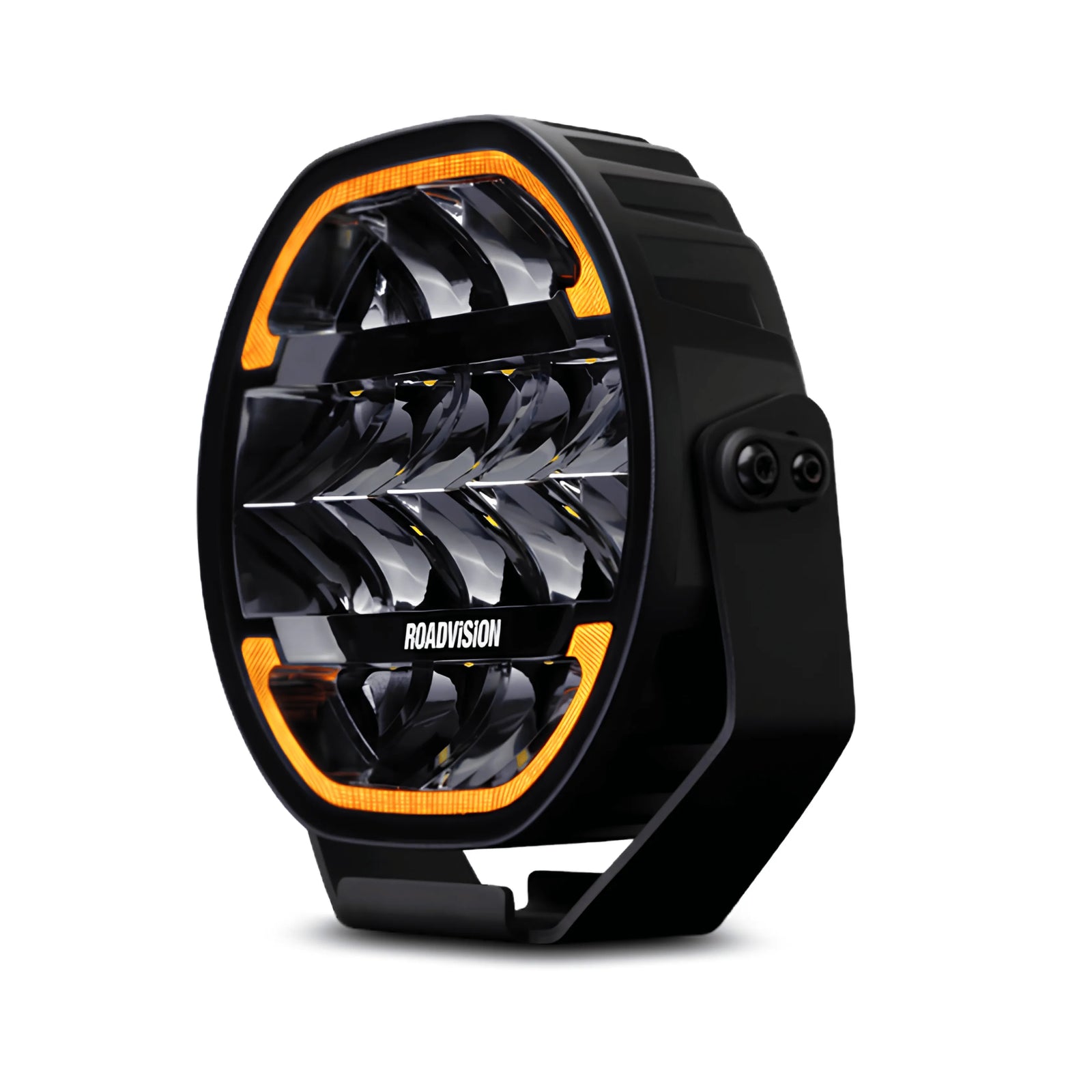

Dual-Colour Dynamic Start-Up DRL - Amber and White: The dynamic start-up DRL is switchable between amber and white modes via the dedicated DRL wires, providing a choice of DRL colour to suit the vehicle's aesthetic. The DRL is housed in a dedicated window in the black protective cover and seamlessly darkens when not in use.
Blackout Mounting Hardware: All mounting hardware is finished in black for a modern, factory-consistent appearance on the vehicle.
Roadvision Thermal Management Technology: Integrated Thermal Management Technology monitors and manages heat dissipation across the 18-LED, 180W array, ensuring consistent output and long-term reliability across all operating environments and ambient temperatures.
Selectable Low-Power and High-Power Modes: The RDL7800C operates in low-power mode by default. High-power mode can be activated permanently by cycling the lamp on and off 4 times within 50 seconds (approximately 1-2 seconds between each cycle). Repeating the same cycle returns the lamp to low-power mode.
IP67 Water and Dust Proof: IP67 rating provides full dust ingress protection and waterproof protection against temporary immersion, suited to off-road and all-weather driving applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and efficient heat dissipation, while the polycarbonate lens resists impact and UV degradation.
50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated LED lifespan provides long-term maintenance-free reliability.
Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V and 24V vehicle electrical systems with full electronic protection for the LED driver.
4-Pin Deutsch Plug: The 4-pin Deutsch plug provides separate secure, weatherproof connections for driving light power (red positive, black negative), amber DRL (yellow), and white DRL (white).
EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication, navigation, and electronic systems without interference.

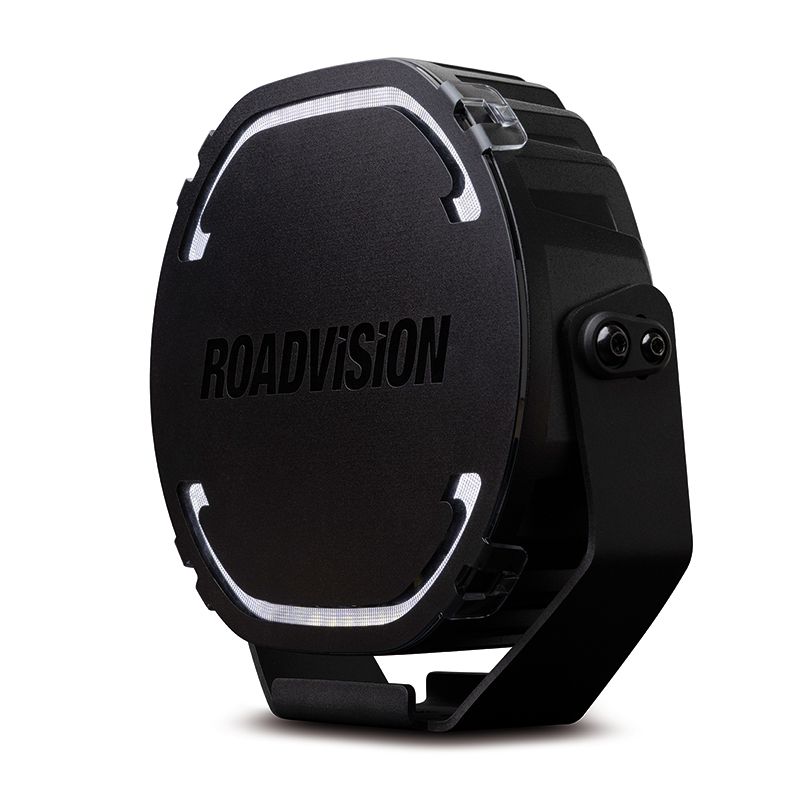

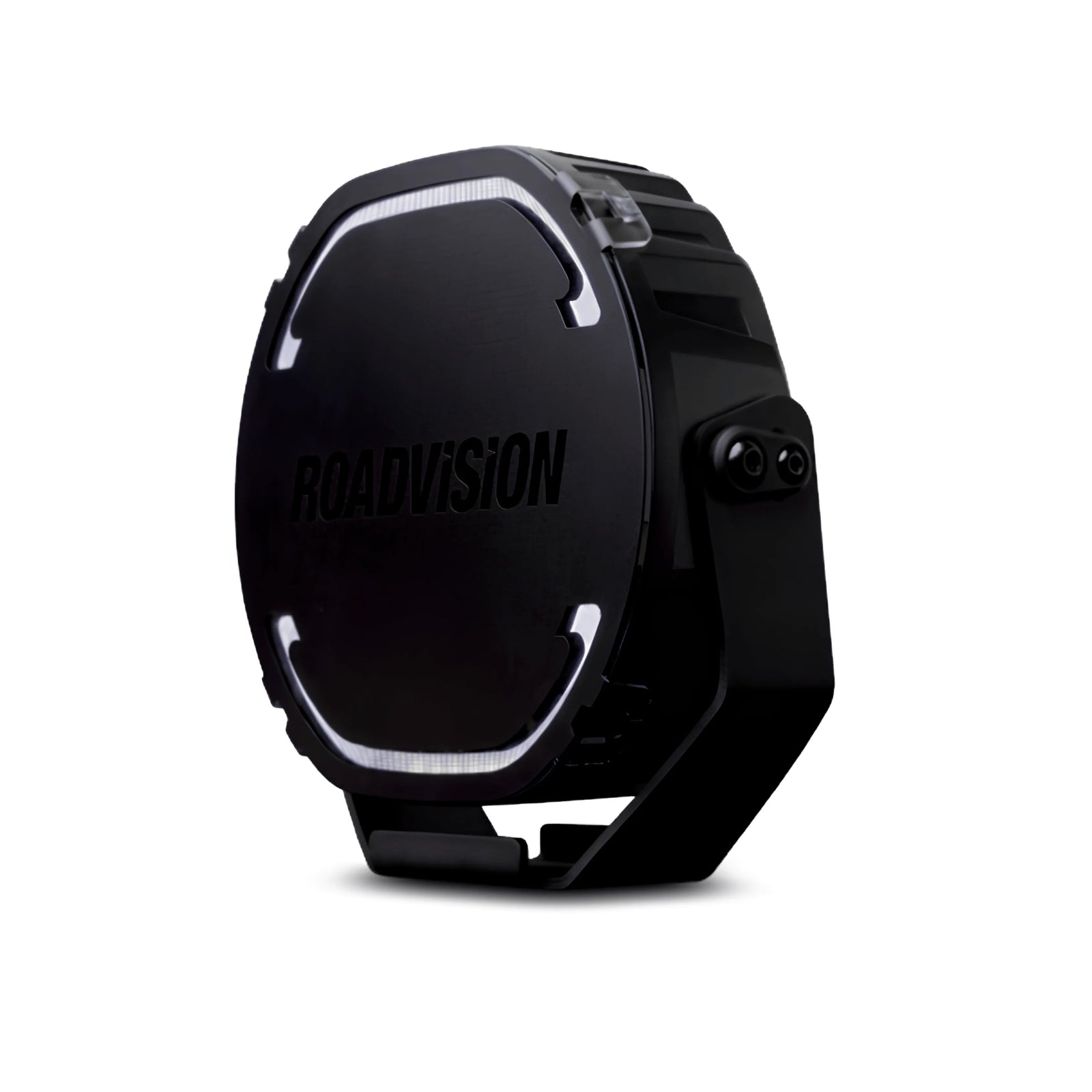

Includes Protective Cover with DRL Windows: A black protective cover with DRL windows is included, providing additional lens protection when the driving lights are not in use while maintaining DRL functionality.
7-Year Warranty: The RDL7800C is backed by a 7-year Roadvision warranty.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RDL7800C |
| Brand | Roadvision |
| Series | Dynamilux |
| Description | 8" LED Driving Light 10-30V 180W Combination Beam |
| Beam Pattern | Combination |
| Maximum Lumens per Light | 9,900lm |
| Maximum Lumens per Pair | 19,800lm |
| Lux at 10m per Light | 3,480lx |
| Lux at 10m per Pair | 6,960lx |
| Beam Distance at 1lx per Light | 590m |
| Beam Distance at 1lx per Pair | 834m |
| Beam Distance at 0.5lx per Light | 834m |
| Beam Distance at 0.5lx per Pair | 1,180m |
| Input Voltage | 10-30V DC |
| Maximum Watts | 180W |
| LED Quantity | 18 x 10W Osram |
| Colour Temperature | 5700K |
| Current Draw | 10.2A at 13.8V |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
| Wiring | 4-Pin Deutsch Plug (Red +Ve, Black -Ve, Yellow Amber DRL, White White DRL) |

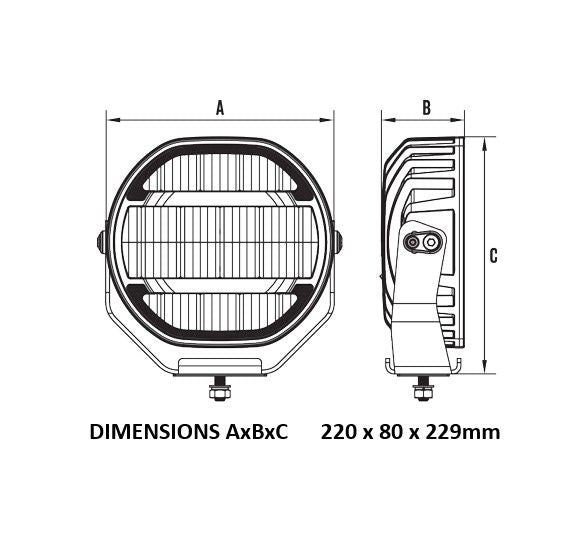

| Dimensions | 220mm x 80mm x 229mm |
| IP Rating | IP67 |
| Power Modes | Low-Power (default) and High-Power (selectable) |
| LED Lifespan | 50,000 Hours |
| Protection | Over/Under Voltage, Reverse Polarity |
| EMI/EMC | Radio Interference Approved |
| Includes | Black Protective Cover with DRL Windows |
| Warranty | 7 Years |
Compatible With
The RDL7800C is compatible with 10-30V DC vehicle electrical systems including 12V and 24V platforms. The 4-pin Deutsch plug provides separate connections for driving light power and DRL colour selection (amber via yellow wire, white via white wire). Confirm mounting clearance and wiring loom compatibility for your specific vehicle before purchase. Sold individually; pair figures refer to two units.
Frequently Asked Questions
Are the RDL7800C driving lights sold individually or as a pair?
The RDL7800C is sold individually. Lumen, lux, and beam distance figures in brackets refer to a pair of two lights. Confirm the quantity required for your installation before purchase.
How do I switch the RDL7800C between low-power and high-power mode?
The RDL7800C operates in low-power mode by default. To permanently switch to high-power mode, turn the lamp on and off 4 times within 50 seconds with approximately 1-2 seconds between each cycle. Repeating the same 4-cycle process returns the lamp to low-power mode.
How do I select between amber and white DRL on the RDL7800C?
The amber DRL is activated via the yellow wire and the white DRL is activated via the white wire on the 4-pin Deutsch plug. Connect the appropriate wire to activate the preferred DRL colour.
Is the RDL7800C compatible with 24V vehicles?
Yes. The RDL7800C operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
What is included with the RDL7800C?
Each RDL7800C includes the driving light unit,
