Roadvision RDL6901LKD Stealth PRO Low Kelvin 9" Driving Light 160W

Roadvision RDL6901LKD Stealth PRO Low Kelvin Series 9" LED Driving Light 160W Combination Beam

A 9" 160W combination beam LED driving light from the Roadvision Stealth PRO Low Kelvin Series, the RDL6901LKD delivers 9,594 lumens per light (19,188lm per pair) with a beam distance of 493 metres at 1 lux per light (697m per pair), powered by 34 x 3W Osram LEDs, featuring a warmer low-kelvin light output with wider beam pattern for improved visibility in wet and dusty conditions, dynamic start-up DRL, Thermal Management Technology, IP68 and IP69K protection, and a 7-year warranty.

Product Overview

The Roadvision RDL6901LKD is a 9" combination beam driving light from the Stealth PRO Low Kelvin Series, the highest-output model in the Low Kelvin range. Thirty-four 3W Osram LEDs produce 160W at a warmer low-kelvin colour temperature, delivering 9,594lm per light with 2,430 lux at 10 metres per light and a beam reach of 493 metres at 1 lux per light (697m per pair). The warmer low-kelvin output and wider beam pattern provide better visibility in wet and dusty conditions while dramatically reducing road sign flare, making this series ideal for SUVs and passenger vehicles on public roads.

The contemporary bezel-less design with dynamic start-up DRL in a dedicated window in the included black protective cover provides a modern, sleek appearance that darkens when not in use. Blackout mounting hardware. Roadvision's Thermal Management Technology manages heat dissipation across the 160W LED array. IP68 and IP69K dual protection. Multi-volt 10-30V DC at 11.64A at 13.8V with over/under voltage and reverse polarity protection. EMI/EMC radio interference approved. 2-pin Deutsch plug for driving light circuit (red positive, black negative) with separate green wire for DRL halo positive. 50,000 hour LED lifespan. Backed by a 7-year warranty.

Features & Benefits

9,594 Lumens per Light - 493 Metres at 1 Lux: Delivers 9,594lm per light (19,188lm per pair) with 2,430 lux at 10 metres per light and 493m at 1 lux per light (697m per pair) for outstanding output from the 9" Low Kelvin Series flagship.

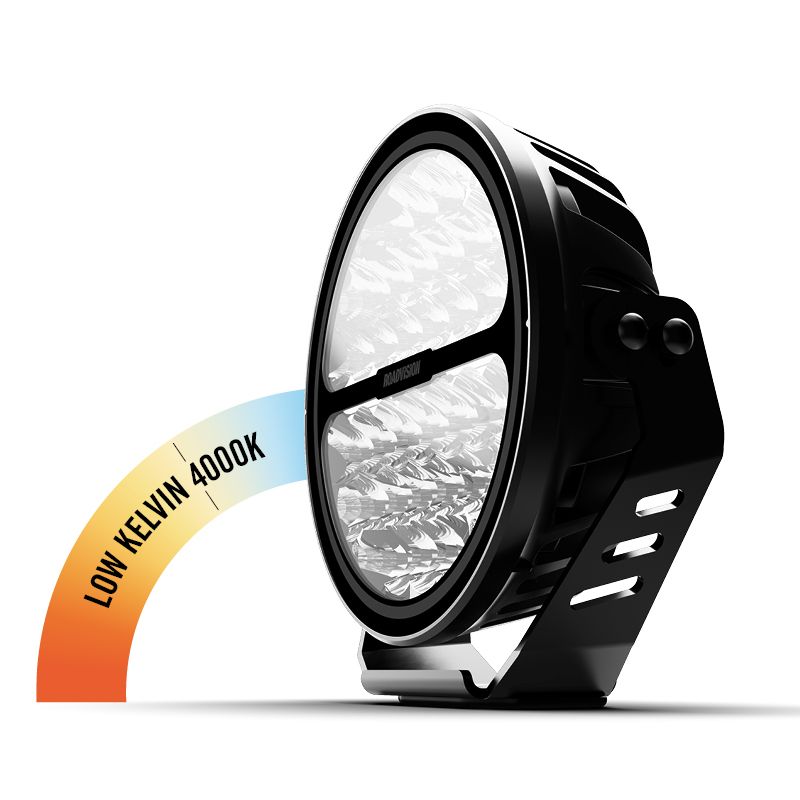

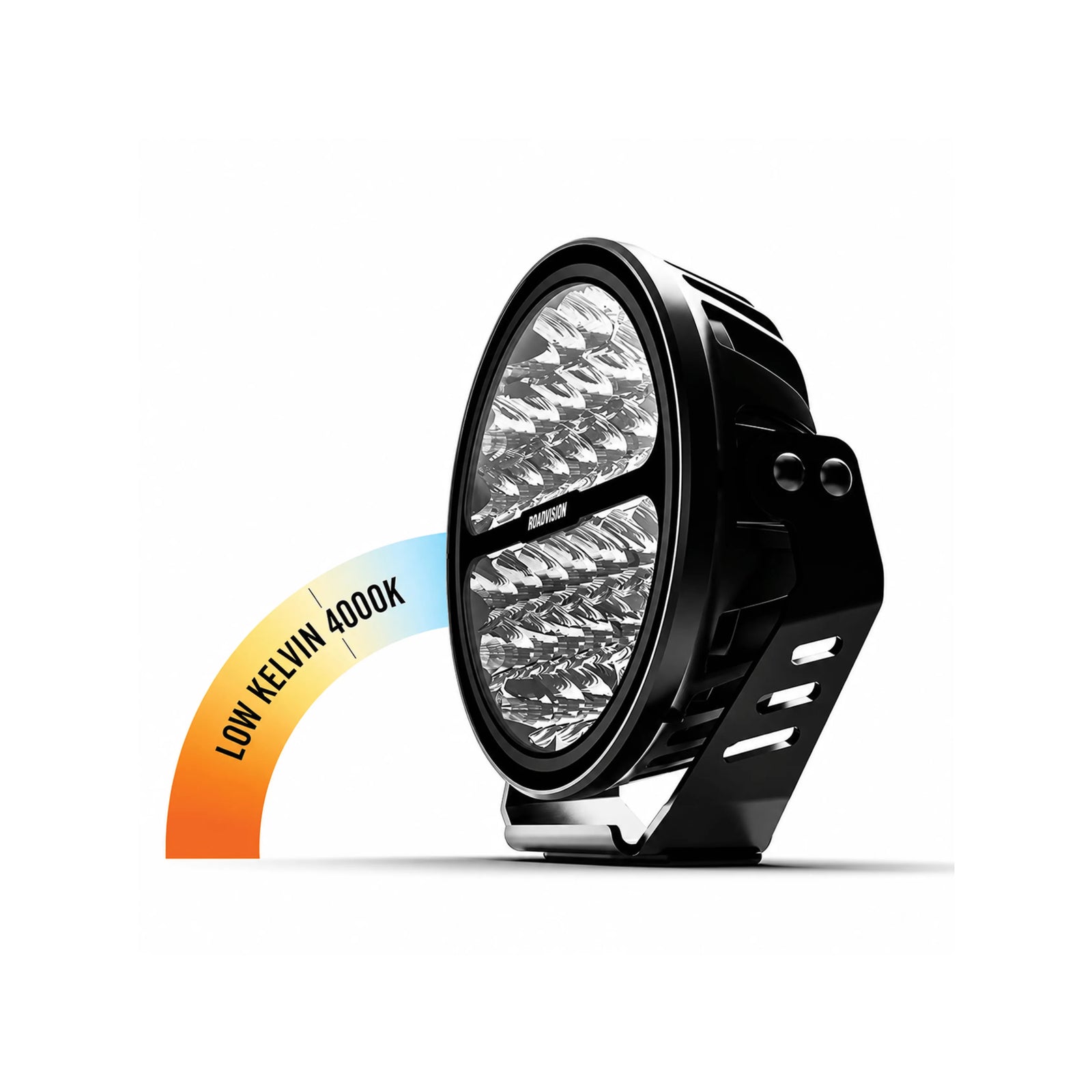

Low Kelvin Warmer Light Output - Wider Beam Pattern: The warmer low-kelvin output and wider beam pattern provide better visibility in wet and dusty conditions and dramatically reduce road sign flare, making the RDL6901LKD the ideal choice for passenger vehicles and SUVs on public roads in all weather conditions.

34 x 3W Osram LEDs - 160W Output: Thirty-four 3W Osram LEDs produce 160W of warmer-toned output across the combination beam pattern.

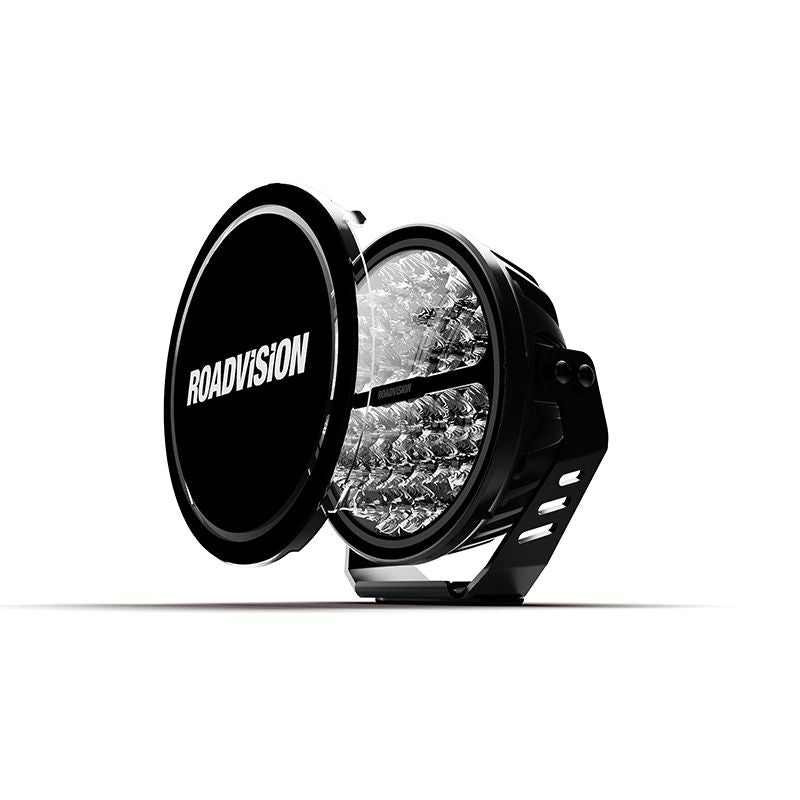

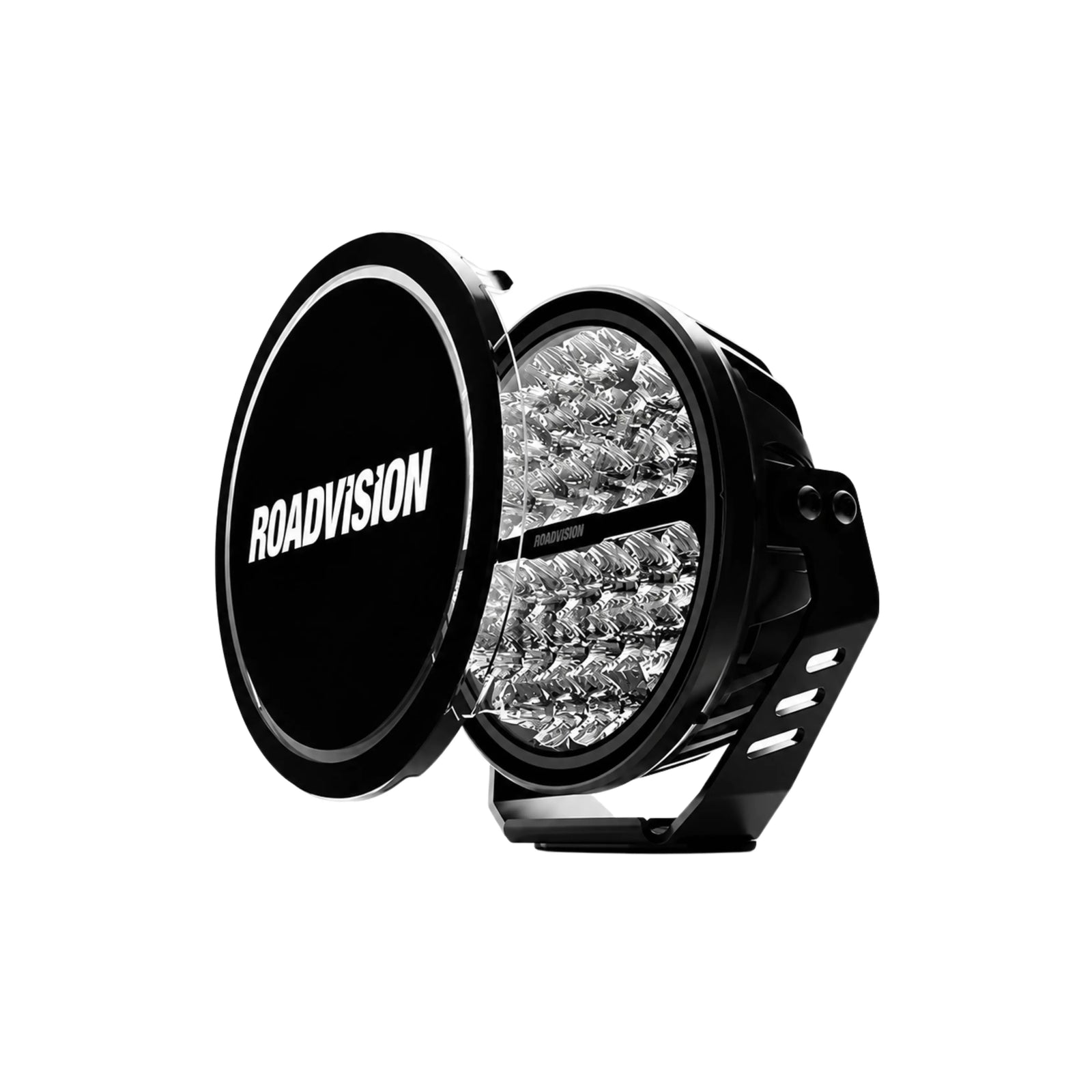

Dynamic Start-Up DRL with Black Cover and DRL Window: The dynamic start-up DRL is housed in a dedicated DRL window in the black protective cover and seamlessly darkens when not in use.

Blackout Mounting Hardware: All mounting hardware is finished in black for a modern, low-profile stealth appearance.

Roadvision Thermal Management Technology: Actively manages heat dissipation from the 160W LED array for consistent output and long-term reliability.

IP68 and IP69K Dual Protection: Full protection against sustained immersion and high-pressure, high-temperature water jet exposure.

Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight, tough construction for demanding applications.

50,000 Hour LED Lifespan with Solid-State Technology: Long-term maintenance-free reliability.

Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V and 24V vehicle electrical systems with full electronic protection.

EMI/EMC Radio Interference Approved: Compatible with vehicle communication and navigation systems.

2-Pin Deutsch Plug with Separate DRL Halo Wire: 2-pin Deutsch plug for driving light power (red positive, black negative) with separate green wire for DRL halo positive.

7-Year Warranty: Backed by a 7-year Roadvision warranty.

Technical Specs

Compatible With

The RDL6901LKD is compatible with 10-30V DC vehicle electrical systems including 12V and 24V platforms. Sold individually; pair figures refer to two units. A 7" version is available as the RDL6701LKD. The standard white output version in the same form factor is the RDL6901SD (Stealth PRO Series).

Frequently Asked Questions

Are the RDL6901LKD driving lights sold individually or as a pair?

The RDL6901LKD is sold individually. Lumen, lux, and beam distance figures in brackets refer to a pair of two lights.

What is the advantage of the Low Kelvin output on the RDL6901LKD?

The Low Kelvin colour temperature produces a warmer-toned light with a wider beam pattern, providing better contrast and visibility in wet and dusty conditions where standard white lights cause glare and reflection, while dramatically reducing road sign flare on public roads.

Is the RDL6901LKD compatible with 24V vehicles?

Yes. The RDL6901LKD operates across 10-30V DC, compatible with both 12V and 24V vehicle electrical systems.

What is the difference between the RDL6901LKD and the RDL6701LKD?

Both are from the Stealth PRO Low Kelvin Series with the same design and technology. The RDL6901LKD is the 9" model at 160W with 9,594lm and 493m at 1 lux per light using 34 x 3W LEDs. The RDL6701LKD is the 7" model at 74W with 4,601lm and 369m at 1 lux per light using 16 x 3W LEDs. Choose the RDL6901LKD for maximum Low Kelvin output.

What is the difference between the RDL6901LKD and the RDL6901SD?

Both are 9" Stealth PRO Series driving lights with the same form factor, DRL, and mounting hardware. The RDL6901SD is the standard white high-output version at higher lumen output for maximum long-range performance. The RDL6901LKD uses a warmer Low Kelvin output with a wider beam pattern optimised for on-road visibility in wet, dusty, and road sign-heavy conditions.
