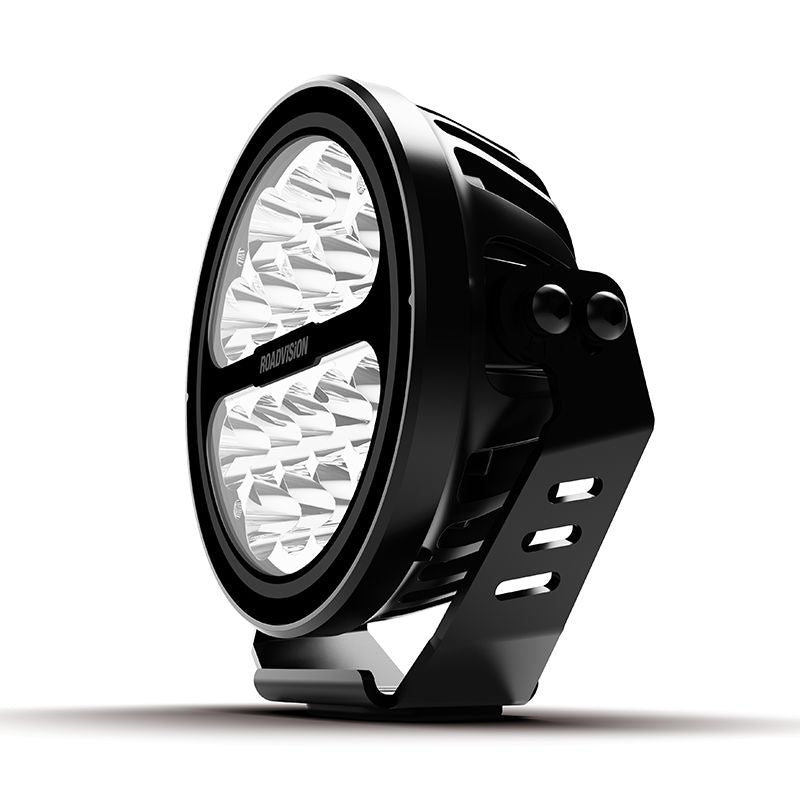

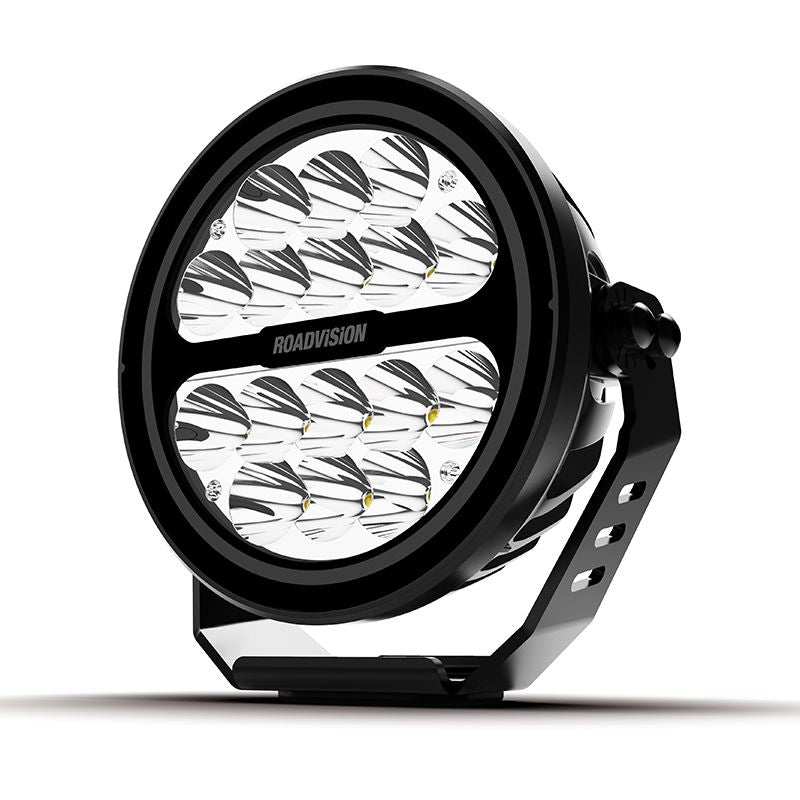

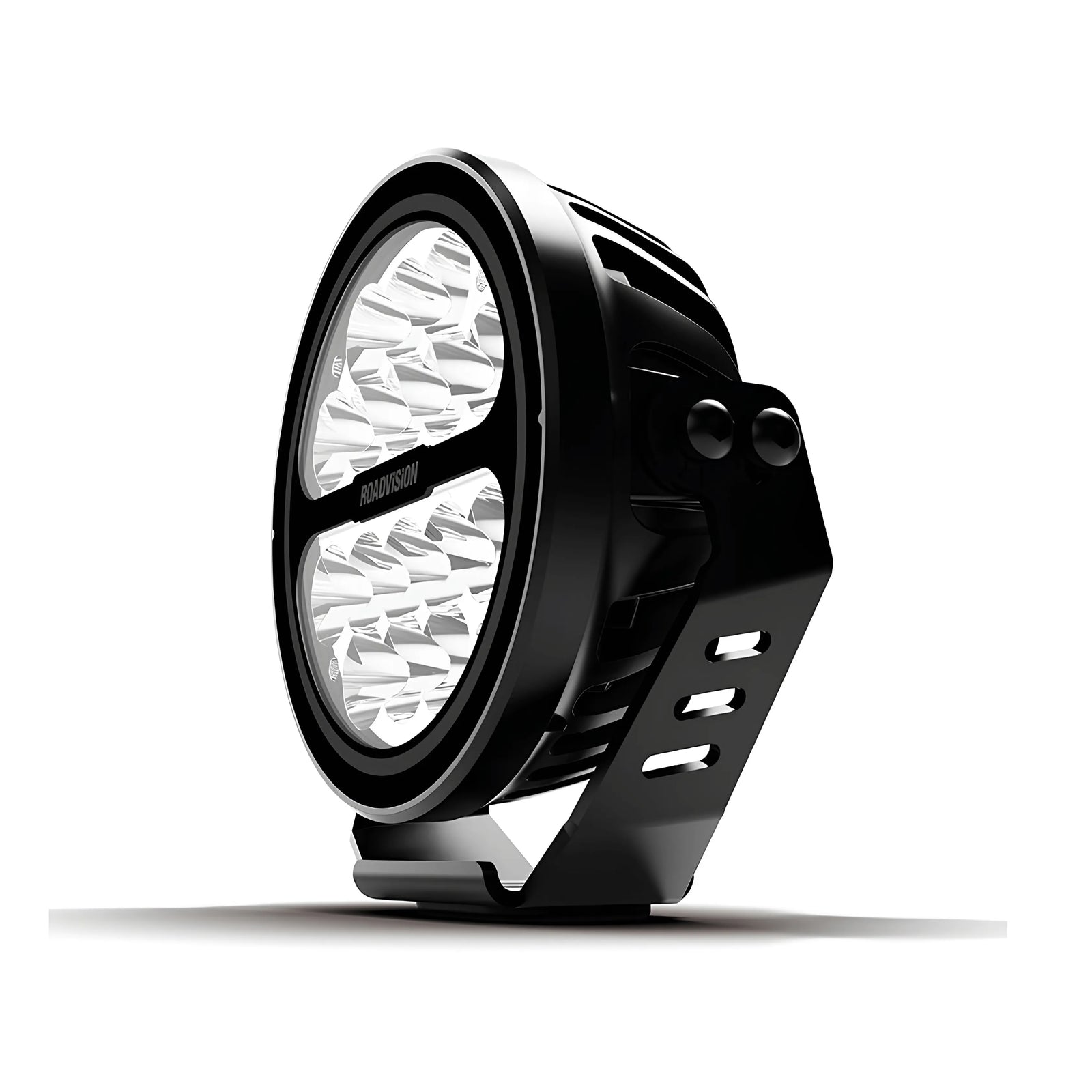

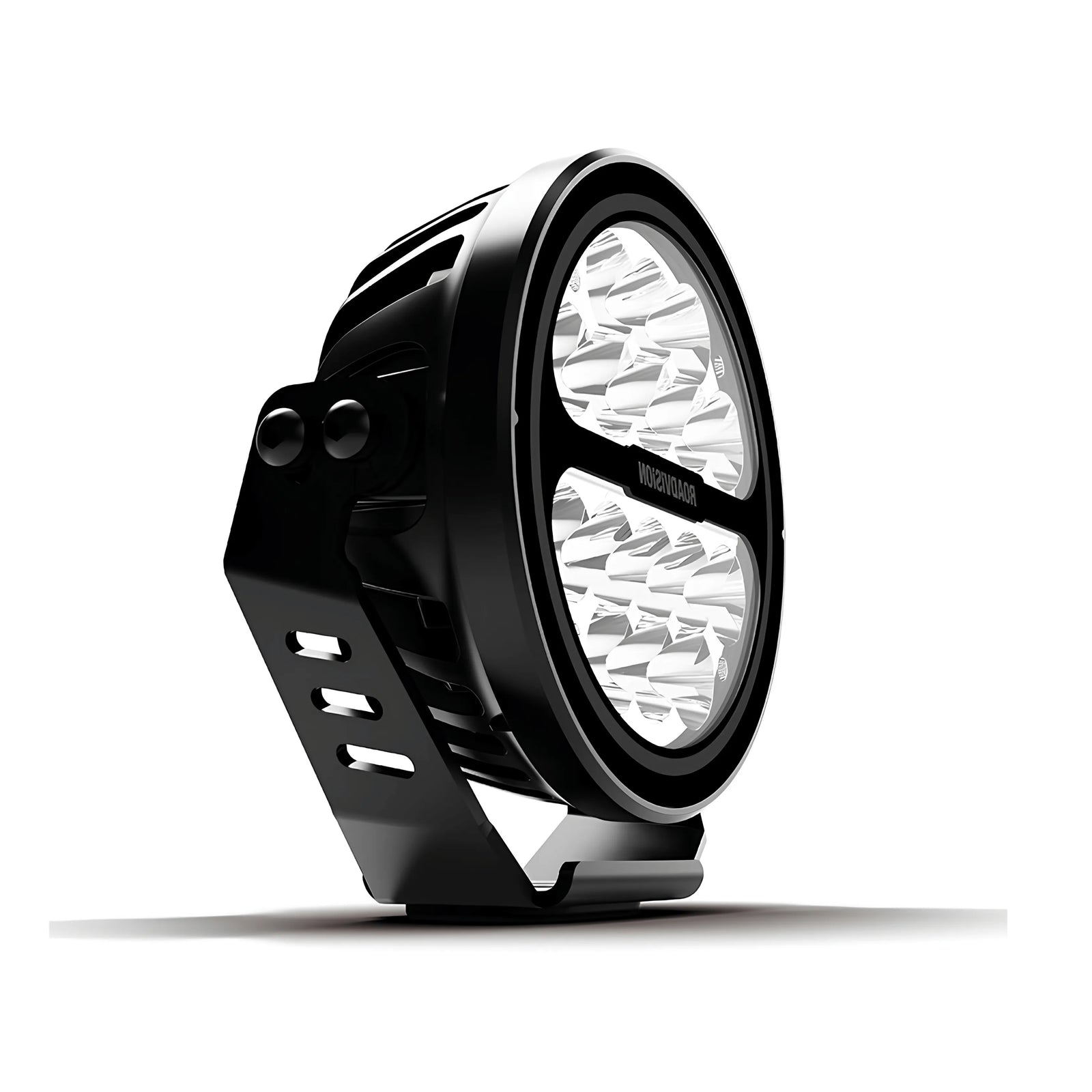

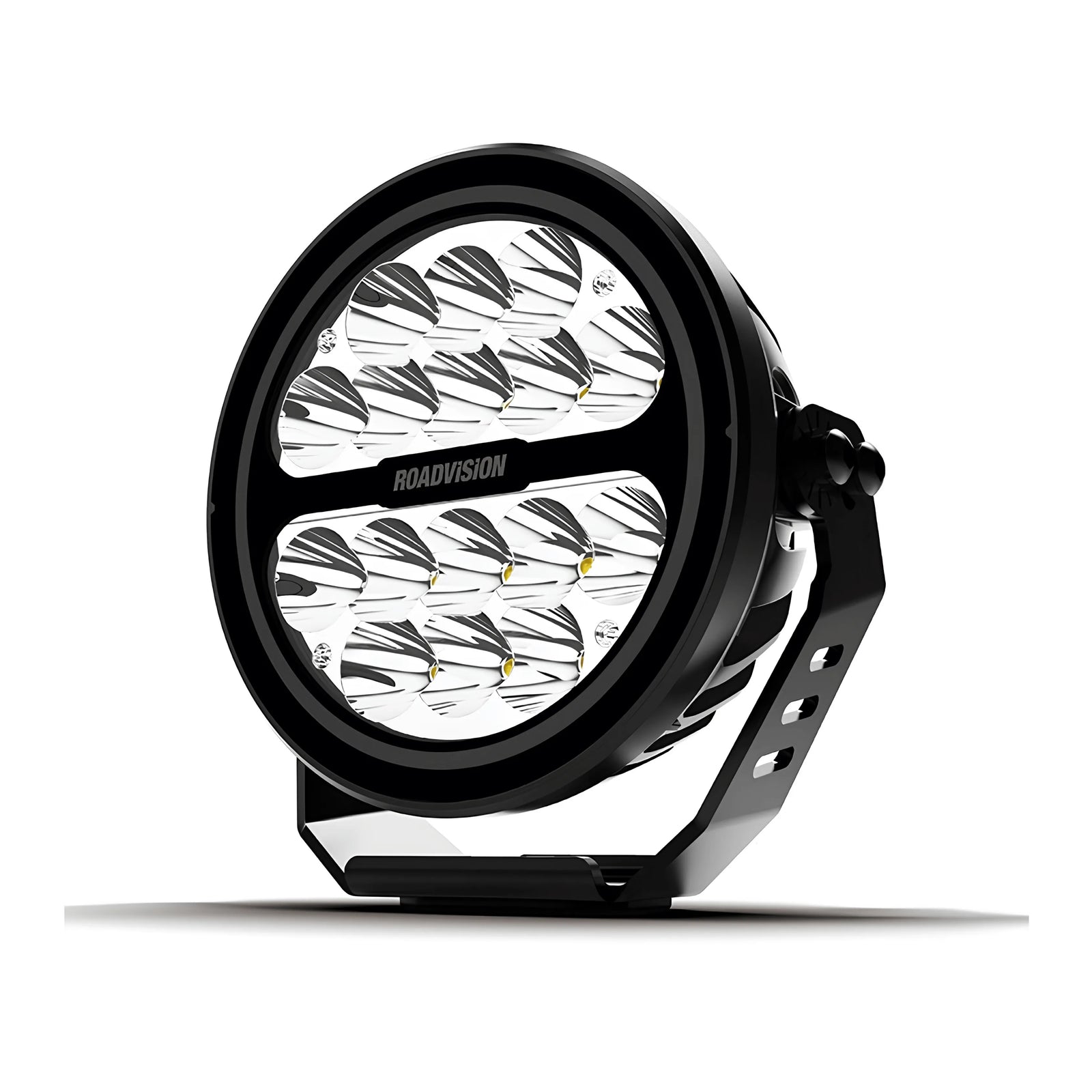

Roadvision RDL6701SD Stealth PRO 7" LED Driving Light 68W Spot

Roadvision RDL6701SD Stealth PRO 7" LED Driving Light 68W Spot Beam

A 7" 68W spot beam LED driving light from the Roadvision Stealth PRO Series, the RDL6701SD delivers 5,130 lumens per light (10,260lm per pair) with a beam distance of 631 metres at 1 lux per light (892m per pair), powered by 16 x 3W Osram LEDs in a die-cast aluminium housing with polycarbonate lens, featuring dynamic start-up DRL, IP68 and IP69K protection, and a 7-year warranty.

Product Overview

The Roadvision RDL6701SD is a 7" round spot beam driving light from the Stealth PRO Series, featuring a contemporary bezel-less design with a black cover and dedicated DRL window housing a dynamic start-up Daytime Running Light. The DRL seamlessly darkens when not illuminated for a clean, understated appearance when the driving lights are off. Blackout mounting hardware maintains the stealth aesthetic.

Sixteen 3W Osram LEDs produce 68W of super-white light close to daylight with a 50,000 hour LED lifespan via solid-state technology. Roadvision's Thermal Management Technology ensures superior performance and durability across all operating environments. The die-cast aluminium housing is lightweight and tough, and the polycarbonate lens provides durable impact resistance. IP68 and IP69K protection covers both sustained immersion and high-pressure water jet exposure. Multi-volt 10-30V DC input with over/under voltage and reverse polarity protection, and simple 2-wire installation via a 2-pin Deutsch plug. EMI/EMC radio interference approved.

Features & Benefits

5,130 Lumens per Light - 631 Metre Beam at 1 Lux: The RDL6701SD delivers 5,130lm per light (10,260lm per pair) with a maximum beam distance of 631 metres at 1 lux per light (892m per pair), providing exceptional long-range illumination for night driving in remote and off-road environments.

16 x 3W Osram LEDs - Super White Daylight-Close Output: Sixteen 3W Osram LEDs produce a super-white light output close to daylight colour temperature, providing natural and accurate colour rendering on the road surface and surrounding environment.

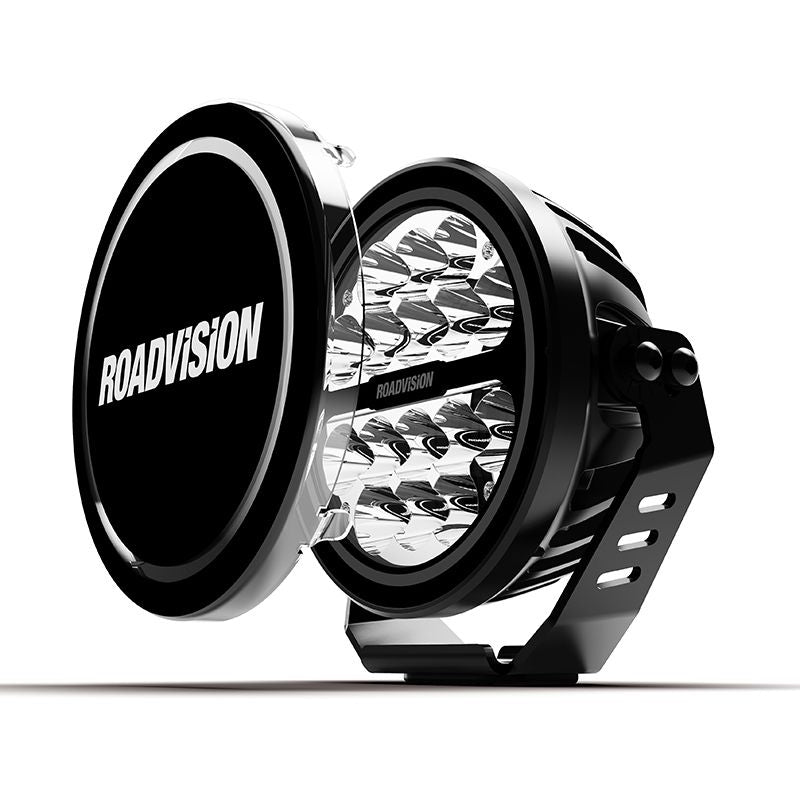

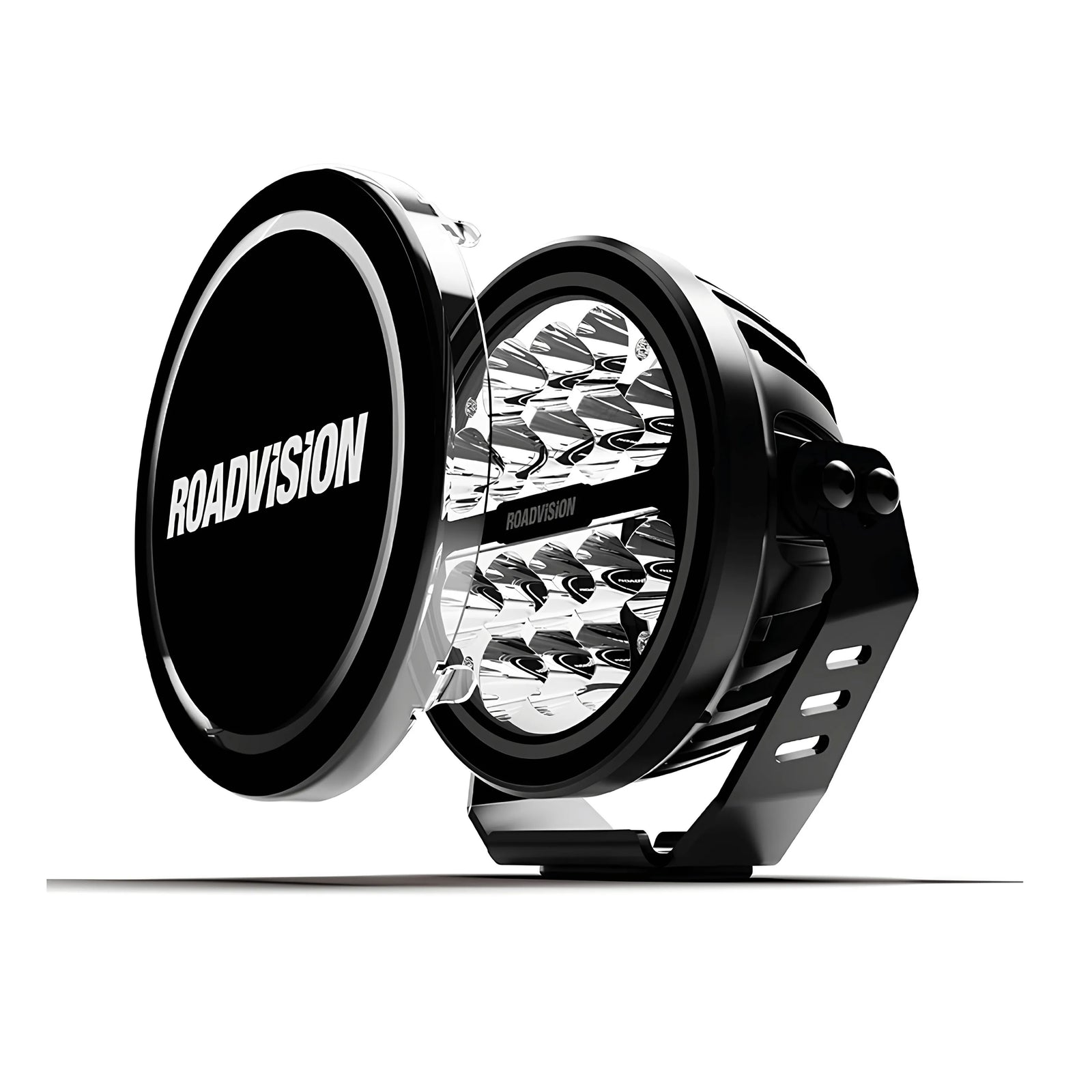

Dynamic Start-Up DRL with Black Cover and DRL Window: The Stealth PRO Series features a dynamic start-up Daytime Running Light with a dedicated DRL window in the black cover. The DRL seamlessly darkens when not illuminated, maintaining the sleek bezel-less appearance of the light when the DRL is off.

Blackout Mounting Hardware: All mounting hardware is finished in black, complementing the stealth aesthetic of the RDL6701SD and providing a professional, factory-consistent appearance on the vehicle.

Roadvision Thermal Management Technology: The integrated Thermal Management Technology actively manages heat dissipation from the LED array and driver electronics, ensuring consistent output and long-term reliability across a wide range of operating temperatures and sustained high-power use.

IP68 and IP69K Protection: The RDL6701SD holds both IP68 (sustained submersion) and IP69K (high-pressure, high-temperature water jet) protection ratings, providing the highest level of ingress protection for off-road, agricultural, and marine vehicle applications.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and efficient heat transfer, while the polycarbonate lens resists impact and UV degradation in outdoor environments.

50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated LED lifespan with maintenance-free solid-state technology provides long-term reliability without the bulb replacement requirements of halogen or HID driving lights.

Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: The 10-30V DC multi-volt input is compatible with both 12V and 24V vehicle electrical systems. Over/under voltage and reverse polarity protection safeguard the electronics from wiring errors and voltage fluctuations.

Simple 2-Wire Installation via 2-Pin Deutsch Plug: The 2-pin Deutsch plug provides a secure, weatherproof, and vibration-resistant connection for the driving light circuit, with red (positive) and black (negative) wires. The DRL halo connects via the separate green wire positive.

EMI/EMC Radio Interference Approved: The RDL6701SD is EMI/EMC radio interference approved, confirming it will not interfere with vehicle communication systems, navigation, or other electronic equipment.

7-Year Warranty: The RDL6701SD is backed by a 7-year Roadvision warranty.

Technical Specs

Compatible With

The RDL6701SD is compatible with 10-30V DC vehicle electrical systems including 12V and 24V platforms. The 2-pin Deutsch plug provides a secure weatherproof connection for the driving light circuit. The DRL halo connects separately via the green wire positive. Confirm mounting clearance and wiring loom compatibility for your specific vehicle before purchase. Sold individually; pair pricing refers to two units.

Frequently Asked Questions

Are the RDL6701SD driving lights sold individually or as a pair?

The RDL6701SD is sold individually. Lumen, lux, and beam distance figures in brackets refer to a pair of two lights. Confirm the quantity required for your installation before purchase.

What is the dynamic start-up DRL on the Stealth PRO Series?

The dynamic start-up DRL provides an animated light sequence when the DRL activates, drawing attention to the vehicle during daylight hours. The DRL is housed in a dedicated window in the black cover and seamlessly darkens when not in use, maintaining the sleek bezel-less appearance of the light.

Is the RDL6701SD compatible with 24V vehicles?

Yes. The RDL6701SD operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems including trucks and heavy commercial vehicles.

What does IP68 and IP69K mean for the RDL6701SD?

IP68 confirms the light is protected against sustained submersion in water beyond 1 metre. IP69K confirms protection against high-pressure, high-temperature water jet exposure from all angles. Together these ratings provide the highest available level of ingress protection, suited to off-road, agricultural, and marine vehicle applications including vehicle wash-down.

What wiring connection does the RDL6701SD use?

The driving light circuit uses a 2-pin Deutsch plug with red (positive) and black (negative) wires. The DRL halo connects separately via a green positive wire. Deutsch connectors are widely used in automotive and off-road applications for their secure, weatherproof, and vibration-resistant connection.
