Roadvision RDL5700C DX2 Dominator 7
Roadvision RDL5700C DX2 Dominator 7
Click to open expanded view

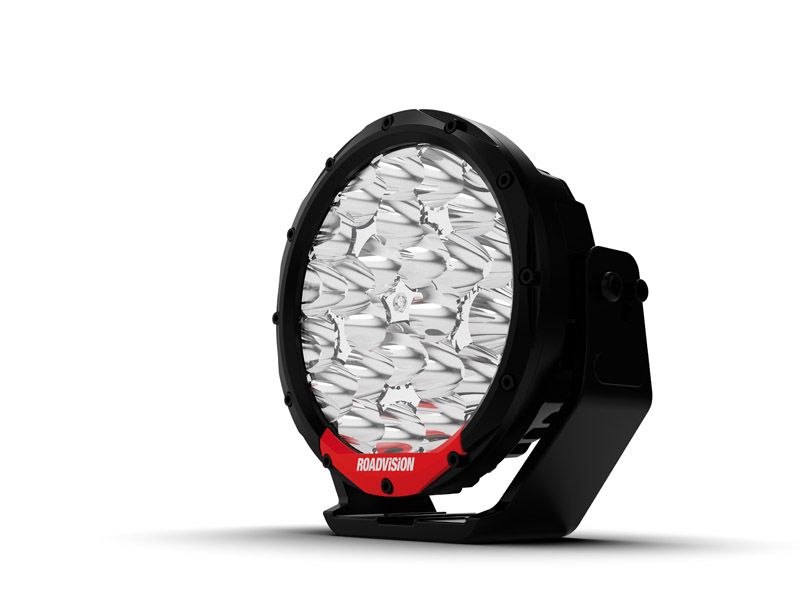

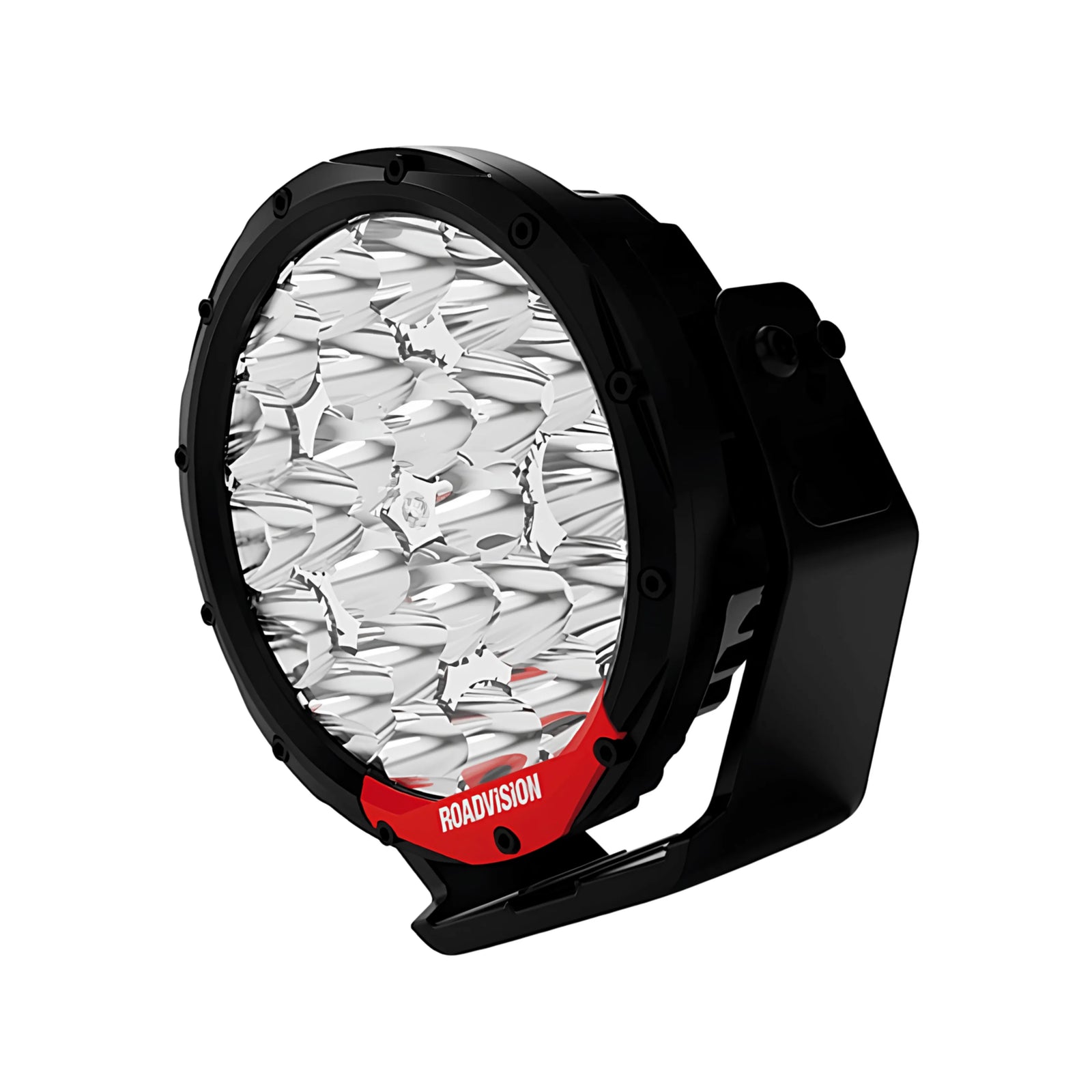

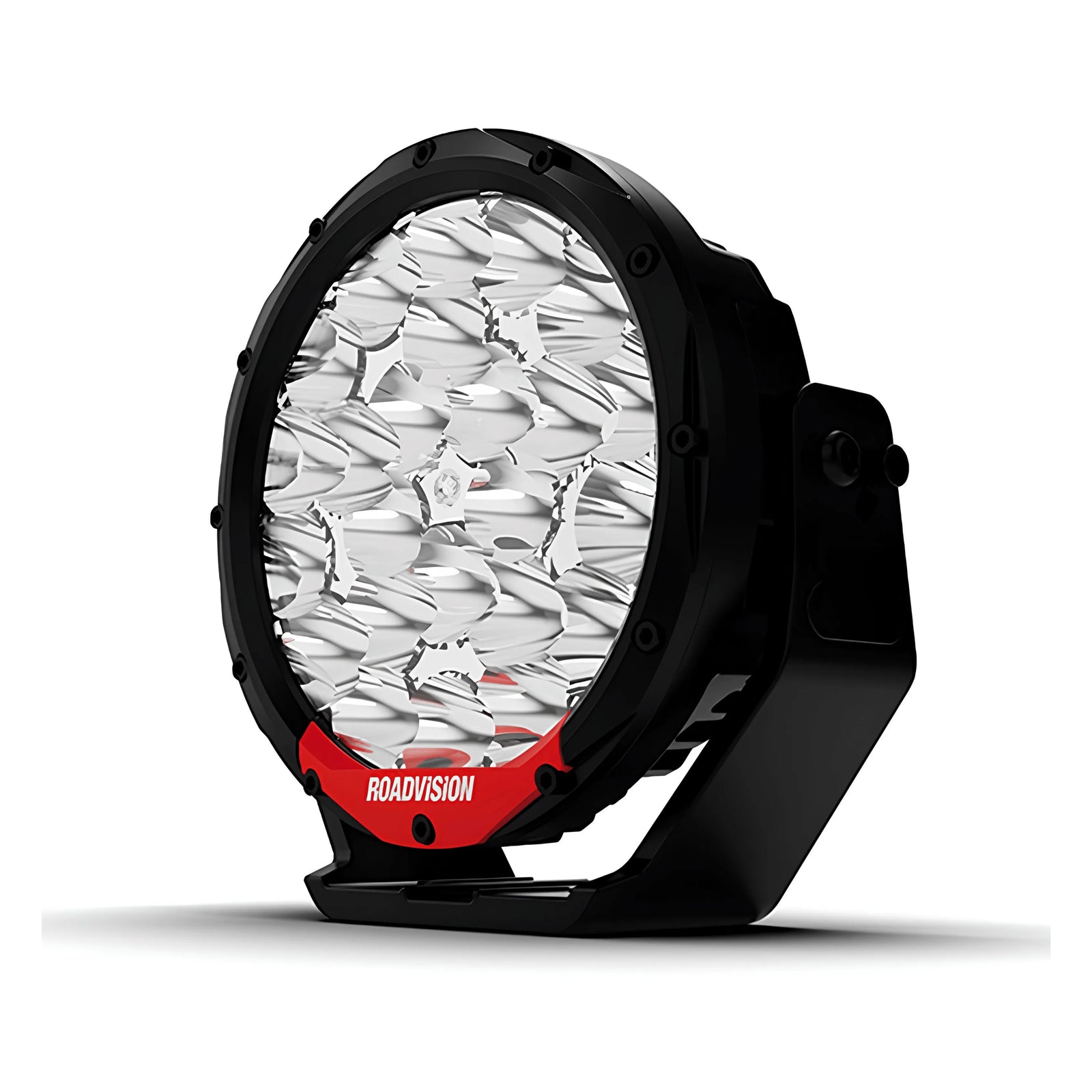

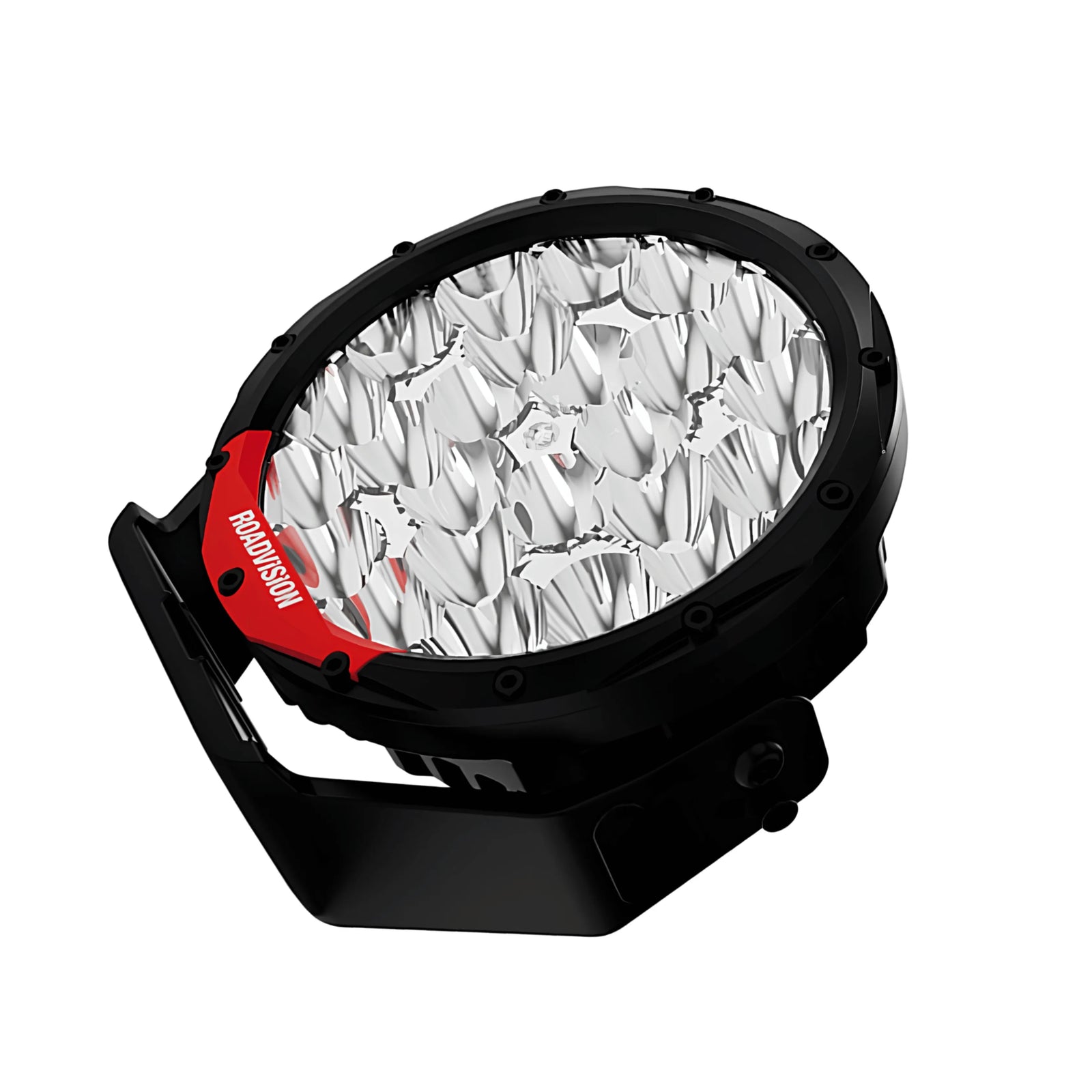

Roadvision RDL5700C DX2 Dominator 7" LED Driving Light 133W Combo

SKU: RDL5700C
Price
$429
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RDL5700C Dominator Extreme 2 DX2 Series 7" LED Driving Light 133W Combination Beam

A 7" 133W combination beam LED driving light from the Roadvision Dominator Extreme 2 (DX2) Series, the RDL5700C delivers 5,671 lumens per light (11,342lm per pair) with a beam distance of 1,383 metres at 0.5 lux per light (1,926m per pair) and 978 metres at 1 lux per light (1,383m per pair), powered by 24 x 6W Osram LEDs, featuring Thermal Management Technology, blackout mounting hardware, two protective covers, IP68 protection, 9-36V DC multi-volt input, and a 7-year warranty.

Product Overview

The Roadvision RDL5700C is a 7" combination beam driving light from the Dominator Extreme 2 (DX2) Series, engineered for long-range beam penetration focused on highway driving performance. The combination beam delivers seriously extreme long-range output reaching 978 metres at 1 lux per light (1,383m per pair) from a 7" unit. Twenty-four 6W Osram LEDs produce 133W of bright white light with 9,560 lux at 10 metres per light. Roadvision's Thermal Management Technology manages heat dissipation across the LED array for consistent output and long-term reliability. IP68 rated waterproof and dustproof die-cast aluminium housing with polycarbonate lens. Blackout mounting hardware with a lightweight aluminium mounting bracket. Two protective covers (clear and black) are included. Multi-volt 9-36V DC at 9.6A at 13.8V with over/under voltage and reverse polarity protection. CISPR25 approved. 2-pin Deutsch plug. 50,000 hour LED lifespan. Backed by a 7-year warranty.

Features & Benefits

5,671 Lumens per Light - 978 Metres at 1 Lux: The RDL5700C delivers 5,671lm per light (11,342lm per pair) with 9,560 lux at 10 metres per light, 978m at 1 lux per light (1,383m per pair), and 1,383m at 0.5 lux per light (1,926m per pair) for exceptional long-range highway driving performance.

24 x 6W Osram LEDs - 133W Bright White Output: Twenty-four 6W Osram LEDs produce 133W of bright white light for natural colour rendering and maximum road surface visibility at long range.

Combination Beam Focused on Long-Range Penetration: The DX2 Series combination beam is optimised for long-range beam penetration with a lower short-range intensity, making it the ideal choice for highway and open road driving rather than tight track or bush applications.

Roadvision Thermal Management Technology: Actively manages heat dissipation across the 133W LED array for consistent output and long-term reliability across all operating environments.

Blackout Mounting Hardware with Aluminium Bracket: All mounting hardware is finished in black with a lightweight aluminium mounting bracket, providing a modern, low-profile stealth appearance on the vehicle.

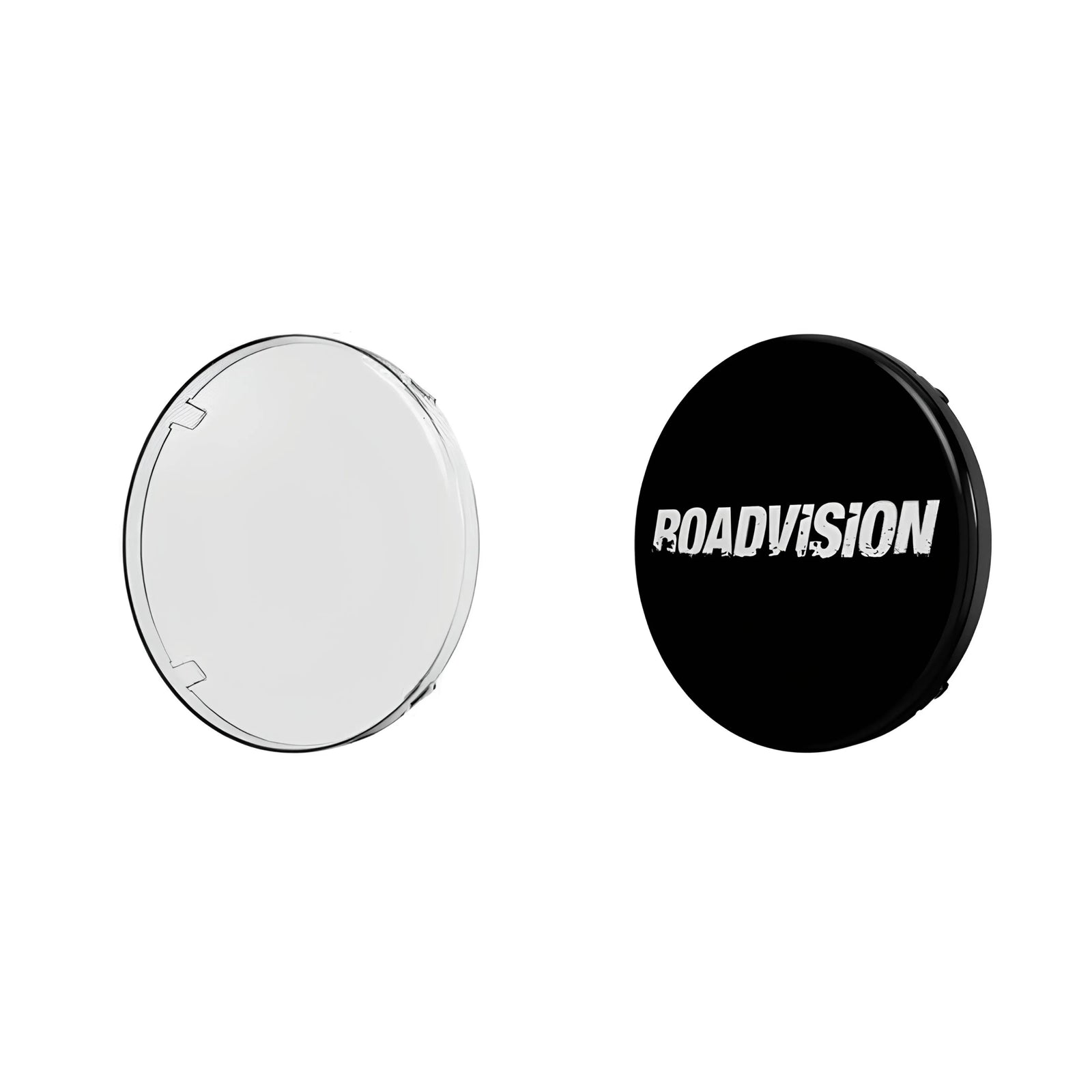

Two Protective Covers Included - Clear and Black: Both a clear and a black protective cover are included, providing choice of cover style and additional lens protection when the driving lights are not in use.

IP68 Water and Dust Proof: Full protection against sustained submersion, suited to off-road and all-weather applications.

Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight, tough construction for demanding applications.

50,000 Hour LED Lifespan with Solid-State Technology: Long-term maintenance-free reliability.

Multi-Volt 9-36V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V, 24V, and 36V electrical systems with full electronic protection.

CISPR25 Approved: Confirmed compatible with vehicle communication and electronic systems without electromagnetic interference.

2-Pin Deutsch Plug: Secure, weatherproof, vibration-resistant connection.

7-Year Warranty: Backed by a 7-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RDL5700C
Brand Roadvision
Series Dominator Extreme 2 (DX2)
Description DLX2 Series 7" LED Driving Light
Beam Pattern Combination
Maximum Lumens per Light 5,671lm
Maximum Lumens per Pair 11,342lm
Maximum Lux at 10m per Light 9,560lx
Maximum Lux at 10m per Pair 19,120lx
Beam Distance at 1lx per Light 978m
Beam Distance at 1lx per Pair 1,383m
Beam Distance at 0.5lx per Light 1,383m
Beam Distance at 0.5lx per Pair 1,926m
Input Voltage 9-36V DC
Maximum Watts 133W
LED Quantity 24 x 6W Osram
Current Draw 9.6A at 13.8V
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring 2-Pin Deutsch Plug

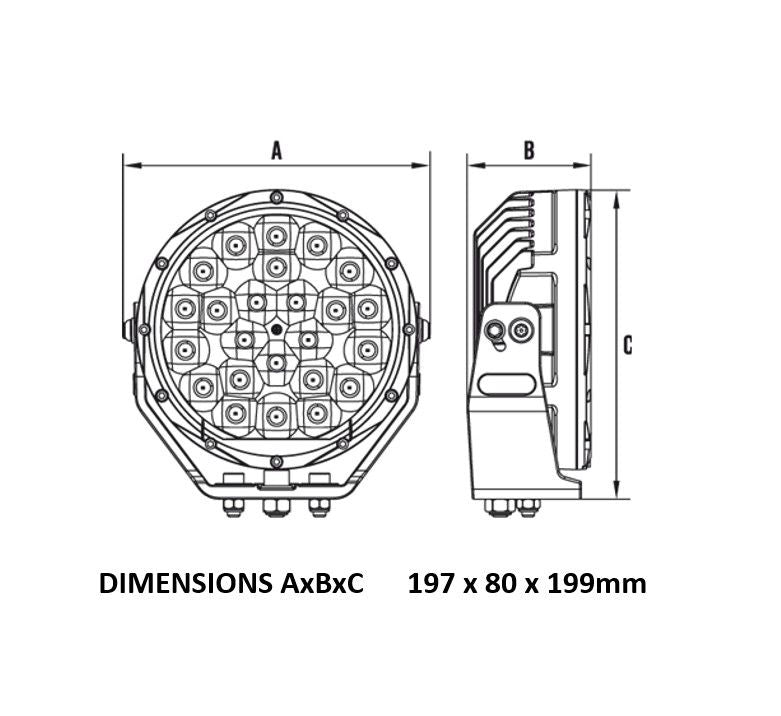

Dimensions 197mm x 80mm x 199mm
IP Rating IP68
LED Lifespan 50,000 Hours
Protection Over/Under Voltage, Reverse Polarity
Approvals CISPR25
Includes Clear Protective Cover, Black Protective Cover
Warranty 7 Years

Compatible With

The RDL5700C is compatible with 9-36V DC vehicle electrical systems including 12V, 24V, and 36V platforms. The 2-pin Deutsch plug provides a secure weatherproof connection. Sold individually; pair figures refer to two units. A 9" version is available as the RDL5900C.

Frequently Asked Questions

Are the RDL5700C driving lights sold individually or as a pair?

The RDL5700C is sold individually. Lumen, lux, and beam distance figures in brackets refer to a pair of two lights.

What protective covers are included with the RDL5700C?

Two protective covers are included: one clear cover and one black cover, providing a choice of cover style and additional lens protection when the driving lights are not in use.

Is the RDL5700C compatible with 24V and 36V vehicles?

Yes. The RDL5700C operates across 9-36V DC, compatible with 12V, 24V, and 36V vehicle electrical systems.

What is the IP rating of the RDL5700C?

IP68, confirming full protection against dust and sustained water submersion.

What is the difference between the RDL5700C and the RDL5900C?

Both are from the DX2 Series with the same design and technology. The RDL5700C is a 7" unit at 133W with 5,671lm and 978m at 1 lux per light using 24 x 6W LEDs. The RDL5900C is a 9" unit at 150W with 6,578lm and 1,200m at 1 lux per light using 33 x 6W LEDs. Choose the RDL5900C for maximum output and beam reach.
