Product features

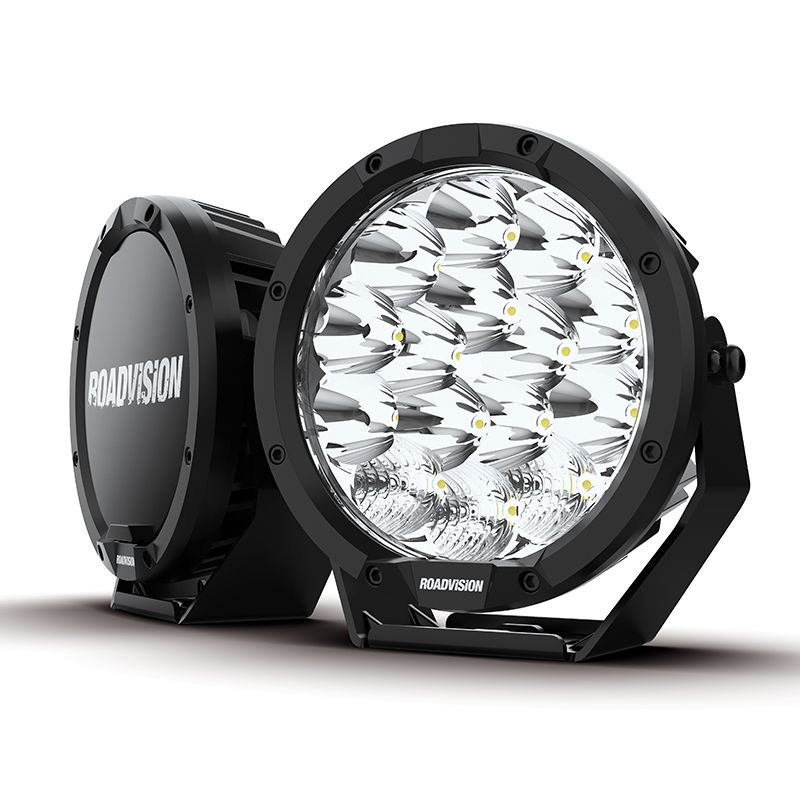

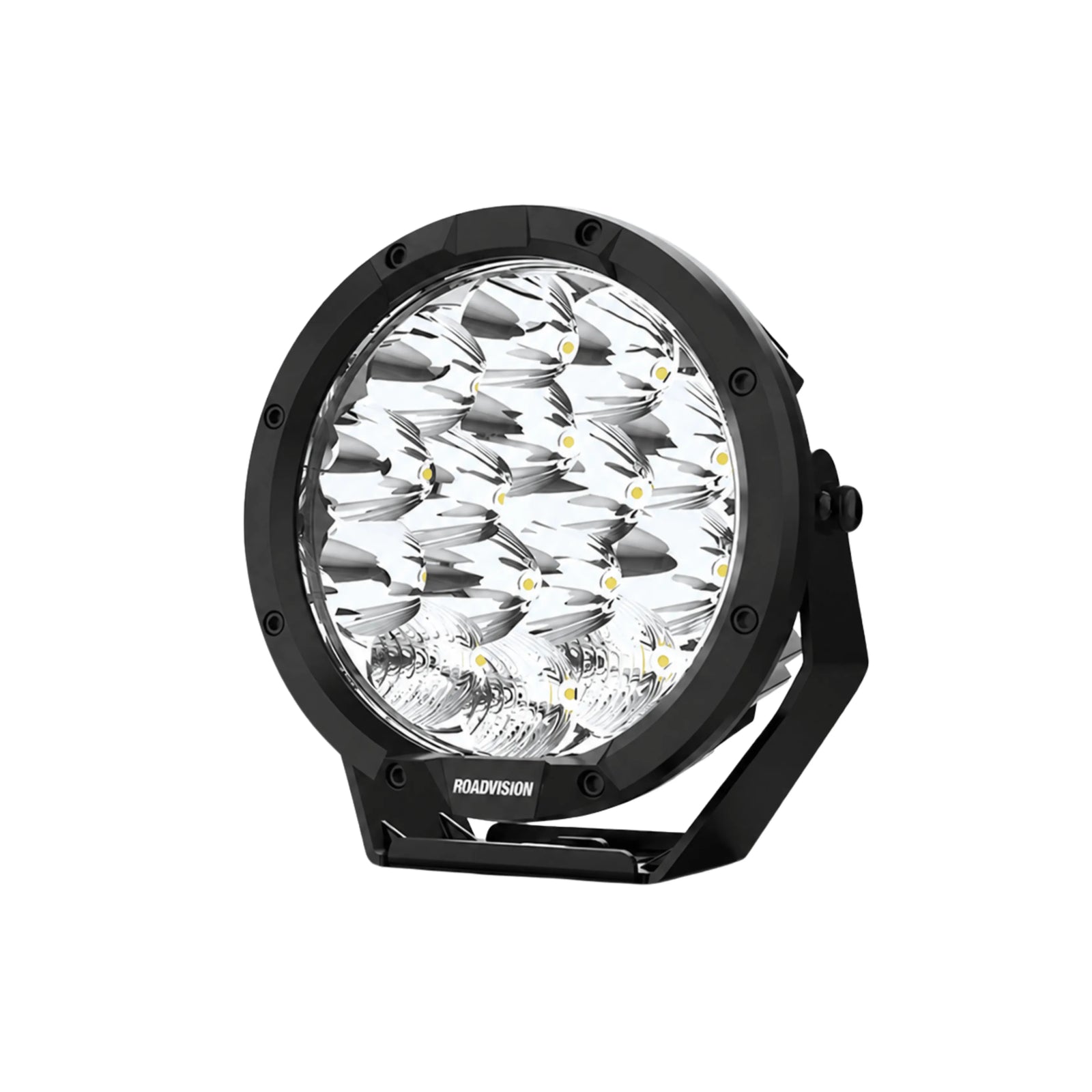

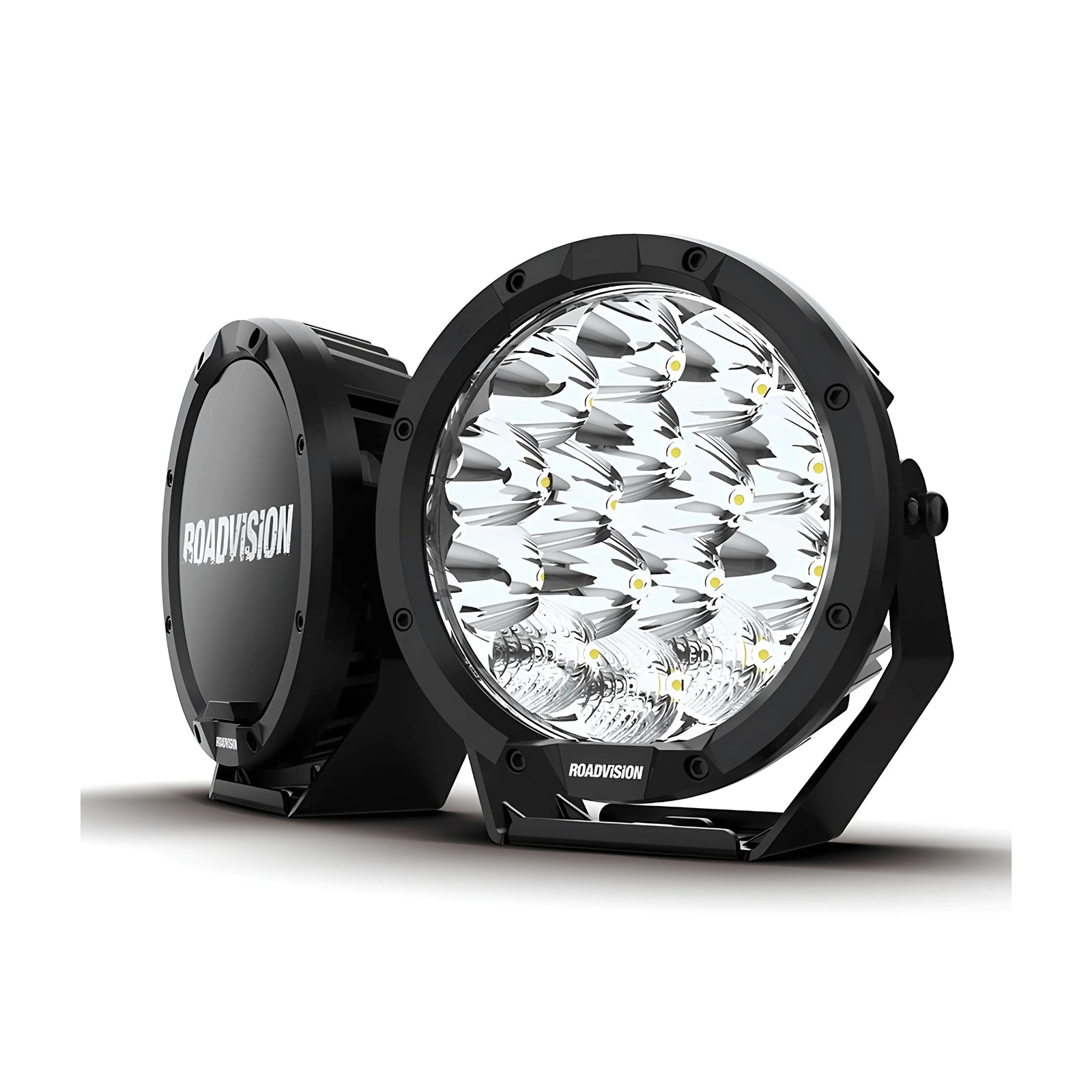

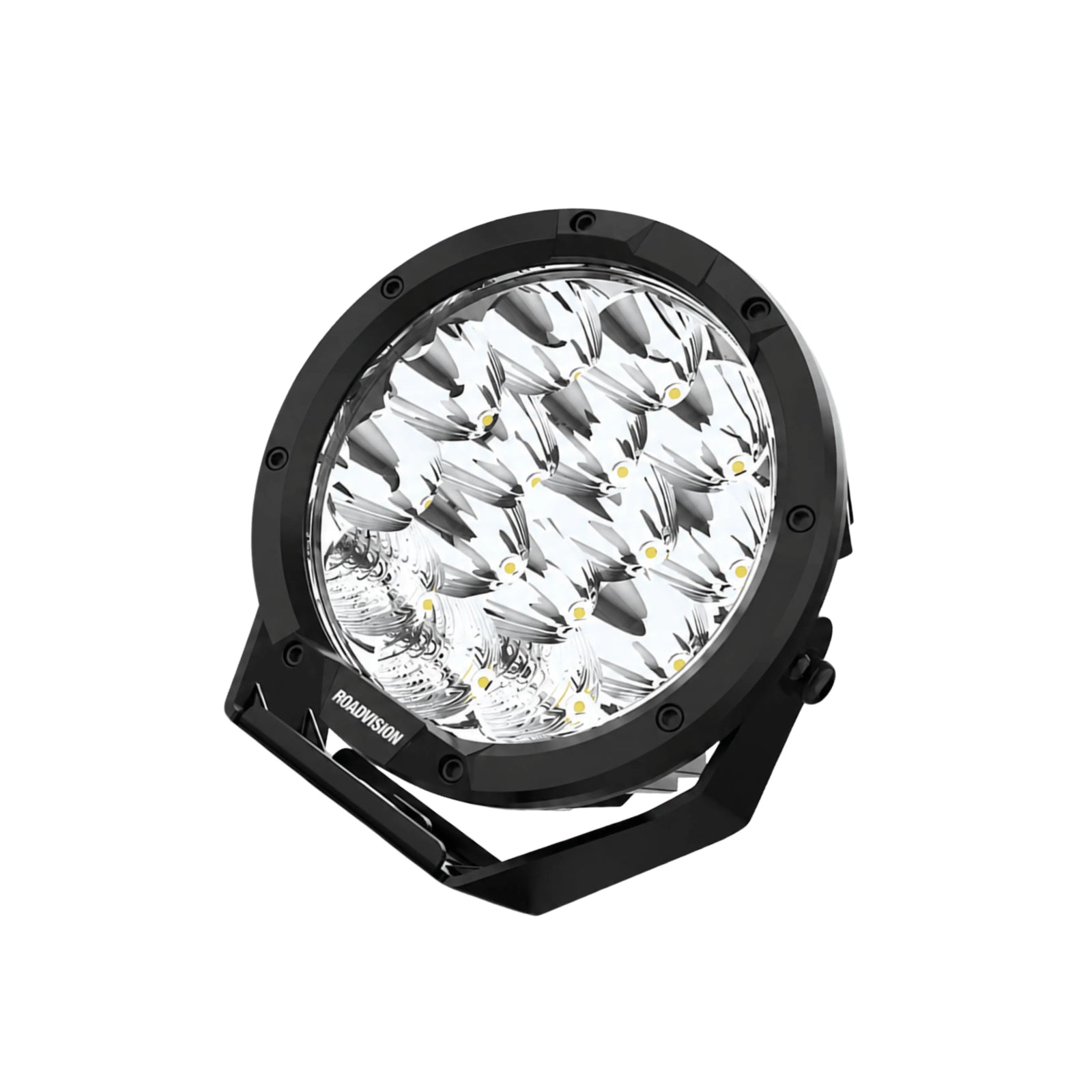

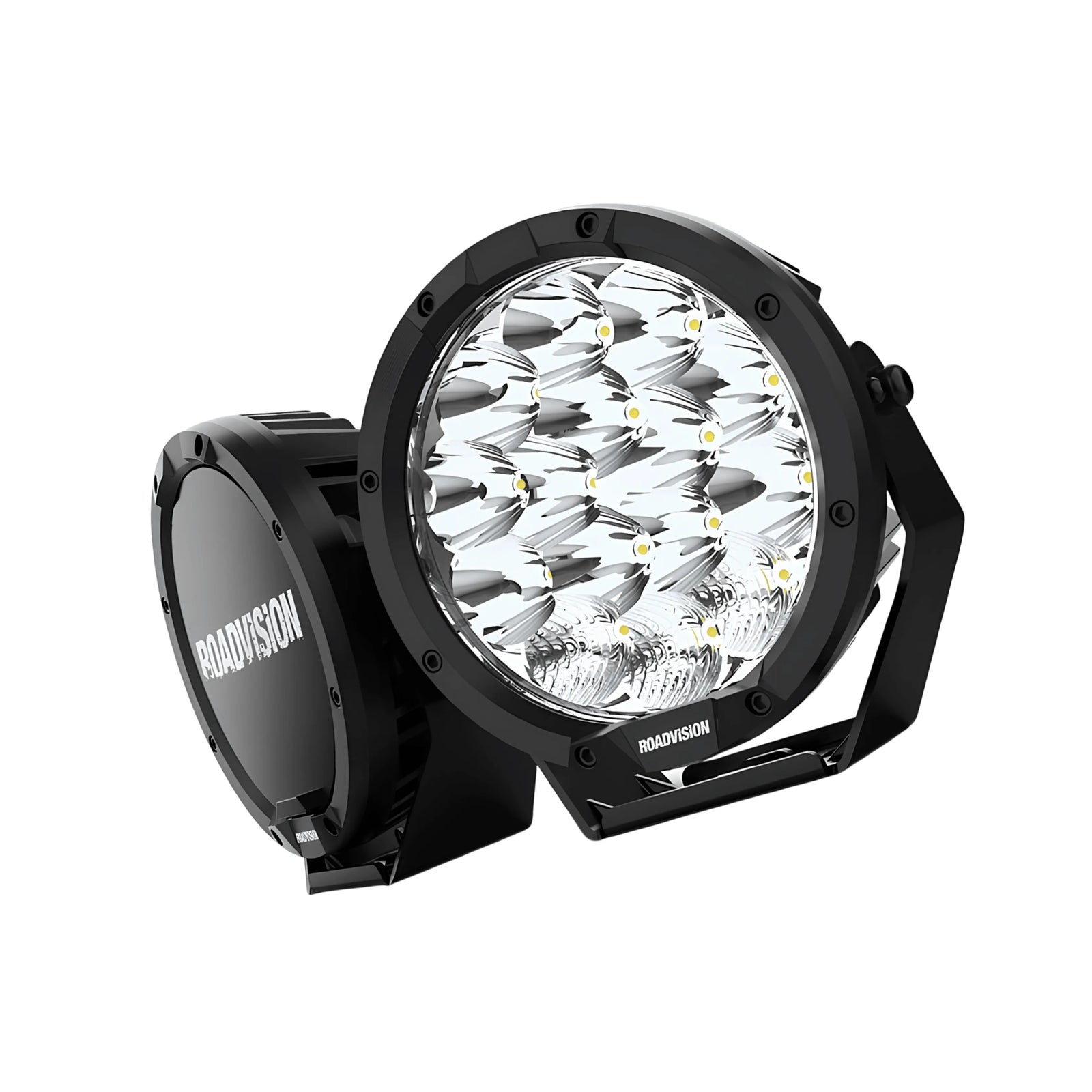

Roadvision RDL1701C Essentials DLE Series 2 7" LED Driving Light Set 170W Combination Beam

A 7" combination beam LED driving light set from the Roadvision Essentials DLE Series 2, the RDL1701C delivers 16,000 lumens per set with a beam distance of 941 metres at 1 lux per set, powered by 15 x 5W Osram LEDs per light at 170W per set, featuring Thermal Management Technology, IP68 protection, and black protective covers, backed by a 3-year warranty.

Product Overview

The Roadvision RDL1701C is a 7" combination beam driving light set from the Essentials DLE Series 2, designed for those seeking value without compromising on quality. Fifteen 5W Osram LEDs per light produce super-white daylight-close output across a combination beam pattern, delivering 16,000 lumens per set with 8,790 lux at 10 metres per set and a beam reach of 941 metres at 1 lux per set at 170W per set total. Roadvision's Thermal Management Technology manages heat dissipation for consistent output and long-term reliability. IP68 rated die-cast aluminium housing with polycarbonate lens. Multi-volt 10-30V DC input at 12.32A per set at 13.8V with over/under voltage and reverse polarity protection. EMI/EMC radio interference approved. Simple 2-wire installation via 2-pin Deutsch plug. Includes black protective covers. 50,000 hour LED lifespan. Backed by a 3-year warranty.

Features & Benefits

16,000 Lumens Per Set - 941 Metre Beam at 1 Lux: The RDL1701C delivers 16,000lm per set with 8,790 lux at 10 metres per set and a beam reach of 941 metres at 1 lux per set, providing strong long-range illumination for night driving in remote and off-road environments.

15 x 5W Osram LEDs Per Light - Super White Output: Fifteen 5W Osram LEDs per light produce a super-white output close to daylight colour temperature for natural colour rendering and clear road surface visibility.

Combination Beam Pattern: The combination beam delivers both long-range spot-style penetration and broader flood-style lateral coverage from a single light unit for comprehensive road illumination.

Thermal Management Technology: Roadvision's Thermal Management Technology actively manages heat dissipation across the LED array, ensuring consistent output and long-term reliability across all operating environments.

IP68 Water and Dust Proof: IP68 rating provides full dust ingress protection and waterproof protection against sustained immersion, suited to off-road and all-weather driving applications.

Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight die-cast aluminium housing with polycarbonate lens provides structural rigidity and effective heat dissipation.

50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated LED lifespan provides long-term maintenance-free reliability.

Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V and 24V vehicle electrical systems with full electronic protection for the LED driver.

EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication, navigation, and electronic systems without interference.

Simple 2-Wire Installation via 2-Pin Deutsch Plug: Secure, weatherproof, and vibration-resistant 2-wire connection for straightforward installation.

Includes Black Protective Covers: Black protective covers are included for additional lens protection when driving lights are not in use.

3-Year Warranty: Backed by a 3-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RDL1701C
Brand Roadvision
Series Essentials DLE Series 2
Description RDL7800 Series 7" Round Combination Beam
Beam Pattern Combination
Maximum Lumens 16,000lm Per Set
Maximum Lux at 10m 8,790lx Per Set
Maximum Beam Distance at 1lx 941m Per Set
Input Voltage 10-30V DC
Maximum Watts 170W Per Set
LED Quantity 15 x 5W Osram Per Light
Current Draw 12.32A at 13.8V Per Set
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring 2-Pin Deutsch Plug

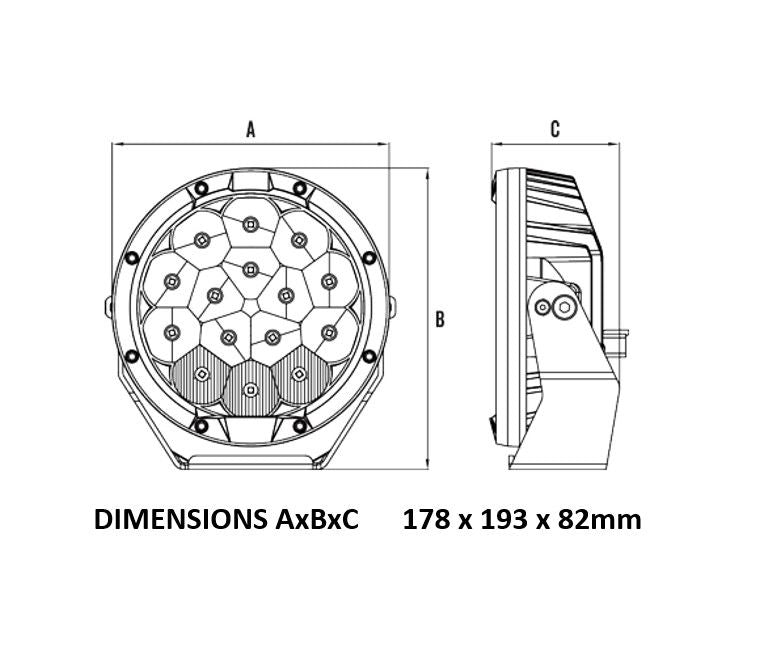

Dimensions 178mm x 193mm x 82mm
IP Rating IP68
LED Lifespan 50,000 Hours
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
Includes Black Protective Covers
Warranty 3 Years

Compatible With

The RDL1701C is compatible with 10-30V DC vehicle electrical systems including 12V and 24V platforms. The 2-pin Deutsch plug provides a secure weatherproof 2-wire connection. Sold as a set of two lights. A 9" version is available as the RDL1901C.

Frequently Asked Questions

Is the RDL1701C sold as a pair or individually?

The RDL1701C is sold as a set. All lumen, lux, wattage, and beam distance figures are stated per set of two lights.

Is the RDL1701C compatible with 24V vehicles?

Yes. The RDL1701C operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the difference between the RDL1701C and the RDL1901C?

Both are from the Essentials DLE Series 2 and share the same design, technology, and features. The RDL1701C is a 7" set producing 170W and 16,000lm per set with a 941m beam reach at 1 lux. The RDL1901C is a 9" set producing 240W and 20,800lm per set with a 1,155m beam reach at 1 lux. Choose the RDL1901C for maximum output and beam throw.

Does the RDL1701C include protective covers?

Yes. Black protective covers are included with the RDL1701C set.

What is Thermal Management Technology on the RDL1701C?

Roadvision's Thermal Management Technology actively monitors and manages heat dissipation from the LED array, ensuring consistent light output and long-term reliability across all operating temperatures and environments.
