Roadvision RBWKD Universal Single Bar Lamp Wiring Harness with Dual Coloured DRL

Roadvision RBWKD Universal Single Bar Lamp Wiring Harness with Dual Coloured DRL

Complete DIY wiring solution for professional installation of single light bars with dual coloured DRL functionality, featuring plug & play design compatible with 12V and 24V vehicles for hassle-free setup.

Product Overview

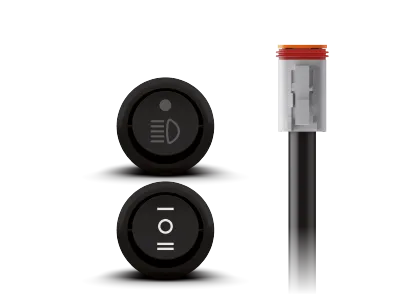

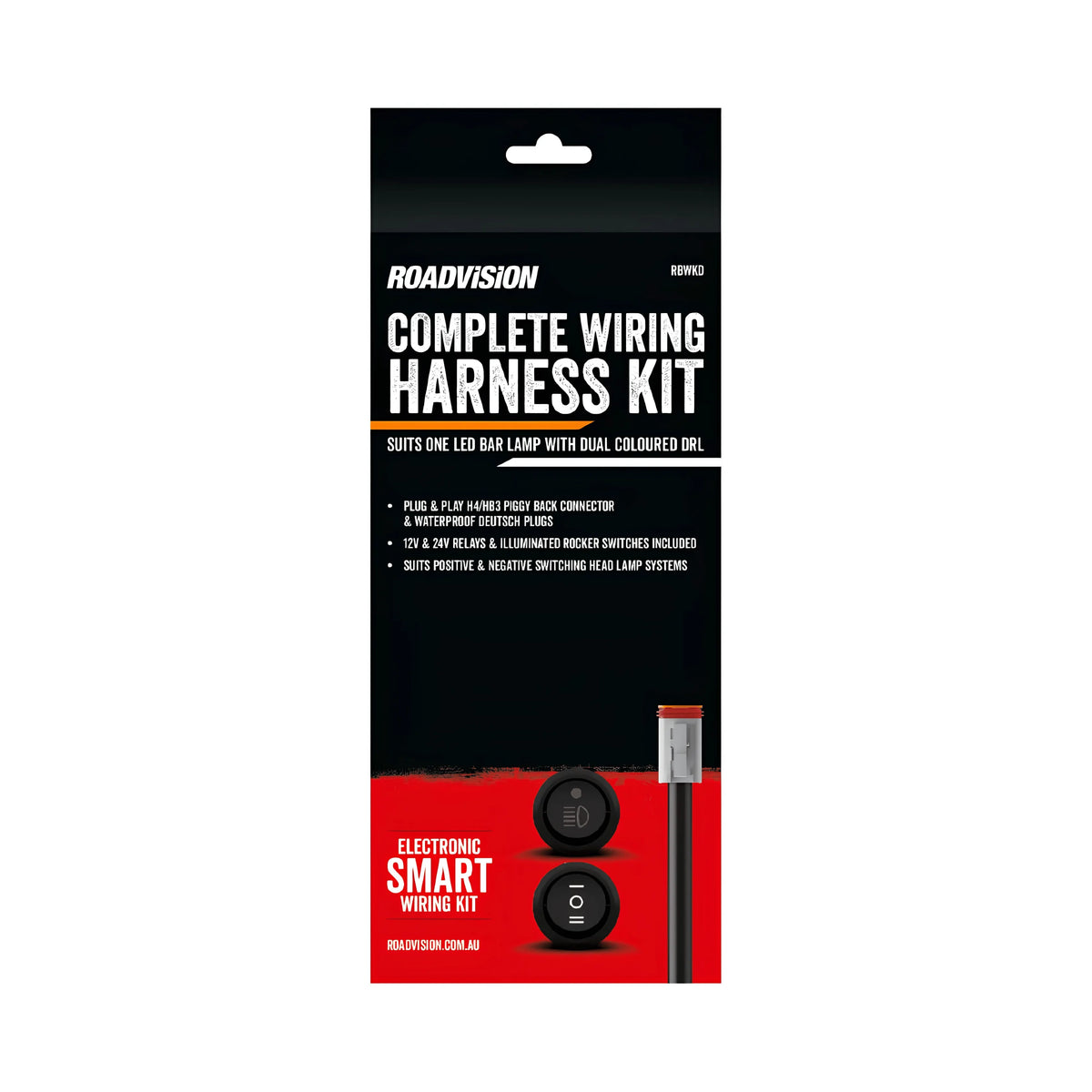

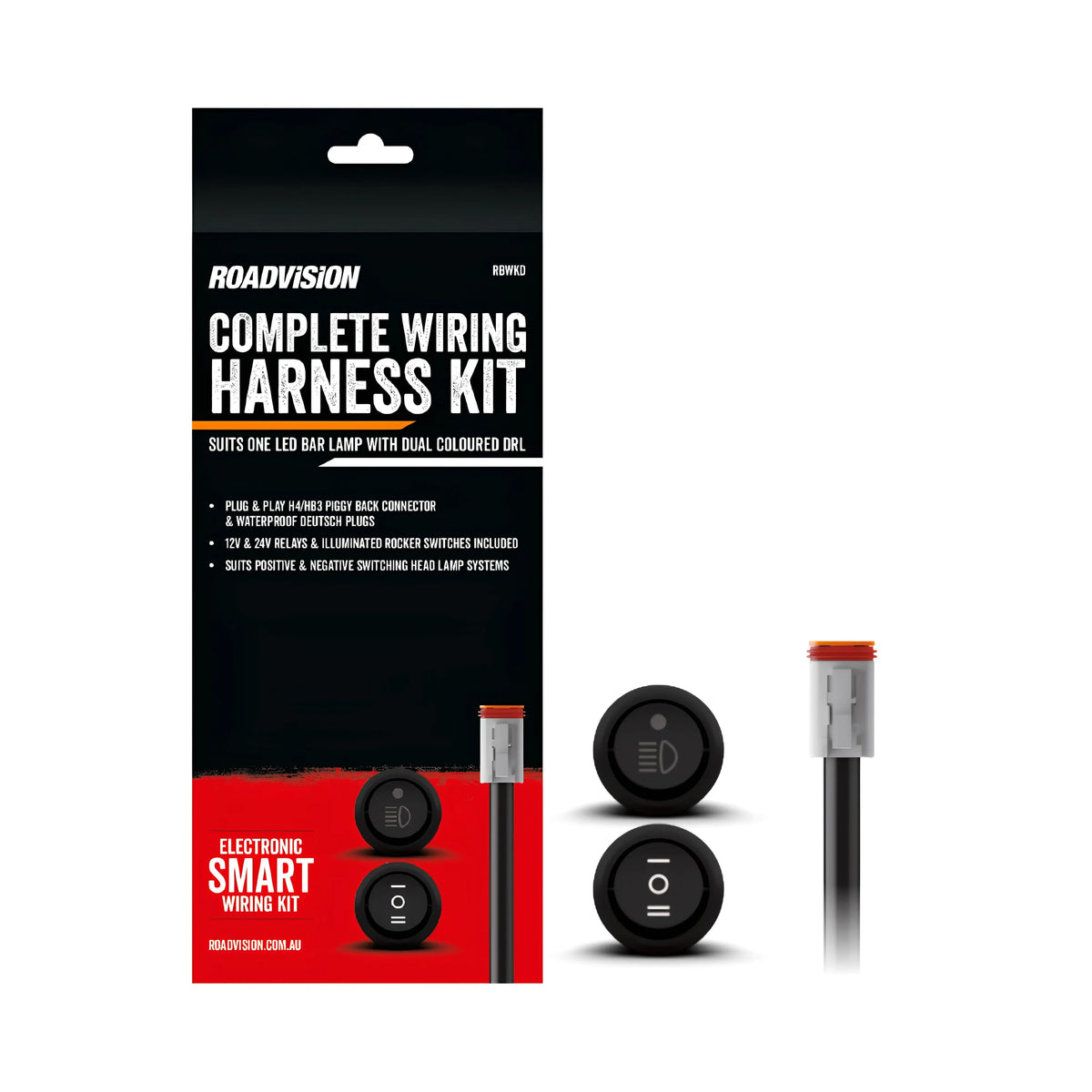

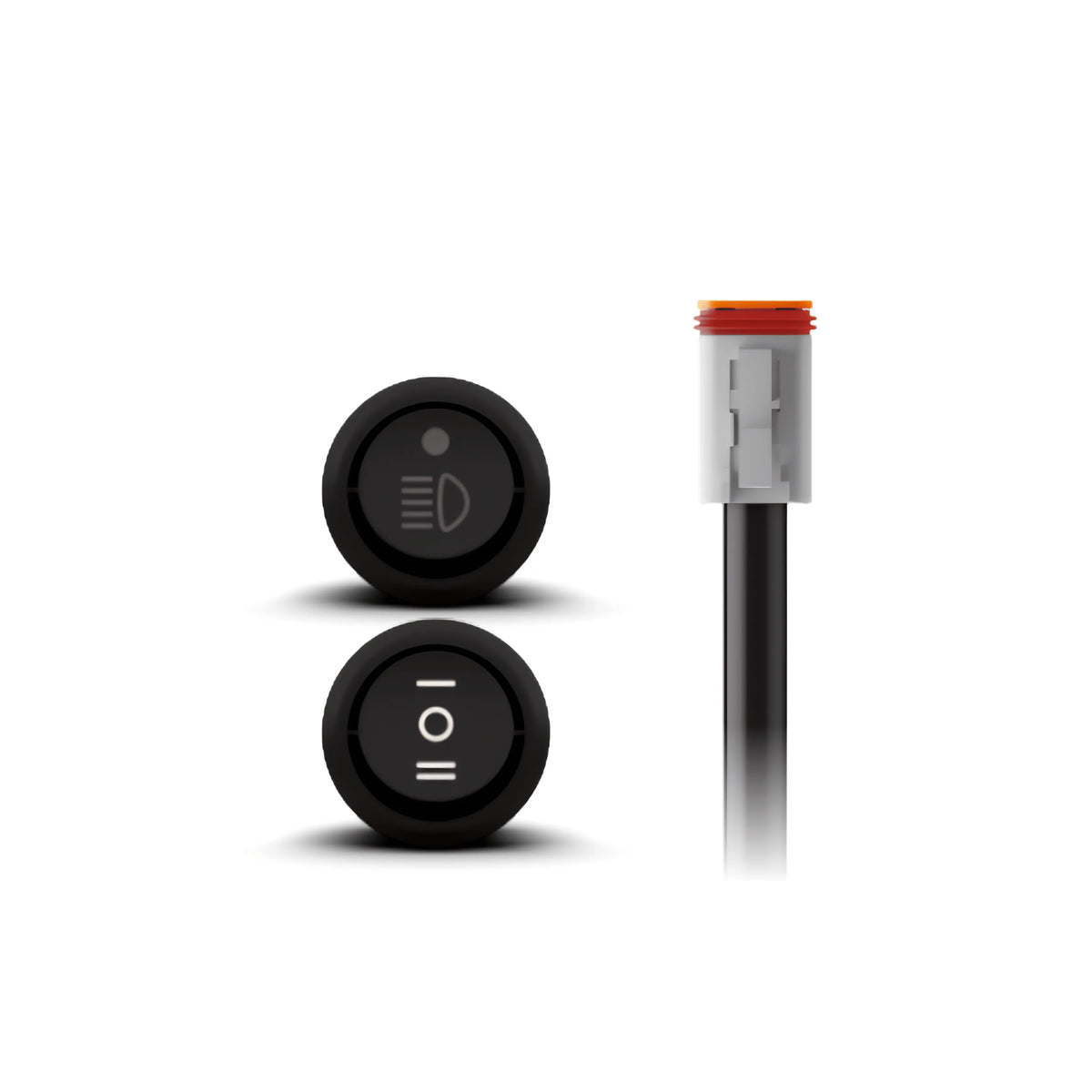

The Roadvision RBWKD Universal Single Bar Lamp Wiring Harness delivers a complete DIY solution for professional installation of driving light bars up to 140W with integrated dual coloured DRL functionality. This comprehensive plug & play wiring kit includes quality harnesses, relays, switches, plugs, and connectors that make installation quick and hassle-free without complex modifications. Featuring Roadvision's second-generation smart electronics that automatically detect both positive and negative headlamp systems, the RBWKD works seamlessly with halogen, HID, and LED bulbs. The kit includes a waterproof 4-pin Deutsch connector for reliable connections in harsh environments, plus both Bar Lamp Rocker Switch and DRL Rocker Switch with illumination for convenient control. Supplied with both 12V and 24V relays, this universal harness is compatible with vehicles operating on either voltage system, making it suitable for cars, 4WDs, light commercial vehicles, and trucks. The plug & play H4/HB3 piggyback connector simplifies integration with factory headlamp wiring, while compatibility with positive and negative switched headlamp systems ensures universal fitment across different vehicle manufacturers. The RBWKD is fully compatible with all Roadvision RHBT Series High Beam Patch Harnesses and specifically designed to suit Roadvision Dual Coloured DRL Light Bars for seamless system integration. Simple DIY installation means you can achieve professional results without specialized tools or electrical experience, making it ideal for enthusiasts and professionals alike.

Features & Benefits

Complete Plug & Play Solution: Comprehensive wiring kit includes quality harnesses, relays, illuminated rocker switches, waterproof Deutsch connector, and all necessary plugs and connectors for quick, hassle-free installation without complex modifications.

Smart Second-Generation Electronics: Advanced smart electronics automatically detect both positive and negative switched headlamp systems, ensuring compatibility across different vehicle manufacturers without manual configuration or troubleshooting.

Universal Bulb Compatibility: Simple plug & play design works seamlessly with halogen, HID, and LED bulbs, providing flexibility for various lighting technologies without requiring complex modifications or additional components.

12V & 24V Multi-Volt Operation: Supplied with both 12V and 24V relays for universal compatibility with cars, 4WDs, light commercial vehicles, and trucks, eliminating the need for voltage-specific harnesses.

Dual Coloured DRL Functionality: Dedicated DRL Rocker Switch provides independent control of dual coloured daytime running lights, allowing customization of your lighting setup with separate control for driving and DRL functions.

Waterproof Deutsch Connector: Professional-grade waterproof 4-pin Deutsch connector ensures reliable connections in harsh environments, protecting against moisture, dust, and vibration for long-lasting performance.

Professional-Grade Components: Quality harnesses, illuminated rocker switches, and robust relays deliver professional installation results with simple DIY setup, compatible with Roadvision RHBT Series High Beam Patch Harnesses for enhanced versatility.

Technical Specifications

Compatible With

The Roadvision RBWKD Wiring Harness is specifically designed for single light bars up to 140W and is fully compatible with Roadvision Dual Coloured DRL Light Bars. Works with all vehicle types operating on 12V or 24V electrical systems including cars, 4WDs, SUVs, light commercial vehicles, utes, and trucks. Compatible with positive and negative switched headlamp systems across all vehicle manufacturers. Integrates seamlessly with halogen, HID, and LED light bars. Can be used with all Roadvision RHBT Series High Beam Patch Harnesses for enhanced functionality and versatile lighting control options.

Frequently Asked Questions

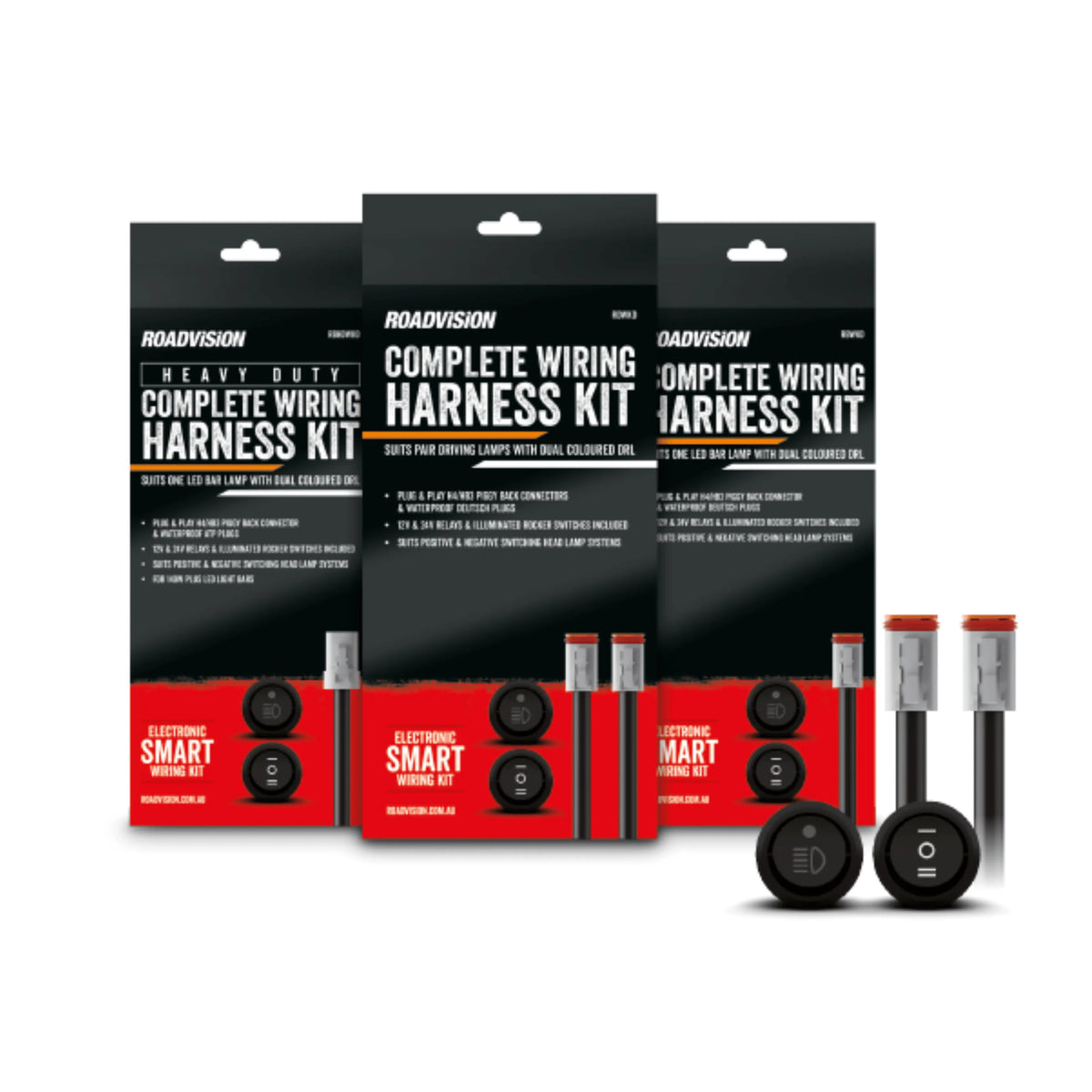

What power rating of light bars will this harness support? The RBWKD is designed to suit single light bars up to 140W maximum power rating. For light bars between 140-300W, Roadvision recommends the RBHDWKD Heavy Duty model which features ATP connectors and enhanced current handling capability.

Can this harness be used on both 12V and 24V vehicles? Yes, the RBWKD includes both 12V and 24V relays, making it universally compatible with cars, 4WDs, light commercial vehicles, and trucks operating on either voltage system without requiring additional components or modifications.

What is the dual coloured DRL functionality? The RBWKD includes a dedicated DRL Rocker Switch that provides independent control of dual coloured daytime running lights, allowing you to operate the DRL function separately from the main driving light function for customized lighting control.

Will this work with my vehicle's headlamp system? Yes, the RBWKD features second-generation smart electronics that automatically detect both positive and negative switched headlamp systems, ensuring compatibility across different vehicle manufacturers. The plug & play H4/HB3 piggyback connector simplifies integration with factory wiring.

Do I need professional installation or can I install this myself? The RBWKD is designed for simple DIY installation with plug & play design and comprehensive components included. The kit requires no complex modifications and can be installed by enthusiasts with basic automotive electrical knowledge, though professional installation is always recommended for those unfamiliar with vehicle electrical systems.
