Roadvision RBL5221SC Stealth S52 21" LED Light Bar 127W 9560lm

SKU: RBL5221SC
Price
$339
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

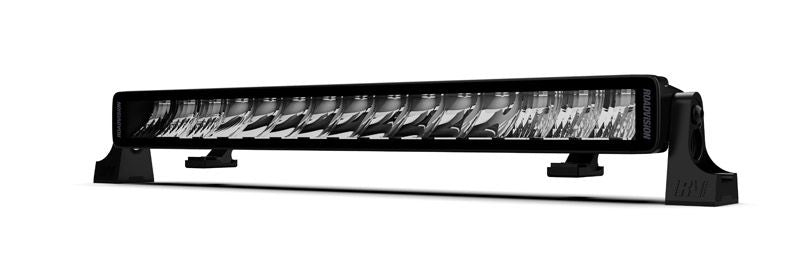

Roadvision RBL5221SC Stealth S52 Series 21" LED Light Bar 127W Projector Combo Beam

A 21" 127W projector combo beam LED light bar from the Roadvision Stealth S52 Series, the RBL5221SC delivers 9560 lumens with a beam distance of 1088 metres at 0.5 lux and 544 metres at 1 lux, powered by 15 x 10W Osram LEDs, featuring a smoked lens, blackout mounting hardware, Thermal Management Technology, IP68 and IP69K protection, and a 7-year warranty.

Product Overview

The Roadvision RBL5221SC is a 21" single row LED light bar from the Stealth S52 Series. Fifteen 10W Osram LEDs produce 127W in a projector combo beam combining 9 driving and 6 spot projectors, delivering 9560 lumens with 2964 lux at 10 metres, 544 metres at 1 lux, and 1088 metres at 0.5 lux. The smoked lens and blackout mounting hardware maintain the stealth aesthetic. Roadvision's Thermal Management Technology, IP68 and IP69K dual protection, multi-volt 10-30V DC at 6.2-10.6A at 13.8V, over/under voltage and reverse polarity protection, EMI/EMC radio interference approval, 2-pin ATP plug, 50,000 hour LED lifespan, and 7-year warranty.

Features & Benefits

9560 Lumens - 1088 Metres at 0.5 Lux: Delivers 9560lm with 2964 lux at 10 metres, 544m at 1 lux, and 1088m at 0.5 lux for strong mid-range output suited to bull bar and roof rack applications.

Projector Combo Beam - 9 Driving and 6 Spot Projectors: Combines 9 driving and 6 spot projectors for both lateral coverage and extended long-range penetration.

15 x 10W Osram LEDs - 127W Super White Output: Fifteen 10W Osram LEDs produce super-white daylight-close output.

Smoked Lens and Blackout Mounting Hardware: Low-profile stealth appearance on the vehicle.

Roadvision Thermal Management Technology: Consistent output and long-term reliability across all operating environments.

IP68 and IP69K Dual Protection: Full protection against sustained immersion and high-pressure wash-down.

Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight, tough construction for demanding applications.

50,000 Hour LED Lifespan: Long-term maintenance-free reliability.

Multi-Volt 10-30V DC with Electronic Protection: Compatible with 12V and 24V systems with full protection.

2-Pin ATP Plug: Secure, weatherproof, vibration-resistant connection.

EMI/EMC Radio Interference Approved: Compatible with vehicle electronic systems.

7-Year Warranty: Backed by a 7-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RBL5221SC
Brand Roadvision
Series Stealth S52
Description S52 Series 21" LED Light Bar
Beam Type Projector Combo (9 Driving / 6 Spot)
Maximum Lumens 9560lm
Maximum Lux at 10m 2964lx
Beam Distance at 1 Lux 544m
Beam Distance at 0.5 Lux 1088m
Maximum Watts 127W
LED Quantity 15 x 10W Osram
Current Draw 6.2-10.6A at 13.8V
Input Voltage 10-30V DC
Bar Length 21" (524mm)

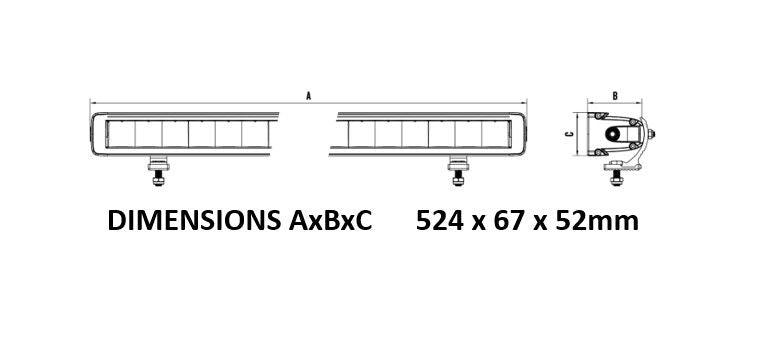

Dimensions 524mm x 67mm x 52mm
Wiring 2-Pin ATP Plug
IP Rating IP68 and IP69K
LED Lifespan 50,000 Hours
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
Warranty 7 Years

Compatible With

The RBL5221SC is compatible with 10-30V DC vehicle electrical systems. The 2-pin ATP plug provides a secure weatherproof connection. Suited to bull bar, nudge bar, and roof rack mounting on trucks, 4WDs, SUVs, and agricultural and industrial vehicles. The S52 Series is available in 13" (RBL5213SC), 30" (RBL5230SC), 40" (RBL5240SC), and 50" (RBL5250SC) lengths.

Frequently Asked Questions

Is the RBL5221SC compatible with 24V vehicles?

Yes. The RBL5221SC operates across 10-30V DC, compatible with both 12V and 24V vehicle electrical systems.

What connector does the RBL5221SC use?

The RBL5221SC uses a 2-pin ATP plug for a secure, weatherproof, and vibration-resistant wiring connection.

What is the IP rating of the RBL5221SC?

IP68 and IP69K, confirming full protection against dust, sustained immersion, and high-pressure, high-temperature water jet exposure.

How does the 21" compare to other S52 Series lengths?

The RBL5221SC delivers 9560lm at 127W. For lower output see the RBL5213SC (13"). For higher output see the RBL5230SC (30"), RBL5240SC (40"), or RBL5250SC (50").

What mounting options suit the RBL5221SC?

The RBL5221SC is suited to bull bar, nudge bar, and roof rack mounting on trucks, 4WDs, SUVs, and agricultural and industrial vehicles using the included end mount system and slide mounts.
