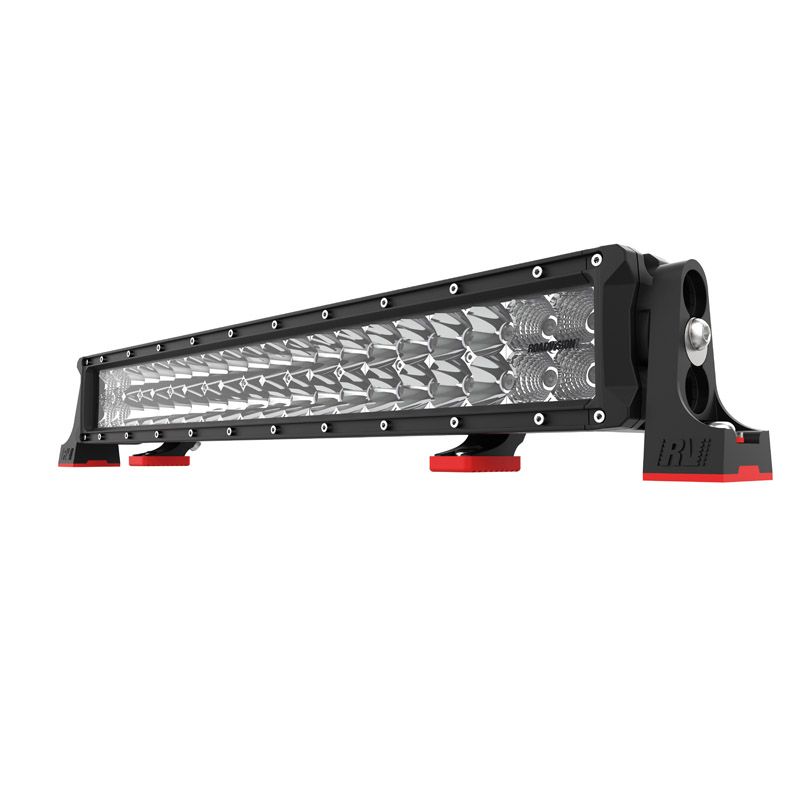

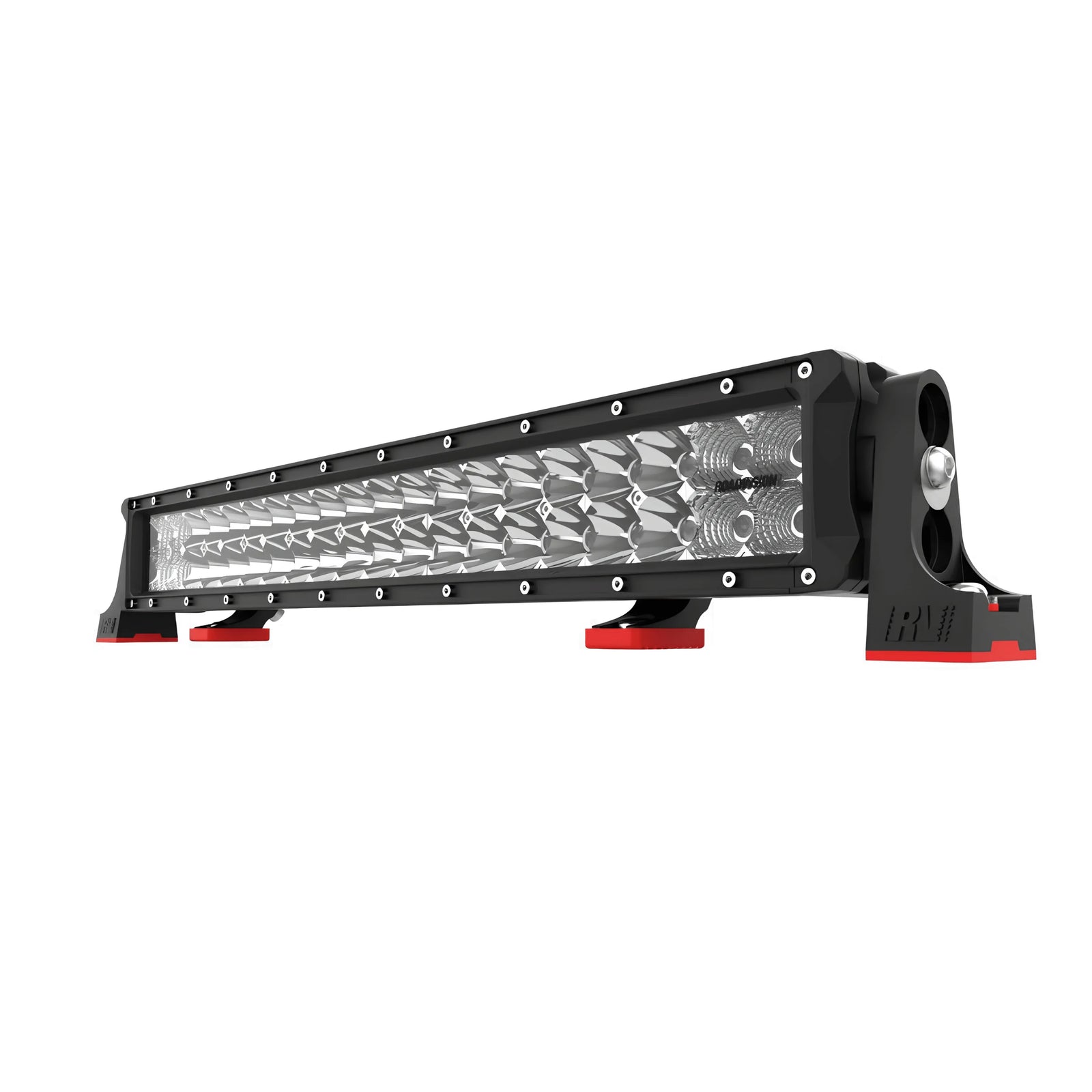

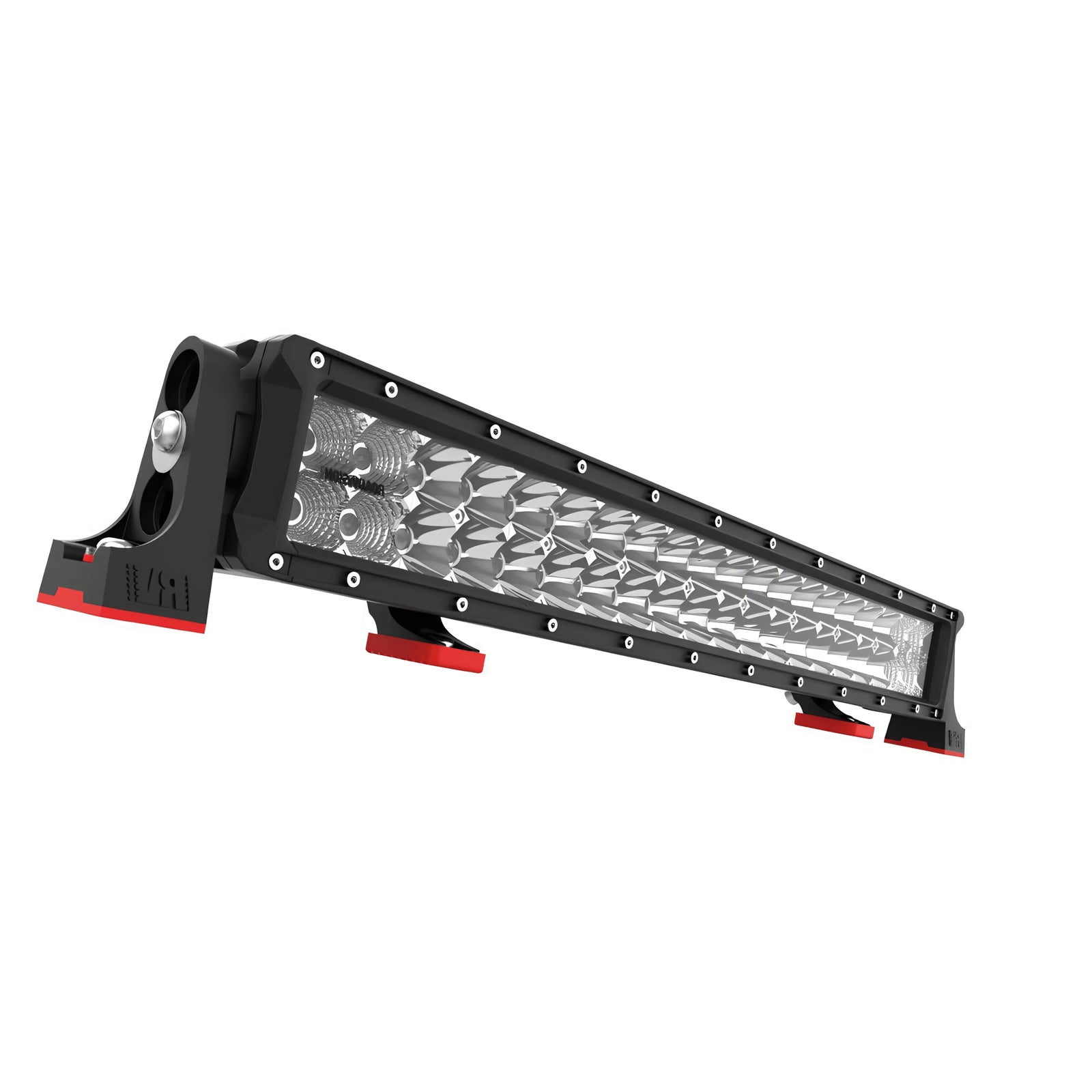

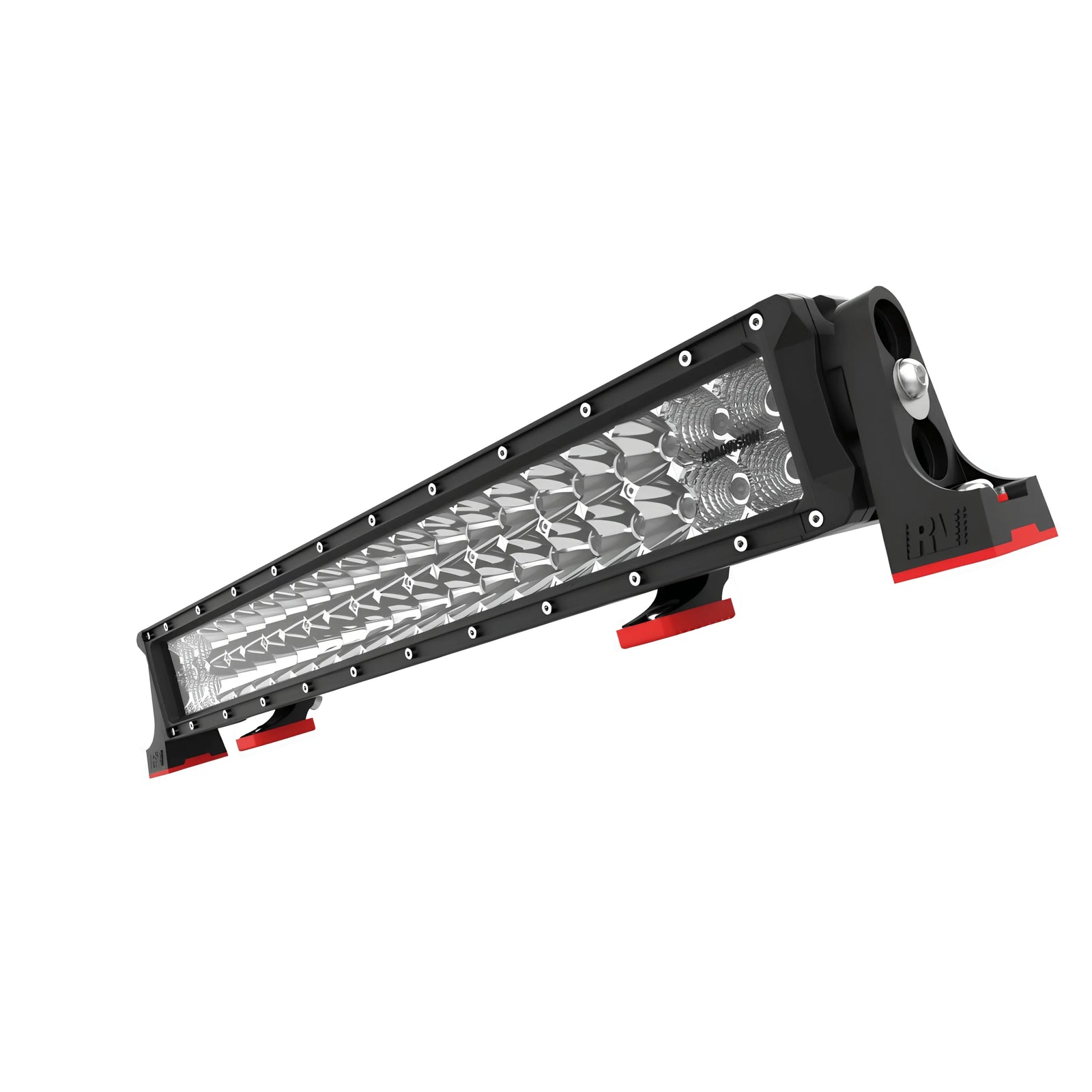

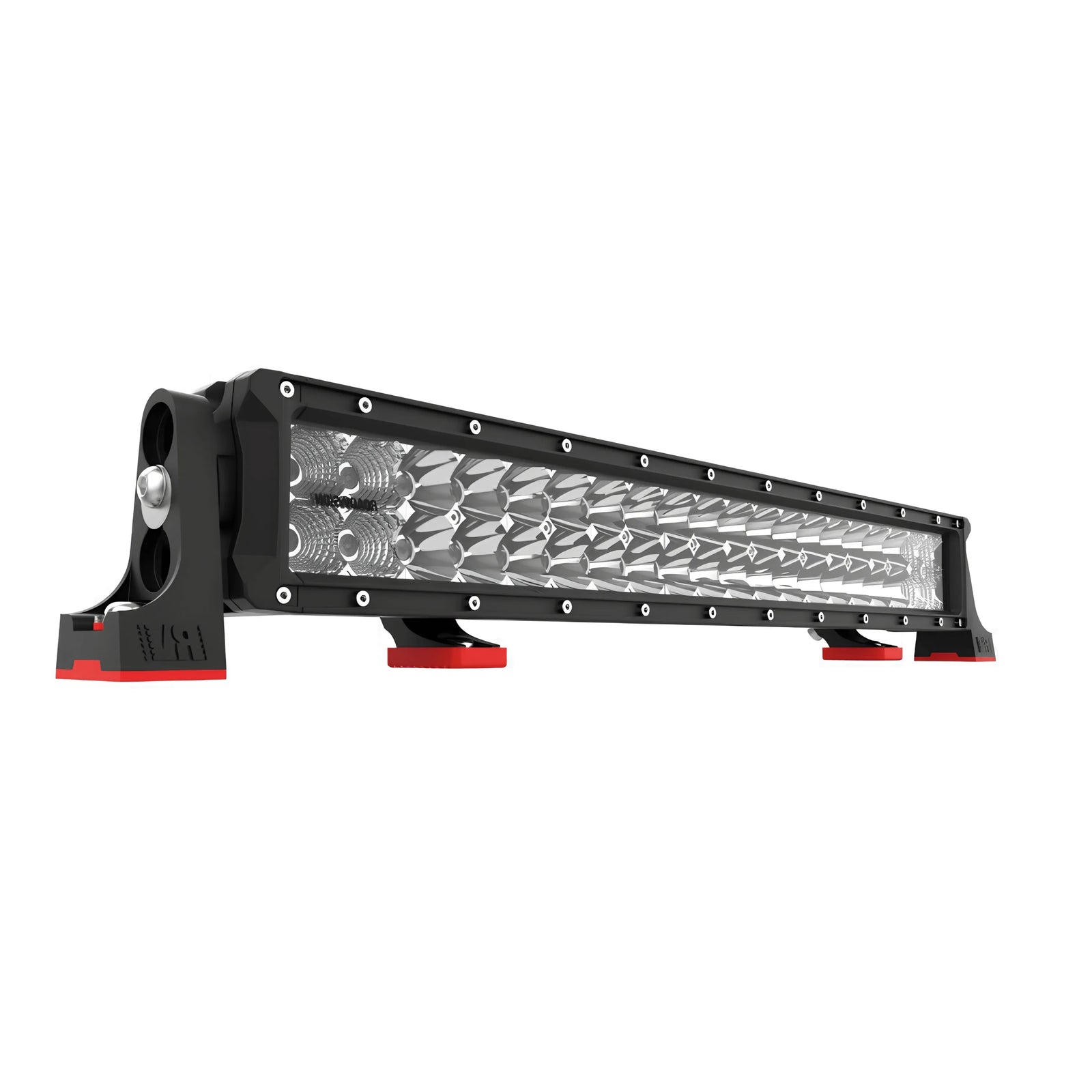

Roadvision RBL5220C DC2 22" Dual Row LED Light Bar 120W 10800lm

SKU: RBL5220C
Price
$319
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RBL5220C DC2 Series 22" Dual Row LED Light Bar 120W Combo Beam

A 22" 120W dual row combo beam LED light bar from the Roadvision DC2 Series, the RBL5220C delivers 10800 lumens with a beam distance of 787 metres at 0.5 lux and 394 metres at 1 lux, powered by 40 x 3W Osram Hi-Lux LEDs, featuring soft start and advanced Thermal Management Technology, IP67 protection, 9-position adjustable anti-vibration end mounts, low-profile slide mounts, and a 7-year warranty.

Product Overview

The Roadvision RBL5220C is a 22" dual row LED light bar from the DC2 Series. Forty 3W Osram Hi-Lux LEDs produce 120W of super-white daylight-close output in a combo beam pattern, delivering 10800 lumens with 1549 lux at 10 metres, 394 metres at 1 lux, and 787 metres at 0.5 lux. The ultra-slim 65mm deep housing provides greater mounting flexibility. Soft start and advanced Thermal Management Technology. IP67 waterproof and dustproof. Multi-volt 10-30V DC at 6.7A at 13.8V. 2-pin Deutsch plug. 9-position adjustable anti-vibration end mount system and low-profile slide mounts. 50,000 hour LED lifespan. Backed by a 7-year warranty.

Features & Benefits

10800 Lumens - 787 Metres at 0.5 Lux: Delivers 10800lm with 1549 lux at 10 metres, 394m at 1 lux, and 787m at 0.5 lux for strong mid-range dual row light bar performance.

40 x 3W Osram Hi-Lux LEDs - 120W: Dual row configuration with 40 x 3W Osram Hi-Lux LEDs for high-intensity output from a 22" bar.

Soft Start and Advanced Thermal Management Technology: Reduces LED stress on power-on and maintains consistent output and reliability.

Ultra-Slim 65mm Deep Housing: Greater mounting flexibility in tight mounting positions.

9-Position Adjustable Anti-Vibration End Mount and Slide Mounts: Precise beam direction and vibration-resistant installation.

IP67 Water and Dust Proof: Full protection against dust and temporary immersion.

Multi-Volt 10-30V DC with Electronic Protection: Compatible with 12V and 24V systems.

2-Pin Deutsch Plug: Secure, weatherproof connection.

7-Year Warranty: Backed by a 7-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RBL5220C
Brand Roadvision
Series DC2
Description DC2 Series 22" Bar 40 LED
Beam Type Combo Beam
Lumen Output 10800lm
Lux at 10m 1549lx
Beam Distance at 1 Lux 394m
Beam Distance at 0.5 Lux 787m
Total Watts 120W
LED Quantity 40 x 3W Osram Hi-Lux
Input Voltage 10-30V DC
Current Draw 6.7A at 13.8V
Bar Length 22" (563mm)

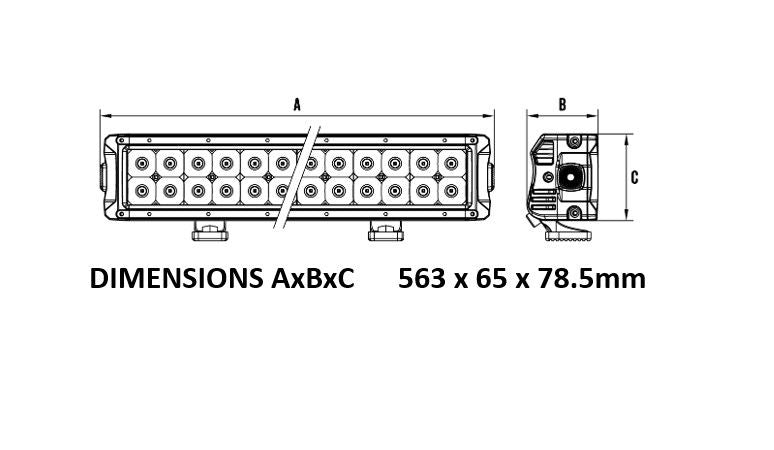

Dimensions 563mm x 65mm x 78.5mm
Wiring 2-Pin Deutsch Plug
IP Rating IP67
LED Lifespan 50,000 Hours
Protection Over/Under Voltage, Reverse Polarity, Soft Start
EMI/EMC Radio Interference Approved
Mounts 9-Position Anti-Vibration End Mount and Slide Mounts
Warranty 7 Years

Compatible With

The RBL5220C is compatible with 10-30V DC vehicle electrical systems. The DC2 Series is available in 8" (RBL5080C), 14" (RBL5140C), 32" (RBL5320C), 42" (RBL5420C), and 50" (RBL5500C) lengths.

Frequently Asked Questions

Is the RBL5220C compatible with 24V vehicles?

Yes. The RBL5220C operates across 10-30V DC.

What connector does the RBL5220C use?

2-pin Deutsch plug.

What is the IP rating of the RBL5220C?

IP67.

How does the 22" compare to other DC2 lengths?

The RBL5220C delivers 10800lm at 120W. For lower output see RBL5080C and RBL5140C; for higher output see RBL5320C, RBL5420C, and RBL5500C.

What mounting system is included?

The 9-position adjustable anti-vibration end mount system and low-profile slide mounts are included.
