Roadvision RBL4021SC Stealth S40 21" LED Light Bar 94W 5975lm

SKU: RBL4021SC
Price
$299
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RBL4021SC Stealth S40 Series 21" LED Light Bar 94W Projector Combo Beam

A 21" 94W projector combo beam LED light bar from the Roadvision Stealth S40 Series, the RBL4021SC delivers 5975 lumens with a beam distance of 1275 metres at 0.5 lux and 638 metres at 1 lux, powered by 21 x 3W Osram LEDs, featuring a smoked lens, blackout mounting hardware, Thermal Management Technology, IP68 and IP69K protection, 9-position adjustable anti-vibration end mounts, low-profile slide mounts, and a 7-year warranty.

Product Overview

The Roadvision RBL4021SC is a 21" single row LED light bar from the Stealth S40 Series. Twenty-one 3W Osram LEDs produce 94W in a projector combo beam combining 6 driving and 15 spot projectors, delivering 5975 lumens with 4065 lux at 10 metres, 638 metres at 1 lux, and 1275 metres at 0.5 lux. The smoked lens and blackout mounting hardware provide a low-profile stealth appearance. IP68 and IP69K dual protection. Multi-volt 10-30V DC at 6.6-9.2A at 13.8V. 2-pin Deutsch plug. 9-position adjustable anti-vibration end mount system and low-profile slide mounts. 50,000 hour LED lifespan. Backed by a 7-year warranty.

Features & Benefits

5975 Lumens - 1275 Metres at 0.5 Lux: Delivers 5975lm with 4065 lux at 10 metres, 638m at 1 lux, and 1275m at 0.5 lux for outstanding long-range highway beam performance from a 21" bar.

Projector Combo Beam - 6 Driving and 15 Spot Projectors: Combines 6 driving and 15 spot projectors for long-range penetration suited to highway driving.

21 x 3W Osram LEDs - 94W Super White Output: Twenty-one 3W Osram LEDs for strong output performance.

Super Compact S40 Profile at 40mm Deep: The shallowest profile in the Stealth range, suited to licence plate, roof rack, and tight mounting positions.

Smoked Lens and Blackout Mounting Hardware: Low-profile stealth appearance.

Roadvision Thermal Management Technology: Consistent output and reliability.

IP68 and IP69K Dual Protection: Full ingress protection.

Die-Cast Aluminium Housing with Polycarbonate Lens: Tough, lightweight construction.

50,000 Hour LED Lifespan: Maintenance-free reliability.

Multi-Volt 10-30V DC with Electronic Protection: 12V and 24V compatible.

2-Pin Deutsch Plug: Secure, weatherproof connection.

7-Year Warranty: Backed by a 7-year Roadvision Platinum Range warranty.

Technical Specs

Specification Detail
SKU RBL4021SC
Brand Roadvision
Series Stealth S40
Description S40 Series 21" LED Light Bar
Beam Type Projector Combo (6 Driving / 15 Spot)
Maximum Lumens 5975lm
Maximum Lux at 10m 4065lx
Beam Distance at 1 Lux 638m
Beam Distance at 0.5 Lux 1275m
Maximum Watts 94W
LED Quantity 21 x 3W Osram
Current Draw 6.6-9.2A at 13.8V
Input Voltage 10-30V DC
Bar Length 21" (522mm)

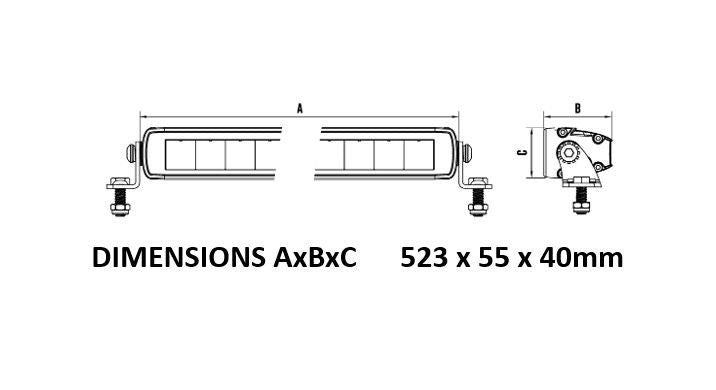

Dimensions 522mm x 55mm x 40mm
Wiring 2-Pin Deutsch Plug
IP Rating IP68 and IP69K
LED Lifespan 50,000 Hours
Protection Over/Under Voltage, Reverse Polarity
EMI/EMC Radio Interference Approved
Mounts 9-Position Anti-Vibration End Mount and Slide Mounts
Warranty 7 Years

Compatible With

The RBL4021SC is compatible with 10-30V DC vehicle electrical systems. Suited to licence plate, roof rack, and tight mounting positions. The S40 Series is available in 13" (RBL4013SC), 32" (RBL4032SC), 40" (RBL4040SC), and 50" (RBL4050SC) lengths.

Frequently Asked Questions

Is the RBL4021SC compatible with 24V vehicles?

Yes. The RBL4021SC operates across 10-30V DC.

What connector does the RBL4021SC use?

2-pin Deutsch plug.

What is the IP rating of the RBL4021SC?

IP68 and IP69K.

How does the 21" S40 compare to the 21" S52 and S70?

The RBL4021SC (S40, 21") uses 21 x 3W LEDs at 94W with 5975lm and 638m at 1 lux in the shallowest 40mm deep profile. The S52 21" uses 15 x 10W LEDs at 127W. The S70 21" uses 40 x 3W LEDs at 176W. The S40 is the best choice for tight mounting positions prioritising profile depth over maximum output.

What mounting is included?

The 9-position adjustable anti-vibration end mount system and low-profile slide mounts.
