Roadvision RBL4013F 13" S40 Stealth Flood LED Bar 49W 3138lm 140° Osram 10-30V

Roadvision S40 Stealth Flood Series 13" LED Bar 49W, 3138lm, 140° Ultra-Wide Flood, 12x3W Osram, IP68 & IP69K, 10–30V.

Product Overview

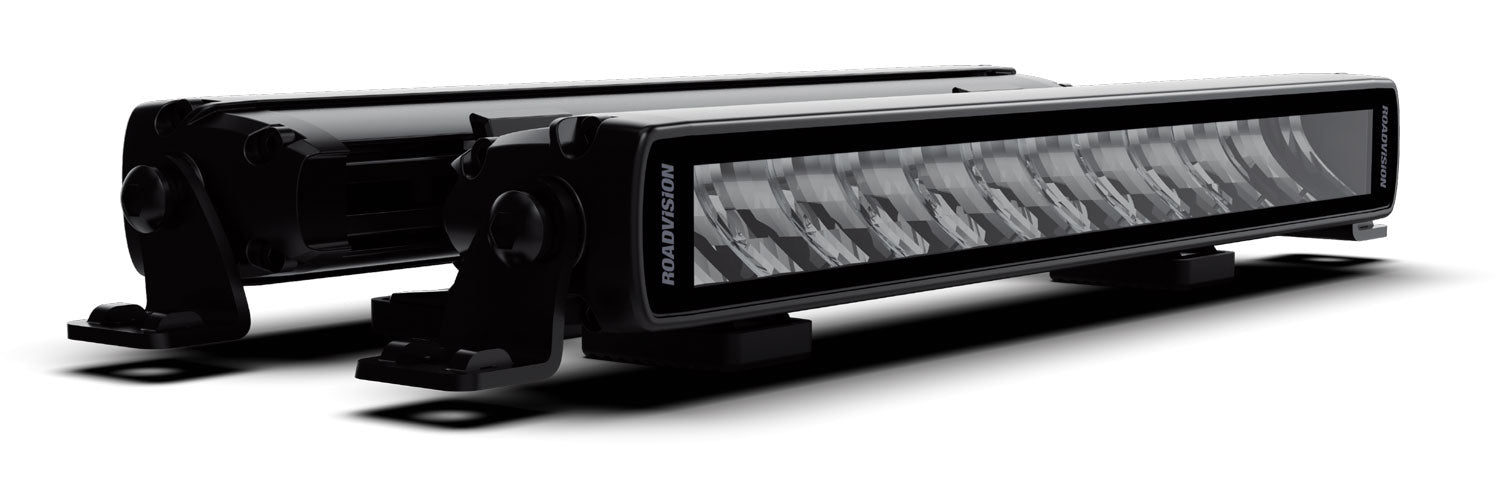

The Roadvision RBL4013F is the 13" model from the S40 Stealth Flood Series a single-row LED light bar built for wide, close-range illumination with a stealth aesthetic. The smoked-look polycarbonate lens and blackout die-cast aluminium housing deliver a low-profile, stealthy appearance that sets it apart from conventional chrome or gloss finish light bars.

Powered by 12x3W Osram LEDs, the RBL4013F produces 3138lm of flood output across a 140° ultra-wide beam, reaching 72m at 1 lux and 52lx at 10m ideal for close-range off-road work, camp lighting, reversing, or wide-coverage applications where a tight spot or combo beam isn't needed. Current draw is 3.57A at 13.8V from a 10–30V DC multivolt input. Wiring is via 2-pin Deutsch plug. IP68 and IP69K protection, Roadvision's Thermal Management Technology, over/under voltage and reverse polarity protection, EMI/EMC radio interference approved, and a 7-year warranty.

Dimensions: 315mm x 55mm x 40mm.

Key Specifications

• LEDs: 12 x 3W Osram
• Maximum lumens: 3138lm
• Beam pattern: 140° ultra-wide flood
• Metres at 1 lux: 72m
• Maximum lux at 10m: 52lx
• Wattage: 49W
• Current draw: 3.57A @ 13.8V
• Voltage: 10–30V DC (multivolt)
• Colour temperature: 5700K
• Lens: Polycarbonate (smoked)
• Housing: Die-cast aluminium
• Wiring: 2-pin Deutsch plug
• Dimensions: 315mm x 55mm x 40mm
• IP rating: IP68 & IP69K
• Warranty: 7 years
• SKU: RBL4013F
• Brand: Roadvision

Features & Benefits

• 140° ultra-wide flood beam: Maximum width illumination for work lighting, reversing, camp lighting, and close-range off-road applications
• Stealth smoked lens and blackout hardware: Low-profile, subtle appearance no chrome or gloss finish to attract attention
• 12x3W Osram LEDs: Premium Osram LEDs deliver 5700K super white light output at 3138lm
• Thermal Management Technology: Roadvision's TMT maximises light output while protecting long-term LED performance
• IP68 & IP69K: Sealed against continuous immersion and high-pressure water jets suitable for demanding off-road and work environments
• 2-pin Deutsch connector: Industry-standard heavy-duty automotive connector for reliable, vibration-resistant electrical connection
• Multivolt 10–30V DC: Suits 12V and 24V vehicle electrical systems
• Over/under voltage & reverse polarity protection: Built-in electrical protections
• EMI/EMC radio interference approved: No radio frequency interference
• 50,000 hour LED lifespan: Solid-state technology for a long service life
• 7-year warranty: Backed by Roadvision's 7-year warranty

Technical Specs

S40 Stealth Flood Series Variant Comparison

Installation Notes

2-pin Deutsch plug Roadvision standard wiring harnesses are sold separately. Simple 2-wire installation. Adjustable side mounts and low-profile slide mounts included.

Frequently Asked Questions

What is the lumen output of the 13" RBL4013F?

3138lm confirmed from the official Roadvision RBL4013F spec table. Note: 5252lm is the range maximum belonging to the 21" RBL4021F, not the 13" model.

What beam pattern does this light bar use?

140° ultra-wide flood designed for close-range wide coverage. Not a spot or combo beam.

What connector does this light bar use?

2-pin Deutsch plug a heavy-duty industry-standard automotive connector. Wiring harnesses are sold separately.

What is the IP rating?

IP68 and IP69K sealed against continuous immersion and high-pressure, high-temperature water jets.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
