RoadVision RBL2130C 30
Click to open expanded view

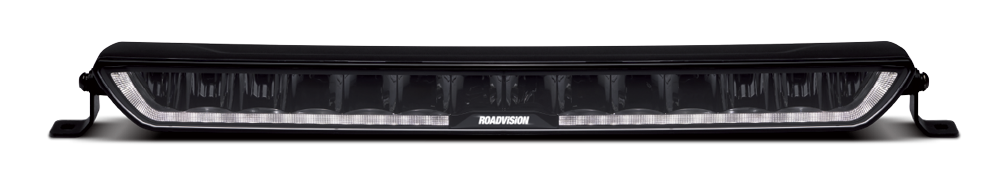

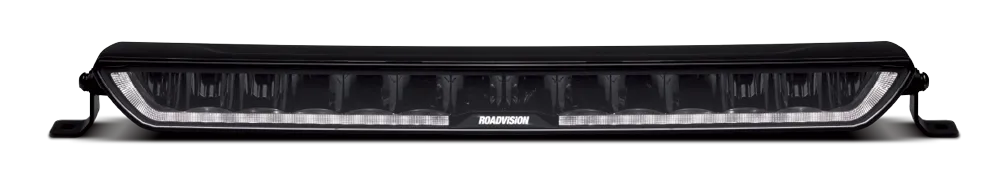

RoadVision RBL2130C 30" Combo Beam LED Light Bar 180W 9800lm

SKU: RBL2130C
Price
$339
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

High-Output Combo Beam LED Light Bar for 12V and 24V Vehicles

Product Overview

The RoadVision RBL2130C is a 30" combination beam LED light bar delivering 180W of output and 9,800 lumens through 18 x 10W CREE LEDs. The combination beam pattern blends long-range forward throw with wide roadside spread, making it a practical choice for highway driving, off-road tracks, and mixed-use auxiliary lighting applications.

Built into a die-cast aluminium housing with a polycarbonate lens, the RBL2130C measures 686 x 70 x 50mm and connects via a 4-pin Deutsch plug. It operates on a wide 10–30V DC input, drawing 11.4A at 13.8V, and is compatible with most 12V and 24V vehicles.

Features & Benefits

  • 18 x 10W CREE LEDs — high-output light source delivering bright, white illumination
  • 9,800lm output — substantial lumen count for a 30" single row bar
  • 180W rated — strong output suitable for highway and off-road driving conditions
  • Combination beam pattern — balances long-range forward penetration with wide roadside illumination
  • 620m beam reach — rated at 620m at 1 lux
  • Die-cast aluminium housing — lightweight and durable construction
  • Polycarbonate lens — impact-resistant lens construction
  • 10–30V DC input — compatible with 12V and 24V vehicles
  • 4-pin Deutsch plug — industry-standard connector for secure wiring

Technical Specs

Specification Detail
Part Number RBL2130C
Brand RoadVision
Bar Length 30" (686mm)
Beam Type Combination Beam
Light Source 18 x 10W CREE LEDs
Maximum Lumens 9,800lm
Maximum Watts 180W
Current Draw 11.4A @ 13.8V
Voltage Input 10–30V DC
Lux @ 10m 3,850 lux
Beam Distance @ 1 lux 620m
Dimensions (L x H x D) 686 x 70 x 50mm
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring Connector 4-Pin Deutsch Plug

Compatible With

Suitable for mounting on:

  • Utes, SUVs, and 4WDs
  • Bull bars, nudge bars, and roof racks
  • Trucks and work vehicles
  • Any application requiring combo beam auxiliary lighting

Weight

Confirm with supplier.

Frequently Asked Questions

What is a combination beam LED light bar?

A combination beam blends spot (long-range narrow throw) and flood (wide short-range spread) optics in the same bar, providing both forward penetration at range and wider illumination of the road edges. The RBL2130C's combo pattern reaches 620m at 1 lux while also providing roadside spread.

What vehicles is this light bar compatible with?

The 10–30V DC input makes it compatible with most 12V and 24V vehicles including utes, SUVs, 4WDs, and trucks. Confirm fitment for your specific vehicle before purchasing.

What wiring is required?

The RBL2130C uses a 4-pin Deutsch plug. A compatible wiring harness is required for installation — confirm compatible harness options with RoadVision or your auto electrician.

What is the IP rating and warranty for this light bar?

IP rating and warranty details are not specified in the supplier data for this SKU. Confirm with RoadVision before purchasing if these are requirements for your application.

How does this compare to the DCX2 Series bars?

The RBL2130C uses 10W CREE LEDs in a single-row format, while the DCX2 Series uses 3W Osram Hi-Lux LEDs in a dual-row curved housing with soft start, PWM dimming, and advanced thermal management. The DCX2 range also carries a 7-year warranty and IP67 rating. The RBL2130C is a more compact straight-bar option suited to applications where the full dual-row format isn't required.
