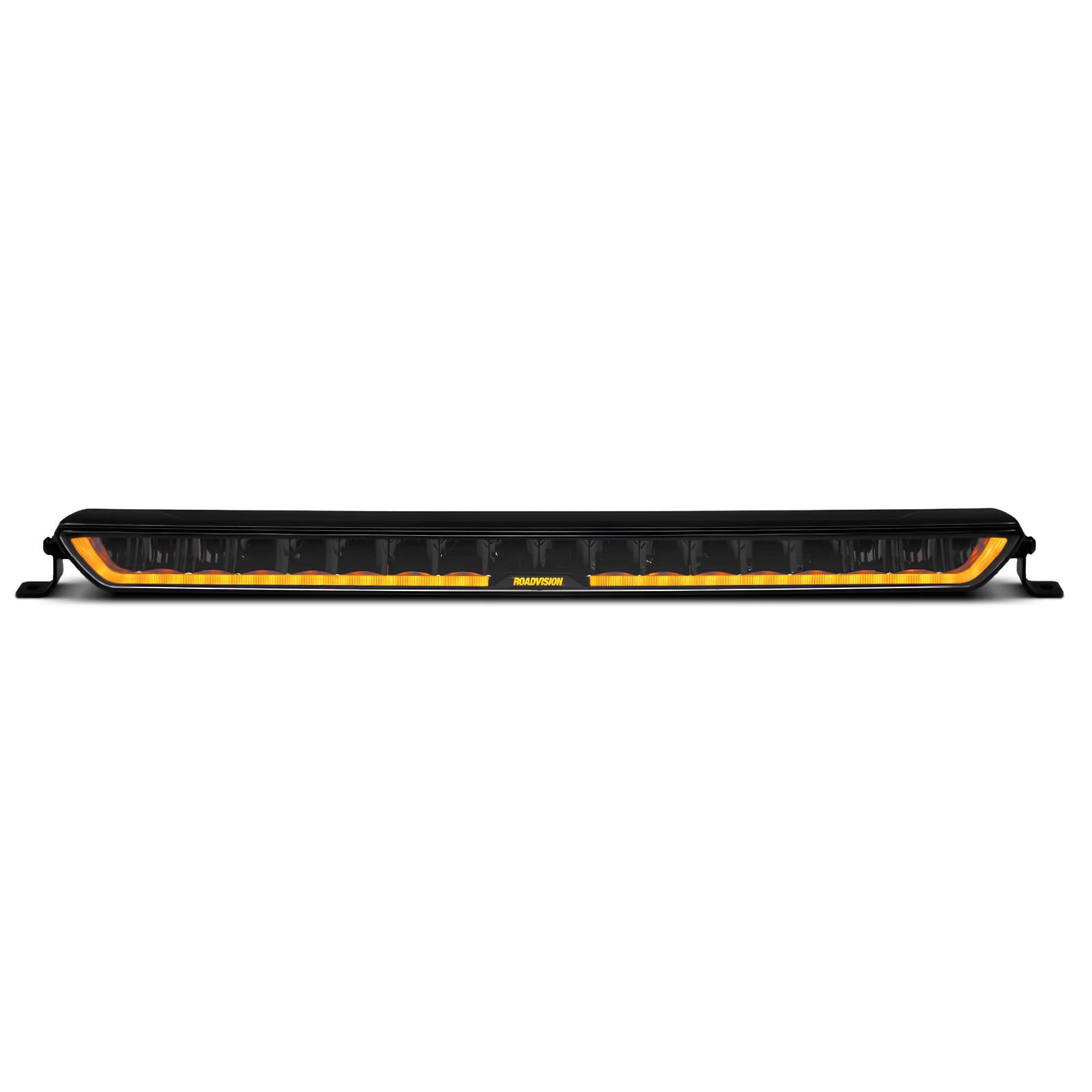

Roadvision RBL2121C Dynamilux 21in LED Light Bar Combination Beam

Roadvision RBL2121C Dynamilux 21in LED Light Bar Combination Beam

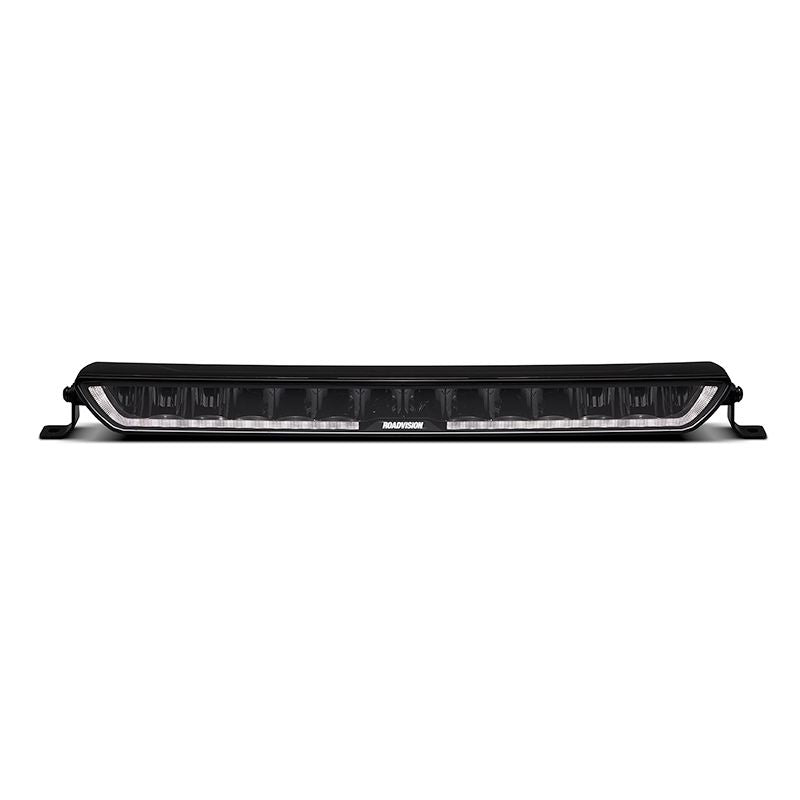

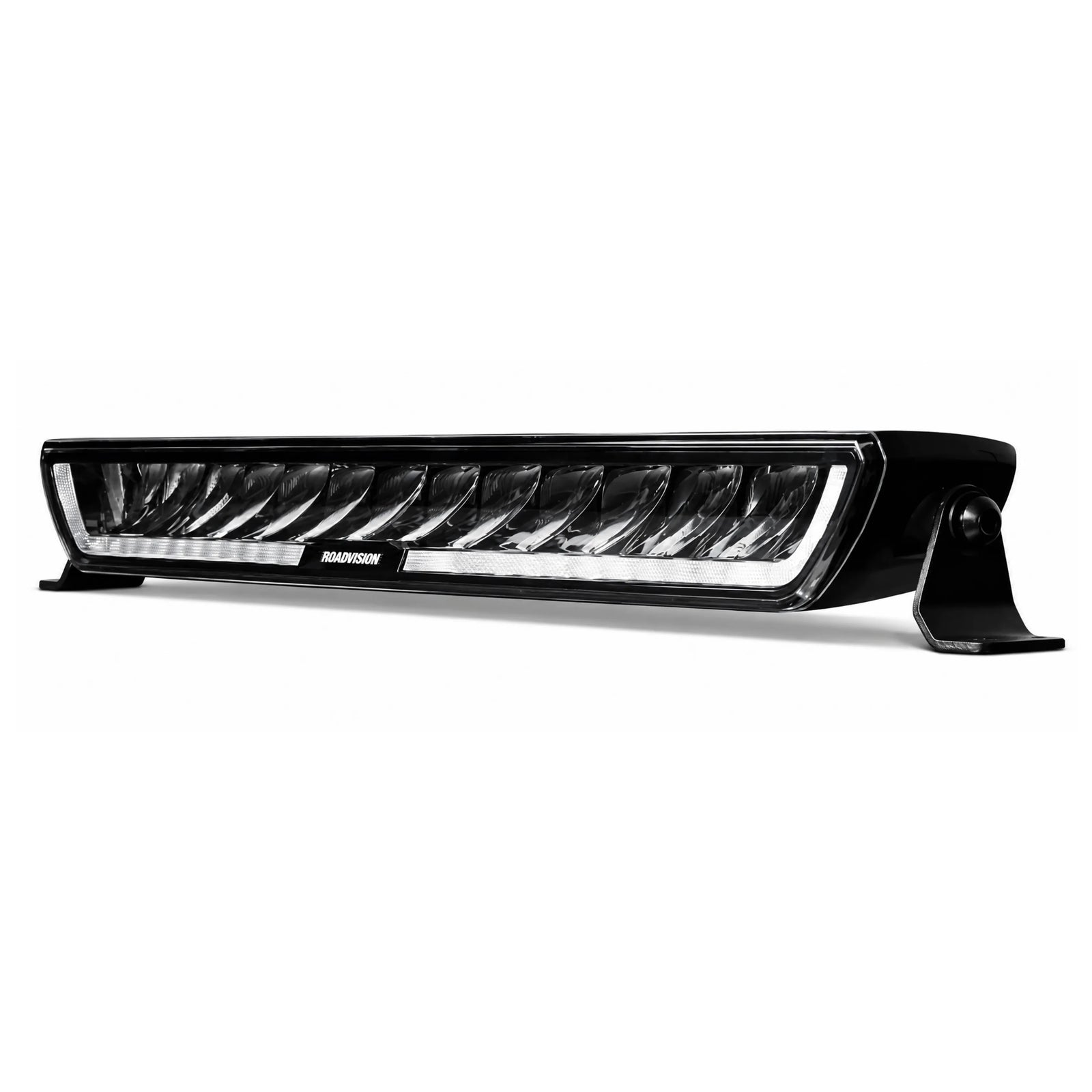

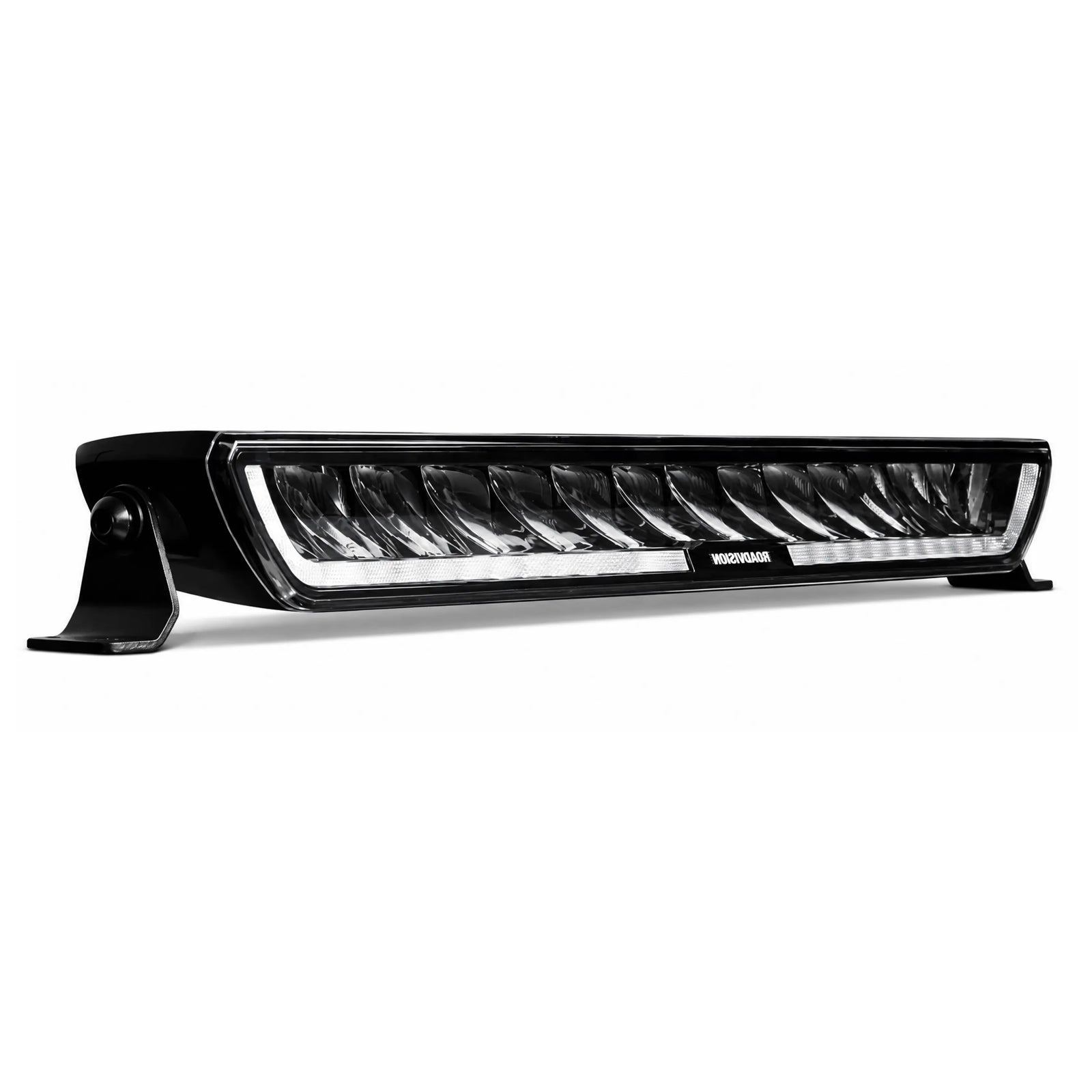

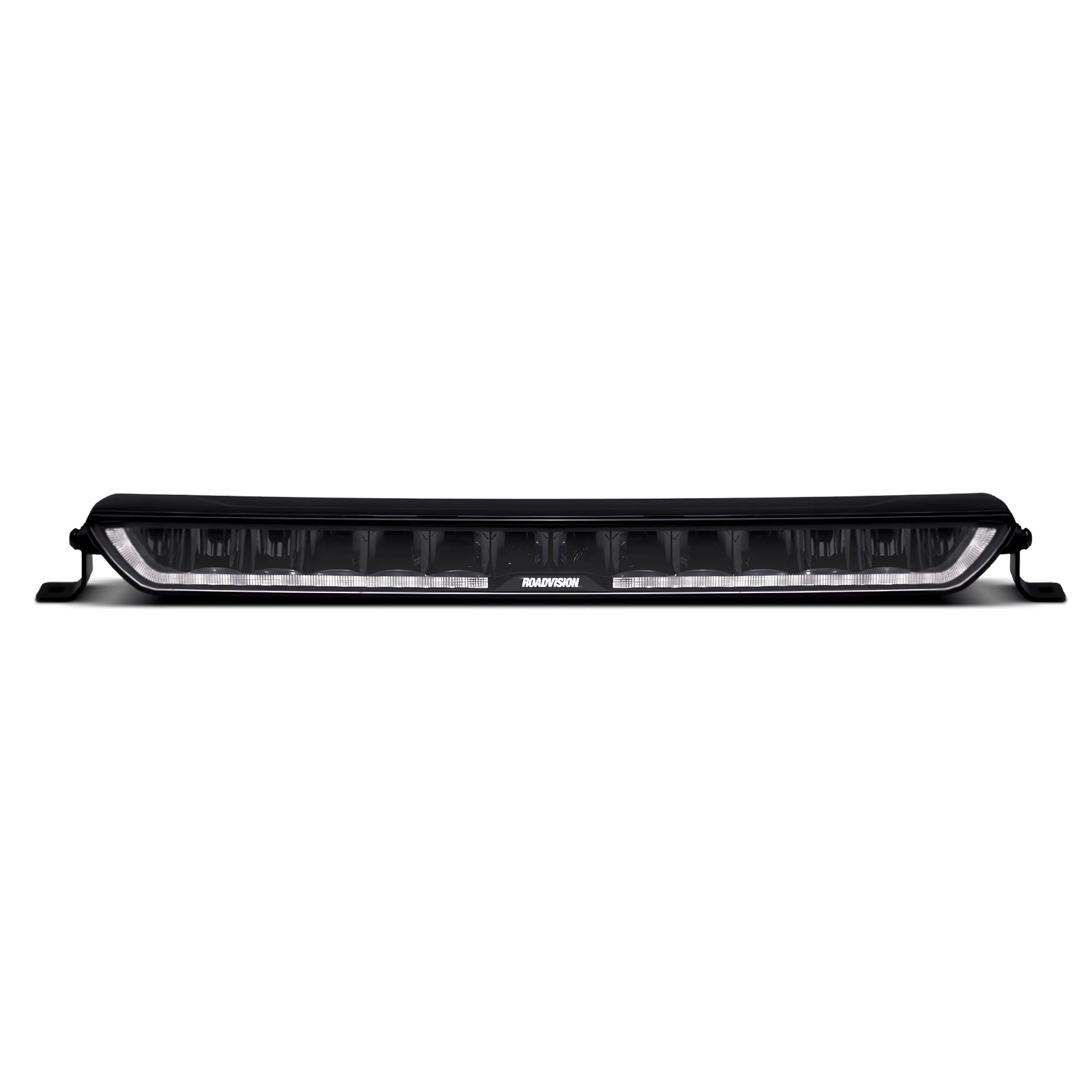

A 21 inch single row LED bar light from the Roadvision Dynamilux Series, the RBL2121C produces up to 6400 lumens from 14 x 10W Cree LEDs through a combination beam reaching 540 metres at 1 lux, with a 5000K colour temperature, dual-colour dynamic start-up DRL, mild curved design, IP68 rating, 10-30V DC multi-volt input, and a 7-year warranty.

Product Overview

The Roadvision RBL2121C is the 21 inch model in the Dynamilux Series of single row bar lights, a sleek and modern solution for enhanced visibility. The mild curved design delivers a wider beam pattern for superior coverage, with the combination beam producing up to 6400 lumens, 2900 lux at 10 metres, and a reach of 540 metres at 1 lux. Fourteen 10W Cree LEDs run at a crisp 5000K colour temperature for exceptional clarity during nighttime driving, while the amber or white dynamic start-up DRL adds a stylish edge and enhances daytime visibility.

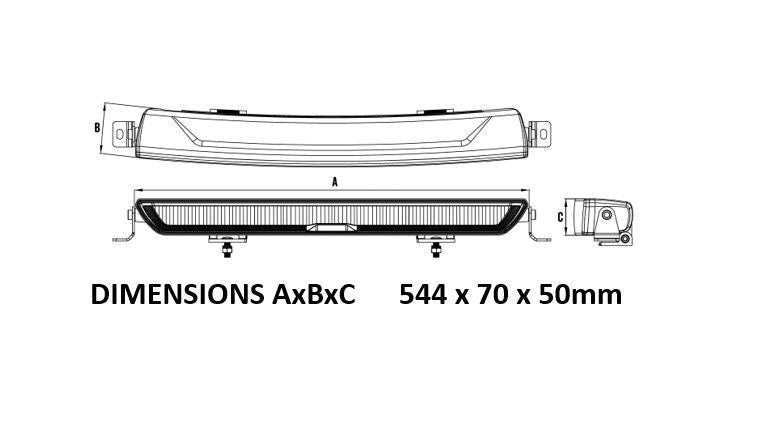

Built tough with a lightweight die-cast aluminium housing, polycarbonate lens, and an IP68 rating for ultimate protection against water and dust, the RBL2121C is equipped with Thermal Management Technology and a 50,000 hour LED lifespan from solid-state technology. The 544 x 70 x 50mm bar mounts via low profile slide and end mounts, connects through a 4-pin Deutsch plug, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval. The Dynamilux Series is backed by a 7-year warranty.

Features & Benefits

21 Inch Combination Beam - Up to 6400 Lumens: The RBL2121C produces up to 6400 lumens through a combination beam rated at 2900 lux at 10 metres and reaching 540 metres at 1 lux, balancing long distance punch with wide coverage.

Mild Curved Design for a Wider Beam: The mild curve of the Dynamilux Series produces a wider beam pattern than a straight bar, improving peripheral coverage on tracks and country roads.

14 x 10W Cree LEDs at 5000K: Fourteen 10W Cree LEDs deliver a crisp 5000K colour temperature for exceptional clarity and reduced eye strain during nighttime driving.

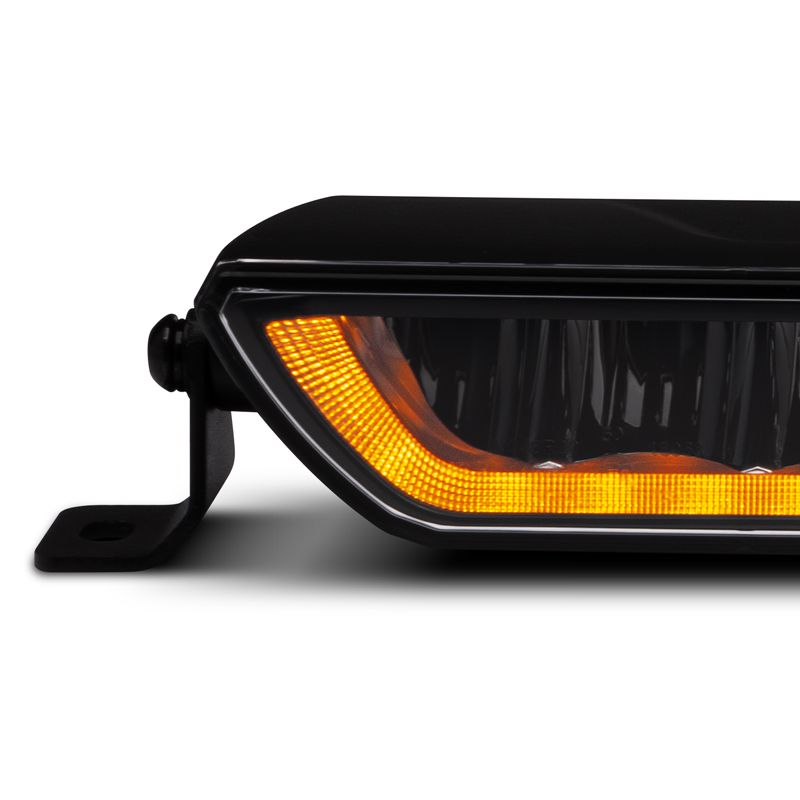

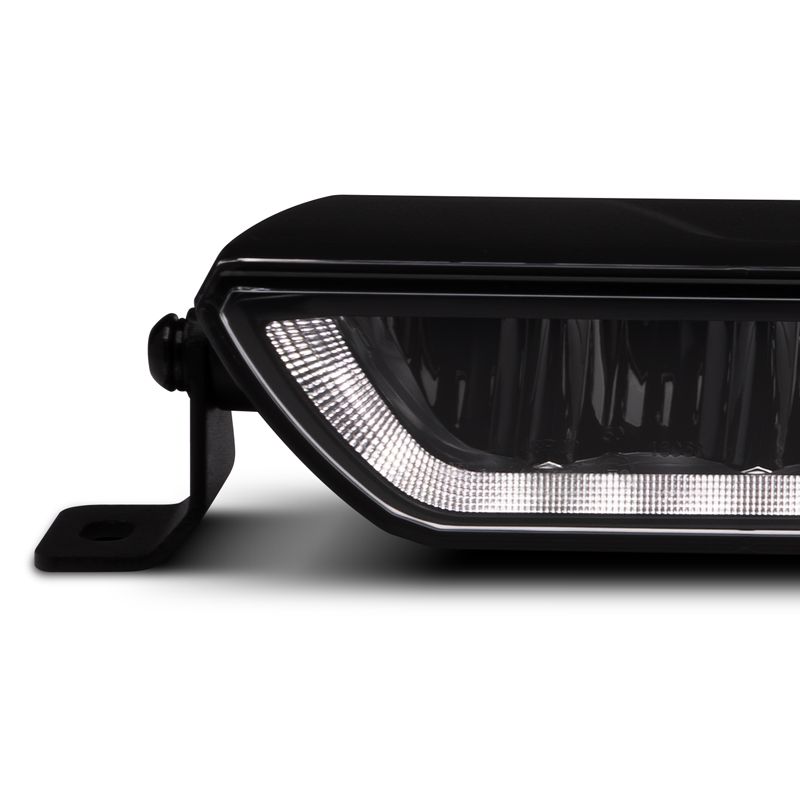

Dual-Colour Dynamic Start-Up DRL: The amber or white dynamic start-up DRL adds a stylish edge while enhancing daytime visibility, giving the bar a distinctive signature on the road.

IP68 Water and Dust Proof: The IP68 rating provides ultimate protection against water and dust for reliable performance in the toughest conditions.

Thermal Management Technology: Built-in Thermal Management Technology protects the bar and maintains light performance in demanding operating conditions.

Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens stand up to corrugations, stone strikes, and harsh off-road use.

Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input makes the RBL2121C compatible with both 12V and 24V vehicle electrical systems, drawing 6.87 amps at 13.8V.

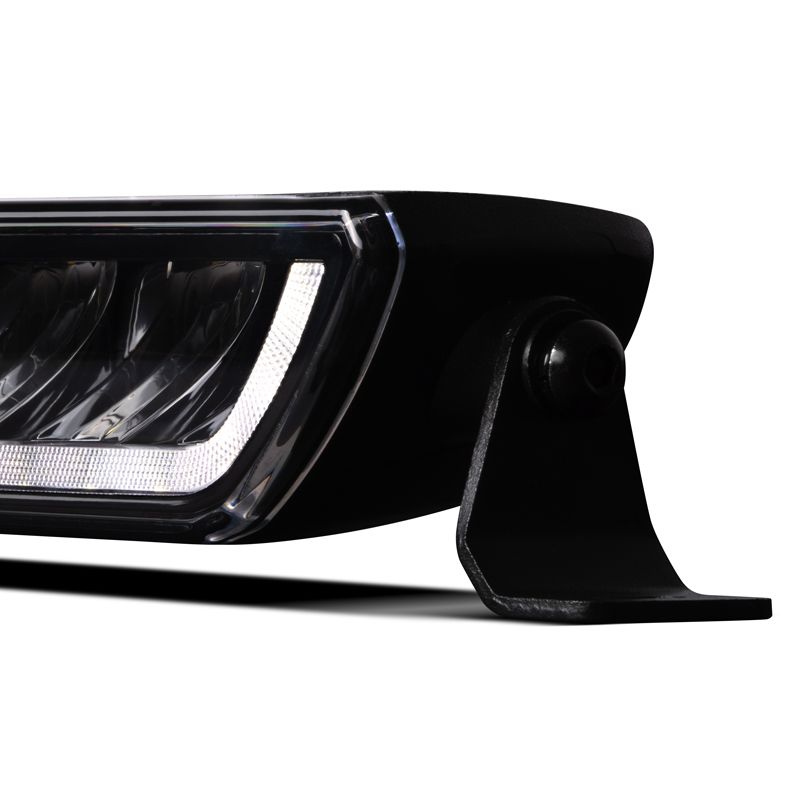

Low Profile Slide and End Mounts: Low profile slide and end mounts provide flexible, secure fitment to bull bars, roof racks, and brackets while keeping the installation tidy.

4-Pin Deutsch Plug with Built-In Protection: The 4-pin Deutsch plug supports the dual-colour DRL wiring, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in. Roadvision's dual-coloured DRL wiring harness is the recommended accessory.

7-Year Warranty: The RBL2121C is backed by a 7-year Roadvision warranty.

Technical Specs

Compatible With

The RBL2121C is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The Dynamilux Series bar lights are also available in 12 inch (RBL2112C) and 30 inch (RBL2130C) models, and Roadvision's dual-coloured DRL wiring harness is the recommended accessory for the dynamic DRL function. Confirm the 544mm bar length and mounting positions fit your bull bar, roof rack, or brackets before purchase.

Frequently Asked Questions

How far does the RBL2121C project light?

The RBL2121C reaches 540 metres at 1 lux, producing up to 6400 lumens and 2900 lux at 10 metres through its combination beam.

What is the dynamic start-up DRL?

The RBL2121C features a dual-colour dynamic start-up DRL in amber or white, adding a stylish animated signature on start-up while enhancing daytime visibility. Roadvision's dual-coloured DRL wiring harness is the recommended accessory for this function.

Why is the bar curved?

The Dynamilux Series features a mild curved design that produces a wider beam pattern than a straight bar, improving coverage to the sides of the road and track.

Is the RBL2121C compatible with 24V vehicles?

Yes. The RBL2121C operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What warranty does the RBL2121C carry?

The RBL2121C is backed by a 7-year Roadvision warranty, longer than the 5-year warranty on most Roadvision work lamps.

What other sizes are available?

The Dynamilux Series is available in 12 inch (RBL2112C, 4800 lumens), this 21 inch (RBL2121C, 6400 lumens), and 30 inch (RBL2130C, 9800 lumens) models, all with the same combination beam and dual-colour DRL.
