Product features

Roadvision RB167Y Revolver Maxi LED Beacon Amber 5 Flash Patterns Fixed Mount

A 360-degree high-intensity maxi LED beacon from the Roadvision Revolver RB167 Series, the RB167Y features 64 SMD LEDs producing 15W, 5 selectable flash patterns, IP67 waterproof and vibration-proof rating, impact-resistant polycarbonate lens and housing, 10-30V DC multi-volt operation, and a 3-hole fixed mount with 113/130mm centre-to-centre options, backed by a 5-year warranty.

Product Overview

The Roadvision RB167Y is a fixed mount maxi LED beacon from the Revolver RB167 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting across mining and industrial applications. The 165 x 137mm body houses 64 SMD LEDs producing 15W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.

Five selectable flash patterns include single, double, triple, quad, and simulated rotating at 140rpm. The RB167Y holds EMC, ECE R10, and SAE Class 1 approval for amber lens configurations. The white LED light source enables a simple lens colour change to blue, red, or green by fitting an alternate coloured lens (sold separately). The impact-resistant polycarbonate lens and housing provide IP67 waterproof and dustproof protection with vibration-proof construction. Multi-volt 10-30V DC input at 1.1A at 13.8V is compatible with 12V and 24V vehicle and equipment systems. Pre-wired with a 500mm sheathed cable. 3-hole fixed mount with 113mm and 130mm centre-to-centre mounting options.

Features & Benefits

360-Degree Maxi High-Intensity LED Beacon: The RB167Y delivers 360-degree high-intensity amber light output from a 165 x 137mm maxi body, providing maximum visibility from all directions for mining and industrial vehicle applications.

64 SMD LEDs - 15W Output - 100,000 Hour Lifespan: Sixty-four SMD LEDs produce 15W of output with a rated lifespan of 100,000 hours and maintenance-free solid-state technology for long-term reliability.

5 Selectable Flash Patterns Including Simulated Rotating: Five selectable flash patterns cover single, double, triple, quad, and simulated rotating at 140rpm, providing flexibility for different application and regulatory requirements.

White LED Light Source for Simple Lens Colour Change: The white LED light source allows the lens colour to be changed to blue, red, or green by fitting an alternate coloured lens, providing multi-application flexibility from a single beacon unit.

EMC, ECE R10, and SAE Class 1 Approved (Amber): The RB167Y holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations, confirming compliance with Australian and international emergency lighting standards for on-road and industrial use.

Impact-Resistant Polycarbonate Lens and Housing - IP67 Rated: Impact-resistant polycarbonate construction on both lens and housing provides IP67 waterproof and dustproof protection with vibration-proof construction suited to demanding mining, construction, and industrial environments.

3-Hole Fixed Mount - 113mm and 130mm Centre-to-Centre Options: The 3-hole fixed mount provides both 113mm and 130mm centre-to-centre mounting configurations, accommodating a range of vehicle roof and panel mounting point spacings.

Multi-Volt 10-30V DC with Low Current Draw: Compatible with both 12V and 24V vehicle and equipment electrical systems at 1.1A at 13.8V.

500mm Sheathed Pre-Wired Cable: The 500mm sheathed pre-wired cable provides a protected wiring connection to the vehicle harness.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RB167Y
Brand Roadvision
Series Revolver RB167
Description Mini Beacon LED 10-30V 5 Flash Patterns Amber Fixed Mount
Function 5 Selectable Flash Patterns
Light Source 64 SMD LEDs
Power Output 15W
LED Colour White (Amber lens fitted)
Flash Patterns 5
Input Voltage 10-30V DC
Current Draw 1.1A at 13.8V

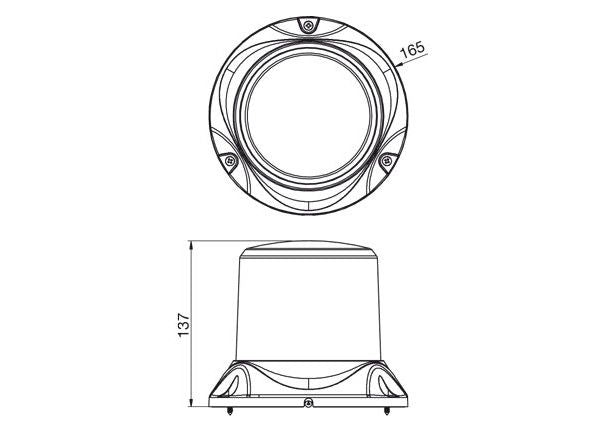

Dimensions 165mm x 137mm
Mounting Type 3-Hole Fixed Mount (113mm and 130mm Centre-to-Centre)
Wiring 500mm Sheathed
Lens Construction Polycarbonate
Housing Construction Polycarbonate
IP Rating IP67
Vibration Proof Yes
Approvals EMC, ECE R10, SAE Class 1 (Amber)
LED Lifespan 100,000 Hours
Warranty 5 Years

Flash Patterns

Pattern
Single
Double
Triple
Quad
Simulated Rotating (140rpm)

Compatible With

The RB167Y is compatible with 10-30V DC vehicle and equipment electrical systems. EMC, ECE R10, and SAE Class 1 approved for amber configurations. Alternate coloured lenses (blue, red, green) can be fitted to the white LED light source for different application requirements. The RB167 Series is also available in magnetic mount (RB167MY) configuration.

Frequently Asked Questions

Can the lens colour on the RB167Y be changed?

Yes. The RB167Y uses a white LED light source, allowing the lens to be replaced with an alternate blue, red, or green coloured lens for different application requirements. Note that the EMC, ECE R10, and SAE Class 1 approvals apply to the amber lens configuration only.

How many flash patterns does the RB167Y have?

The RB167Y has 5 selectable flash patterns: single, double, triple, quad, and simulated rotating at 140rpm.

What mounting configurations does the RB167Y support?

The RB167Y uses a 3-hole fixed mount supporting both 113mm and 130mm centre-to-centre mounting configurations, accommodating a range of vehicle roof and panel mounting point spacings.

Is the RB167Y SAE Class 1 approved?

Yes. The RB167Y holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations.

Is the RB167Y compatible with 24V vehicles?

Yes. The RB167Y operates across 10-30V DC, compatible with both 12V and 24V vehicle and equipment electrical systems.
