Roadvision RB1552Y Revolver LED Beacon Amber 5 Flash Fixed Mount
Roadvision RB1552Y Revolver LED Beacon Amber 5 Flash Fixed Mount
Click to open expanded view

Roadvision RB1552Y Revolver LED Beacon Amber 5 Flash Fixed Mount

SKU: RB1552Y
Price
$249
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RB1552Y Revolver LED Beacon Amber 5 Flash Patterns Fixed Mount

A 360-degree high-intensity amber LED beacon from the Roadvision Revolver RB1552 Series, the RB1552Y features 32 SMD LEDs producing 28W, 5 selectable flash patterns, IP67 weatherproof and vibration-proof rating, polycarbonate lens and housing, 10-30V DC multi-volt operation, and a 3-hole multi-fit fixed mount with 8 possible mounting configurations, backed by a 5-year warranty.

Product Overview

The Roadvision RB1552Y is a fixed mount LED beacon from the Revolver RB1552 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting across on-highway, mining, and industrial applications. The 166 x 150mm body houses 32 SMD LEDs producing 28W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.

Five selectable flash patterns include single, double, triple, quad, and simulated rotating at 140rpm. The RB1552Y holds EMC CISPR25 Class 5 and SAE Class 1 approval. The polycarbonate lens and housing provide IP67 waterproof and dustproof protection with vibration-proof construction suited to the harshest Australian conditions. Multi-volt 10-30V DC input makes it compatible with 12V and 24V vehicle systems. The multi-fit fixed mount features 8 possible 3-hole mounting configurations at 120-degree intervals between 113mm and 152.5mm diameter, with 4.5mm mounting holes. Pre-wired with a 300mm sheathed cable. Operating temperature range is -40°C to +65°C.

Features & Benefits

360-Degree High-Intensity LED Beacon: The RB1552Y delivers 360-degree high-intensity amber light output from a compact 166 x 150mm body, providing maximum visibility from all directions for on-highway, mining, and industrial vehicle applications.

32 SMD LEDs - 28W Output - 100,000 Hour Lifespan: Thirty-two SMD LEDs produce 28W of output at only 2.7A at 13.8V, with a rated lifespan of 100,000 hours and maintenance-free solid-state technology for long-term reliability.

5 Selectable Flash Patterns Including Simulated Rotating: Five selectable flash patterns cover single, double, triple, quad, and simulated rotating at 140rpm, providing flexibility across a wide range of application and regulatory requirements.

EMC CISPR25 Class 5 and SAE Class 1 Approved: The RB1552Y holds EMC CISPR25 Class 5 and SAE Class 1 approvals, confirming compliance with electromagnetic compatibility and emergency vehicle lighting intensity requirements.

Polycarbonate Lens and Housing - IP67 Rated: High-impact polycarbonate construction on both lens and housing provides IP67 waterproof and dustproof protection with vibration-proof construction suited to demanding on-highway, mining, and industrial environments.

Multi-Fit 3-Hole Fixed Mount with 8 Mounting Configurations: The multi-fit fixed mount provides 8 possible 3-hole mounting configurations at 120-degree intervals between 113mm and 152.5mm centre-to-centre diameter, with 4.5mm mounting holes, accommodating a wide range of vehicle roof and panel mounting point configurations.

Multi-Volt 10-30V DC with Low Current Draw: The 10-30V DC multi-volt input with a current draw of 2.7A at 13.8V makes the RB1552Y compatible with both 12V and 24V vehicle electrical systems, and is particularly suited to on-highway applications where voltage drop may be a concern.

300mm Sheathed Pre-Wired Cable: The 300mm sheathed pre-wired cable provides a protected wiring connection between the beacon and the vehicle wiring harness.

Wide Operating Temperature Range: The RB1552Y operates reliably across a temperature range of -40°C to +65°C, suited to the extremes of Australian climate conditions.

5-Year Warranty: The RB1552Y is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RB1552Y
Brand Roadvision
Series Revolver RB1552
Description Beacon LED 10-30V 5 Flash Patterns Amber Fixed Mount
Function 5 Selectable Flash Patterns
Light Source 32 SMD LEDs
Power Output 28W
Flash Patterns 5
Input Voltage 10-30V DC
Current Draw 2.7A at 13.8V

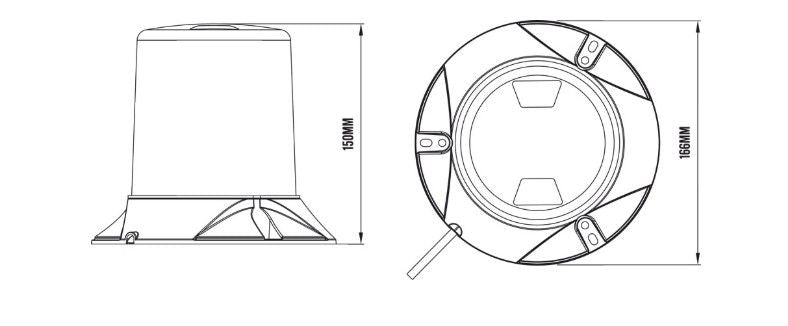

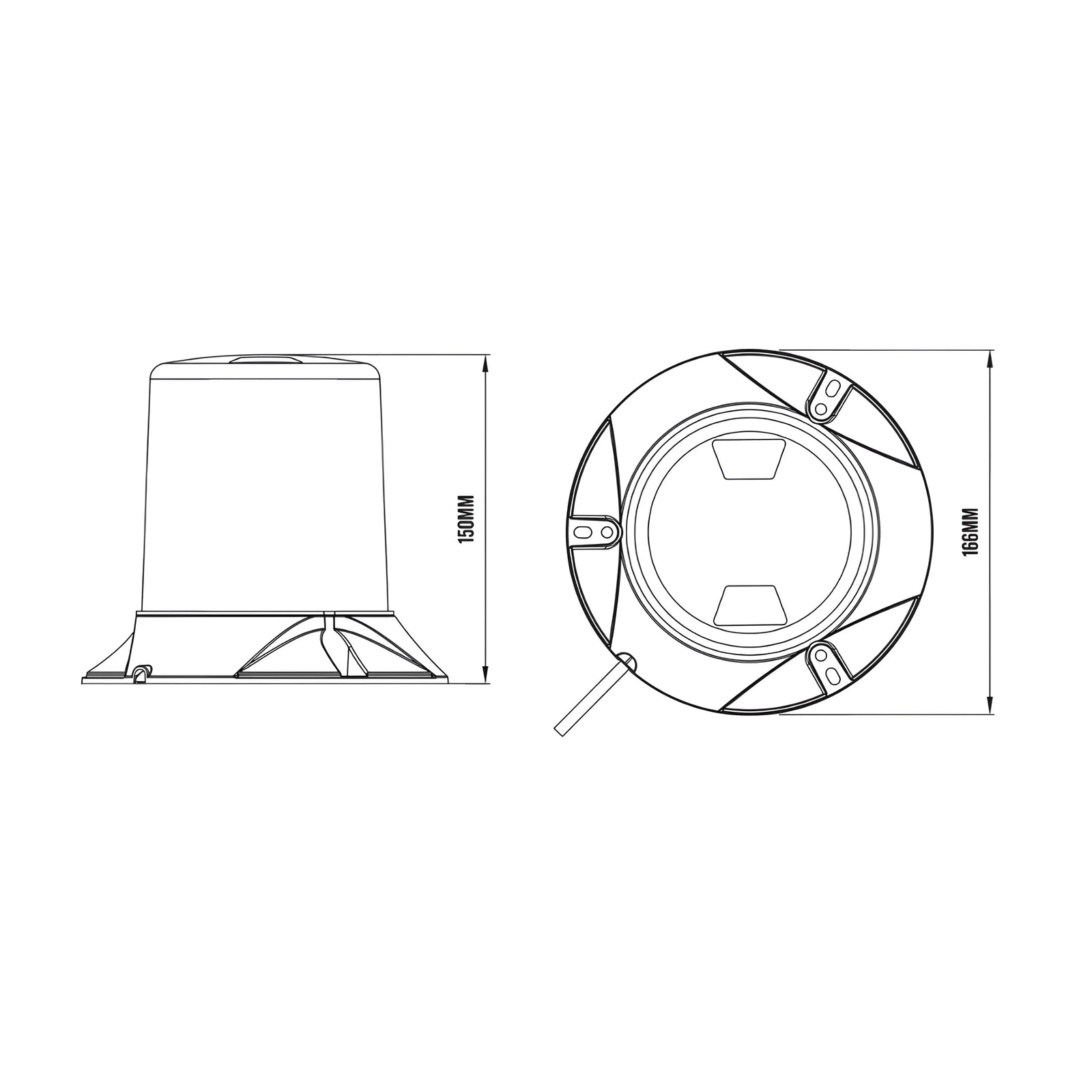

Dimensions 166mm x 150mm
Mounting Type 3-Hole Multi-Fit Fixed Mount
Mounting Configurations 8 configurations at 120-degree intervals (113mm to 152.5mm diameter)
Mounting Hole Diameter 4.5mm
Wiring 300mm Sheathed
Lens Construction Polycarbonate
Housing Construction Polycarbonate
IP Rating IP67
Vibration Proof Yes
Operating Temperature -40°C to +65°C
Approvals EMC CISPR25 Class 5 and SAE Class 1
LED Lifespan 100,000 Hours
Warranty 5 Years

Flash Patterns

Pattern
Single
Double
Triple
Quad
Simulated Rotating (140rpm)

Compatible With

The RB1552Y is compatible with 10-30V DC vehicle electrical systems. EMC CISPR25 Class 5 and SAE Class 1 approved for on-road and industrial use. The RB1552 Series is also available in magnetic mount (RB1552MY) and DIN pole mount (RB1552PY) configurations. Confirm mounting hole configuration requirements for your specific vehicle or equipment before purchase.

Frequently Asked Questions

How many mounting configurations does the RB1552Y multi-fit mount provide?

The RB1552Y multi-fit fixed mount provides 8 possible 3-hole mounting configurations at 120-degree intervals between 113mm and 152.5mm centre-to-centre diameter with 4.5mm mounting holes, accommodating a wide range of vehicle roof and panel mounting point configurations.

How many flash patterns does the RB1552Y have?

The RB1552Y has 5 selectable flash patterns: single, double, triple, quad, and simulated rotating at 140rpm.

Is the RB1552Y SAE Class 1 approved?

Yes. The RB1552Y holds EMC CISPR25 Class 5 and SAE Class 1 approvals for on-road and industrial warning light applications.

Is the RB1552Y compatible with 24V vehicles?

Yes. The RB1552Y operates across 10-30V DC, making it compatible with both 12V and 24V vehicle and equipment electrical systems.

What is the rated lifespan of the RB1552Y LEDs?

The RB1552Y has a rated LED lifespan of 100,000 hours, providing long-term maintenance-free performance.
