Roadvision RB132Y Revolver Mini LED Beacon Amber 5 Flash Fixed Mount
Roadvision RB132Y Revolver Mini LED Beacon Amber 5 Flash Fixed Mount
Click to open expanded view

Roadvision RB132Y Revolver Mini LED Beacon Amber 5 Flash Fixed Mount

SKU: RB132Y
Price
$169
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision RB132Y Revolver Mini LED Beacon Amber 5 Flash Patterns Fixed Mount

A 360-degree high-intensity mini LED beacon from the Roadvision Revolver RB132 Series, the RB132Y features 64 SMD LEDs producing 15W, 5 selectable flash patterns, IP67 waterproof and vibration-proof rating, impact-resistant polycarbonate lens and housing, 10-30V DC multi-volt operation, and a 3-hole fixed mount at 103mm centre to centre, backed by a 5-year warranty.

Product Overview

The Roadvision RB132Y is a fixed mount mini LED beacon from the Revolver RB132 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting across industrial applications. The 130 x 102mm compact body houses 64 SMD LEDs producing 15W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.

Five selectable flash patterns include single, double, triple, quad, and simulated rotating at 140rpm. The RB132Y holds EMC, ECE R10, and SAE Class 1 approval for amber lens configurations. The white LED light source enables a simple lens colour change to blue, red, or green by fitting an alternate coloured lens. The impact-resistant polycarbonate lens and housing provide IP67 waterproof and dustproof protection with vibration-proof construction. Multi-volt 10-30V DC input at 1.1A at 13.8V is compatible with 12V and 24V vehicle and equipment systems. Pre-wired with a 500mm sheathed cable. 3-hole fixed mount at 103mm centre to centre.

Features & Benefits

360-Degree Mini High-Intensity LED Beacon: The RB132Y delivers 360-degree high-intensity amber light output from a compact 130 x 102mm mini body, providing maximum visibility from all directions for industrial and on-highway vehicle applications.

64 SMD LEDs - 15W Output - 100,000 Hour Lifespan: Sixty-four SMD LEDs produce 15W of output with a rated lifespan of 100,000 hours and maintenance-free solid-state technology for long-term reliability.

5 Selectable Flash Patterns Including Simulated Rotating: Five selectable flash patterns cover single, double, triple, quad, and simulated rotating at 140rpm, providing flexibility for different application and regulatory requirements.

White LED Light Source for Simple Lens Colour Change: The white LED light source allows the lens colour to be changed to blue, red, or green by fitting an alternate coloured lens, providing multi-application flexibility from a single beacon unit.

EMC, ECE R10, and SAE Class 1 Approved (Amber): The RB132Y holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations, confirming compliance with Australian and international emergency lighting standards.

Impact-Resistant Polycarbonate Lens and Housing - IP67 Rated: Impact-resistant polycarbonate construction on both lens and housing provides IP67 waterproof and dustproof protection with vibration-proof construction suited to demanding industrial environments.

3-Hole Fixed Mount - 103mm Centre to Centre: The 3-hole fixed mount provides a 103mm centre-to-centre mounting configuration for secure permanent installation to vehicle roof panels and mounting brackets.

Multi-Volt 10-30V DC with Low Current Draw: Compatible with both 12V and 24V vehicle and equipment electrical systems at 1.1A at 13.8V.

500mm Sheathed Pre-Wired Cable: The 500mm sheathed pre-wired cable provides a protected wiring connection to the vehicle harness.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU RB132Y
Brand Roadvision
Series Revolver RB132
Description Mini Beacon LED 10-30V 5 Flash Patterns Amber Fixed Mount
Function 5 Selectable Flash Patterns
Light Source 64 SMD LEDs
Power Output 15W
LED Colour White (Amber lens fitted)
Flash Patterns 5
Input Voltage 10-30V DC
Current Draw 1.1A at 13.8V

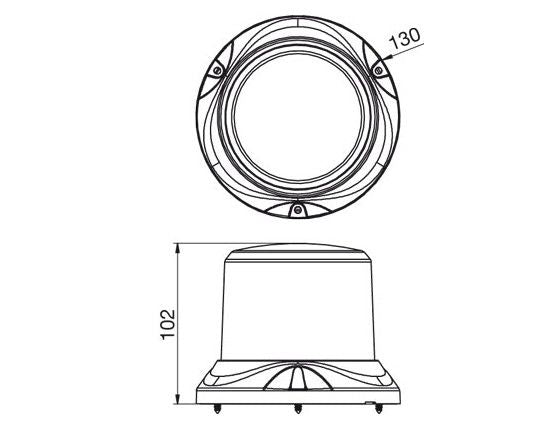

Dimensions 130mm x 102mm
Mounting Type 3-Hole Fixed Mount (103mm Centre to Centre)
Wiring 500mm Sheathed
Lens Construction Polycarbonate
Housing Construction Polycarbonate
IP Rating IP67
Vibration Proof Yes
Approvals EMC, ECE R10, SAE Class 1 (Amber)
LED Lifespan 100,000 Hours
Warranty 5 Years

Flash Patterns

Pattern
Single
Double
Triple
Quad
Simulated Rotating (140rpm)

Compatible With

The RB132Y is compatible with 10-30V DC vehicle and equipment electrical systems. EMC, ECE R10, and SAE Class 1 approved for amber configurations. Alternate coloured lenses (blue, red, green) can be fitted to the white LED light source for different application requirements. The RB132 Series is also available in magnetic mount (RB132MY) configuration.

Frequently Asked Questions

Can the lens colour on the RB132Y be changed?

Yes. The RB132Y uses a white LED light source, allowing the lens to be replaced with an alternate blue, red, or green coloured lens for different application requirements. Note that the EMC, ECE R10, and SAE Class 1 approvals apply to the amber lens configuration only.

How many flash patterns does the RB132Y have?

The RB132Y has 5 selectable flash patterns: single, double, triple, quad, and simulated rotating at 140rpm.

Is the RB132Y SAE Class 1 approved?

Yes. The RB132Y holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations.

Is the RB132Y compatible with 24V vehicles?

Yes. The RB132Y operates across 10-30V DC, compatible with both 12V and 24V vehicle and equipment electrical systems.

What is the difference between the RB132Y and the RB167Y?

Both are from the Revolver Series with identical flash patterns, LED colour, housing material, IP rating, and approvals. The RB132Y is a mini beacon at 130 x 102mm with a 103mm centre-to-centre fixed mount and 500mm cable. The RB167Y is a maxi beacon at 165 x 137mm with 113mm and 130mm centre-to-centre fixed mount options and 500mm cable. Choose the RB132Y for a more compact installation footprint.
