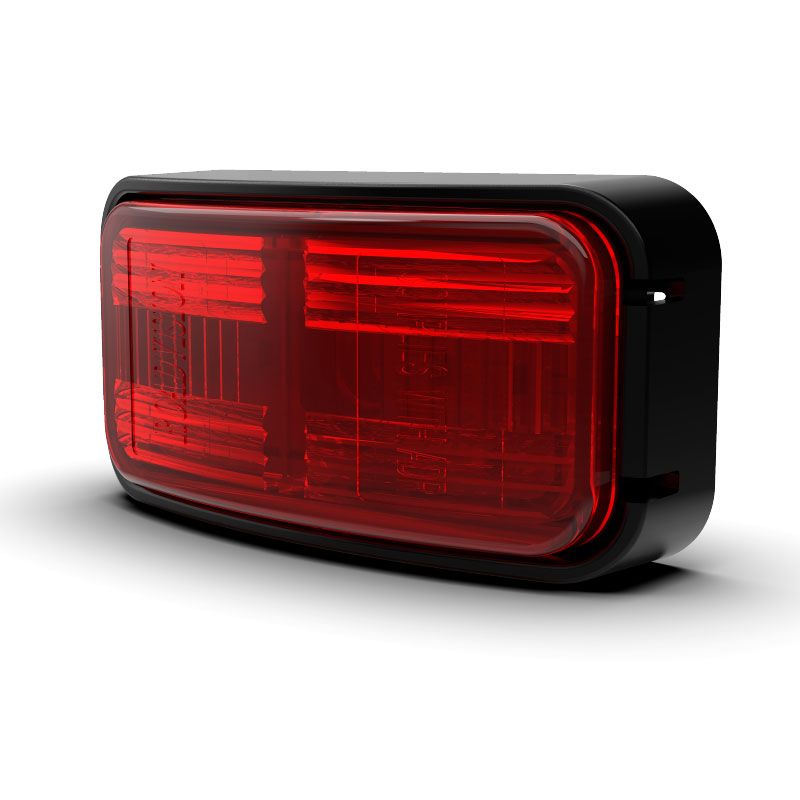

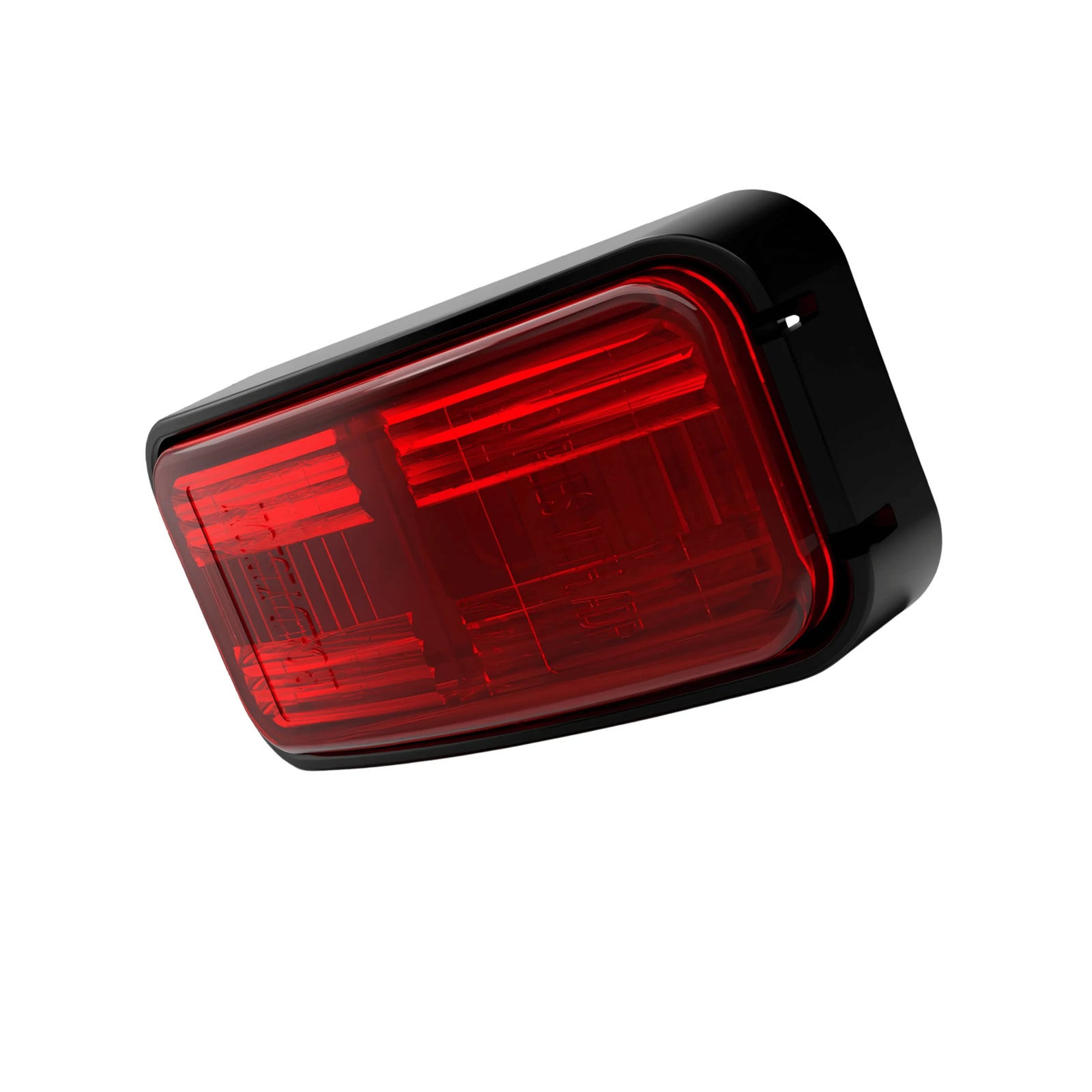

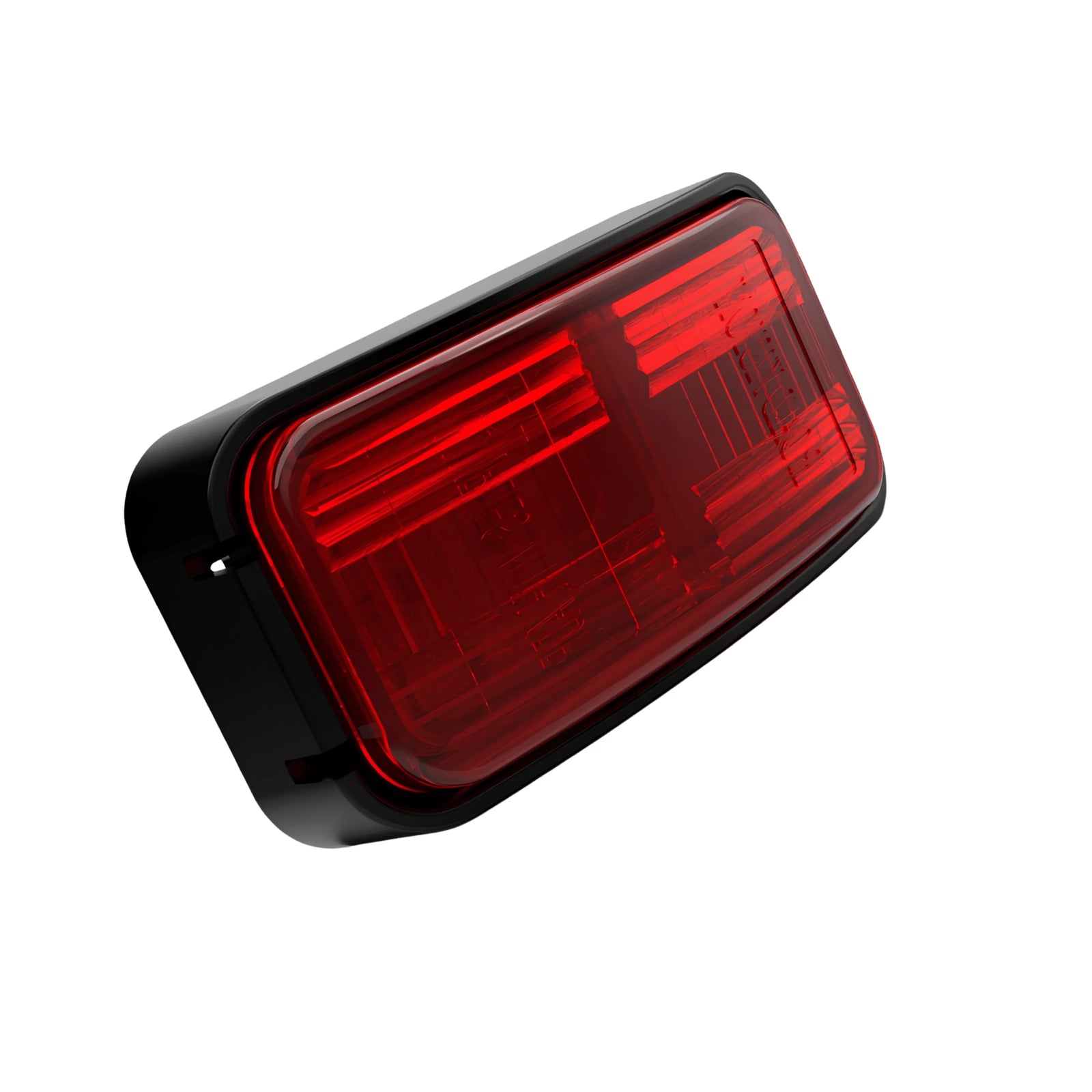

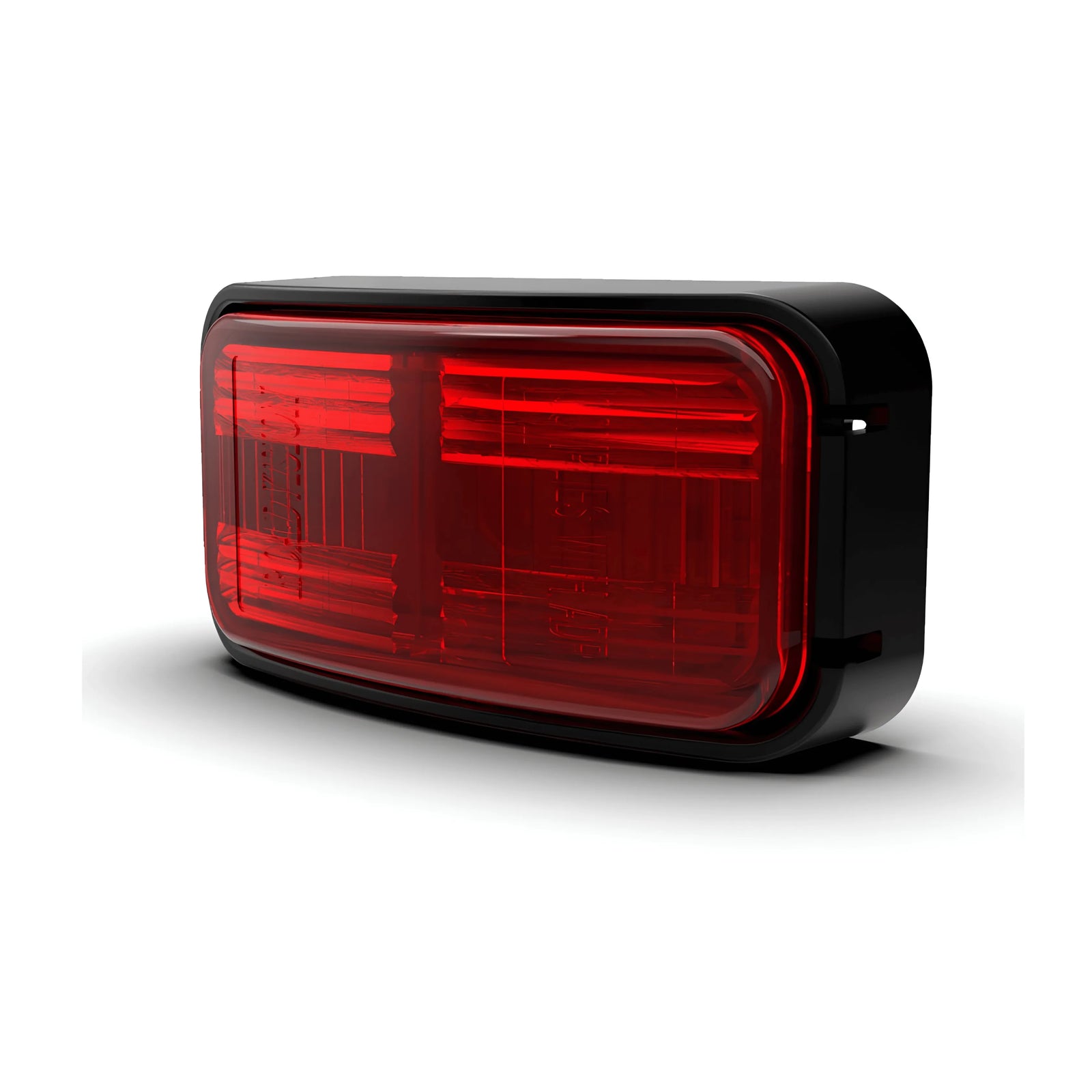

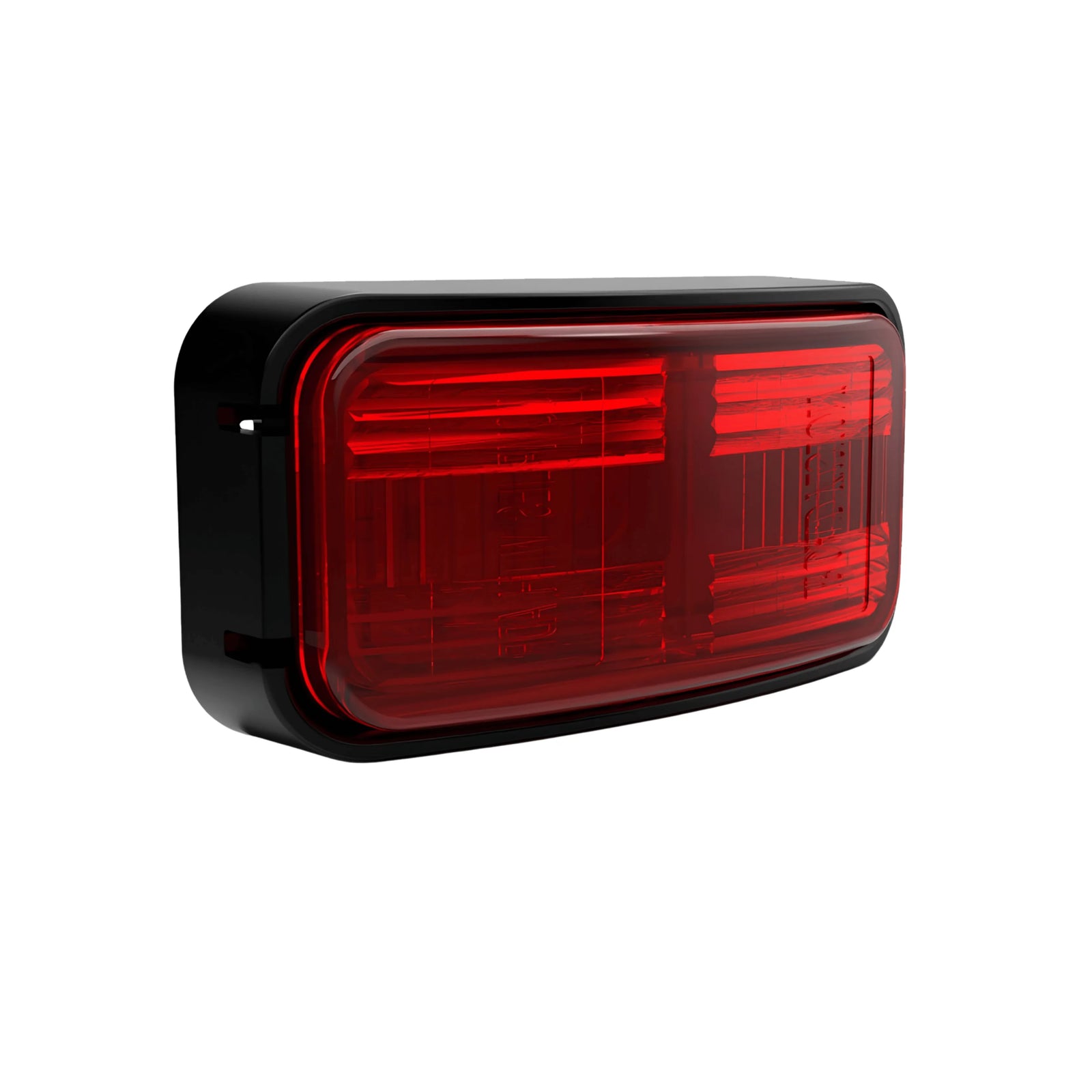

Roadvision BR8R LED Clearance Light Red 10-30V Polycarbonate
Roadvision BR8R LED Clearance Light Red 10-30V Polycarbonate
Click to open expanded view

Roadvision BR8R LED Clearance Light Red 10-30V Polycarbonate

SKU: BR8R
Price
$26.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR8R LED Clearance Light Red 10-30V

An ADR-approved IP67 LED clearance lamp from the Roadvision BR8 Series, the BR8R features 4 red LEDs, a polycarbonate lens and housing, 10-30V DC multi-volt operation, 74x38x22mm rectangle form factor, and a 300mm tinned copper pre-wired cable, backed by a 5-year warranty.

Product Overview

The Roadvision BR8R is a rectangle LED clearance lamp from the BR8 Series with a red polycarbonate lens, designed for trailer, caravan, truck, and commercial vehicle clearance lighting. Four red LEDs with a polycarbonate lens and housing provide durable, maintenance-free clearance light output rated to 100,000 hours. IP67 rated, ADR approved, and CTA certified (CTA-062088). Compatible with 10-30V DC systems. Pre-wired with a 300mm tinned copper cable with earth (white) and marker (brown) wires.

Features & Benefits

ADR Approved and CTA Certified: The BR8R holds ADR approval and CTA certification CTA-062088, confirming compliance with Australian road requirements for clearance lamp applications.

IP67 Waterproof and Dustproof: IP67 rating provides full dust and waterproof protection for exposed trailer and vehicle body mounting locations.

Polycarbonate Lens and Housing: Unbreakable polycarbonate construction on both lens and housing provides long-term durability and impact resistance.

4 Red LEDs - 100,000 Hour Rated Lifespan: Four red LEDs deliver reliable clearance light output with a rated 100,000 hour lifespan for maintenance-free performance.

Multi-Volt 10-30V DC: Compatible with 12V and 24V vehicle and trailer electrical systems.

300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white) and marker (brown) wires.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR8R
Brand Roadvision
Series BR8
Description Clearance Lamp Rectangle Red
Function Clearance
LED Quantity 4 Red LEDs
Input Voltage 10-30V DC
Current Draw 0.05A at 13.8V

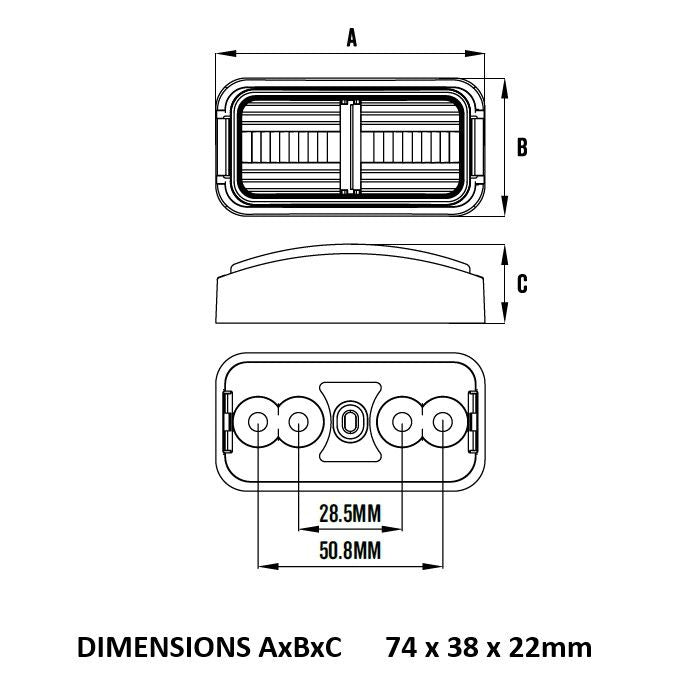

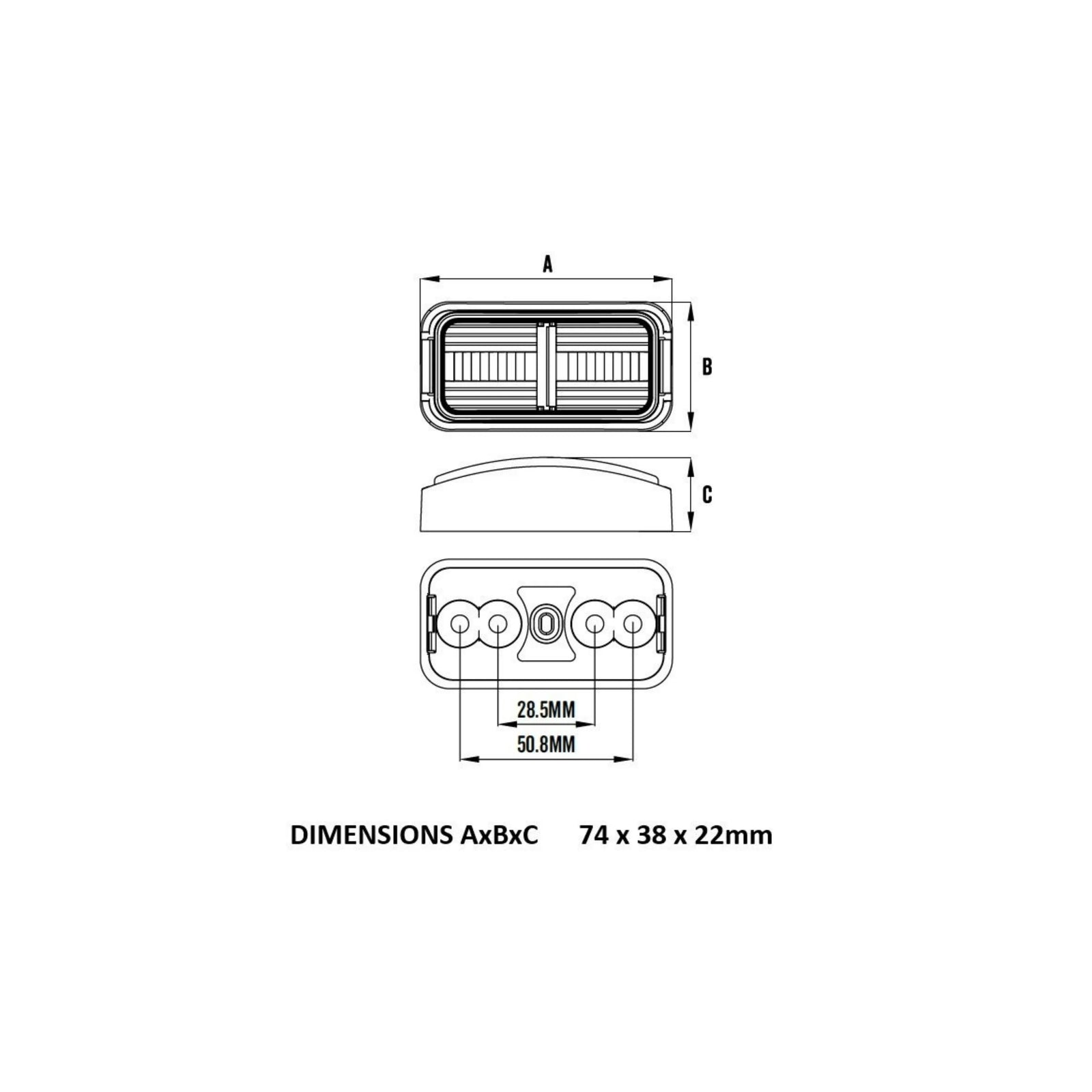

Dimensions 74mm x 38mm x 22mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole/Cutout 28.5mm and 50.8mm
Cable Length 300mm Tinned Copper
Wiring Earth - White, Marker - Brown
IP Rating IP67
CTA Approval CTA-062088
ADR Approved Yes
Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR8R is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and CTA approved for on-road use. Confirm mounting cutout dimensions (28.5mm and 50.8mm) before purchase.

Frequently Asked Questions

Is the BR8R ADR approved?

Yes. The BR8R is ADR approved and holds CTA approval CTA-062088 for clearance lamp applications.

Is the BR8R compatible with 24V systems?

Yes. The BR8R operates across 10-30V DC, compatible with both 12V and 24V systems.

What is the difference between the BR8R and BR8A?

The BR8R is a red lens clearance lamp only. The BR8A is an amber lens indicator and clearance lamp combining both functions. Both share the same dimensions, housing, and electrical specifications.

What are the mounting cutout dimensions for the BR8R?

28.5mm and 50.8mm. Confirm against your specific panel before purchase.

What is the lifespan of the BR8R?

100,000 hours.
