Roadvision BR8AR LED Clearance Light Red and Amber 10-30V
Roadvision BR8AR LED Clearance Light Red and Amber 10-30V
Click to open expanded view

Roadvision BR8AR LED Clearance Light Red and Amber 10-30V

SKU: BR8AR
Price
$26.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR8AR LED Clearance Light Red and Amber 10-30V

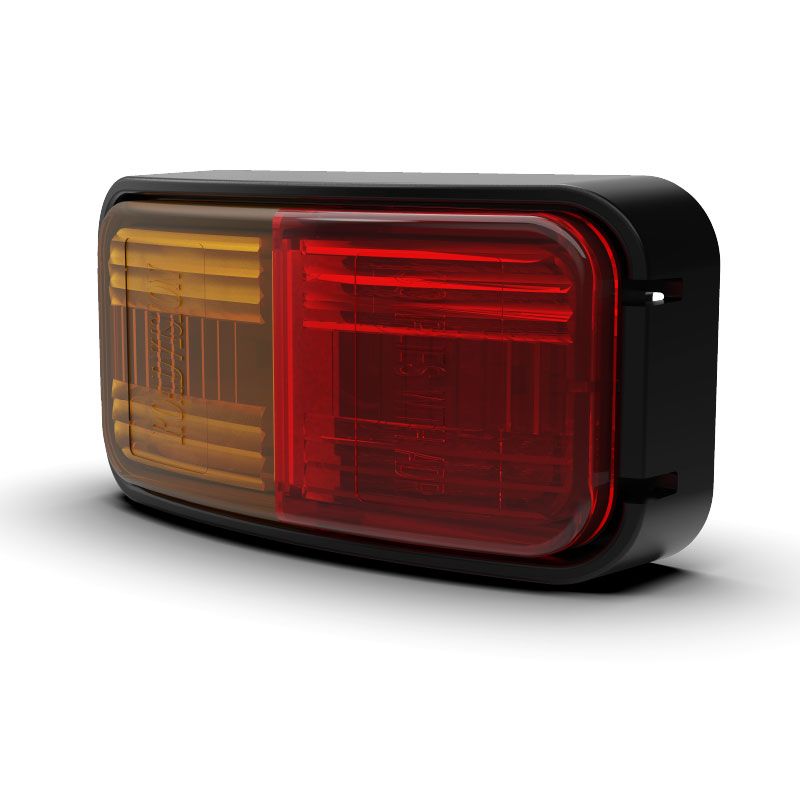

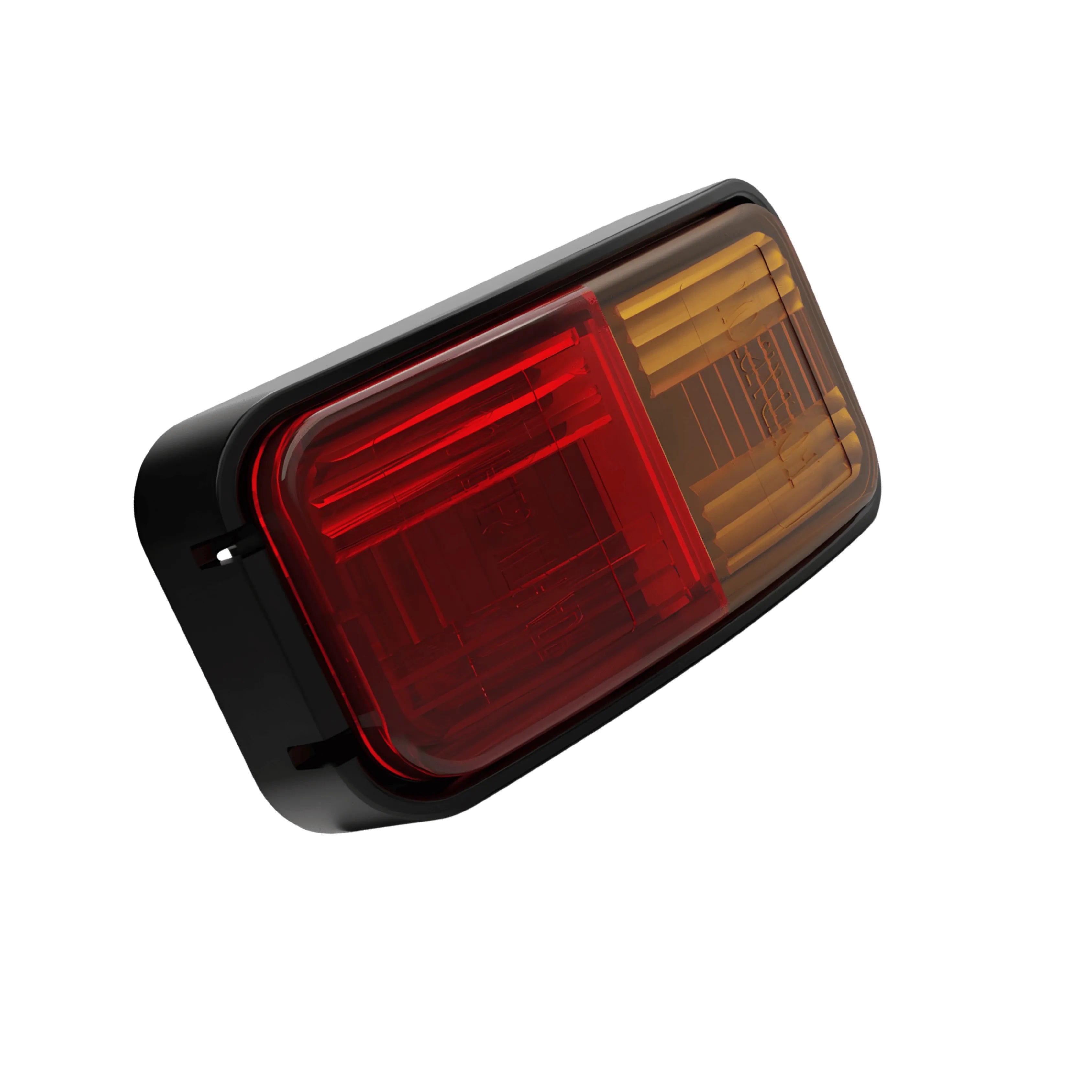

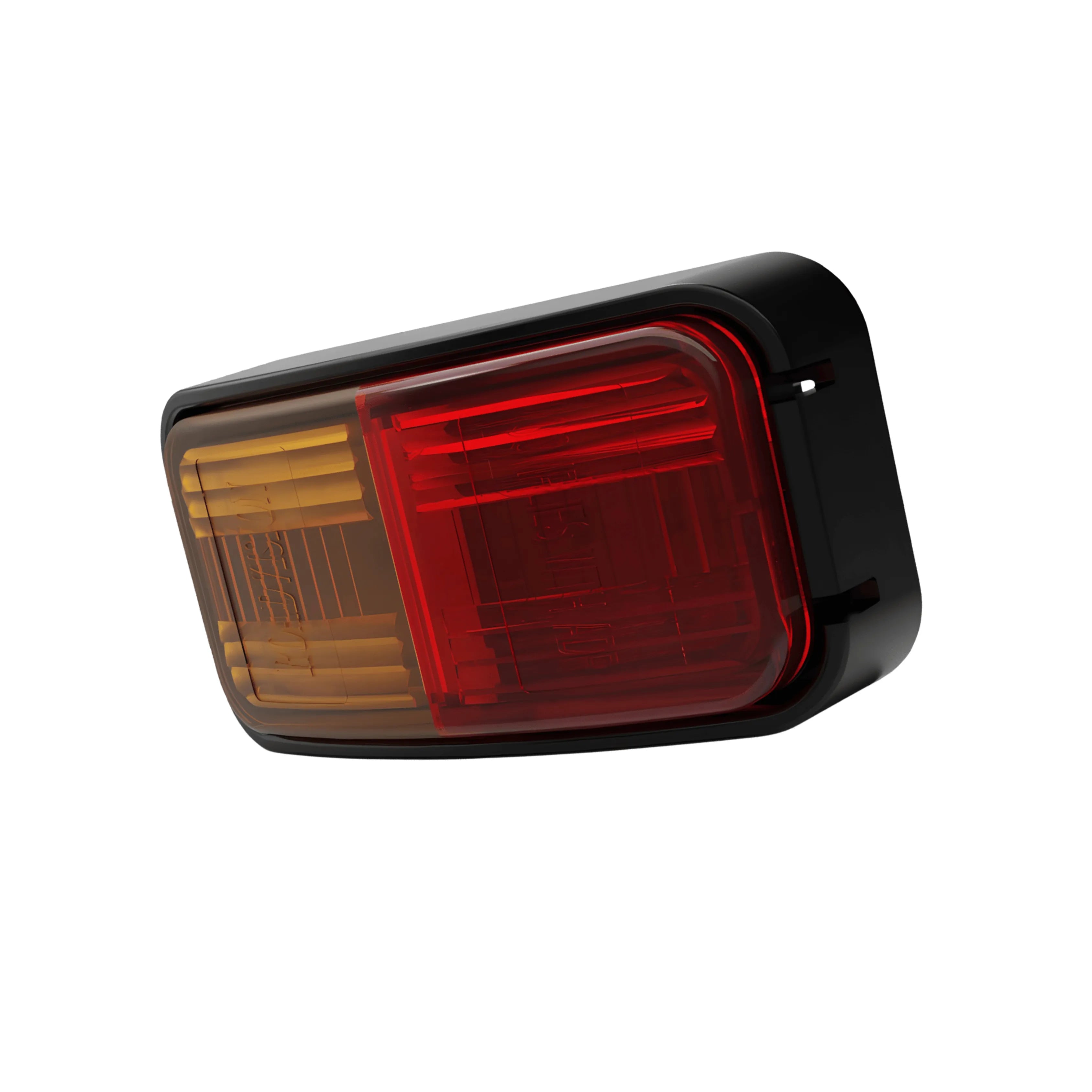

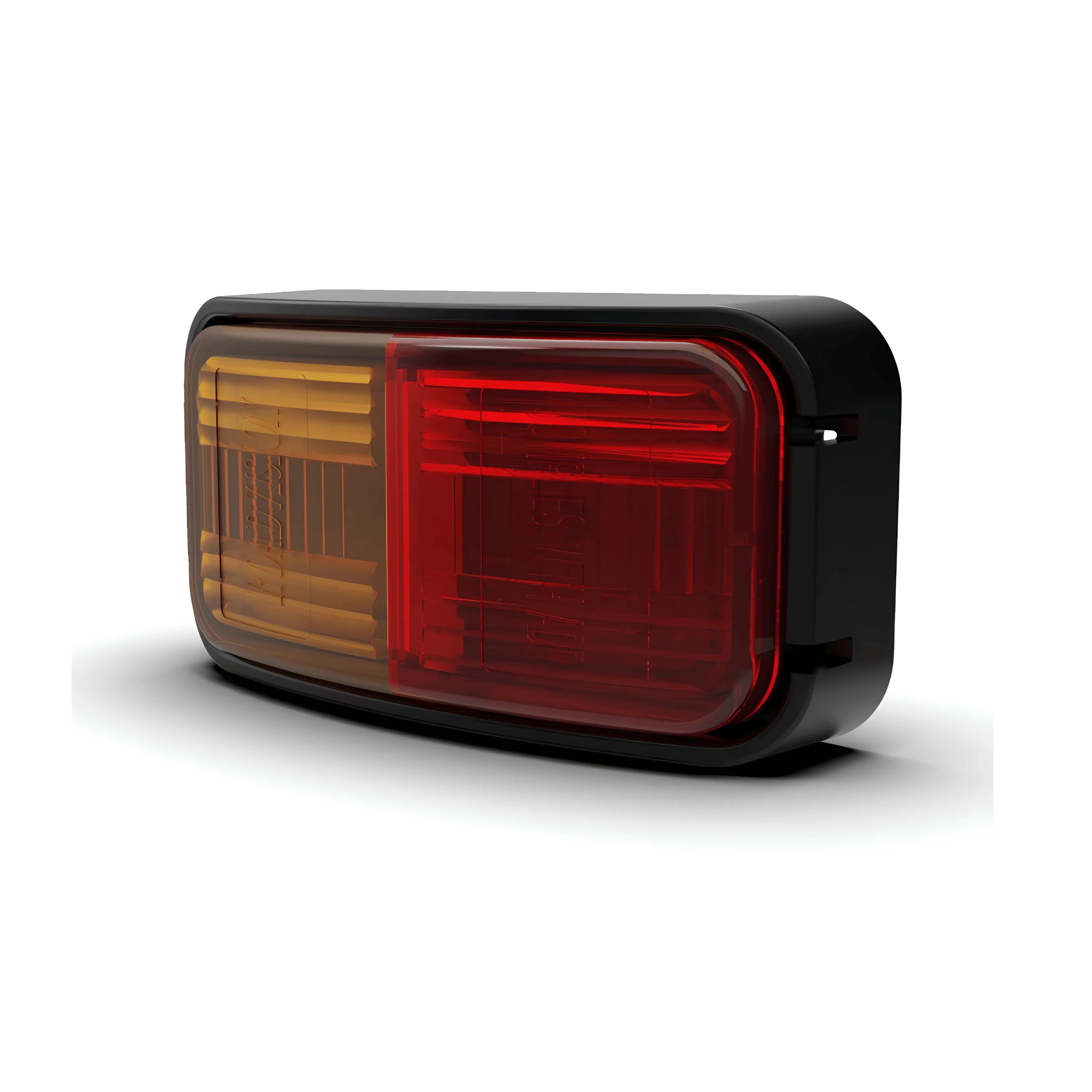

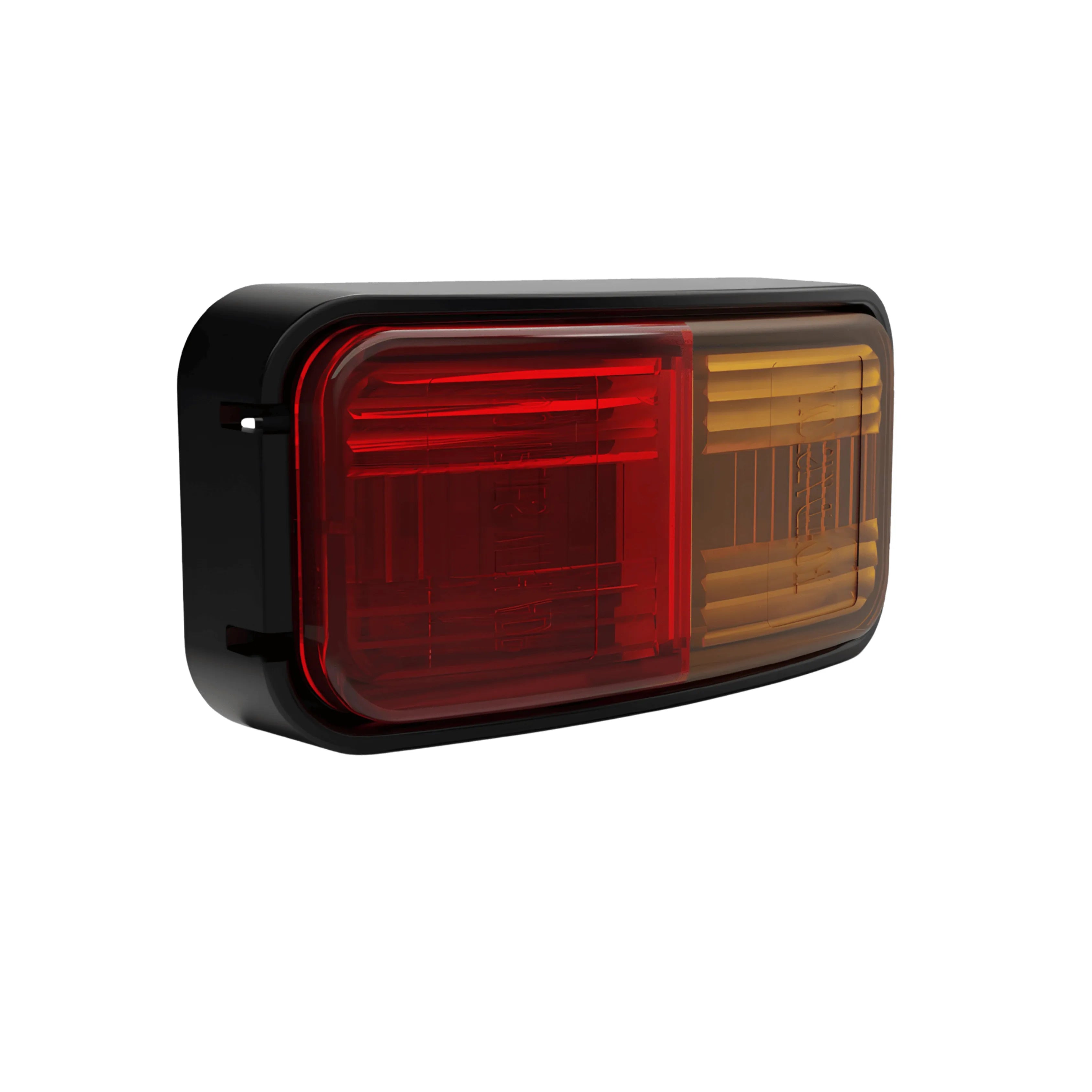

An ADR-approved IP67 LED clearance lamp from the Roadvision BR8 Series, the BR8AR features 2 red and 2 amber LEDs with a red and amber polycarbonate lens and housing, 10-30V DC multi-volt operation, 74x38x22mm rectangle form factor, and a 300mm tinned copper pre-wired cable, backed by a 5-year warranty.

Product Overview

The Roadvision BR8AR is a rectangle LED clearance lamp from the BR8 Series with a combined red and amber polycarbonate lens, suited to trailer, caravan, truck, and commercial vehicle clearance lighting where a dual-colour lens is required. Two red and two amber LEDs provide the distinctive red and amber appearance through a polycarbonate lens and housing rated to IP67. ADR approved and CTA certified (CTA-062090). Compatible with 10-30V DC systems. Pre-wired with a 300mm tinned copper cable with earth (white) and marker (brown) wires. Rated lifespan of 100,000 hours.

Features & Benefits

ADR Approved and CTA Certified: The BR8AR holds ADR approval and CTA certification CTA-062090, confirming compliance with Australian road requirements for clearance lamp applications.

IP67 Waterproof and Dustproof: IP67 rating provides full dust and waterproof protection for exposed trailer and vehicle body mounting locations.

Polycarbonate Red and Amber Lens and Housing: Unbreakable polycarbonate construction on both the red and amber lens and housing provides long-term durability and impact resistance.

2 Red and 2 Amber LEDs - 100,000 Hour Rated Lifespan: The dual-colour LED configuration of 2 red and 2 amber LEDs delivers the distinctive BR8AR appearance with a rated 100,000 hour lifespan.

Multi-Volt 10-30V DC: Compatible with 12V and 24V vehicle and trailer electrical systems.

300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white) and marker (brown) wires.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR8AR
Brand Roadvision
Series BR8
Description Clearance Lamp Rectangle Red and Amber
Function Clearance
LED Quantity 2 Red LEDs and 2 Amber LEDs
Input Voltage 10-30V DC
Current Draw 0.05A at 13.8V

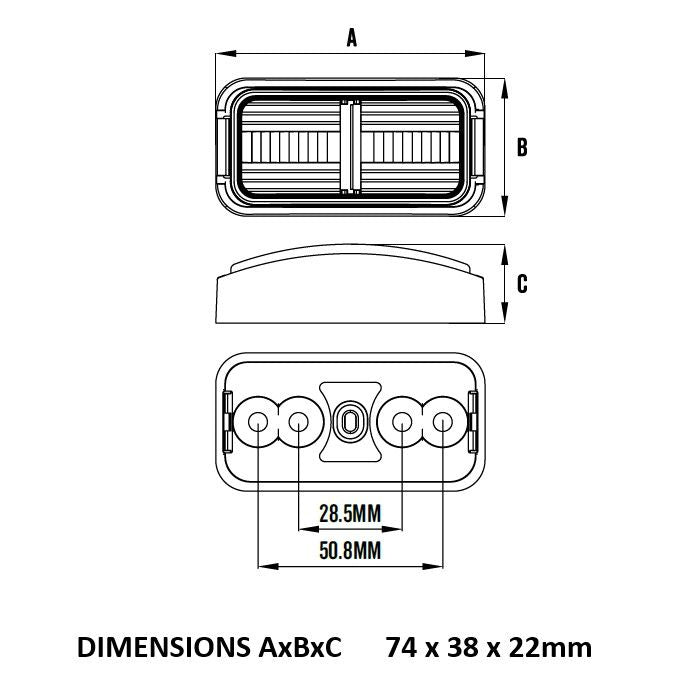

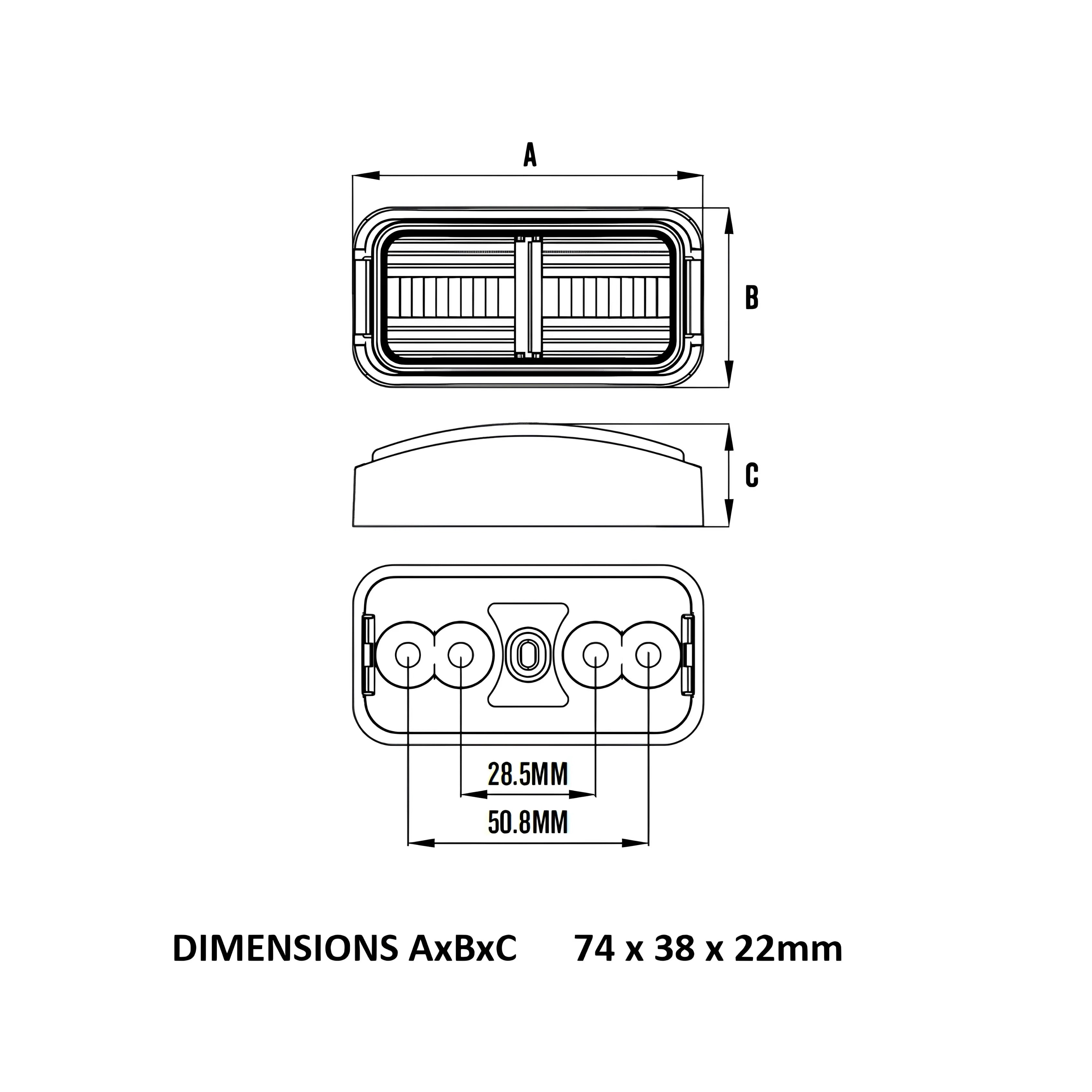

Dimensions 74mm x 38mm x 22mm
Lens Construction Polycarbonate (Red and Amber)
Housing Construction Polycarbonate
Mounting Hole/Cutout 28.5mm and 50.8mm
Cable Length 300mm Tinned Copper
Wiring Earth - White, Marker - Brown
IP Rating IP67
CTA Approval CTA-062090
ADR Approved Yes
Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR8AR is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and CTA approved for on-road use. Confirm mounting cutout dimensions (28.5mm and 50.8mm) before purchase.

Frequently Asked Questions

Is the BR8AR ADR approved?

Yes. The BR8AR is ADR approved and holds CTA approval CTA-062090 for clearance lamp applications.

Is the BR8AR compatible with 24V systems?

Yes. The BR8AR operates across 10-30V DC, compatible with both 12V and 24V systems.

What is the difference between the BR8AR and the BR8R?

The BR8R has a solid red lens with 4 red LEDs. The BR8AR has a dual red and amber lens with 2 red and 2 amber LEDs, providing the distinctive combined red and amber appearance for specific trailer and vehicle applications.

What are the mounting cutout dimensions for the BR8AR?

28.5mm and 50.8mm. Confirm against your specific panel before purchase.

What is the lifespan of the BR8AR?

100,000 hours.
