Product features

Roadvision BR8A LED Indicator and Clearance Light Amber 10-30V

An ADR-approved IP67 LED indicator and clearance lamp from the Roadvision BR8 Series, the BR8A features 4 amber LEDs, a polycarbonate lens and housing, 10-30V DC multi-volt operation, 74x38x22mm rectangle form factor, and a 300mm tinned copper pre-wired cable, backed by a 5-year warranty.

Product Overview

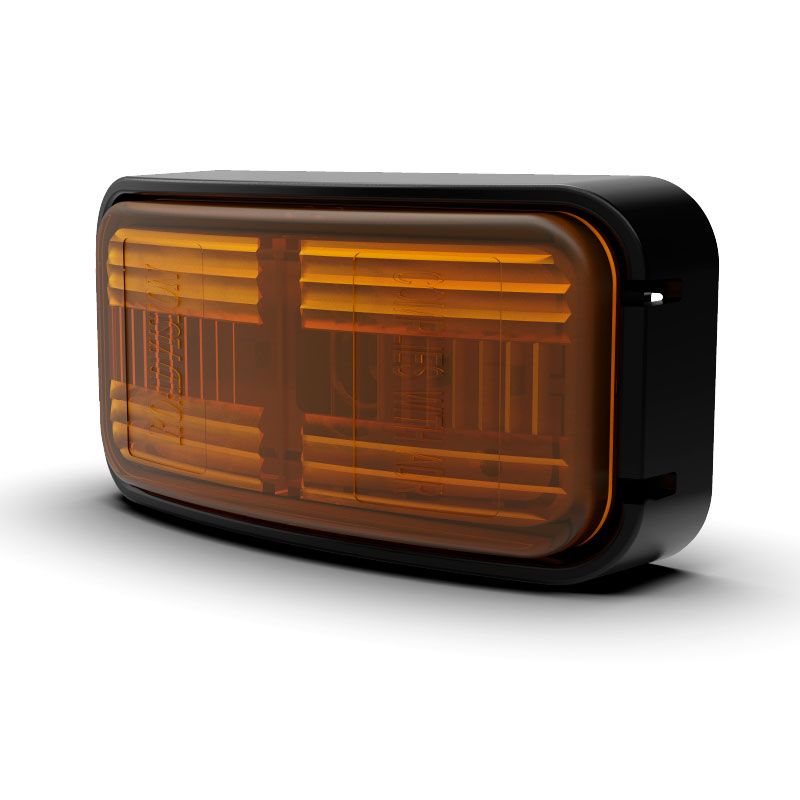

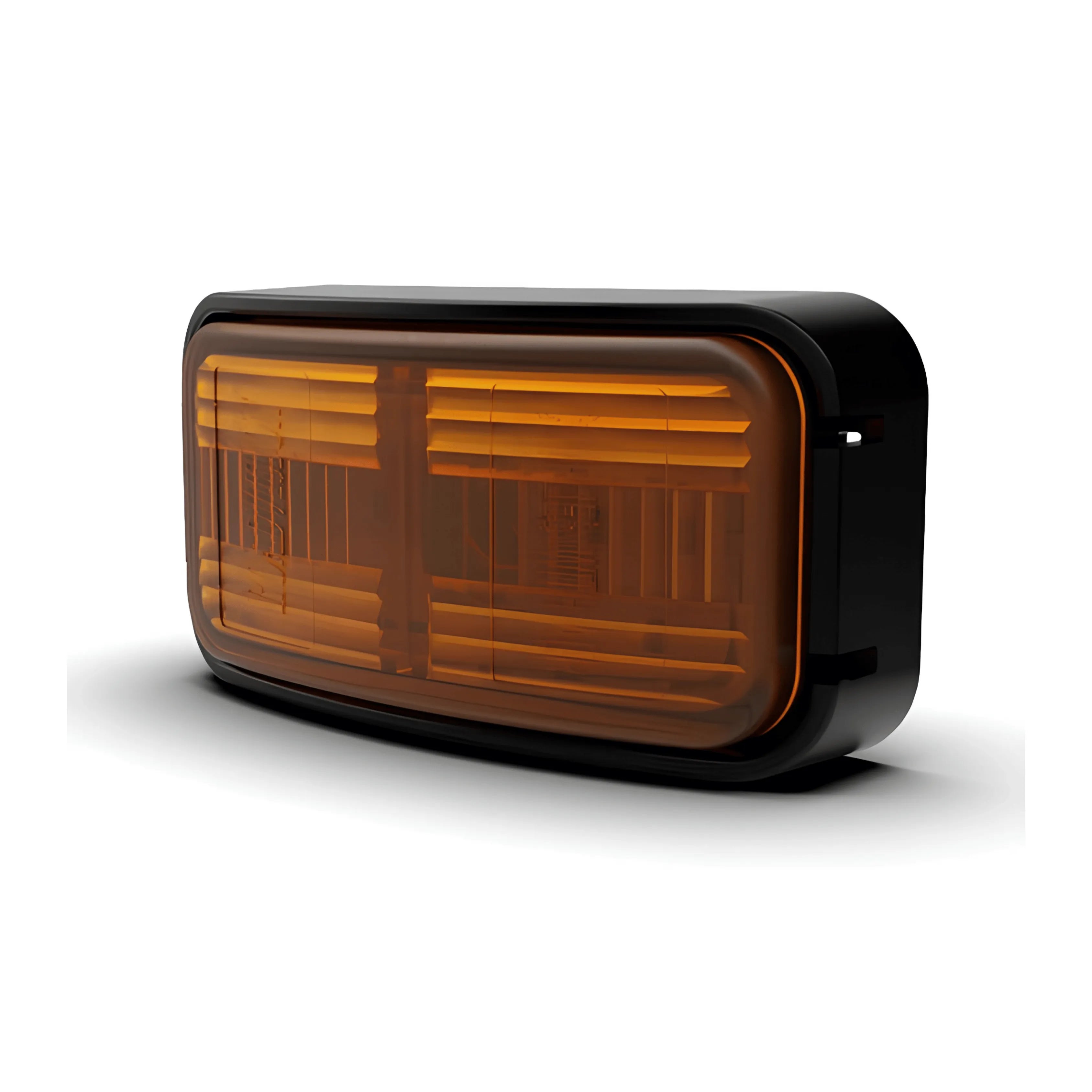

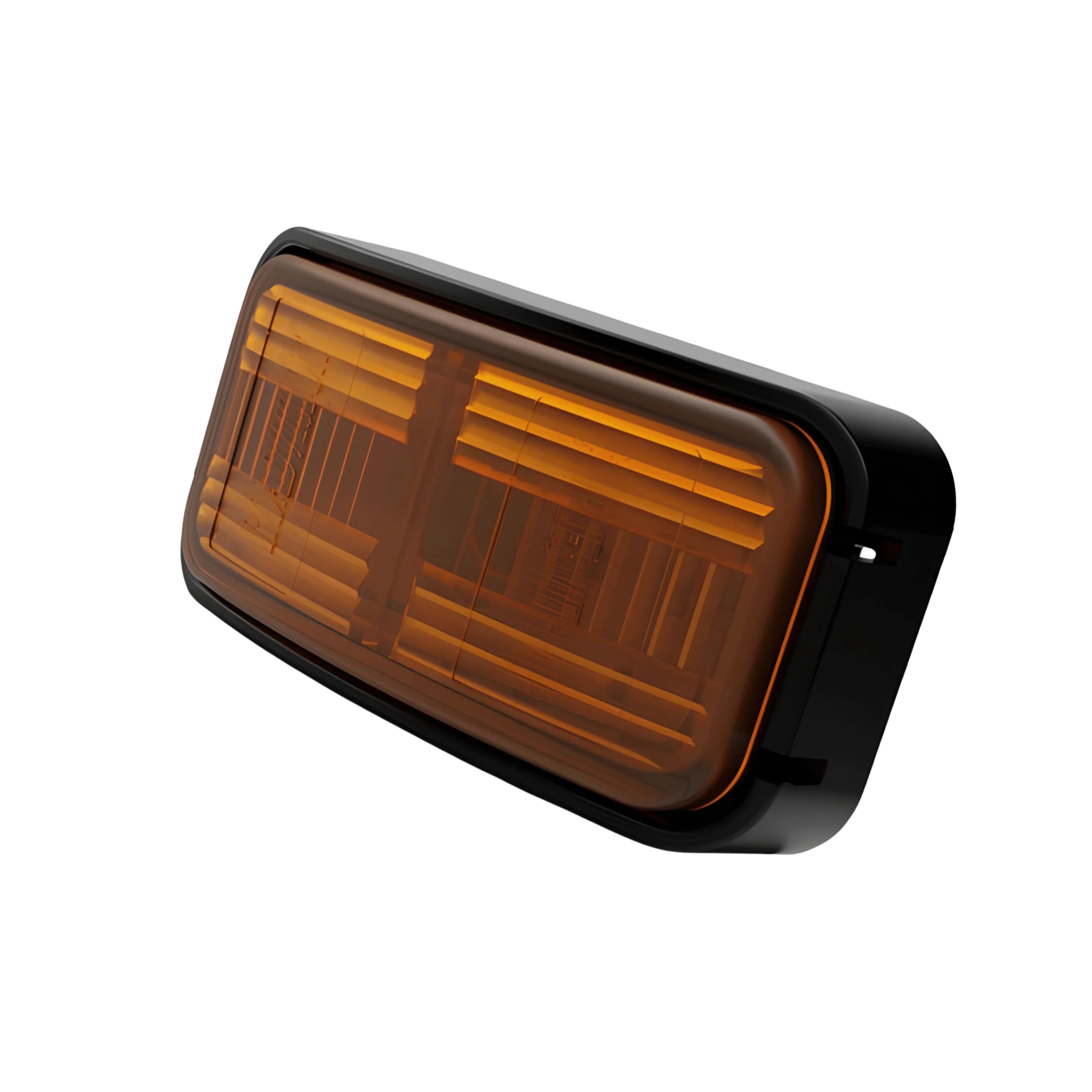

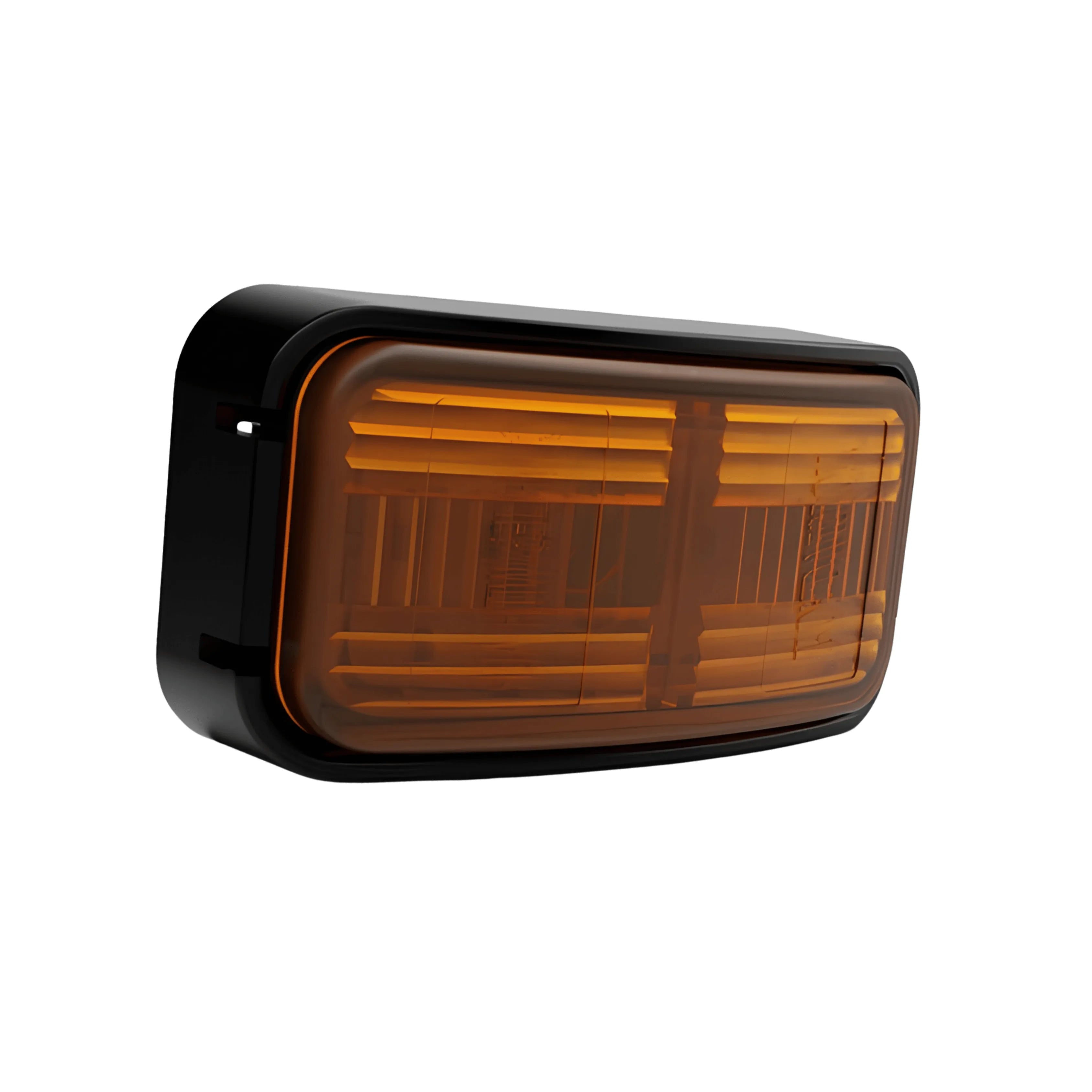

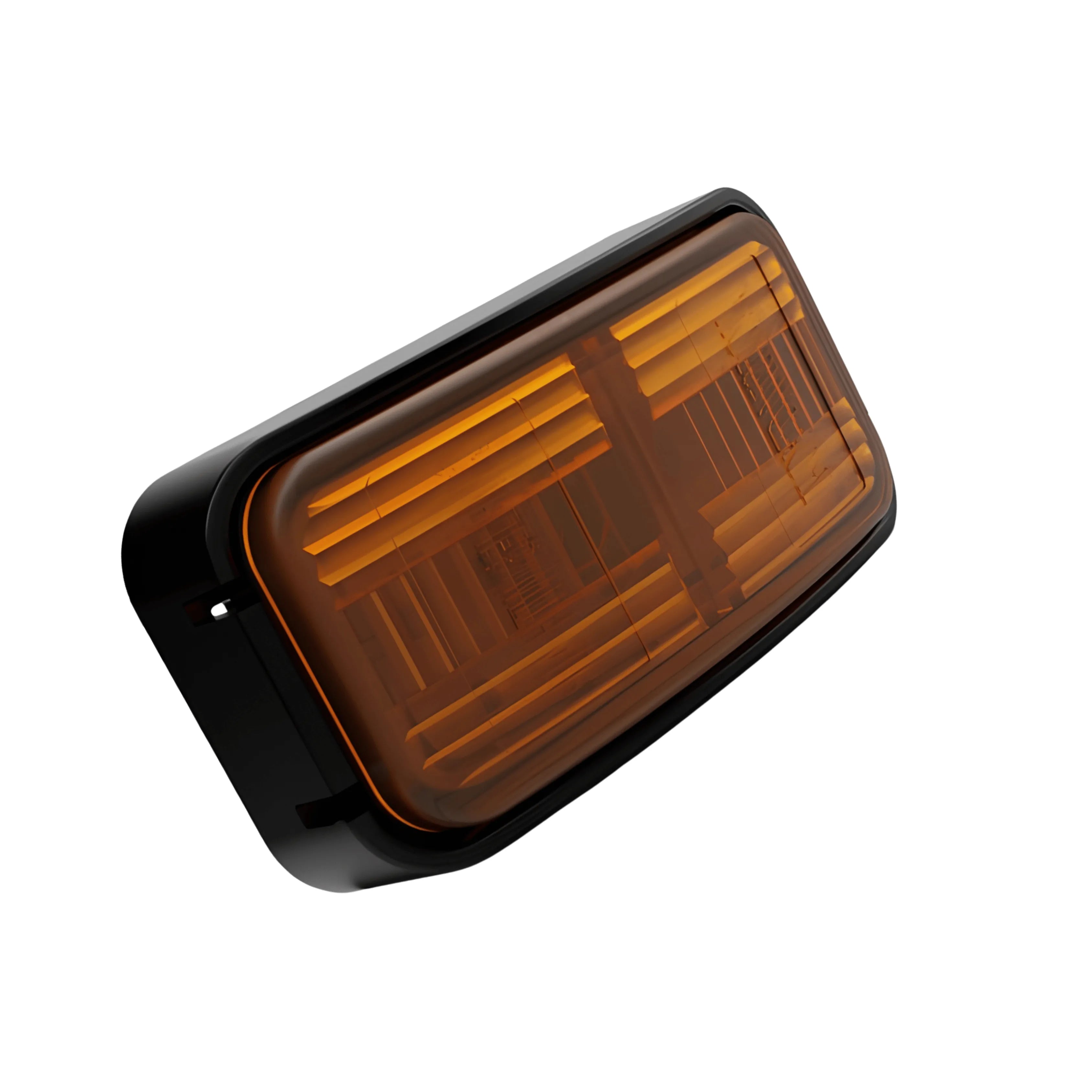

The Roadvision BR8A is a rectangle LED indicator and clearance lamp from the BR8 Series, designed as a fit-and-forget lighting solution for trailers, caravans, trucks, and commercial vehicles. Featuring 4 amber LEDs with a polycarbonate lens and ABS polycarbonate housing that is both dustproof and waterproof to IP67, the BR8A delivers outstanding visibility and road safety with a rated lifespan of 100,000 hours. The multi-volt 10-30V DC input makes it compatible with both 12V and 24V vehicle systems. CTA approved (CTA-062087) and ADR compliant. Pre-wired with a 300mm tinned copper cable with earth (white) and marker (brown) wires. Mounting cutout dimensions are 28.5mm and 50.8mm.

Features & Benefits

ADR Approved and CTA Certified: The BR8A is ADR approved and holds CTA approval CTA-062087, confirming compliance with Australian road safety requirements for indicator and clearance lamp applications.

IP67 Waterproof and Dustproof Rating: The IP67 rating provides full dust protection and waterproof protection against temporary immersion, suited to exposed trailer and vehicle body mounting locations in all weather conditions.

Polycarbonate Lens and Housing: Both the lens and housing are manufactured from unbreakable polycarbonate, providing exceptional impact resistance and long-term durability compared to standard acrylic or ABS alternatives.

4 Amber LEDs - 100,000 Hour Rated Lifespan: Four amber LEDs provide bright and reliable indicator and clearance light output with a rated lifespan of 100,000 hours, delivering maintenance-free performance over the long term.

Multi-Volt 10-30V DC Operation: Compatible with both 12V and 24V DC vehicle electrical systems without requiring a voltage adaptor, suited to passenger trailers, caravans, and heavy commercial vehicle applications.

300mm Tinned Copper Pre-Wired Cable: The 300mm tinned copper pre-wired cable with earth (white) and marker (brown) wires provides corrosion-resistant connections for reliable long-term performance in exposed environments.

5-Year Warranty: The BR8A is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR8A
Brand Roadvision
Series BR8
Description Indicator and Clearance Lamp Rectangle Amber
Function Indicator and Clearance
LED Quantity 4 Amber LEDs
Input Voltage 10-30V DC
Current Draw 0.05A at 13.8V
Dimensions 74mm x 38mm x 22mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate

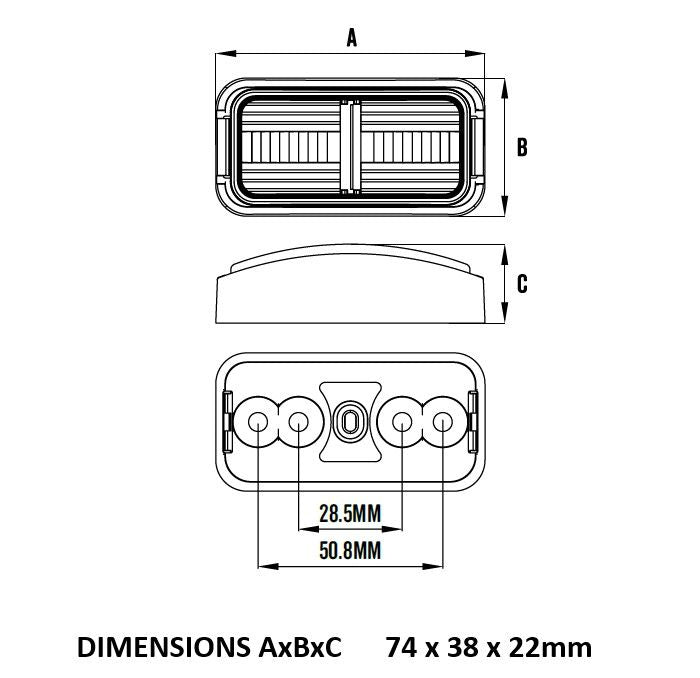

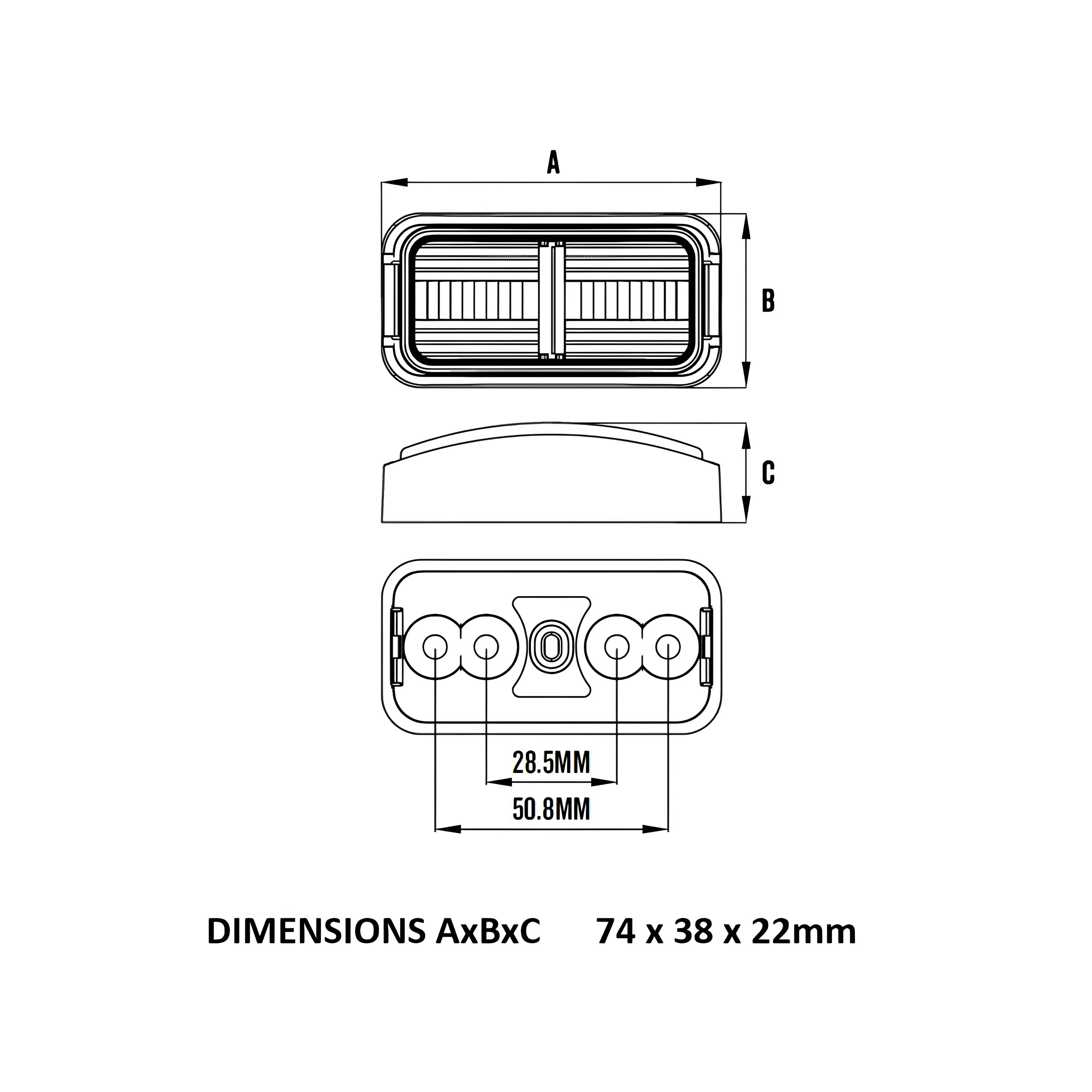

Mounting Hole/Cutout 28.5mm and 50.8mm
Cable Length 300mm Tinned Copper
Wiring Earth - White, Marker - Brown
IP Rating IP67
CTA Approval CTA-062087
ADR Approved Yes
Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR8A is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and CTA approved for on-road use. Confirm mounting cutout dimensions (28.5mm and 50.8mm) against your specific trailer or vehicle panel before purchase.

Frequently Asked Questions

Is the BR8A ADR approved for on-road use in Australia?

Yes. The BR8A is ADR approved and holds CTA approval CTA-062087, confirming it meets Australian road safety requirements for indicator and clearance lamp applications.

Is the BR8A compatible with 24V vehicles and trailers?

Yes. The BR8A operates across a 10-30V DC voltage range, making it compatible with both 12V and 24V vehicle and trailer electrical systems.

What is the rated lifespan of the BR8A?

The BR8A has a rated lifespan of 100,000 hours, providing long-term maintenance-free performance in trailer and vehicle lighting applications.

What are the mounting cutout dimensions for the BR8A?

The BR8A requires mounting cutouts of 28.5mm and 50.8mm. Confirm these dimensions against your specific mounting panel before purchase.

What is the cable length on the BR8A?

The BR8A is supplied with a 300mm tinned copper pre-wired cable with earth (white) and marker (brown) wires.
