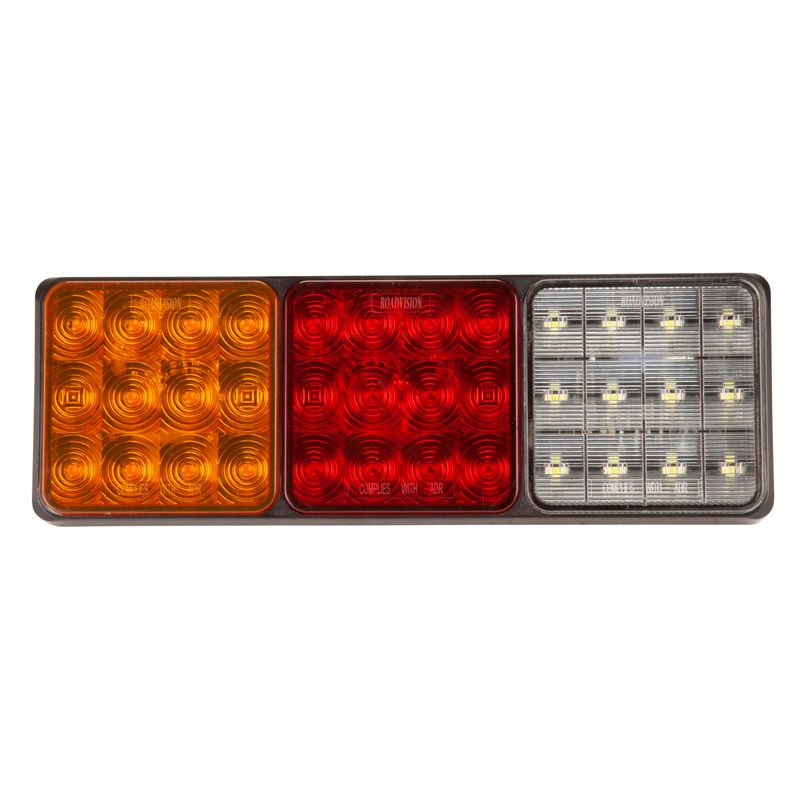

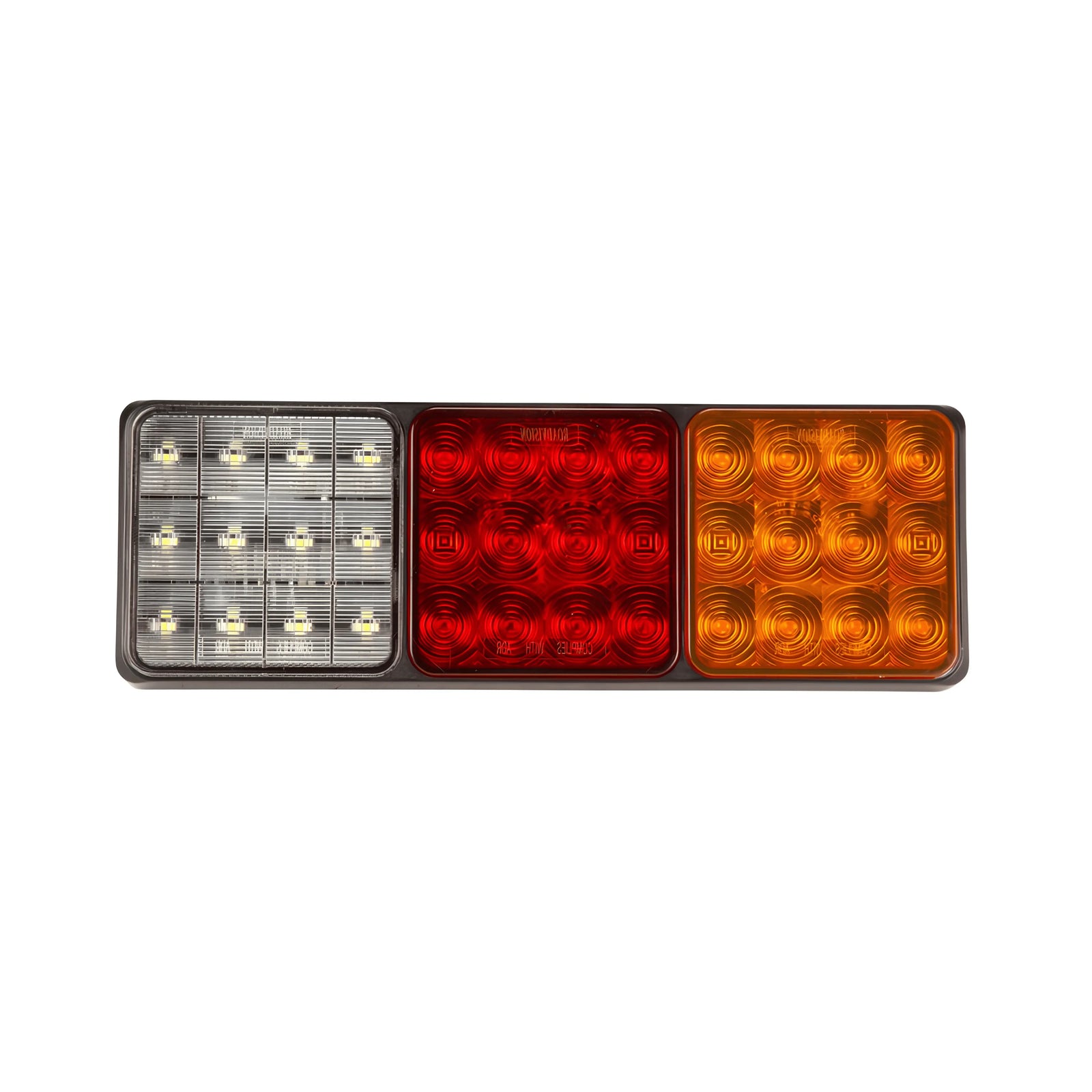

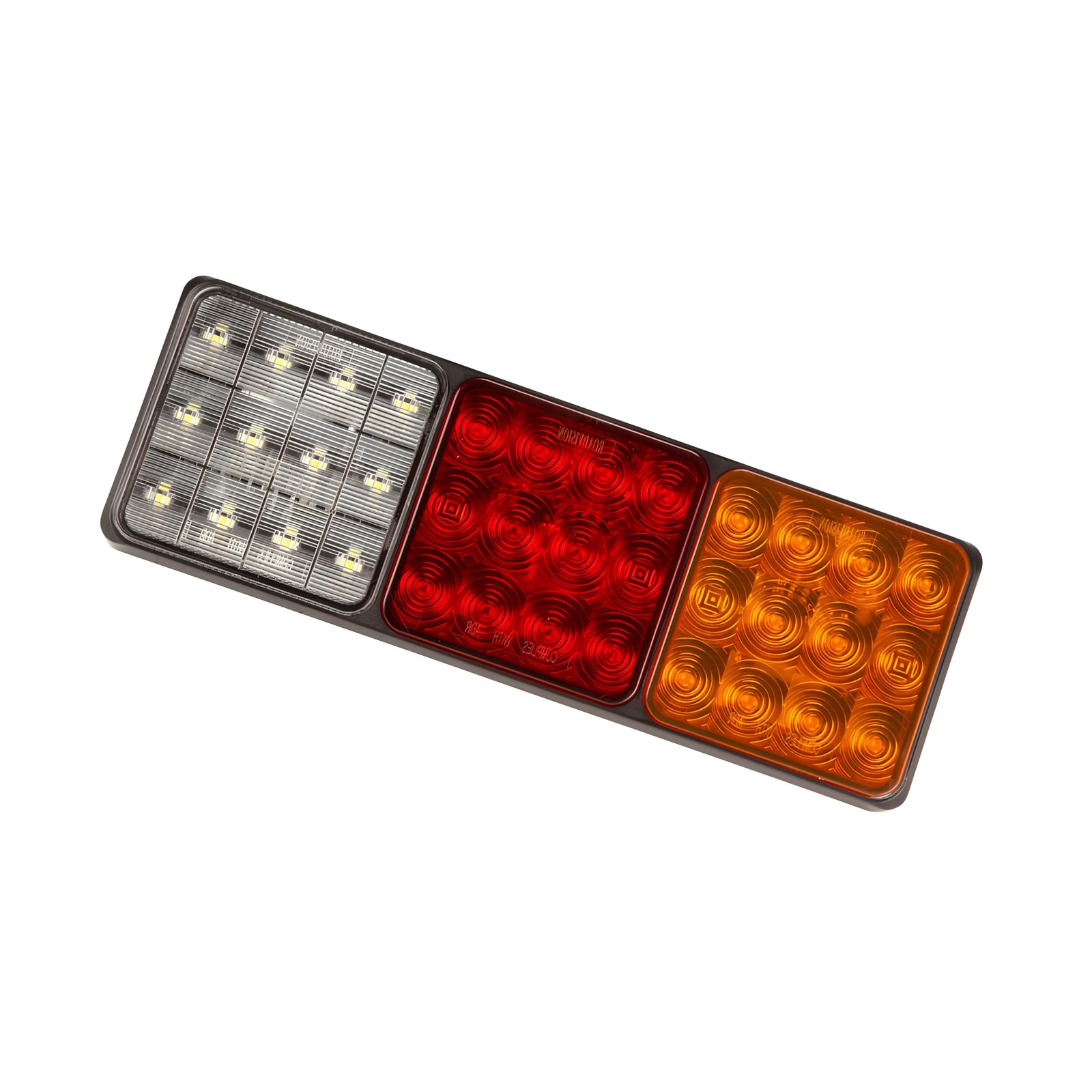

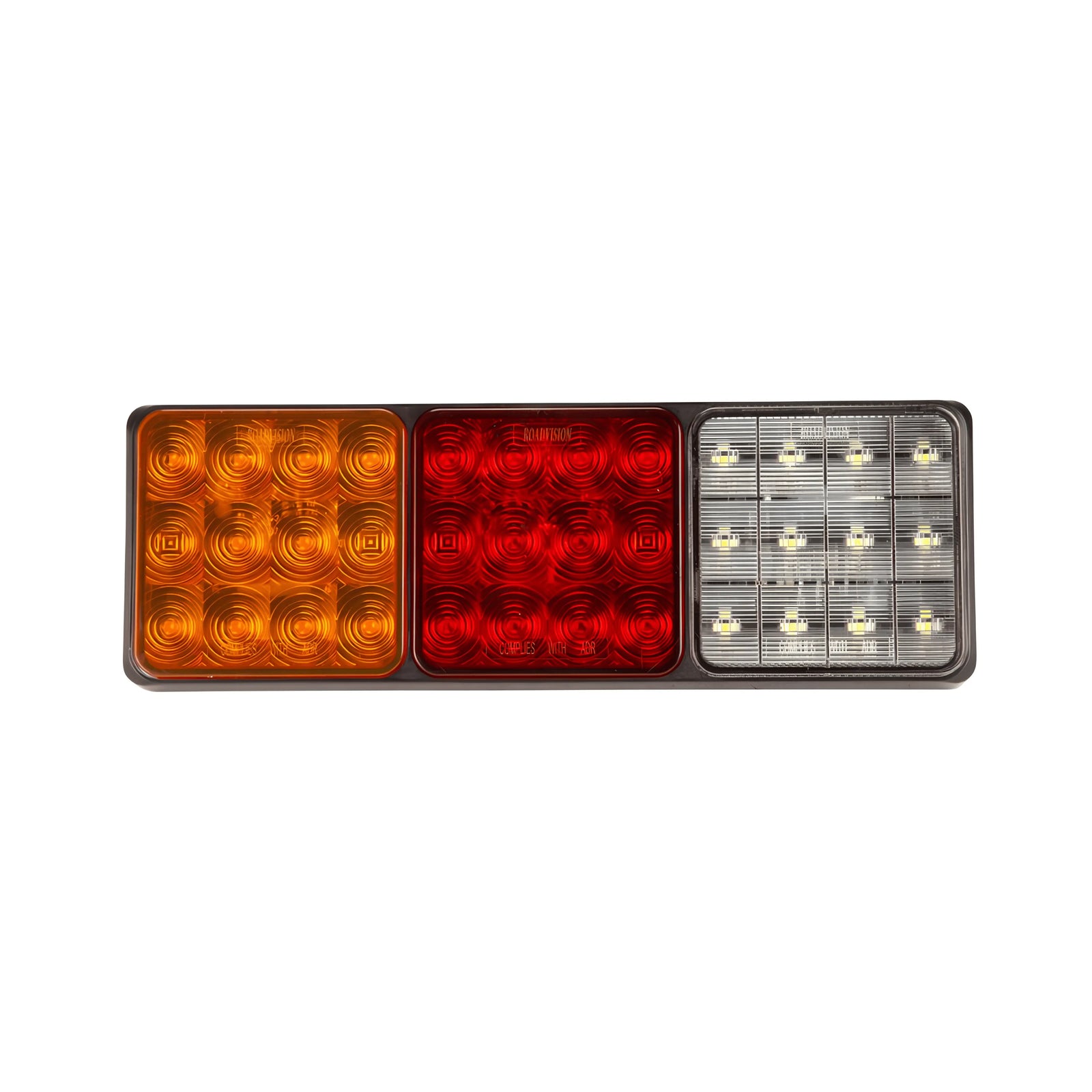

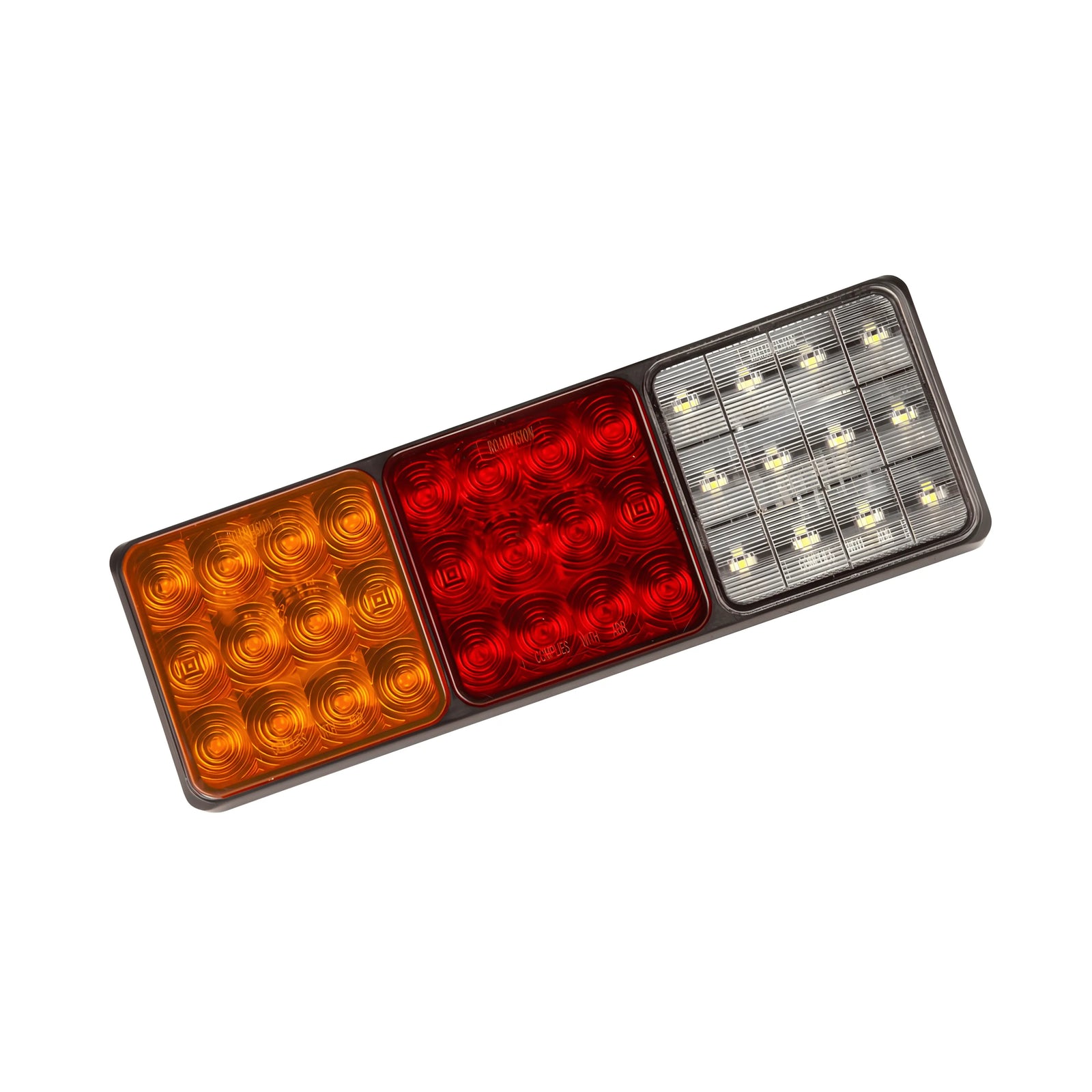

Roadvision BR82ARW LED Triple Combination Lamp Stop Tail Ind Reverse
Click to open expanded view

Roadvision BR82ARW LED Triple Combination Lamp Stop Tail Ind Reverse

SKU: BR82ARW
Price
$99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR82ARW LED Triple Combination Lamp Stop Tail Indicator and Reverse

An ADR-approved compact LED triple combination lamp from the Roadvision BR82 Series, the BR82ARW features stop, tail, indicator, and reverse functions with polycarbonate lens, high-impact ABS housing, 10-30V DC multi-volt input, 120mm stud centre mounting, and a 300mm tinned copper pre-wired cable with LEDLink connector, backed by a 5-year warranty.

Product Overview

The Roadvision BR82ARW is a compact LED triple combination lamp from the BR82 Series, providing stop, tail, indicator, and reverse functions in a single 282 x 95 x 30mm surface mount unit. Twelve indicator LEDs, 12 stop/tail LEDs, and 12 reverse LEDs deliver more light output than equivalent incandescent lamps while drawing a fraction of the current. Current draw at 13.8V is 0.1A for indicator, 0.1A/0.05A for stop/tail, and 0.1A for reverse. High-impact ABS housing with sealed polycarbonate lens. 120mm stud centre mounting. Pre-wired with a 300mm tinned copper sheathed cable with LEDLink connector with earth (white), stop (red), tail (brown), indicator (green or yellow), and reverse (black) wires. ADR approved with individual CRN numbers for indicator (CRN 49821), stop (CRN 49823), tail (CRN 49824), and reverse (CRN 49822) functions. CTA approval CTA-060786. Backed by a 5-year warranty.

Features & Benefits

Compact All-in-One Stop, Tail, Indicator, and Reverse Combination Lamp: The BR82ARW combines stop, tail, indicator, and reverse functions in a single compact 282 x 95 x 30mm rectangle unit, providing a complete rear combination lamp solution including reverse in a single assembly.

ADR Approved for All Functions: Individual ADR approval CRN numbers for indicator (CRN 49821), stop (CRN 49823), tail (CRN 49824), and reverse (CRN 49822) functions, and CTA approval CTA-060786, confirming compliance with Australian road safety requirements for all lamp functions.

12 LEDs Per Function - Indicator, Stop/Tail, and Reverse: Dedicated 12 LED arrays per function produce more light output than equivalent incandescent lamps while drawing significantly less current.

High-Impact ABS Housing with Sealed Polycarbonate Lens: Durable high-impact ABS housing with weatherproof sealed polycarbonate lens for long-term reliability.

100,000 Hour LED Lifespan - Fit and Forget: The 100,000 hour rated LED lifespan eliminates bulb replacements.

Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.

LEDLink Connector for Simple Wiring: The 300mm tinned copper sheathed cable with LEDLink connector provides reliable pre-wired connection to LEDLink trailer wiring systems.

120mm Stud Centre Surface Mount: Surface mount design with 120mm stud centres for straightforward installation.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR82ARW
Brand Roadvision
Series BR82
Description Rectangle Triple Combination - Stop/Tail, Indicator and Reverse
Functions Stop, Tail, Indicator, Reverse
LED Quantity - Indicator 12 LEDs
LED Quantity - Stop/Tail 12 LEDs
LED Quantity - Reverse 12 LEDs
Input Voltage 10-30V DC
Current Draw - Indicator 0.1A at 13.8V
Current Draw - Stop 0.1A at 13.8V
Current Draw - Tail 0.05A at 13.8V
Current Draw - Reverse 0.1A at 13.8V
Lens Construction Polycarbonate
Housing Construction High-Impact ABS
Dimensions 282mm x 95mm x 30mm
Mounting Hole Centre 120mm Stud Centres
Cable Length 300mm Tinned Copper Sheathed
Connector LEDLink
Wiring Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow, Reverse - Black
ADR Approval - Indicator CRN 49821
ADR Approval - Stop CRN 49823
ADR Approval - Tail CRN 49824
ADR Approval - Reverse CRN 49822
CTA Approval CTA-060786
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR82ARW is compatible with 10-30V DC trailer and vehicle electrical systems. The LEDLink connector is compatible with standard LEDLink trailer wiring systems. ADR and CTA approved for on-road use including reverse. Confirm mounting dimensions and wiring compatibility for your specific application before purchase. A stop/tail/indicator version without reverse is available as the BR82ARR.

Frequently Asked Questions

Is the BR82ARW ADR approved for on-road use?

Yes. The BR82ARW holds individual ADR approval CRN numbers for indicator (CRN 49821), stop (CRN 49823), tail (CRN 49824), and reverse (CRN 49822) functions, and CTA approval CTA-060786.

What is the difference between the BR82ARW and the BR82ARR?

The BR82ARW adds a reverse function with 12 dedicated reverse LEDs and a black reverse wire to the stop, tail, and indicator functions of the BR82ARR. Both share the same dimensions, housing, connector, and multi-volt input. Choose the BR82ARW where an integrated reverse lamp is required.

Is the BR82ARW compatible with 24V systems?

Yes. The BR82ARW operates across 10-30V DC, compatible with both 12V and 24V systems.

What wires are included on the BR82ARW?

Earth (white), stop (red), tail (brown), indicator (green or yellow), and reverse (black) wires on a 300mm tinned copper sheathed LEDLink cable.

What is the LED lifespan of the BR82ARW?

100,000 hours with maintenance-free solid-state technology.
