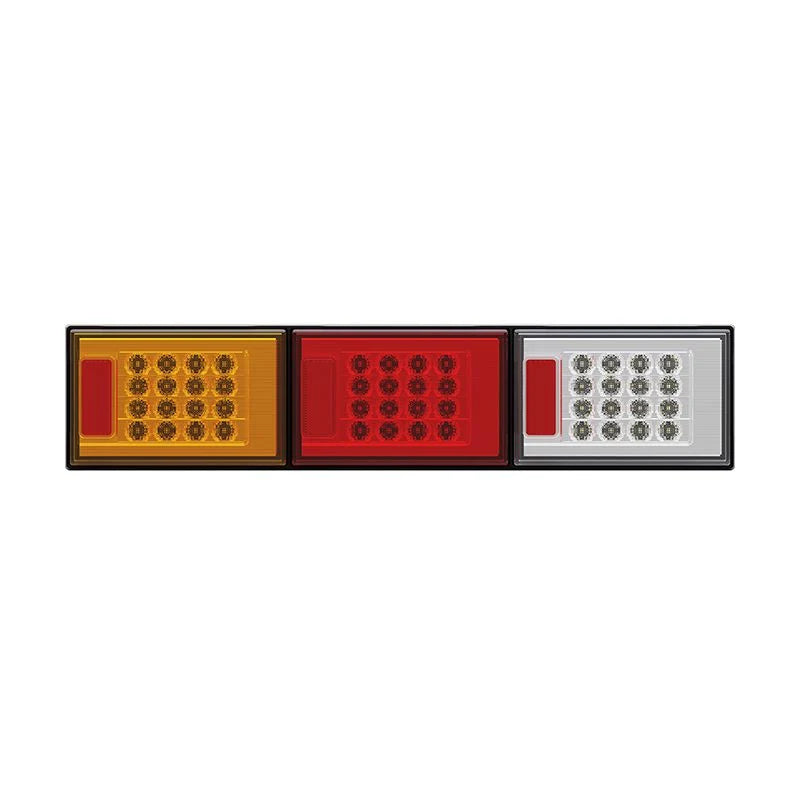

The complete heavy-duty lighting solution for trucks and trailers, the Roadvision BR602ARW integrates Stop, Tail, Indicator, and Reverse functions in one robust jumbo combination lamp with enhanced styling and maintenance-free LED technology.

Product Overview

The Roadvision BR602ARW LED Jumbo Combination Lamp represents the most comprehensive commercial vehicle lighting solution available, delivering maximum functionality in a robust, maintenance-free package. This all-in-one lighting solution integrates Stop, Tail, Indicator, Reverse functions, and integrated retro reflectors in a single 604mm surface-mount unit. Engineered with solid-state LED technology featuring 16 LEDs each for stop/tail, indicators, and reverse functions, the BR602ARW delivers superior visibility and safety across all lighting requirements while consuming only a fraction of the power of traditional incandescent lights. The multi-volt 10-30V DC input ensures compatibility with both 12V and 24V electrical systems commonly found in commercial vehicles, with impressively low current draw of just 0.11A for stop, 0.02A for tail, 0.11A for indicators, and 0.11A for reverse at 13.8V. Built tough for demanding environments, the BR602ARW features an unbreakable polycarbonate lens and rugged high-impact ABS housing that is fully sealed against dust and water ingress. The simple surface-mount design with mounting hole centres at 501mm and 325mm allows for straightforward installation and retro-fits perfectly in place of existing jumbo-style lamps. Rated to an impressive 100,000-hour LED lifespan, this ADR-approved combination lamp is a true fit-and-forget solution backed by Roadvision's comprehensive 5-year warranty. The integrated reverse function eliminates the need for separate reverse lamps, simplifying installation and reducing component count while the refreshed design enhances both aesthetics and performance, making it ideal for fleet operators, owner-operators, and anyone who demands reliability, performance, and durability in every kilometre.

Features & Benefits

Complete Integrated Multi-Function Design: Combines Stop, Tail, Indicator, Reverse, and integrated retro reflectors in one comprehensive 604mm unit, eliminating the need for separate reverse lamps while simplifying installation and reducing component count for total rear lighting coverage.

Maintenance-Free LED Technology: Solid-state LED construction with 100,000-hour rated lifespan eliminates bulb replacements and reduces downtime. 16 LEDs each for stop/tail, indicators, and reverse deliver superior brightness and instant-on response for enhanced safety in all conditions.

Multi-Volt Compatibility: 10-30V DC input voltage range ensures compatibility with both 12V and 24V electrical systems, making this lamp suitable for the full spectrum of commercial vehicles from light-duty trucks to heavy-duty prime movers and trailers.

Ultra-Efficient Operation: Exceptional low current draw of only 0.11A for stop, 0.02A for tail, 0.11A for indicators, and 0.11A for reverse at 13.8V reduces electrical system load significantly, enabling smaller wiring and circuit protection while improving fuel economy.

Unbreakable Construction: Lightweight yet tough polycarbonate lens and high-impact ABS housing withstand stone strikes, vibration, and harsh weather conditions while remaining fully sealed against dust and water ingress for reliable operation in demanding environments.

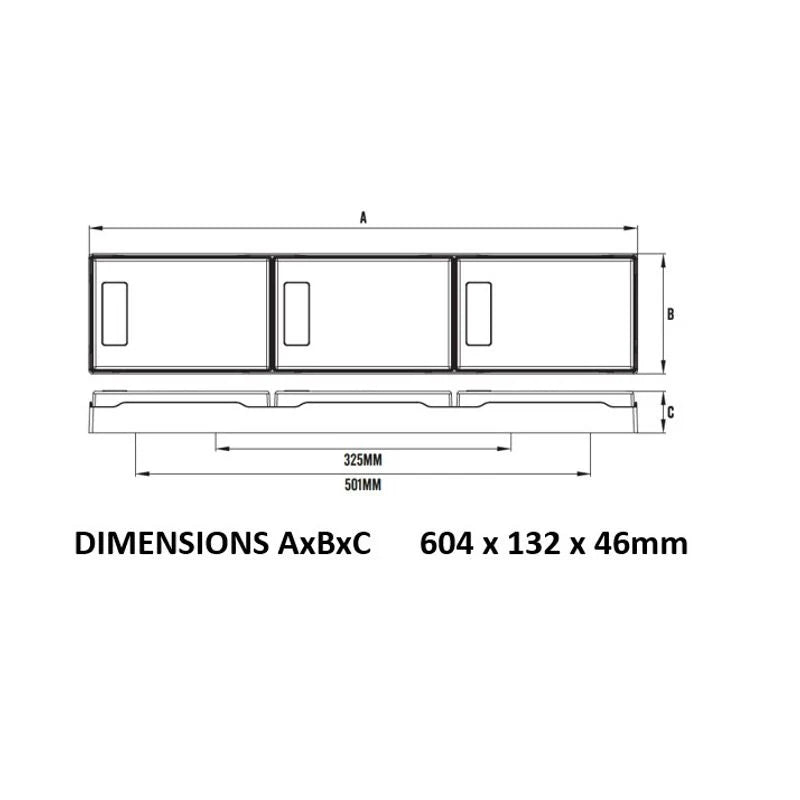

Simple Surface Mount Installation: Straightforward surface-mount design with 501mm and 325mm mounting hole centres retro-fits perfectly in place of existing jumbo-style lamps. 300mm tinned copper cable provides corrosion-resistant connections with color-coded wiring including reverse circuit for foolproof installation.

ADR Approved & Warranted: Full ADR approval (CTA-061849) ensures legal compliance for Australian road use across all functions including reverse. Comprehensive 5-year warranty demonstrates Roadvision's confidence in product quality and durability for demanding commercial applications.

Technical Specifications

Compatible With

The Roadvision BR602ARW LED Combination Lamp is compatible with all commercial vehicles operating on 10-30V DC electrical systems including trucks, trailers, semi-trailers, B-doubles, road trains, transporters, tippers, refrigerated vans, curtain-siders, heavy equipment transporters, and mobile machinery. Retro-fits directly in place of existing jumbo-style combination lamps with 501mm and 325mm mounting hole spacing. Ideal for fleet operators, owner-operators, transport companies, and commercial vehicle workshops requiring ADR-approved, maintenance-free lighting solutions with integrated reverse functionality for comprehensive rear lighting coverage.

Frequently Asked Questions

What is the difference between BR602ARW and BR602ARR models? The BR602ARW includes integrated reverse functionality with 16 LEDs dedicated to reverse lighting, 16 LEDs for stop/tail, and 16 LEDs for indicators. The BR602ARR focuses on dual stop/tail circuits with 32 LEDs dedicated to stop/tail functions and 16 LEDs for indicators but does not include reverse lighting capability.

Can this lamp be used on both 12V and 24V vehicles? Yes, the BR602ARW features multi-volt 10-30V DC input, making it compatible with both 12-volt light commercial vehicles and 24-volt heavy-duty trucks and trailers without any modifications or adjustments required, providing universal fitment across commercial vehicle applications.

How long will these LED combination lamps last? The BR602ARW is rated for 100,000 hours of operation, which translates to approximately 11.4 years of continuous use or decades of typical commercial vehicle operation. The solid-state LED technology eliminates bulb replacements and associated maintenance downtime, making it a true fit-and-forget solution.

Are these lamps ADR approved for legal road use in Australia? Yes, the BR602ARW is fully ADR approved under CTA-061849 for all functions including stop, tail, indicator, reverse, and integrated reflectors, ensuring full legal compliance for Australian road use on commercial vehicles and trailers.

Does the integrated reverse light eliminate the need for separate reverse lamps? Yes, the BR602ARW includes dedicated reverse functionality with 16 LEDs providing bright white reverse illumination, eliminating the need for separate reverse lamps in most applications. This simplifies wiring, reduces installation time, and provides comprehensive rear lighting coverage in a single unit.
