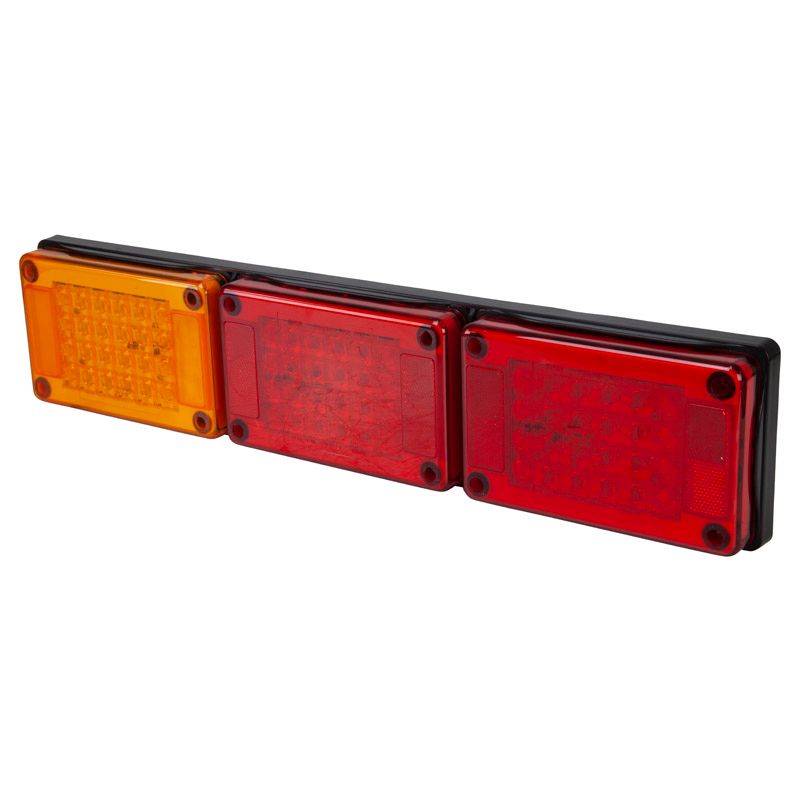

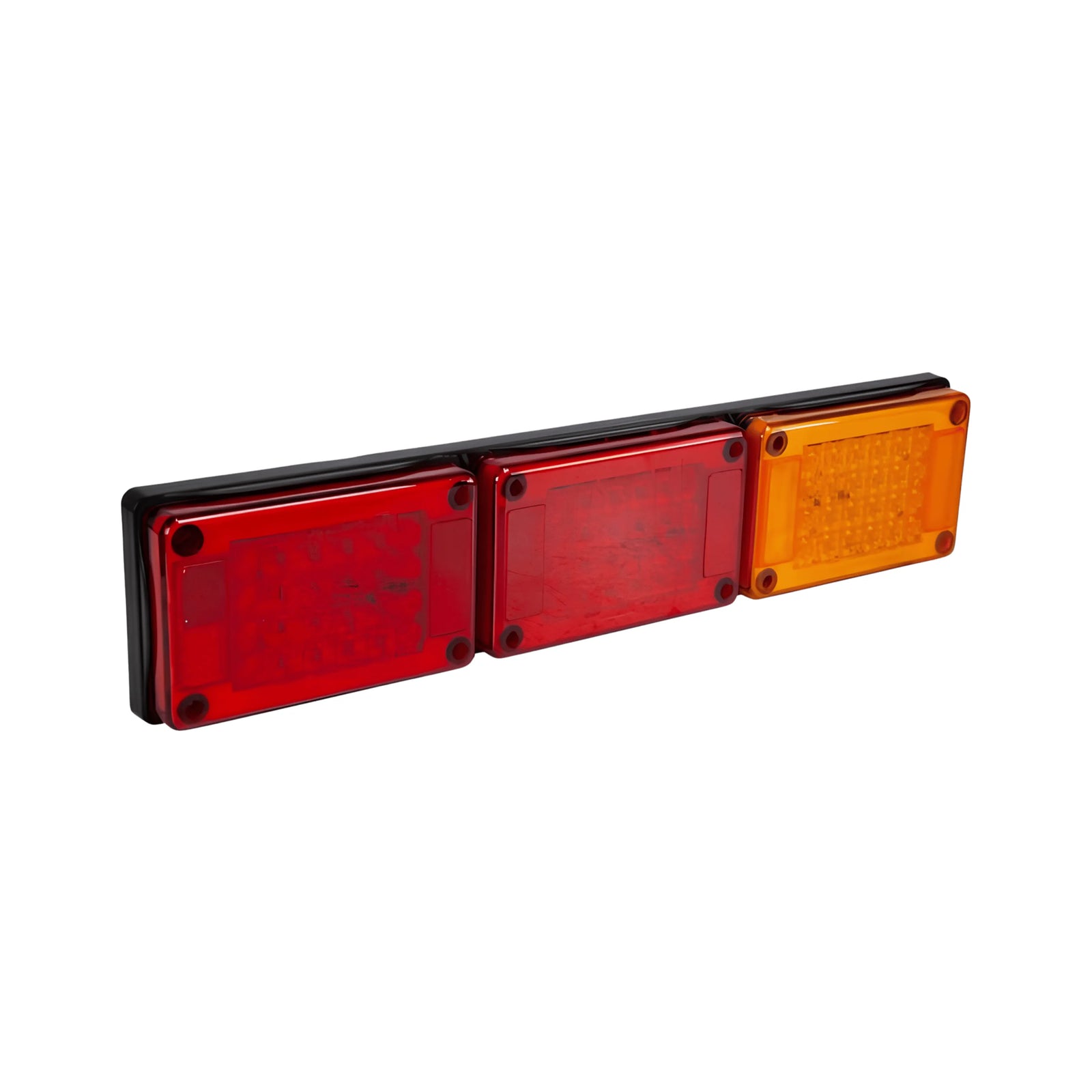

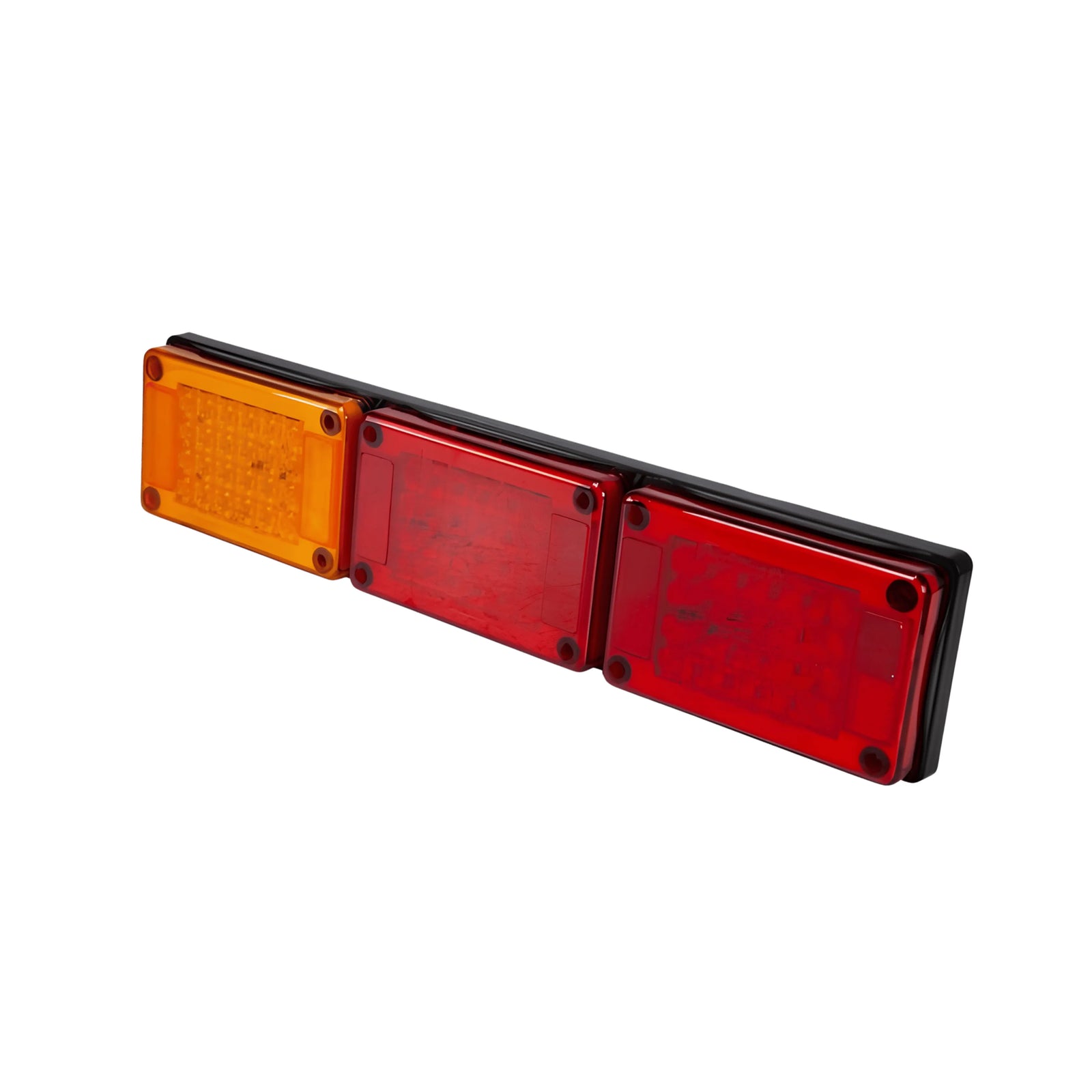

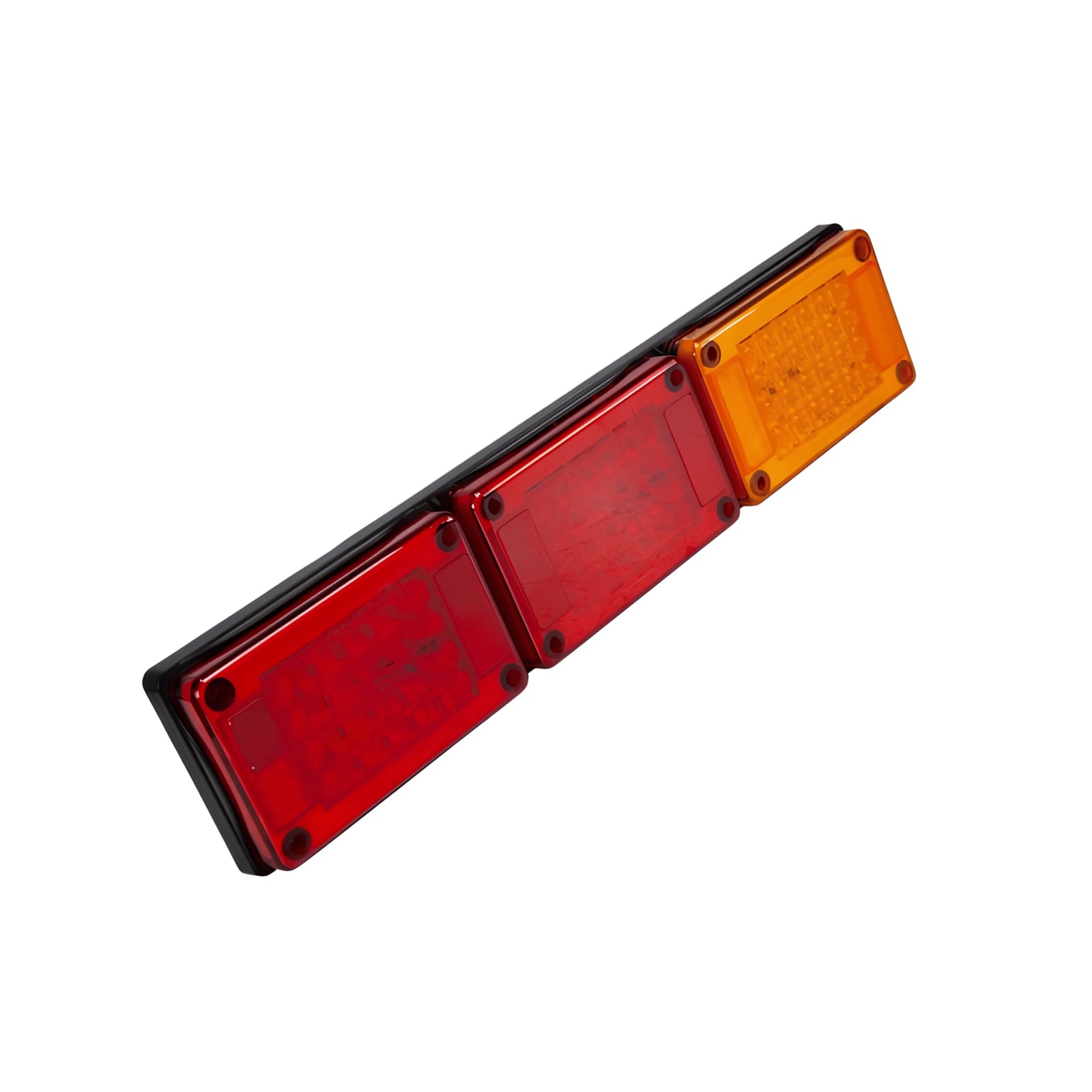

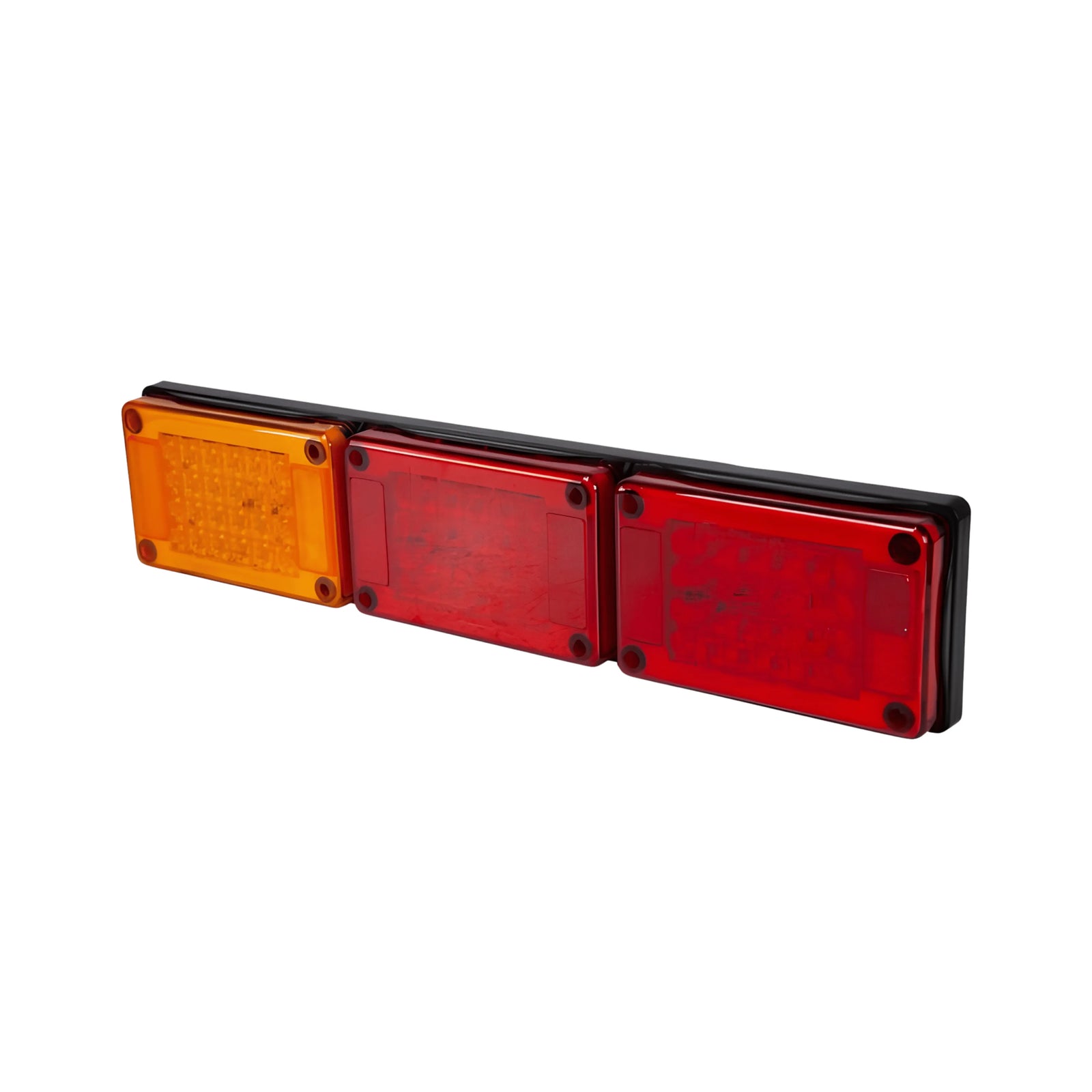

Roadvision BR601ARR LED Jumbo Combination Lamp Twin Stop Tail Ind
Roadvision BR601ARR LED Jumbo Combination Lamp Twin Stop Tail Ind
Click to open expanded view

Roadvision BR601ARR LED Jumbo Combination Lamp Twin Stop Tail Ind

SKU: BR601ARR
Price
$219
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR601ARR LED Jumbo Combination Lamp Twin Stop Tail Ind

A triple module LED jumbo combination lamp from the Roadvision BR601 Series, the BR601ARR combines twin stop/tail modules and an indicator with an integrated reflector, 10-30V DC multi-volt input, sealed polycarbonate lenses on a high impact ABS housing, a 100,000 hour rated LED lifespan, ADR/ECE approval for all functions, and a 5-year warranty.

Product Overview

The Roadvision BR601ARR is a heavy duty all-in-one rear lighting solution for trucks and trailers, running double stop/tail modules alongside the indicator in a single 604 x 132 x 41mm jumbo lamp for extra rear-facing presence. With 48 stop/tail LEDs and 24 indicator LEDs, it produces more light output than incandescent lamps while drawing a fraction of the current, at just 0.1A for the indicator and 0.1/0.05A for stop/tail at 13.8V.

The unbreakable sealed polycarbonate lenses and extremely tough high impact ABS housing are dust and water proof and totally maintenance free, with a 100,000 hour rated LED lifespan from solid-state technology. The simple surface mount design retro-fits in place of existing jumbo lamps on 501mm and 325mm mounting hole centres, and the lamp is supplied pre-wired with a 300mm LEDLink connector. All functions are ADR/ECE approved. With Roadvision it's fit and forget.

Features & Benefits

Twin Stop/Tail Modules for Extra Visibility: The BR601ARR runs two stop/tail modules with 48 LEDs in total alongside the indicator module, boosting rear-facing brake and tail presence on heavy vehicles.

All-In-One Heavy Duty Combination Lamp: Stop/tail, indicator, and reflector functions are combined in one triple module jumbo lamp, replacing multiple separate lamps on the rear of trucks and trailers.

Retro-Fits Existing Jumbo Lamps: The simple surface mount design retro-fits in place of existing jumbo combination lamps, making it a straightforward LED upgrade for heavy vehicles.

More Light, Less Current: The BR601 Series produces more light output than conventional incandescent systems while drawing a fraction of the current at 13.8V.

100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for totally maintenance-free operation over the life of the vehicle.

Unbreakable Polycarbonate Lenses and High Impact ABS Housing: The sealed polycarbonate lenses and extremely tough high impact ABS housing are dust and water proof, built for heavy duty road exposure.

Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input makes the BR601ARR compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

ADR/ECE Approved for All Functions: The indicator, stop, and tail functions are all ADR/ECE approved for legal on-road use in Australia.

Pre-Wired with LEDLink Connector: The lamp is supplied pre-wired with a 300mm LEDLink connector for a quick, tidy connection to the vehicle harness.

5-Year Warranty: The BR601ARR is backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR601ARR
Brand Roadvision
Series BR601 Combination
Description Rect Stop/Tail(x2)/Ind Lamp Triple Module
Functions Stop/Tail (x2), Indicator and Reflector
Voltage Input 10-30V DC
Number of LEDs Indicator - 24 LEDs, Stop/Tail - 48 LEDs
Current Draw Indicator - 0.1A, Stop/Tail - 0.1/0.05A at 13.8V

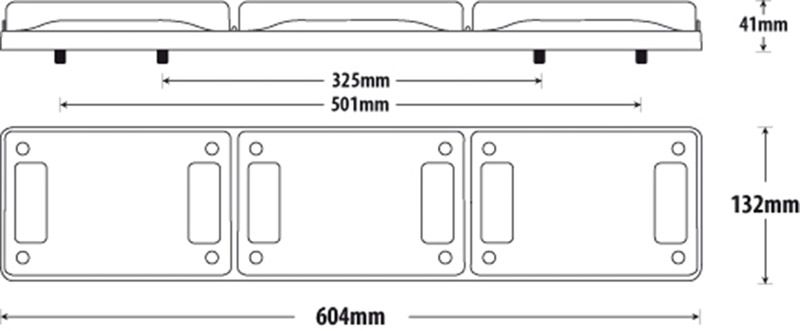

Dimensions 604 x 132 x 41mm
Lens Polycarbonate
Housing ABS High Impact
Ingress Protection Water and Dust Proof
Mounting Type Surface Mount
Mounting Hole Centres 501mm and 325mm
Cable 300mm with LEDLink Connector
ADR Approval Indicator - CRN 46082, Stop - CRN 46121, Tail - CRN 46120
CTA Approval CTA-060775
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR601ARR is compatible with 10-30V DC electrical systems, covering both 12V and 24V trucks and trailers, and is ADR/ECE approved for all functions for on-road use in Australia. The surface mount design retro-fits in place of existing jumbo lamps. The BR601 Series is also available as a twin module stop/tail/indicator (BR601AR) and a triple module with reverse (BR601ARW). Confirm the 604mm lamp length and 501mm/325mm mounting hole centres fit your intended location before purchase.

Frequently Asked Questions

What functions does the BR601ARR include?

The BR601ARR combines twin stop/tail modules with 48 LEDs, a 24 LED indicator module, and an integrated reflector in a single triple module jumbo lamp.

Why does the BR601ARR have two stop/tail modules?

The double stop/tail configuration doubles the brake and tail LED count to 48 for extra rear-facing visibility on heavy vehicles, in place of the reverse module found on the BR601ARW.

Is the BR601ARR ADR approved?

Yes. All functions are ADR/ECE approved, with indicator CRN 46082, stop CRN 46121, tail CRN 46120, and CTA approval CTA-060775.

Is the BR601ARR compatible with 24V trucks?

Yes. The BR601ARR operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

Can the BR601ARR replace my existing jumbo lamp?

Yes. The simple surface mount design retro-fits in place of existing jumbo combination lamps, with 501mm and 325mm mounting hole centres. Confirm your existing mounting positions before purchase.
