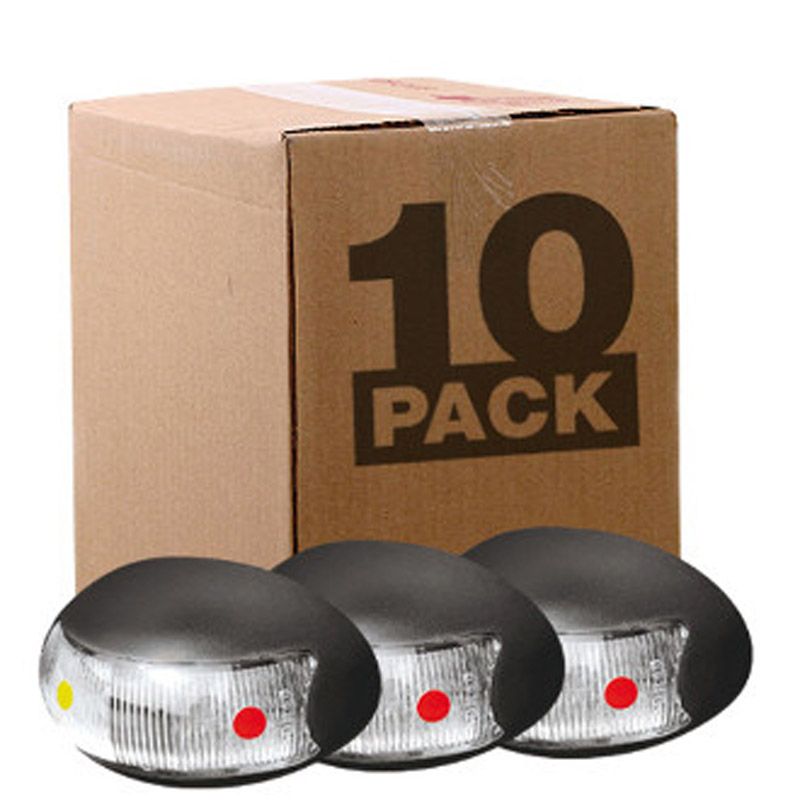

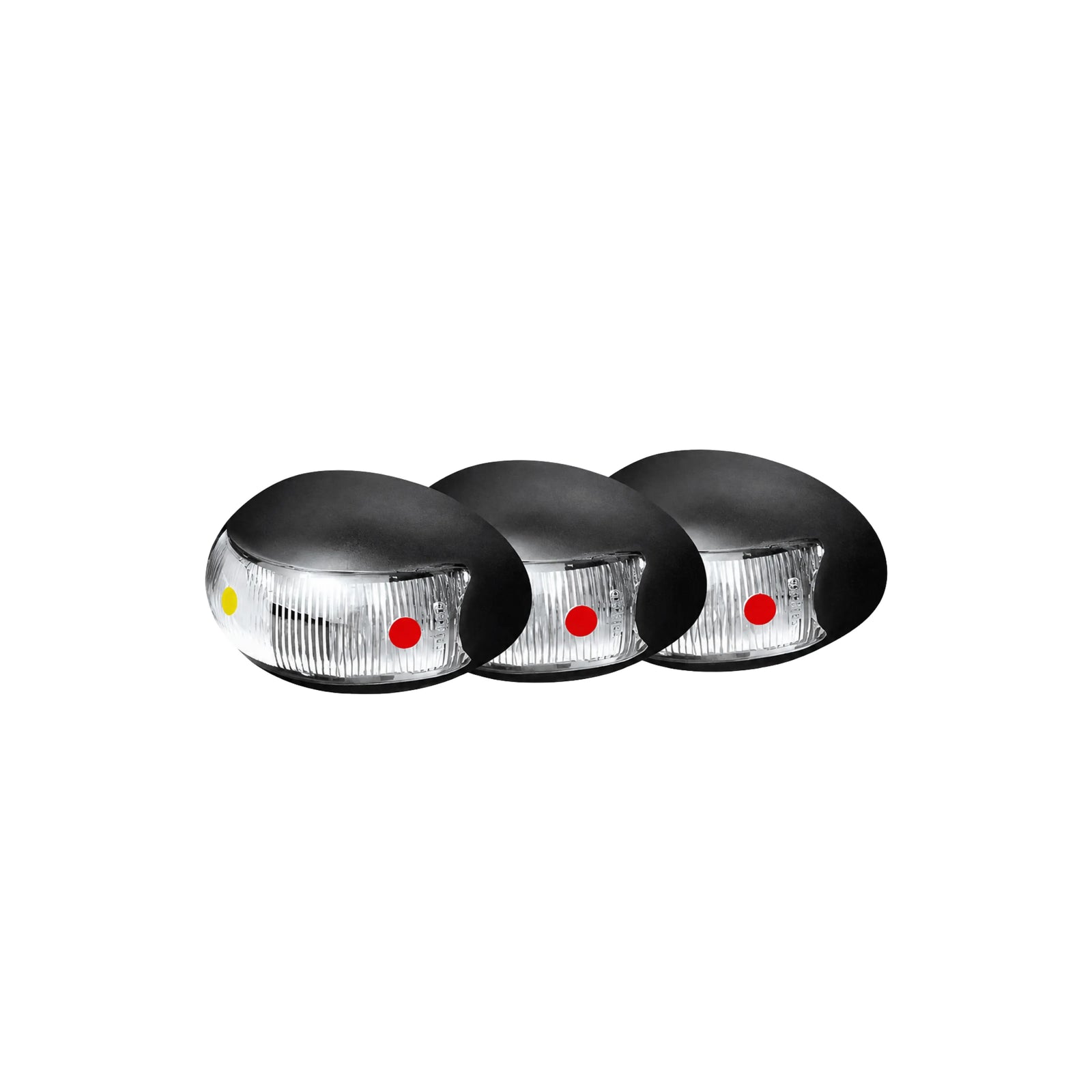

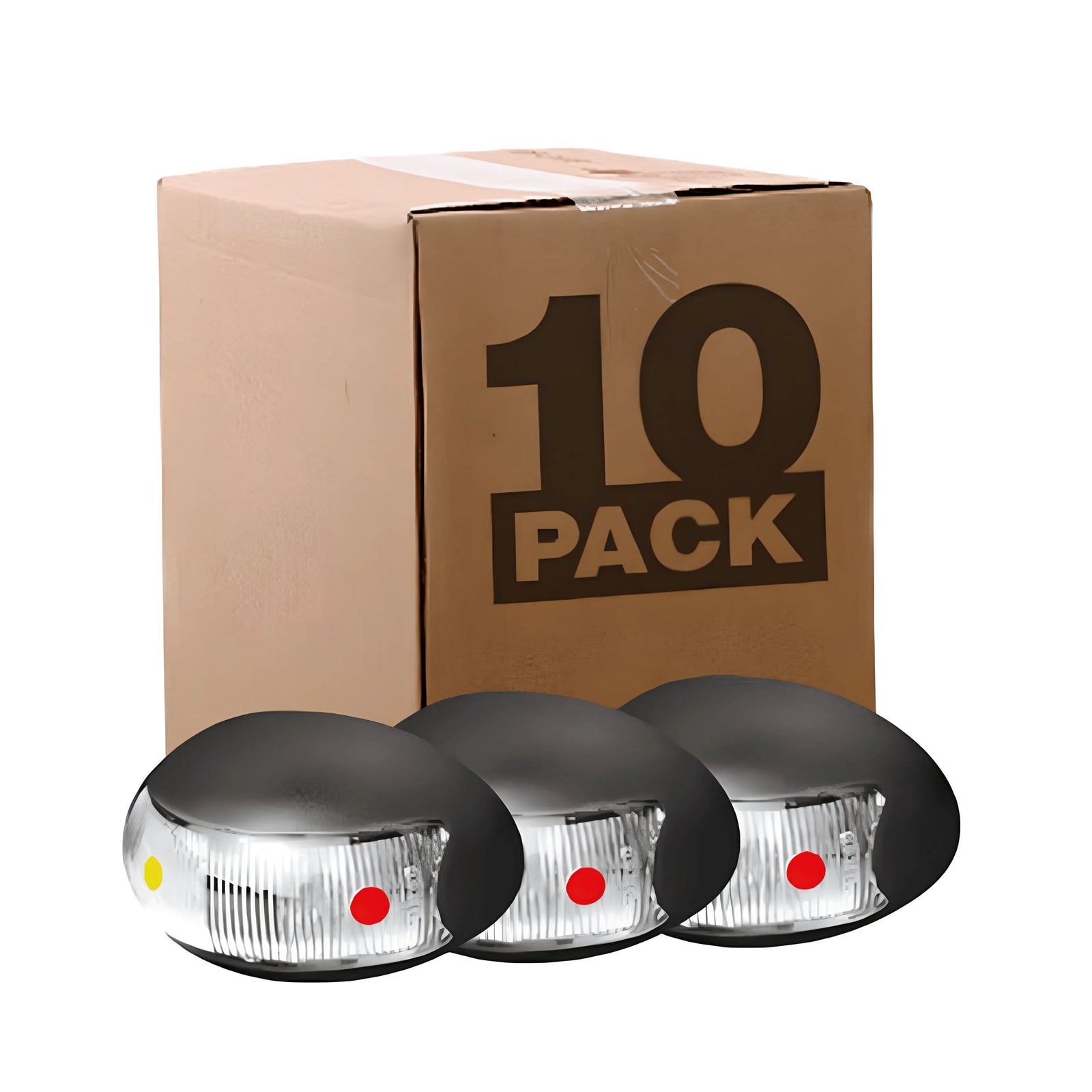

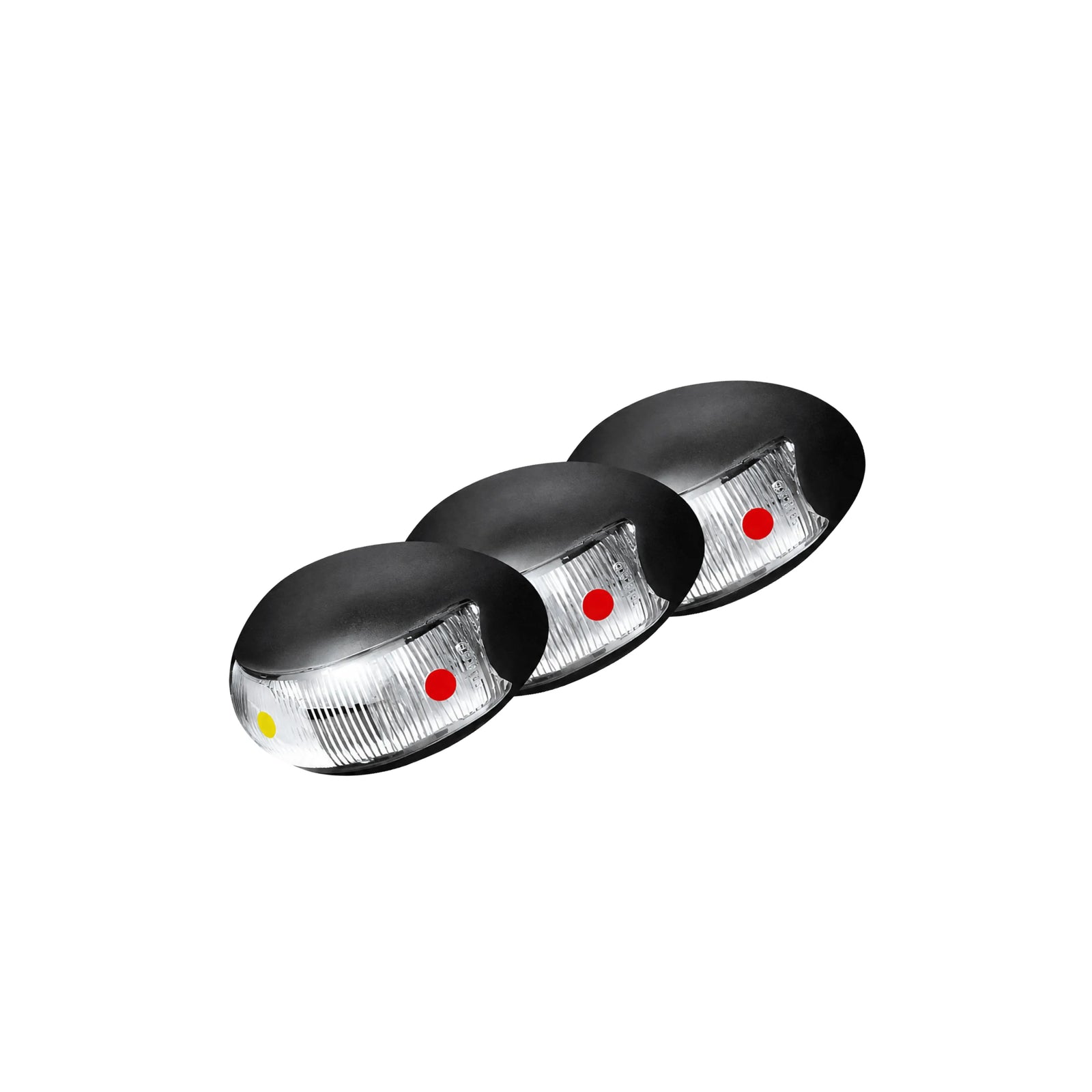

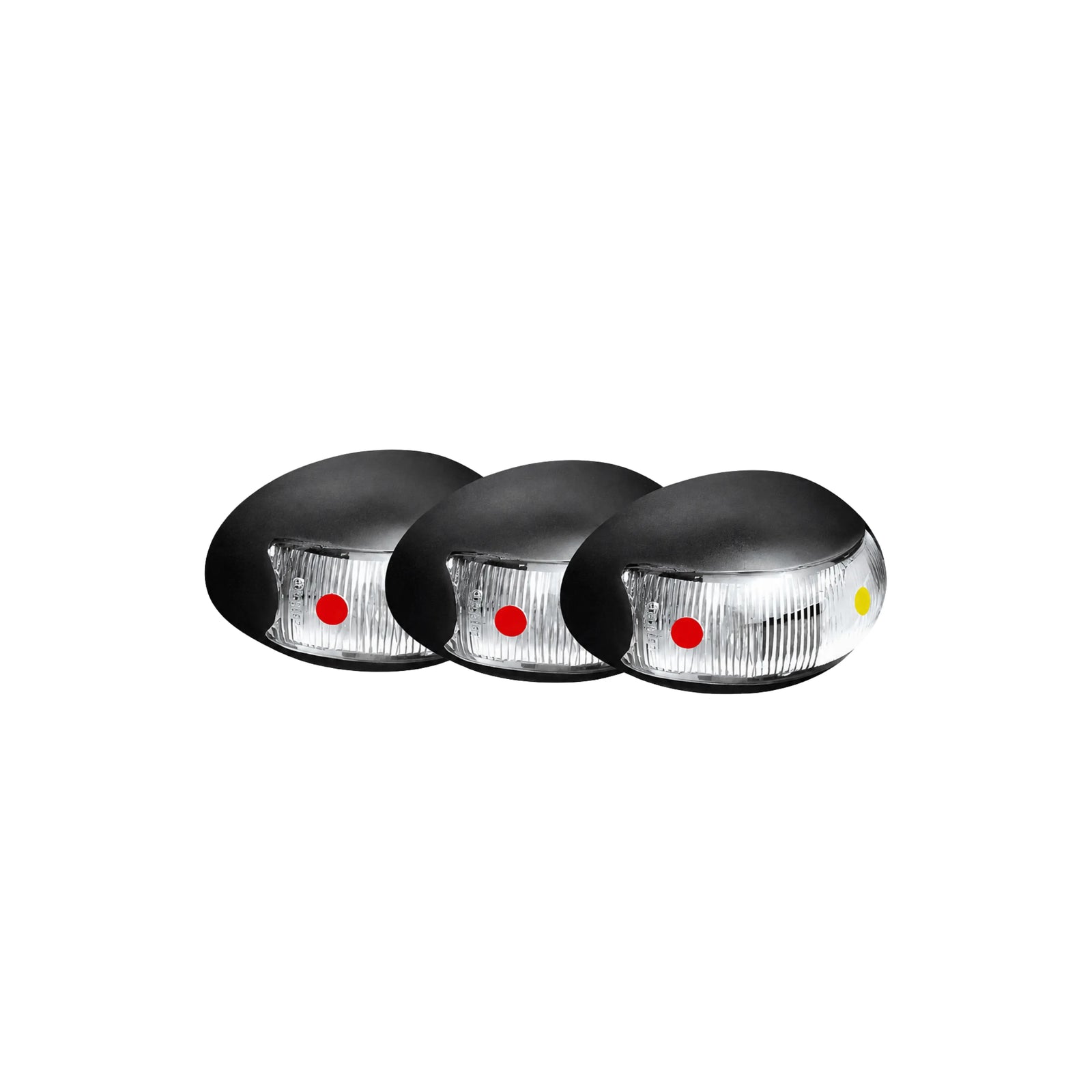

Roadvision BR3ARLB10 LED Side Marker Lamp Red Amber Oval 10 Pack
Click to open expanded view

Roadvision BR3ARLB10 LED Side Marker Lamp Red Amber Oval 10 Pack

SKU: BR3ARLB10
Price
$169
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR3ARLB10 LED Side Marker Lamp Red Amber Oval 10 Pack

A bulk 10 pack of compact oval LED side marker lamps from the Roadvision BR3 Series, the BR3ARLB10 features 1 red and 1 amber LED per lamp for clearance side marker duties, 10-30V DC multi-volt input, a 60 x 37mm sealed polycarbonate lens on a high impact ABS housing, 2.5m tinned copper leads, a 100,000 hour rated LED lifespan, and ADR/ECE approval.

Product Overview

The Roadvision BR3ARLB10 is a 10 pack of the BR3ARL red/amber side marker lamp, part of the BR3 Series of super bright LED marker lamps built to be brighter, safer, stronger, easier to fit, longer lasting, and better looking. Each lamp produces more light output than incandescent marker lamps while drawing a fraction of the current, at just 0.05A at 13.8V, with 1 red and 1 amber LED providing clearance side marker indication on trailers, trucks, and commercial vehicles.

The compact 60 x 37 x 32mm body allows fitment into tight applications, with an unbreakable sealed polycarbonate lens and an extremely tough high impact ABS housing that is water and dust proof, vibration resistant, and totally maintenance free with a 100,000 hour rated LED lifespan. Each lamp surface or bracket mounts on 29mm mounting centres with separate clip-in lenses and surface mount bases, and connects via an easy 2-wire installation with a generous 2.5m tinned copper lead. All functions are ADR/ECE approved. With Roadvision it's fit and forget.

Features & Benefits

Bulk 10 Pack for Fleet and Trailer Fit-Outs: The BR3ARLB10 supplies ten red/amber side marker lamps in one box, covering a full trailer, truck body, or workshop stock in a single purchase.

Red and Amber LED Side Marker: Each lamp carries 1 red and 1 amber LED, providing ADR approved clearance side marker indication for trailers, trucks, and commercial vehicles.

More Light, Less Current: The BR3 Series produces more light output than incandescent marker lamps while drawing a fraction of the current, at just 0.05A per lamp at 13.8V.

100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for totally maintenance-free operation over the life of the vehicle.

Compact Body for Tight Applications: The 60 x 37 x 32mm oval body allows fitment into tight spots along chassis rails, mudguards, and bodywork.

Unbreakable Polycarbonate Lens and High Impact ABS Housing: The sealed polycarbonate lens and extremely tough high impact ABS housing are water and dust proof and vibration resistant, standing up to everyday road exposure.

Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input makes each lamp compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.

2.5m Tinned Copper Leads: Each lamp is pre-wired with a 2.5m tinned copper lead, giving plenty of length to reach the harness on trailers and truck bodies without joins.

Easy Surface or Bracket Mount Installation: Separate clip-in lenses and surface mount bases with 29mm mounting centres and easy 2-wire installation make fitment quick and straightforward.

ADR/ECE Approved: The BR3ARL side marker lamp holds ADR approval CRN 46318 and CTA approval CTA-060714 for legal on-road use in Australia.

Technical Specs

Specification Detail
SKU BR3ARLB10
Brand Roadvision
Series BR3 Marker
Description Marker Lamp LED 10-30V 60x37mm Oval Surface/Bracket Mount Red/Amber 10 Pack
Pack Quantity 10 Lamps
Functions Clearance Side Marker
Voltage Input 10-30V DC
Number of LEDs 1 Red and 1 Amber LED per Lamp
Current Draw 0.05A at 13.8V
Dimensions 60 x 37 x 32mm
Lens Polycarbonate
Housing High Impact ABS
Ingress Protection Water and Dust Proof
Mounting Surface/Bracket Mount, 29mm Mounting Centres
Cable Length 2.5m Tinned Copper
ADR Approval CRN 46318
CTA Approval CTA-060714
LED Lifespan 100,000 Hours
Warranty Not specified

Compatible With

The BR3ARLB10 is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V trailers, trucks, and commercial vehicles, and is ADR/ECE approved for clearance side marker use in Australia. The BR3 Series is also available as single lamps in red/amber (BR3ARL), amber (BR3A), red (BR3R), and white (BR3W). Confirm the 29mm mounting centres and your intended marker positions before purchase.

Frequently Asked Questions

How many lamps are included in the BR3ARLB10?

The BR3ARLB10 is a bulk box of 10 BR3ARL red/amber LED side marker lamps, each pre-wired with a 2.5m tinned copper lead.

What function are these lamps approved for?

Each lamp is ADR/ECE approved as a clearance side marker, with 1 red and 1 amber LED, holding ADR approval CRN 46318 and CTA approval CTA-060714.

Are these compatible with 24V trucks?

Yes. Each lamp operates across 10-30V DC, making the pack compatible with both 12V and 24V vehicle electrical systems.

Are the lamps waterproof?

Yes. The sealed polycarbonate lens and high impact ABS housing are water and dust proof and vibration resistant, built for external fitment in everyday road conditions.

How do the lamps mount and wire up?

Each lamp surface or bracket mounts on 29mm mounting centres, with separate clip-in lenses and surface mount bases, and connects via an easy 2-wire installation using the 2.5m tinned copper lead.
