Roadvision BR280ARW LED Combination Lamp Stop Tail Ind Reverse Fog
Roadvision BR280ARW LED Combination Lamp Stop Tail Ind Reverse Fog
Click to open expanded view

Roadvision BR280ARW LED Combination Lamp Stop Tail Ind Reverse Fog

SKU: BR280ARW
Price
$99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR280ARW LED Combination Lamp Stop Tail Sequential Indicator Reverse Fog and Reflector

An ADR-approved LED rectangle combination lamp from the Roadvision BR280 Series, the BR280ARW features stop, tail, sequential indicator, reverse, fog, and integrated reflector functions with polycarbonate lens and housing, 10-30V DC multi-volt input, surface or twin bolt mount, and a 500mm sheathed pre-wired cable, backed by a 5-year warranty.

Product Overview

The Roadvision BR280ARW is a rear combination lamp from the BR280 Series, providing the most complete rear lamp function set in the BR280 range: stop, tail, sequential indicator, reverse, fog, and integrated retro reflector in a single 283 x 100 x 29mm surface mount unit. The progressive sequential indicator flashes in a sweeping sequence for enhanced visibility and road safety. Polycarbonate lens and housing are IP67 waterproof and dustproof with a 100,000 hour rated LED lifespan.

LED count covers indicator (24 LEDs), stop/tail (14 LEDs), reverse (12 LEDs), and fog (14 LEDs) functions. Current draw at 13.8V is 0.2A for indicator, 0.2A/0.05A for stop/tail, 0.2A for reverse, and 0.3A for fog. Surface mount with 116mm mounting hole centre, or twin rear stud mount for horizontal and vertical mounting surfaces. Pre-wired with a 500mm sheathed cable. ADR and ECE approved with individual approval numbers for each function. CTA approval CTA-060819. Backed by a 5-year warranty.

Features & Benefits

Sequential Indicator for Enhanced Safety: The progressive sequential indicator flashes in a sweeping sequence rather than a standard simultaneous flash, providing increased visibility and a modern, distinctive appearance that enhances road safety.

Complete 5-Function Combination Lamp: The BR280ARW combines stop, tail, sequential indicator, reverse, fog, and integrated reflector functions in a single compact unit, providing a complete rear lamp solution without requiring multiple separate lamp assemblies.

ADR and ECE Approved for All Functions: Individual ECE approval numbers for indicator (2a-E9-01 16532), stop/tail (R1-S1-E9-02 16532), reverse (AR-E9-00 16532), fog (F1-E9-00 16532), and reflector (IB-E9-02 16532), plus CTA approval CTA-060819, confirming compliance with Australian and international road safety requirements for all lamp functions.

Integrated Retro Reflector: The retro reflector is integrated directly into the lens, providing passive rear visibility without requiring a separate reflector unit.

Polycarbonate Lens and Housing - IP67 Rated: Sealed polycarbonate construction on both lens and housing provides IP67 waterproof and dustproof protection for all exterior trailer and vehicle mounting locations.

Multi-Fit Surface or Twin Bolt Mount: The BR280ARW can be installed via simple surface mount with a 116mm mounting hole centre, or via twin rear stud bolt mount for horizontal or vertical mounting surfaces, providing flexibility for different trailer and vehicle rear panel configurations.

Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.

100,000 Hour LED Lifespan - Fit and Forget: The 100,000 hour rated LED lifespan with maintenance-free solid-state technology provides long-term reliability with no bulb replacements required.

500mm Sheathed Pre-Wired Cable: The 500mm sheathed pre-wired cable provides a protected and reliable connection to the trailer or vehicle wiring harness.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR280ARW
Brand Roadvision
Series BR280
Description Rectangle Stop/Tail/Ref Sequential Indicator Combination
Functions Stop, Tail, Sequential Indicator, Reverse, Fog, Reflector
LED Quantity - Indicator 24 LEDs
LED Quantity - Stop/Tail 14 LEDs
LED Quantity - Reverse 12 LEDs
LED Quantity - Fog 14 LEDs
Input Voltage 10-30V DC
Current Draw - Indicator 0.2A at 13.8V
Current Draw - Stop 0.2A at 13.8V
Current Draw - Tail 0.05A at 13.8V
Current Draw - Reverse 0.2A at 13.8V
Current Draw - Fog 0.3A at 13.8V
Lens Construction Polycarbonate
Housing Construction Polycarbonate

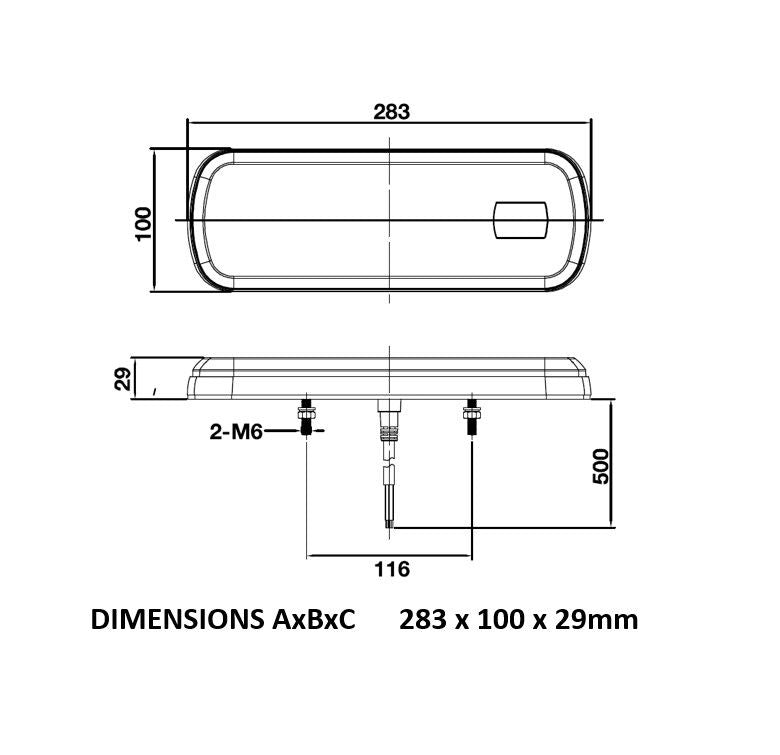

Dimensions 283mm x 100mm x 29mm
Mounting Type Surface Mount or Twin Bolt Mount
Mounting Hole Centre 116mm
Cable Length 500mm Sheathed
IP Rating IP67
ECE Indicator Approval 2a-E9-01 16532
ECE Stop/Tail Approval R1-S1-E9-02 16532
ECE Reverse Approval AR-E9-00 16532
ECE Fog Approval F1-E9-00 16532
ECE Reflector Approval IB-E9-02 16532
CTA Approval CTA-060819
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR280ARW is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and ECE approved for all functions. Mounts via surface mount (116mm mounting hole centre) or twin rear stud bolt mount for horizontal or vertical mounting surfaces. Confirm wiring requirements for all five active functions before purchase.

Frequently Asked Questions

Is the BR280ARW ADR approved for on-road use?

Yes. The BR280ARW holds individual ECE approval numbers for indicator, stop/tail, reverse, fog, and reflector functions, and CTA approval CTA-060819, confirming compliance with Australian and international road safety requirements.

What is a sequential indicator and why is it beneficial?

A sequential indicator activates its LEDs in a progressive sweeping sequence rather than all simultaneously. This provides a more visible and distinctive indicator signal that is easier for other road users to notice, improving rear visibility and road safety.

How can the BR280ARW be mounted?

The BR280ARW can be surface mounted using the 116mm mounting hole centre, or bolt mounted using the twin rear studs for horizontal or vertical mounting surfaces, providing flexibility for different trailer and vehicle rear panel configurations.

Is the BR280ARW compatible with 24V systems?

Yes. The BR280ARW operates across 10-30V DC, compatible with both 12V and 24V vehicle and trailer electrical systems.

How many functions does the BR280ARW provide?

The BR280ARW provides six functions: stop, tail, sequential indicator, reverse, fog, and integrated retro reflector, making it one of the most complete single rear combination lamp units in the BR280 Series.
