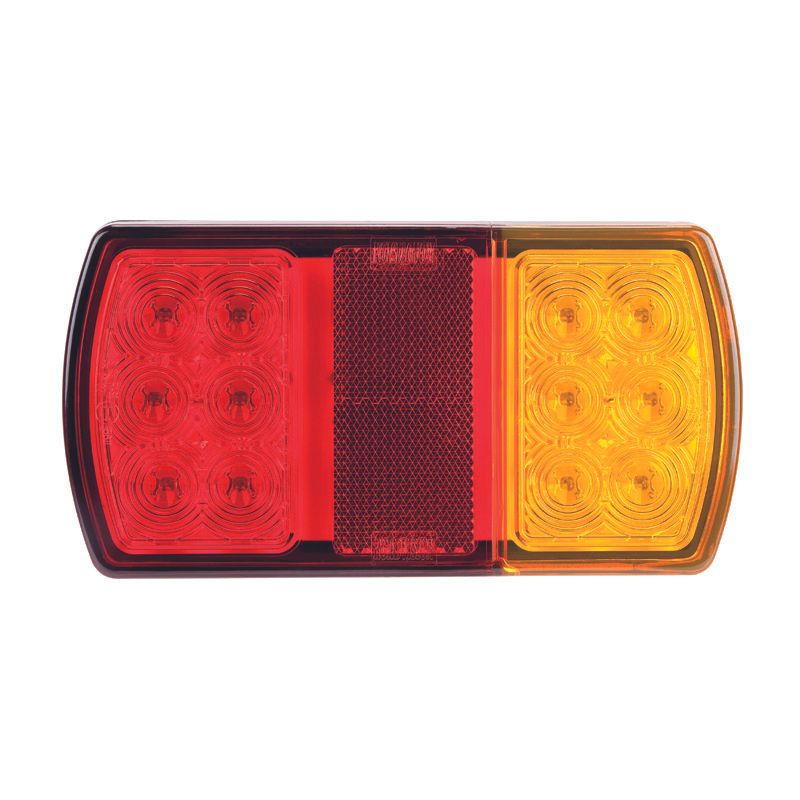

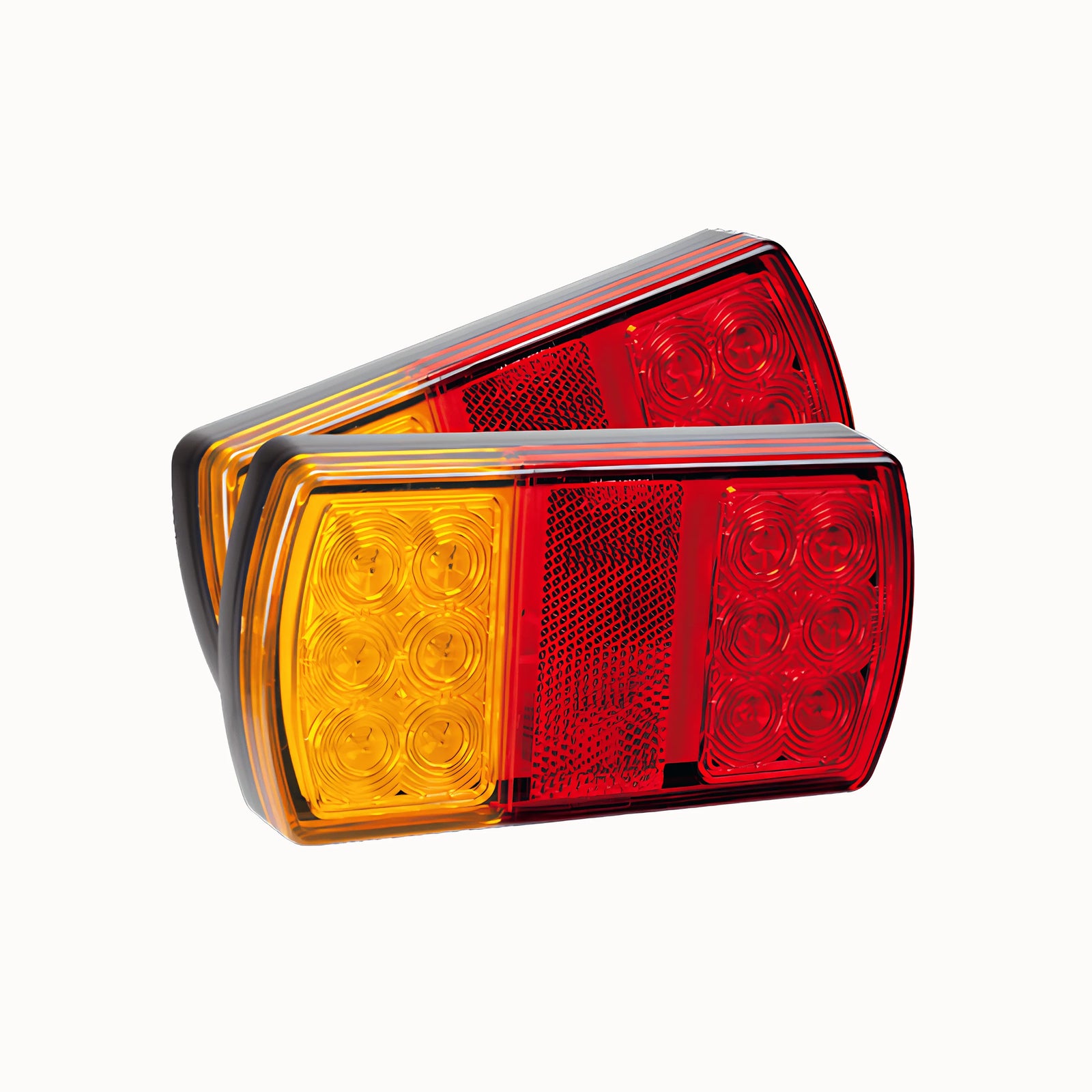

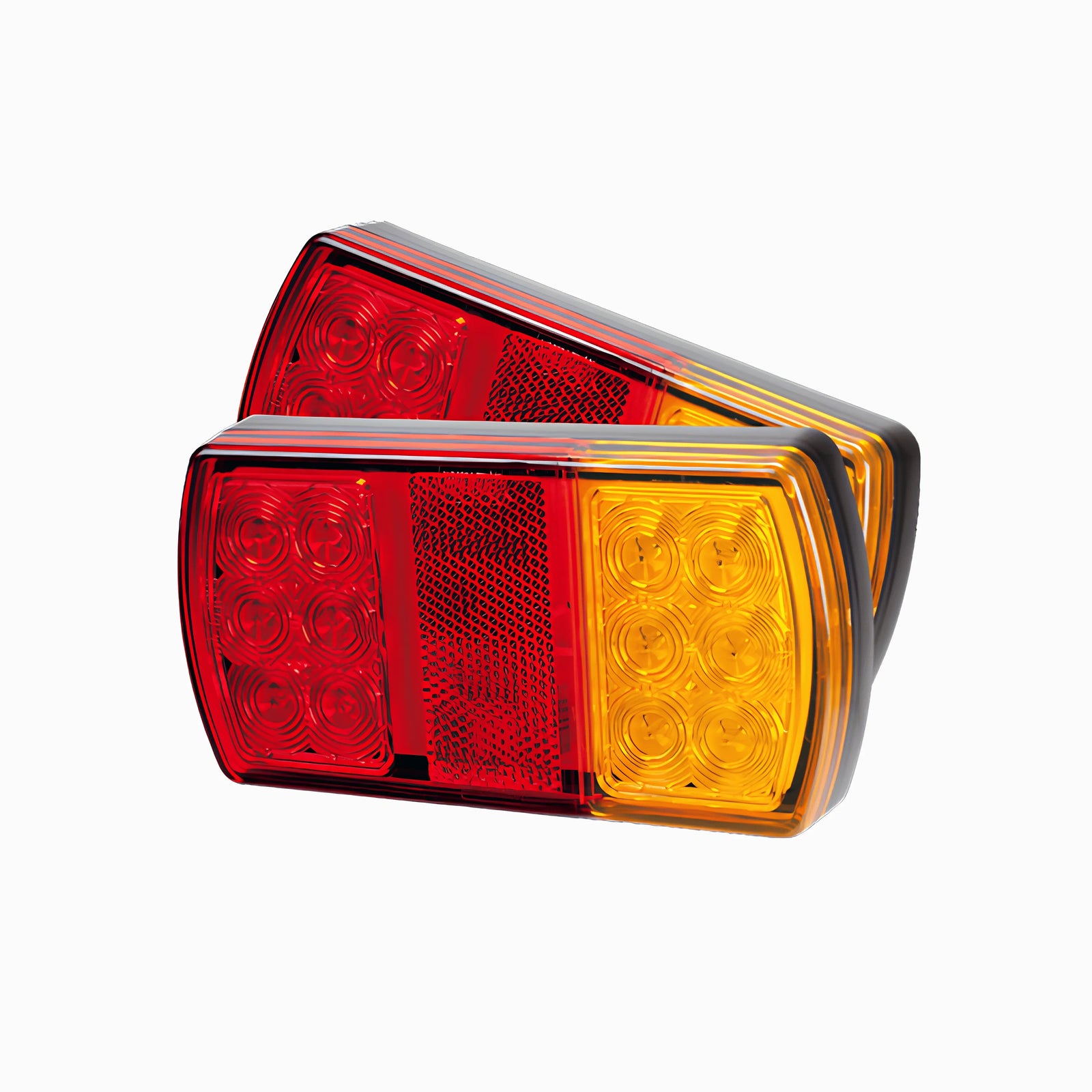

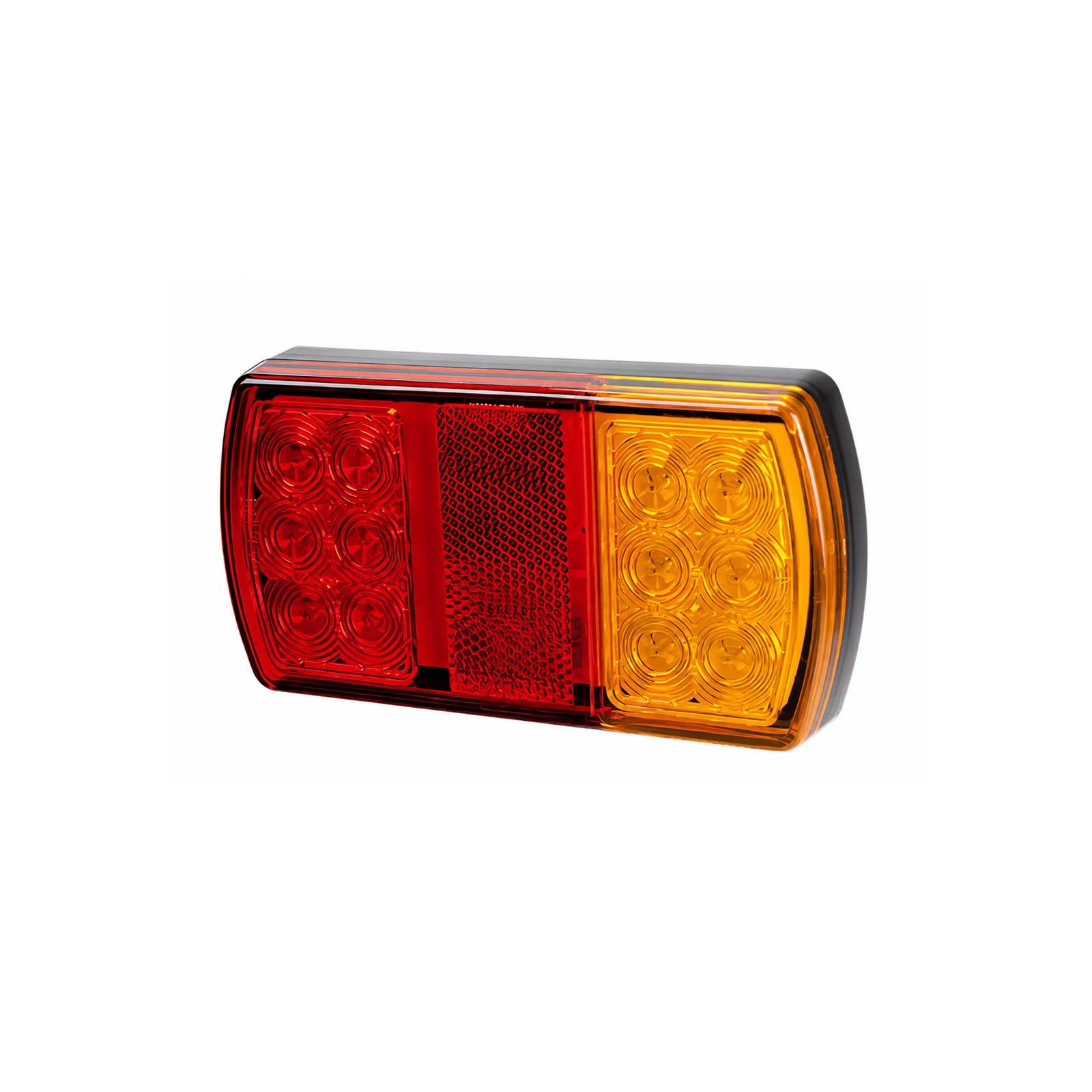

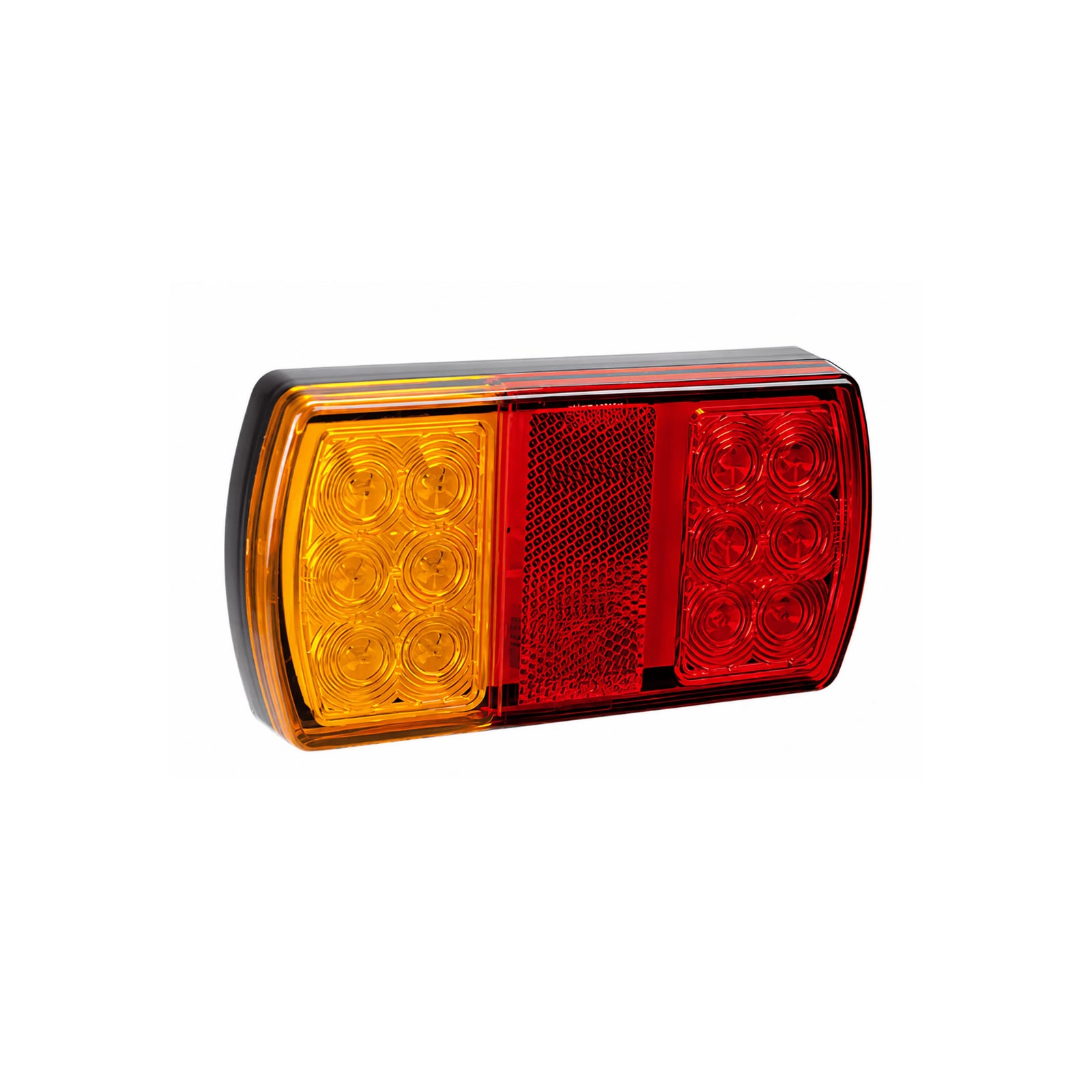

Roadvision BR207LR LED Combination Lamp Twin Pack Stop Tail Indicator
Click to open expanded view

Roadvision BR207LR LED Combination Lamp Twin Pack Stop Tail Indicator

SKU: BR207LR
Price
$48.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR207LR LED Combination Lamp Twin Pack Stop Tail Indicator and Reflector

An ADR-approved 12V LED rectangle combination lamp twin pack from the Roadvision BR207 Series, the BR207LR features stop, tail, indicator, and integrated reflector functions with polycarbonate lens and housing, 100mm mounting hole centre, and a 300mm tinned copper pre-wired cable, backed by a 5-year warranty.

Product Overview

The Roadvision BR207LR is a compact LED combination lamp from the BR207 Series supplied as a twin pack, designed as a simple DIY trailer lighting solution for budget-conscious consumers. Six indicator LEDs and 6 stop/tail LEDs per lamp deliver more light output than equivalent incandescent lamps while drawing a fraction of the current at 12V DC. The polycarbonate lens and housing is waterproof, dustproof, and submersible with a 100,000 hour rated LED lifespan. The integrated reflector is built into the housing. Easy twin stud surface mount installation with stainless steel hardware. Pre-wired with a 300mm tinned copper cable with earth (white), stop (red), rail (brown), and indicator (green or yellow) wires. ADR and ECE approved for indicator (E4-6R-0115611), stop/tail (E4-7R-0215611), and reflector (E4-3R-0215611) functions. CTA approval CTA-060546. Backed by a 5-year warranty.

Features & Benefits

Twin Pack for Complete Trailer Rear Lamp Installation: The BR207LR is supplied as a twin pack, providing both left and right lamps for a complete trailer rear lamp installation in a single purchase.

Stop, Tail, Indicator, and Integrated Reflector Functions: Combines stop, tail, indicator, and integrated reflector functions in a single compact unit.

ADR and ECE Approved for All Functions: ECE approval numbers for indicator (E4-6R-0115611), stop/tail (E4-7R-0215611), and reflector (E4-3R-0215611), and CTA approval CTA-060546, confirming compliance with Australian road safety requirements.

6 LEDs Per Function - Indicator and Stop/Tail: Six LEDs per function produce more light output than equivalent incandescent lamps with minimal current draw.

Polycarbonate Lens and Housing - Waterproof Submersible: Sealed polycarbonate construction provides full waterproof, dustproof, and submersible protection for boat trailer and all-weather applications.

100,000 Hour LED Lifespan - Fit and Forget: Maintenance-free solid-state technology eliminates bulb replacements.

12V DC Input: Compatible with standard 12V trailer and vehicle electrical systems.

Easy Twin Stud Surface Mount with Stainless Steel Hardware: Integrated twin mounting studs with stainless steel hardware provide simple, secure, corrosion-resistant installation.

300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white), stop (red), rail (brown), and indicator (green or yellow) wires.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR207LR
Brand Roadvision
Series BR207
Description Rect Stop/Tail/Ind/Ref Twin Pack
Functions Stop, Tail, Indicator, Reflector
LED Quantity - Indicator 6 LEDs
LED Quantity - Stop/Tail 6 LEDs
Input Voltage 12V DC
Current Draw - Indicator 0.09A at 13.8V
Current Draw - Stop 0.09A at 13.8V
Current Draw - Tail 0.02A at 13.8V
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Dimensions 150mm x 80mm x 23mm
Mounting Hole Centre 100mm
Mount Twin Stud Surface Mount with Stainless Steel Hardware
Cable Length 300mm Tinned Copper
Wiring Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow
Pack Quantity 2 Lamps
ECE Indicator Approval E4-6R-0115611
ECE Stop/Tail Approval E4-7R-0215611
ECE Reflector Approval E4-3R-0215611
CTA Approval CTA-060546
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR207LR is compatible with 12V DC trailer and vehicle electrical systems. ADR and ECE approved for on-road use. Confirm mounting and wiring requirements before purchase. A version with licence plate lamp is available as the BR207LRNP. Multi-volt versions are available as the BR207MV and BR207NPMV.

Frequently Asked Questions

Is the BR207LR ADR approved for on-road use?

Yes. The BR207LR holds ECE approval numbers for indicator (E4-6R-0115611), stop/tail (E4-7R-0215611), and reflector (E4-3R-0215611) functions, and CTA approval CTA-060546.

Is the BR207LR waterproof for boat trailer use?

Yes. The sealed polycarbonate lens and housing provide waterproof and submersible protection, making the BR207LR suitable for boat trailer applications.

How many lamps are in the BR207LR pack?

The BR207LR is a twin pack containing two lamps for a complete left and right trailer rear lamp installation.

What is the difference between the BR207LR and the BR207LRNP?

Both are 12V twin packs with the same lamp specifications. The BR207LRNP adds an integrated licence plate lamp with 4 LEDs and includes a kit with additional components. The BR207LR does not include a licence plate lamp.

Is the BR207LR compatible with 24V systems?

No. The BR207LR is a 12V DC unit only. For multi-volt 10-30V DC compatibility, refer to the BR207MV or BR207NPMV.
