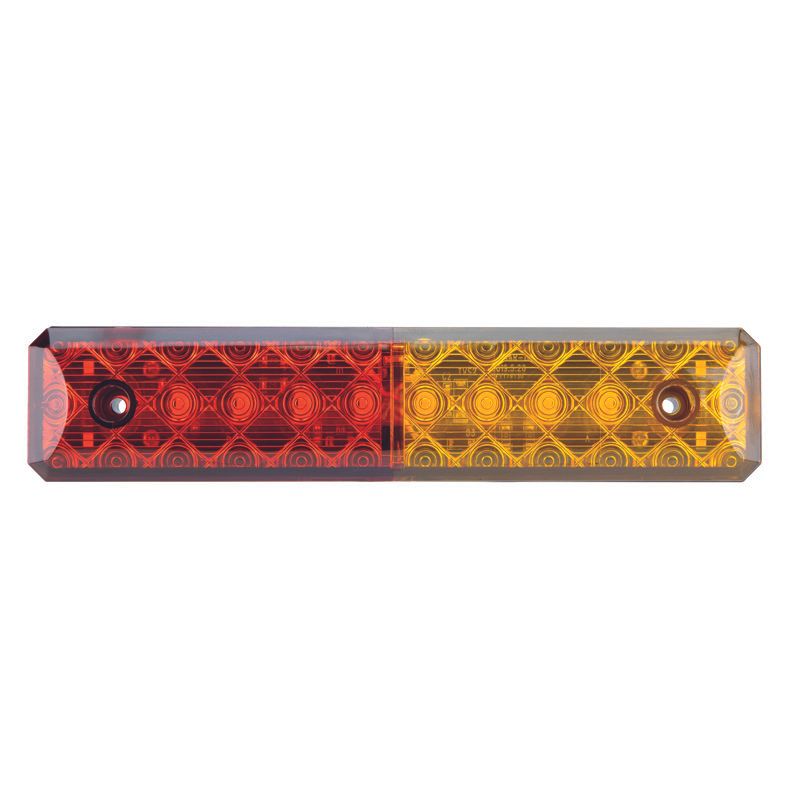

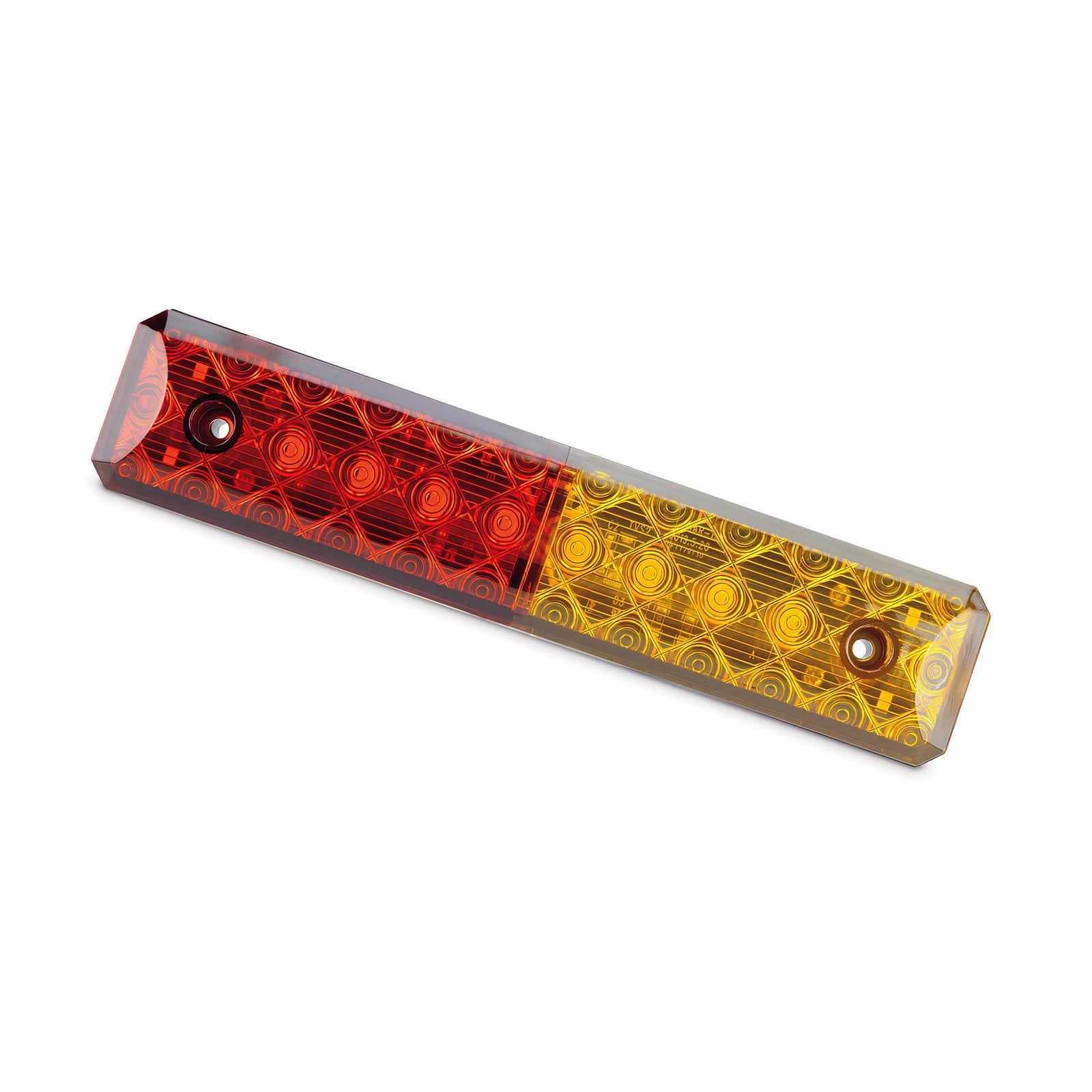

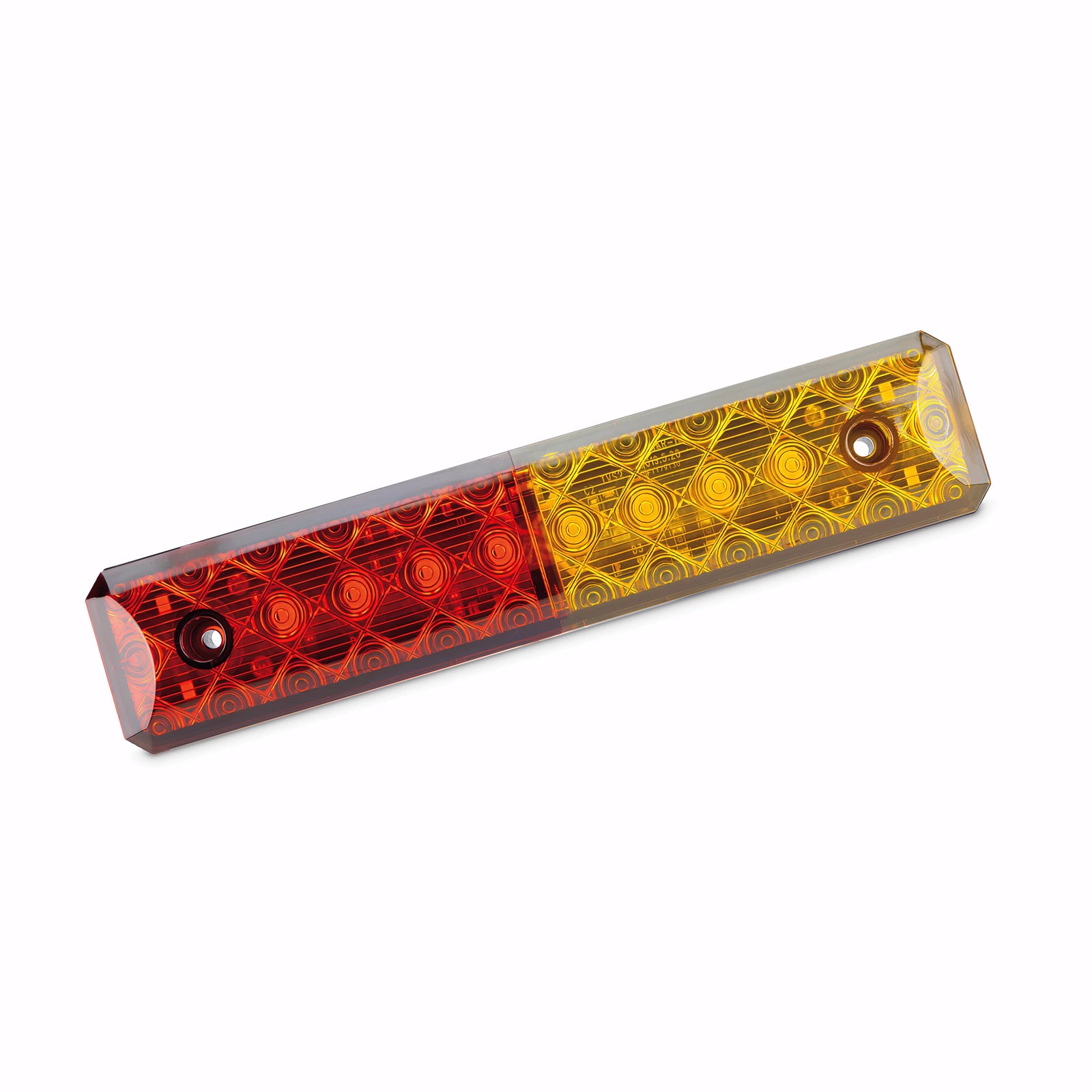

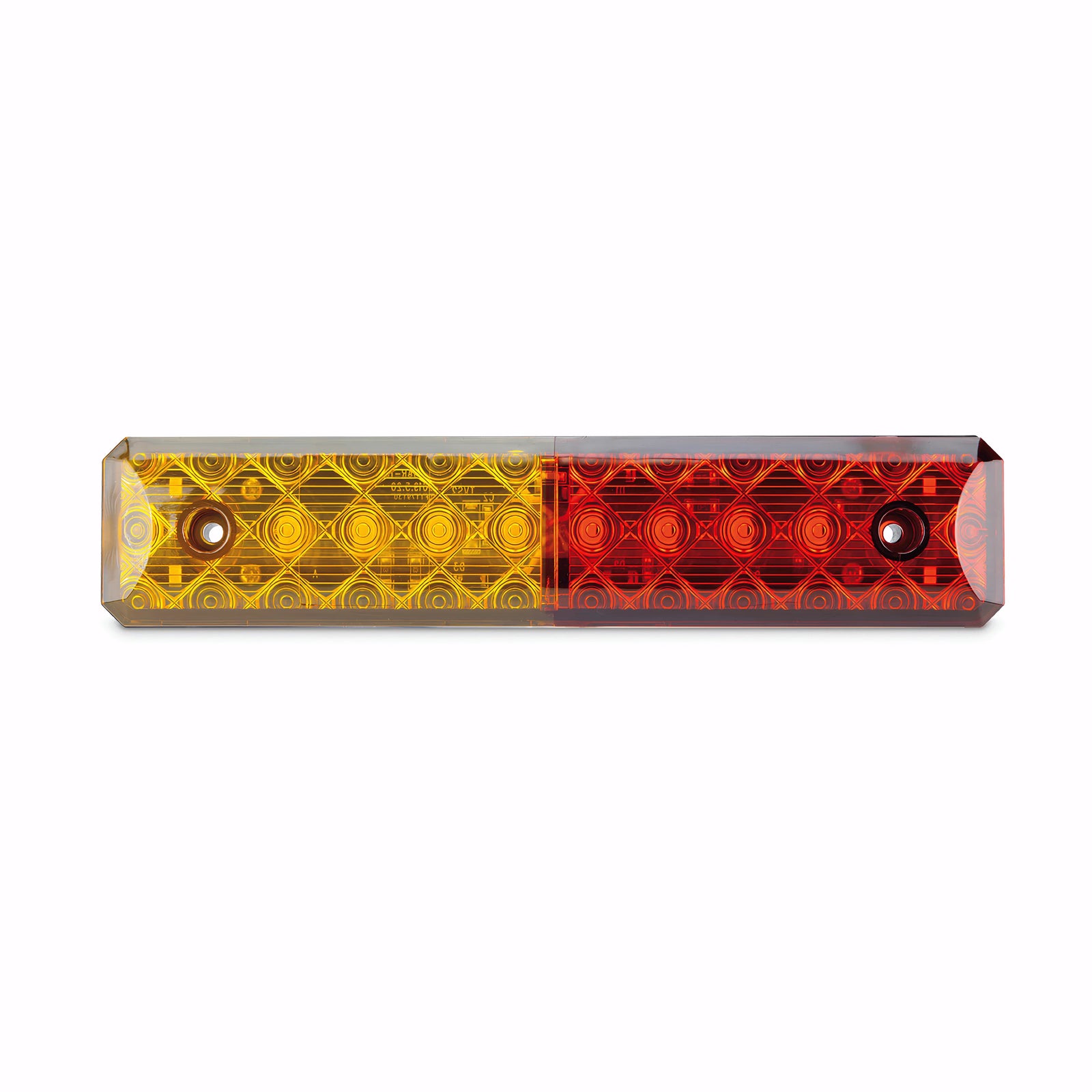

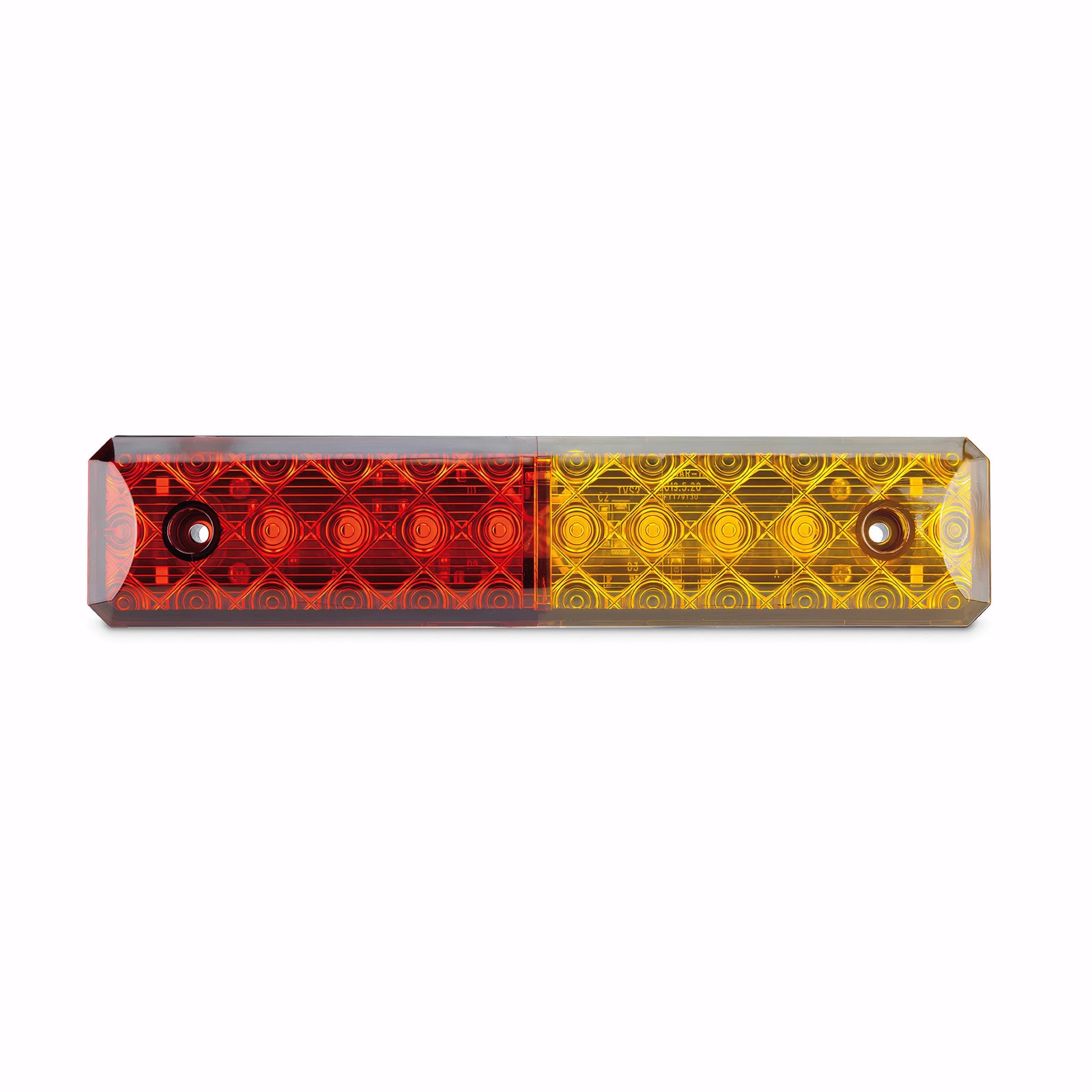

Roadvision BR201AR LED Rectangle Combination Lamp Stop Tail Indicator
Click to open expanded view

Roadvision BR201AR LED Rectangle Combination Lamp Stop Tail Indicator

SKU: BR201AR
Price
$59
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Roadvision BR201AR LED Rectangle Combination Lamp Stop Tail and Indicator

An ADR-approved compact LED rectangle combination lamp from the Roadvision BR201 Series, the BR201AR features stop, tail, and indicator functions with 12 LEDs per function, polycarbonate lens and housing, 10-30V DC multi-volt input, 160mm mounting hole centre, and a 300mm tinned copper pre-wired cable with LEDLink connector, backed by a 5-year warranty.

Product Overview

The Roadvision BR201AR is a compact LED rectangle combination lamp from the BR201 Series, providing stop, tail, and indicator functions in a single 204 x 40 x 28mm surface mount unit. Twelve LEDs per function deliver bright stop, tail, and indicator output, with each function producing more light output than equivalent incandescent lamps while drawing a fraction of the current. Current draw is 0.2A for indicator and 0.2A/0.05A for stop/tail at 13.8V. The polycarbonate lens and housing are waterproof and maintenance-free with a 100,000 hour rated LED lifespan. The 160mm mounting hole centre allows straightforward surface mount installation. Pre-wired with a 300mm tinned copper sheathed cable and LEDLink connector with earth (white), stop (red), tail (brown), and indicator (green or yellow) wires. ADR approved with individual CRN numbers for indicator (CRN 50440), stop (CRN 50441), and tail (CRN 50442) functions. CTA approval CTA-061016. Backed by a 5-year warranty.

Features & Benefits

Compact All-in-One Stop, Tail, and Indicator Combination Lamp: The BR201AR combines stop, tail, and indicator functions in a single compact 204 x 40 x 28mm rectangle unit, reducing the number of individual lamp assemblies required for trailer and vehicle rear lighting.

ADR Approved for All Functions: The BR201AR holds individual ADR approval CRN numbers for indicator (CRN 50440), stop (CRN 50441), and tail (CRN 50442) functions, and CTA approval CTA-061016, confirming compliance with Australian road safety requirements for all lamp functions.

12 LEDs Per Function - Brighter than Incandescent: Twelve LEDs per stop, tail, and indicator function produce more light output than equivalent incandescent lamps while drawing significantly less current, improving safety and visibility.

Polycarbonate Lens and Housing - Weatherproof: Both the lens and housing are manufactured from polycarbonate, providing durability, impact resistance, and weatherproof protection suited to all trailer and vehicle exterior applications.

100,000 Hour LED Lifespan - Fit and Forget: The 100,000 hour rated LED lifespan with maintenance-free solid-state technology eliminates bulb replacements over the service life of the lamp.

Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.

LEDLink Connector for Simple Wiring: The 300mm tinned copper sheathed cable with LEDLink connector provides a reliable, corrosion-resistant pre-wired connection for straightforward installation into trailer wiring systems using compatible LEDLink connectors.

Surface Mount Design with 160mm Mounting Hole Centre: The compact surface mount design with a single 160mm mounting hole centre provides straightforward installation to trailer and vehicle rear panels.

5-Year Warranty: Backed by a 5-year Roadvision warranty.

Technical Specs

Specification Detail
SKU BR201AR
Brand Roadvision
Series BR201
Description Rectangle Combination - Stop/Tail and Indicator
Functions Stop, Tail, Indicator
LED Quantity - Indicator 12 LEDs
LED Quantity - Stop/Tail 12 LEDs
Input Voltage 10-30V DC
Current Draw - Indicator 0.2A at 13.8V
Current Draw - Stop 0.2A at 13.8V
Current Draw - Tail 0.05A at 13.8V
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Dimensions 204mm x 40mm x 28mm
Mounting Hole Centre 160mm
Cable Length 300mm Tinned Copper Sheathed
Connector LEDLink
Wiring Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow
ADR Approval - Indicator CRN 50440
ADR Approval - Stop CRN 50441
ADR Approval - Tail CRN 50442
CTA Approval CTA-061016
LED Lifespan 100,000 Hours
Warranty 5 Years

Compatible With

The BR201AR is compatible with 10-30V DC trailer and vehicle electrical systems. The LEDLink connector is compatible with standard LEDLink trailer wiring systems. ADR and CTA approved for on-road use. Confirm mounting dimensions and wiring compatibility for your specific trailer or vehicle before purchase.

Frequently Asked Questions

Is the BR201AR ADR approved for on-road use?

Yes. The BR201AR holds individual ADR approval CRN numbers for indicator (CRN 50440), stop (CRN 50441), and tail (CRN 50442) functions, and CTA approval CTA-061016, confirming compliance with Australian road safety requirements.

What is a LEDLink connector?

LEDLink is a waterproof connector system used in trailer lighting applications. The BR201AR is pre-wired with a LEDLink connector for direct plug-in connection to compatible LEDLink trailer wiring systems.

Is the BR201AR compatible with 24V systems?

Yes. The BR201AR operates across 10-30V DC, compatible with both 12V and 24V vehicle and trailer electrical systems.

What is the LED lifespan of the BR201AR?

The BR201AR has a rated LED lifespan of 100,000 hours with maintenance-free solid-state technology.

Does the BR201AR include a reverse function?

No. The BR201AR provides stop, tail, and indicator functions only. Confirm whether a reverse function is required for your specific application before purchase.
