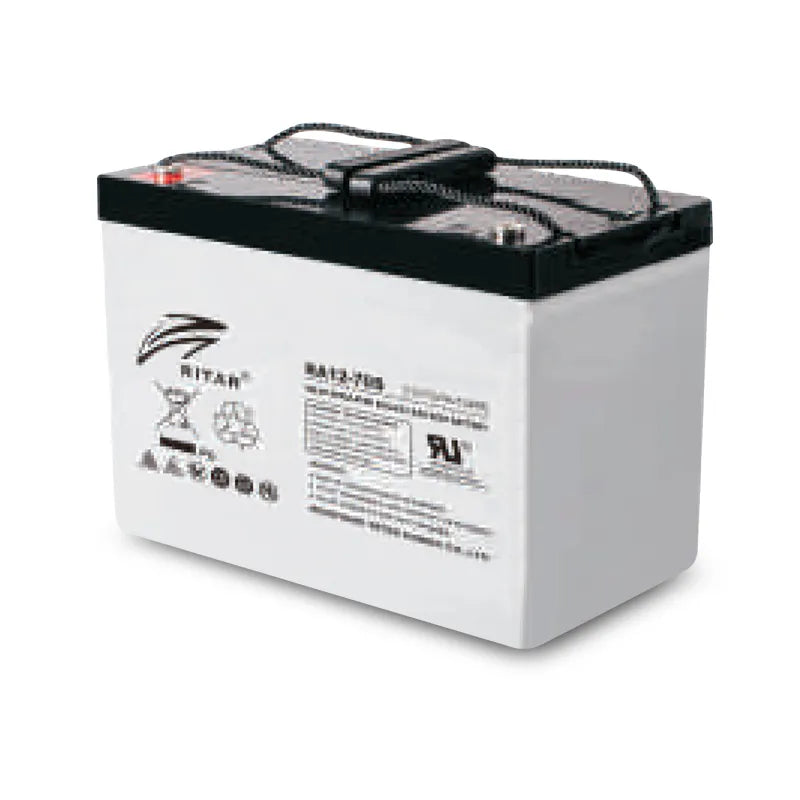

Ritar RA12-80S 12V 80Ah RA Series Battery

SKU: RA1280S
Price
$467.98
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Ritar RA12-80S 12V 80Ah RA Series Battery

Ritar RA12-80S 12V 80Ah RA Series Battery

$467.98

Product features

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

12V 80Ah RA Series Battery

RA series is a general purpose battery with 12 years design life in float service. It meets with IEC, JIS, BS, GB/T and YD/T standards. With advanced AGM val ve regulated technology and high purity raw material, the RA series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, Telecom, power grid, medical equipment, emergency l ight and security system applications.

Specifications:

  • Cells Per Unit: 6
  • Voltage Per Unit: 12
  • Nominal Capacity: 80Ah@10hour-rate to 1.80V per cell @25℃
  • Weight: Approx. 22.0 Kg (Tolerance±3.0%)
  • Internal Resistance: Approx. 8.5 mΩ
  • Terminal: F15(M6)/F11(M6)L4
  • Max. Discharge Current: 800A (5 sec)
  • Short Circuit Current: 1840A
  • Design Life:12 years (Float charging)
  • Max. Charging Current:24.0A
  • Reference Capacity:
    • C3 61.8AH
    • C5 70.0AH
    • C10 80.0AH
    • C20 84.8AH
  • Standby Use Voltage:
    • 13.6 V~13.8 V @ 25℃
    • Temperature Compensation: -3mV/℃/Cell
  • Equalization Voltage:
    • 14.6 V~14.8 V @ 25℃
    • Temperature Compensation: -4mV/℃/Cell
  • Operating Temperature Range:
    • Discharge: -20℃~60℃
    • Charge: 0℃~50℃
    • Storage: -20℃~60℃
  • Normal Operating Temperature Range: 25℃±5℃
  • Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
  • Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
