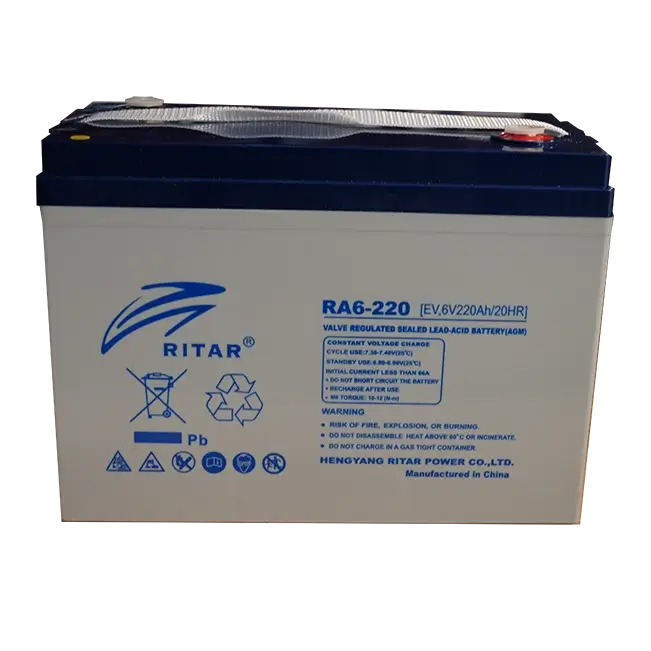

Ritar EV6-220 6V 220Ah AGM Deep Cycle Electric Vehicle Battery
Click to open expanded view
RITAR logo

Call to Purchase

Ritar EV6-220 6V 220Ah AGM Deep Cycle Electric Vehicle Battery

SKU: EV6220
Price
$486.20
Buy now, pay later
  • image
  • image
  • image
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Ritar EV6-220 6V 220Ah AGM Deep Cycle Electric Vehicle Battery

Valve-regulated lead acid (VRLA) AGM deep cycle battery engineered for frequent, high-load discharge applications including electric vehicles, golf carts, forklifts, marine, and mobility equipment, delivering reliable cycle performance with a 220Ah C10 capacity and 2200A maximum discharge current.

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

Product Overview

The Ritar EV6-220 is a 6V AGM deep cycle VRLA battery from Ritar's EV series, purpose-built for the demanding discharge requirements of electric vehicles, golf carts, floor machines, forklifts, aerial lifts, robotics, marine craft, RVs, mobility equipment, and medical equipment applications.

Ritar's EV series is constructed with specially designed active material, strong grids, and thick plate construction to deliver reliable performance under high load conditions and competitive cycle performance over the battery's service life. The sealed VRLA design eliminates maintenance requirements, while the AGM construction prevents acid spillage and allows flexible installation orientation.

With a 220Ah C10 capacity, 234Ah at C20, a 2200A maximum discharge current over 5 seconds, and 1000A cold cranking amperage, the EV6-220 is built for applications that demand sustained power output. Self-discharge is rated at less than 3% per month at 25°C, with a storage life of up to 6 months at 25°C before recharging is required. The battery carries ISO 9001, ISO 14001, and OHSAS 18001 certifications and is UL and CE marked.

Features & Benefits

Deep Cycle AGM VRLA Construction Thick plate design and specially formulated active material deliver reliable capacity and cycle life under the frequent deep discharge conditions typical of electric vehicle and high-load applications.

High Discharge Capability Maximum discharge current of 2200A over 5 seconds and 1000A CCA rating provide strong power output for high-demand start and drive cycles across a broad range of EV and industrial applications.

Sealed Maintenance-Free Design VRLA sealed construction eliminates the need for water top-up, acid management, or venting maintenance, reducing ongoing maintenance requirements and allowing installation in enclosed or tilted positions.

Low Self-Discharge Self-discharge of less than 3% per month at 25°C enables storage of up to 6 months without recharging, reducing capacity loss during periods of inactivity.

Broad Application Suitability Designed for use in electric vehicles, golf carts, floor machines, forklifts, aerial lifts, robotics, marine, RV, mobility, and medical equipment — suitable across a wide range of commercial and recreational applications.

ISO and UL Certified Certified to ISO 9001, ISO 14001, and OHSAS 18001, and carries UL and CE marks for quality, environmental, and safety assurance.

Technical Specs

Specification Details
Brand Ritar
Part Number EV6-220
Battery Type AGM VRLA Deep Cycle
Voltage 6V
Cells Per Unit 3
Capacity (C10) 220Ah @ 1.80V per cell @ 25°C
Capacity (C20) 234Ah
Capacity (C5) 192Ah
Capacity (C3) 170.4Ah
Weight Approx. 32.0kg (Tolerance ±3.0%)
Internal Resistance Approx. 1.5mΩ
Terminal F12 (M8)
Max. Discharge Current 2200A (5 sec)
Cold Cranking Ampere (CCA) 1000A
Max. Charging Current 66.0A
Float Charging Voltage 6.8V-6.9V @ 25°C (Temp Compensation -3mV/°C/Cell)
Cycle Use Voltage 7.3V-7.4V @ 25°C (Temp Compensation -4mV/°C/Cell)
Operating Temp (Discharge) -20°C to 60°C
Operating Temp (Charge) 0°C to 50°C
Operating Temp (Storage) -20°C to 60°C
Normal Operating Temp 25°C ± 5°C
Self Discharge Less than 3% per month @ 25°C
Storage Life Up to 6 months @ 25°C before recharging
Container Material A.B.S. UL94-HB (UL94-V0 Optional)
Length 306 ± 2mm (12.0 inches)
Width 168 ± 2mm (6.61 inches)
Height 220 ± 2mm (8.66 inches)
Total Height 227 ± 2mm (8.94 inches)
Terminal Torque M5 6-7 N*m
Terminal Torque M6 8-10 N*m
Terminal Torque M8 10-12 N*m
Certifications ISO 9001, ISO 14001, OHSAS 18001, UL, CE

Compatible With / Goes Well With

The Ritar EV6-220 is a deep cycle AGM battery suitable for 6V applications requiring high-capacity and frequent discharge cycling, including:

  • Electric vehicles and golf carts
  • Floor machines and forklifts
  • Aerial lifts and robotics
  • Marine and RV applications
  • Mobility and medical equipment

Goes Well With:

  • Compatible 6V deep cycle AGM battery charger
  • Battery cables and terminals
  • Battery boxes and trays
  • Battery monitor or shunt

Frequently Asked Questions

What applications is the Ritar EV6-220 designed for?

The EV6-220 is designed for frequent deep discharge applications including electric vehicles, golf carts, floor machines, forklifts, aerial lifts, robotics, marine craft, RVs, mobility scooters, and medical equipment. Its thick plate AGM construction is optimised for the high-load, repetitive discharge cycles typical of these applications.

What is the rated capacity of the EV6-220?

The EV6-220 is rated at 220Ah at the C10 rate (220Ah over 10 hours to 1.80V per cell at 25°C) and 234Ah at the C20 rate. Capacity reduces to 192Ah at C5 and 170.4Ah at C3, reflecting the higher current draw over shorter discharge periods.

Does the EV6-220 require any maintenance?

No. The EV6-220 is a sealed VRLA AGM battery. The sealed construction eliminates the need for water top-up, acid level checks, or venting maintenance. Always charge using a charger compatible with AGM VRLA batteries and do not exceed the maximum charging current of 66.0A.

How long can the EV6-220 be stored without recharging?

The EV6-220 has a self-discharge rate of less than 3% per month at 25°C. It can be stored for up to 6 months at 25°C before recharging is required. Ensure the battery is fully charged before placing it into storage.

What are the correct charging voltages for the EV6-220?

For float charging, the correct voltage is 6.8V-6.9V at 25°C with a temperature compensation of -3mV per degree Celsius per cell. For cycle use charging, the correct voltage is 7.3V-7.4V at 25°C with a temperature compensation of -4mV per degree Celsius per cell. Always use a charger rated and configured for AGM VRLA deep cycle batteries.
