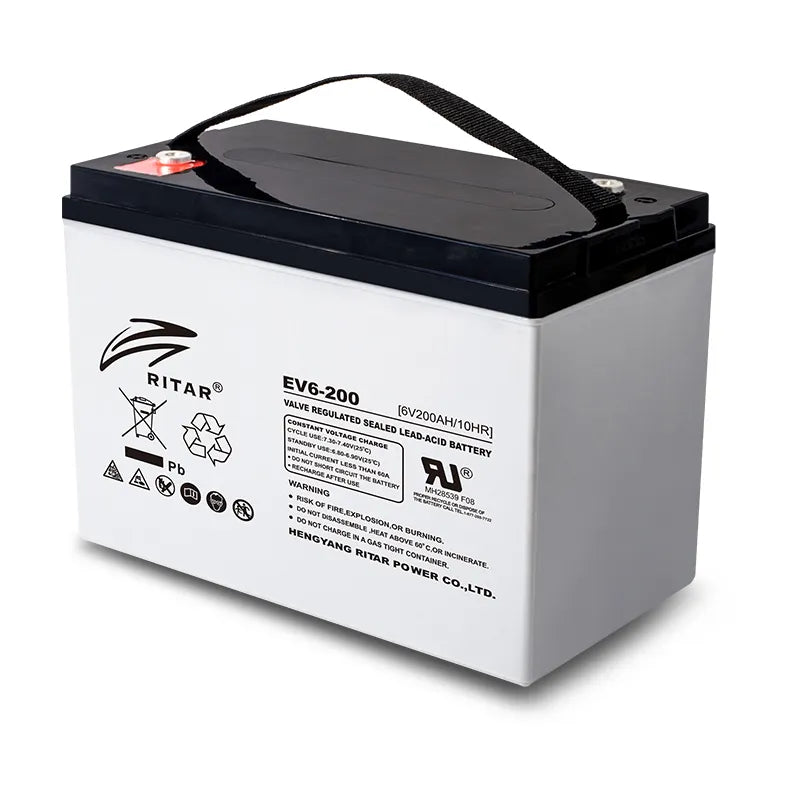

Ritar EV6-200 6V 200Ah Electric Vehicle Series

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

6V 200Ah Valve Regulated Lead Acid Battery

EV ( Electric Vehicle ) series is specially designed for frequent discharge deep cycle application. By using the specially designed active material, strong grids and thick plate construction, the EV series battery offers reliable performance in high load situations and could provide competitive cycle performance. Electric Vehicle and Golf cart, Floor Machines, Forklifts, Aerial lifts, Robotics, Marine, RV, Mobility and Medical Equipment, and most outdoor application.

Specifications:

• Cells Per Unit: 3
• Voltage Per Unit: 6
• Capacity:200Ah@10hr-rate to 1.80V per cell @25℃
• Weight: Approx. 30.0 Kg (Tolerance±3.0%)
• Internal Resistance: Approx. 2.4 mΩ
• Terminal: F14(M8)
• Max. Discharge Current: 2000A (5 sec)
• Cold Cranking Ampere(CCA): 720A
• Maxi. Charging Current: 60.0A
• Reference Capacity:
• C3 154.8AH
• C5 174.5AH
• C10 200.0AH
• C20 212.0AH
• Float Charging Voltage
• 6.8 V~6.9 V @ 25℃
• Temperature Compensation: -3mV/℃/Cell
• Cycle Use Voltage
• 7.3 V~7.4 V @ 25℃
• Temperature Compensation: -4mV/℃/Cell
• Operating Temperature Range:
• Discharge: -20℃~60℃
• Charge: 0℃~50℃
• Storage: -20℃~60℃
• Normal Operating Temperature Range: 25℃±5℃
• Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
• Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

• Length:322±2mm (12.7 inches)
• Width: 177.5±2mm (6.99 inches)
• Height:226±2mm (8.90 inches)
• Total Height:231±2mm (9.09 inches)

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
