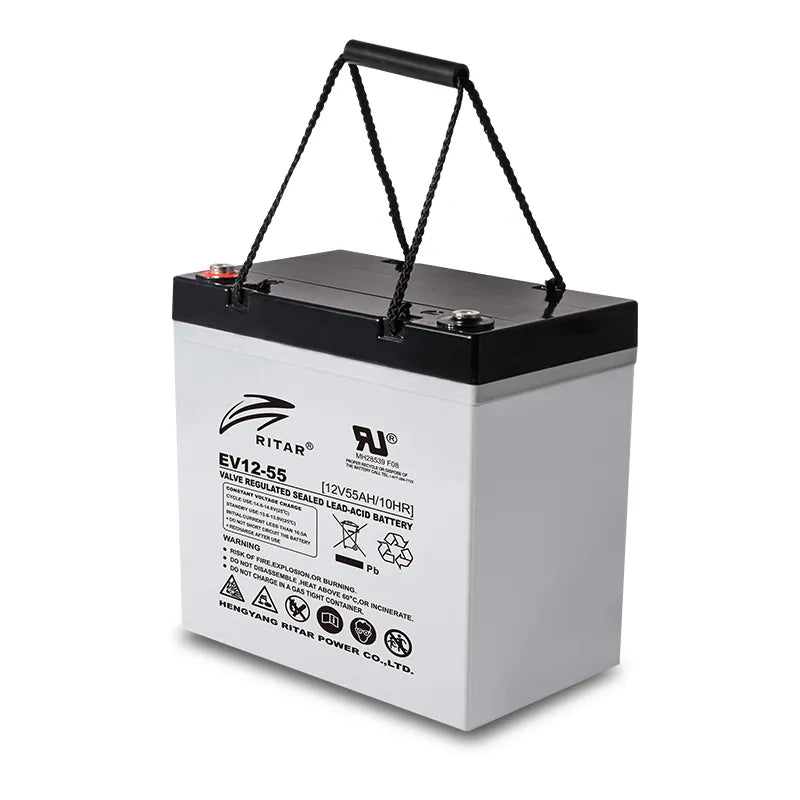

Ritar EV12-55 12V 55Ah Electric Vehicle Series
Click to open expanded view
RITAR logo

Ritar EV12-55 12V 55Ah Electric Vehicle Series

SKU: EV1255
Price
$288.20
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

12V 55Ah Valve Regulated Lead Acid Battery

EV ( Electric Vehicle ) series is specially designed for frequent discharge deep cycle application. By using the specially designed active material, strong grids and thick plate construction, the EV series battery offers reliable performance in high load situations and could provide competitive cycle performance. Electric Vehicle and Golf cart, Floor Machines, Forklifts, Aerial lifts, Robotics, Marine, RV, Mobility and Medical Equipment, and most outdoor application.

Note: Old SKU RA12-55EV

Specifications:

  • Cells Per Unit: 6
  • Voltage Per Unit: 12
  • Capacity:55Ah@10hr-rate to 1.80V per cell @25℃
  • Weight: Approx. 16.5 Kg (Tolerance±3.0%)
  • Internal Resistance: Approx. 7.0 mΩ
  • Terminal: F15(M6)/F11(M6)
  • Max. Discharge Current: 550A (5 sec)
  • Cold Cranking Ampere(CCA): 360A
  • Maxi. Charging Current: 16.5A
  • Reference Capacity:
    • C3 42.6AH
    • C5 48.1AH
    • C10 55.0AH
    • C20 58.2AH
  • Float Charging Voltage
    • 13.6 V~13.8 V @ 25℃
    • Temperature Compensation: -3mV/℃/Cell
  • Cycle Use Voltage
    • 14.6 V~14.8 V @ 25℃
    • Temperature Compensation: -4mV/℃/Cell
  • Operating Temperature Range:
    • Discharge: -20℃~60℃
    • Charge: 0℃~50℃
    • Storage: -20℃~60℃
  • Normal Operating Temperature Range: 25℃±5℃
  • Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
  • Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

  • Length:229±2mm (9.02 inches)
  • Width: 138±2mm (5.43 inches)
  • Height:211±2mm (8.31 inches)
  • Total Height:216±2mm (8.50 inches)
Terminal Value
M5 6~7 N*m
M6 8~10 N*m
M8 10~12 N*m

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
