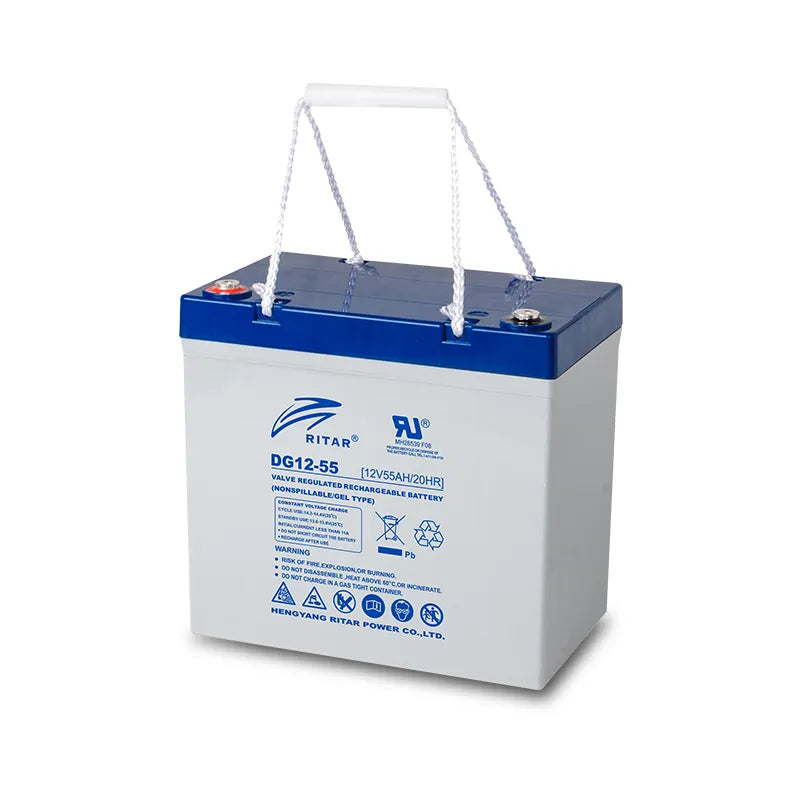

Ritar DG12-55 12V 55Ah Deep Cycle Gel Series Battery
Click to open expanded view
RITAR logo

Ritar DG12-55 12V 55Ah Deep Cycle Gel Series Battery

SKU: DG1255
Price
$246.90
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

12V 55Ah Deep Cycle Gel Series Battery

DG (Deep Cycle GEL ) series is pure GEL battery with 15 years floating design life , it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented GEL electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and it can offers 2 times cyclic life than the standard series. It is suitable for solar & wind system, marine, deep discharge UPS etc.

Specifications:

  • Cells Per Unit: 6
  • Voltage Per Unit: 12
  • Capacity: 55Ah@20hr-rate to 1.75V per cell @25℃
  • Weight: Approx. 16.5 Kg (Tolerance±3.0%)
  • Internal Resistance: Approx. 11.5 mΩ
  • Terminal: F15(M6)/F11(M6)
  • Max. Discharge Current: 550A (5 sec)
  • Design Life: 15 years (floating charge)
  • Max. Charging Current: 11.0 A
  • Reference Capacity:
    • C3 37.5AH
    • C5 42.4AH
    • C10 48.4AH
    • C20 55.0AH
  • Float Charging Voltage
    • 13.6 V~13.8 V @ 25℃
    • Temperature Compensation: -3mV/℃/Cell
  • Cycle Use Voltage
    • 14.2 V~14.4 V @ 25℃
    • Temperature Compensation: -4mV/℃/Cell
  • Operating Temperature Range:
    • Discharge: -20℃~60℃
    • Charge: 0℃~50℃
    • Storage: -20℃~60℃
  • Normal Operating Temperature Range: 25℃±5℃
  • Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
  • Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
