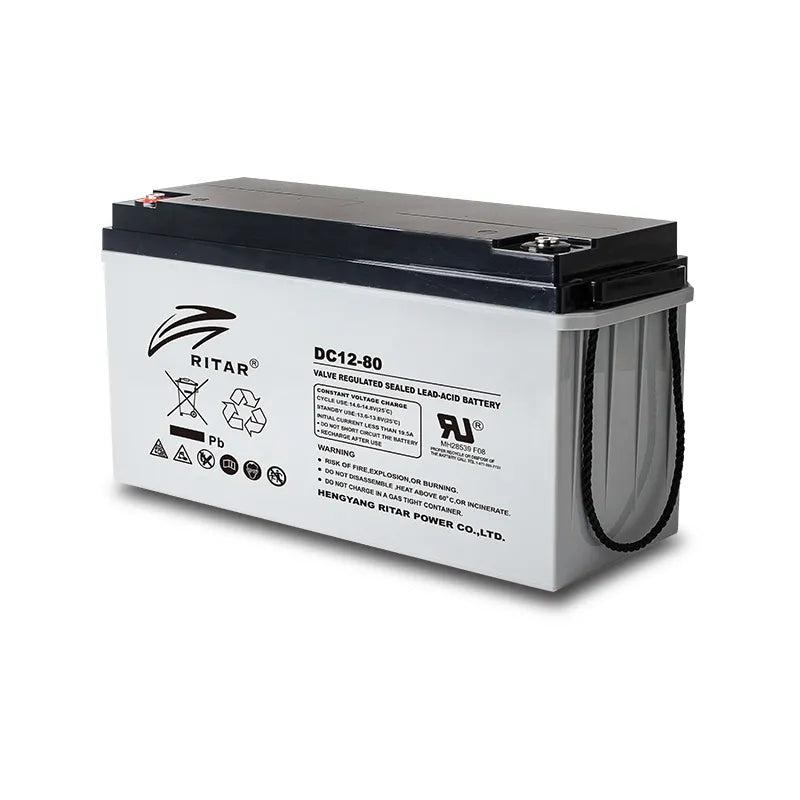

Ritar DC12-80 12V 80Ah Deep Cycle Series Battery

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

12V 80Ah Deep Cycle Series Battery

DC (Deep Cycle) series batteries provide superior high integrity and reliability. It is specially designed for frequent cyclic charge and discharging. By using strong grids, thick plate and specially active material are designed for repeated deep-discharge applications. The DC series batteries offer 30% more cyclic life than the standby series. It is suitable for solar and wind renewable energy storage, mobility and medical equipment and cable TV etc.

Specifications:

• Cells Per Unit: 6
• Voltage Per Unit: 12
• Capacity:80Ah@20hr-rate to 1.75V per cell @25℃
• Weight: Approx. 22.3 Kg (Tolerance±3.0%)

• Internal Resistance: Approx. 7.0 mΩ
• Terminal: F5(M8)/F11(M6)
• Max. Discharge Current: 800A (5 sec)
• Design Life: 12 Years (floating charge)
• Max. Charging Current: 24.0A
• Reference Capacity:
• C3 61.1AH
• C5 68.9AH
• C10 76.2AH
• C20 80.0AH
• Float Charging Voltage
• 13.6 V~13.8 V @ 25℃
• Temperature Compensation: -3mV/℃/Cell
• Cycle Use Voltage
• 14.6 V~14.8 V @ 25℃
• Temperature Compensation: -4mV/℃/Cell
• Operating Temperature Range:
• Discharge: -20℃~60℃
• Charge: 0℃~50℃
• Storage: -20℃~60℃
• Normal Operating Temperature Range: 25℃±5℃
• Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
• Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
